8-15 — FIXING PARTS; WIRING HARNESS (#27253) — 126 parça

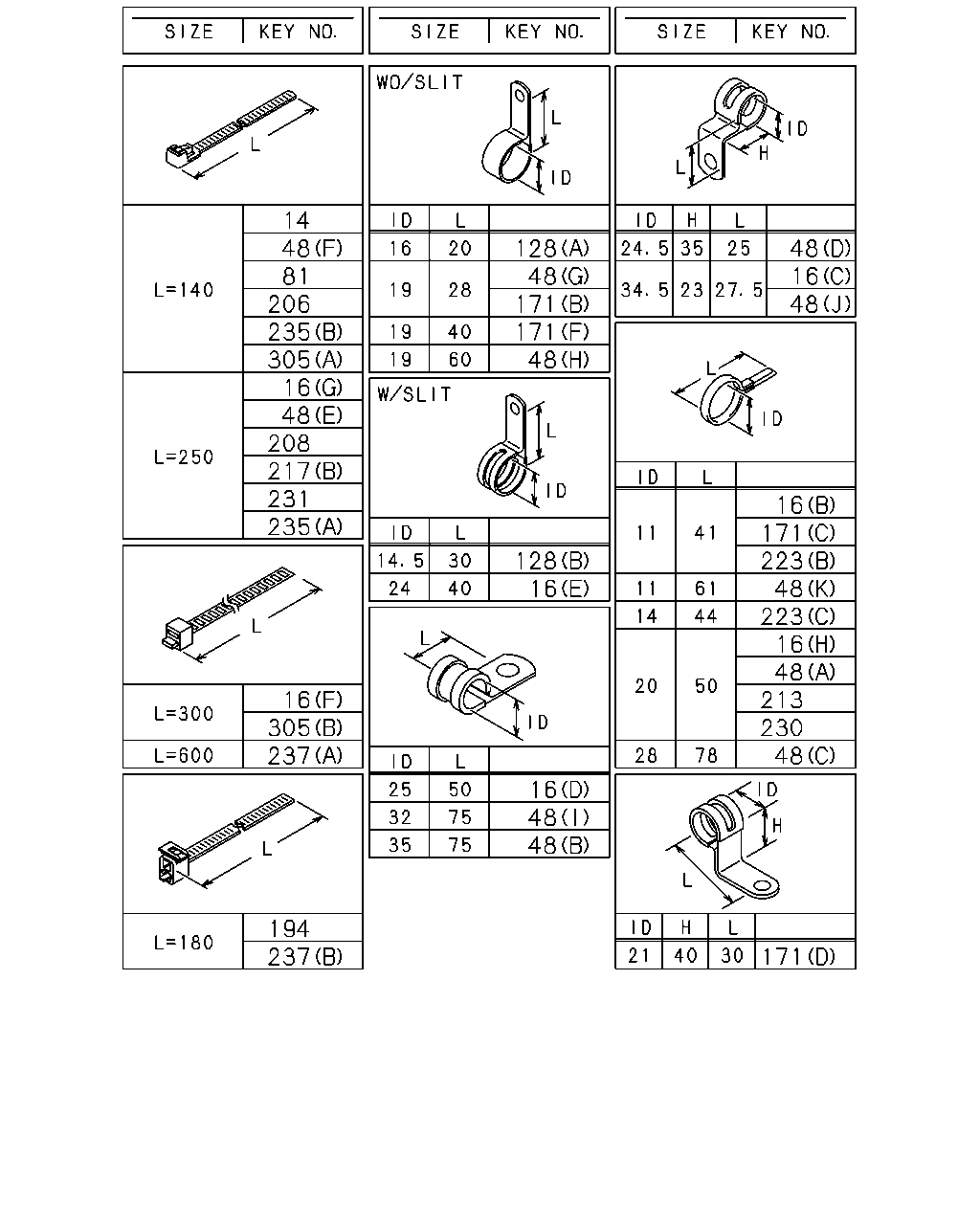

çizim 23591
14 48 81 206 235 305 16 48 208 217 231 235 128 48 171 171 48 48 16 48 16 171 223 48 223 16 48 213 230 48 128 16 16 305 237 16 48 48 194 237 171
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
L=140 		5-09707-031-1 01 1 0210- ● ●
16 CLIP; HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0210- ●
16 CLIP; HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 03 1 0210- ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0210- ● ●
16 CLIP; HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 0210- ● ●
16 CLIP; HARNESS
(E) ID=24 L=40 		1-09701-139-0 01 1 0210- ● ●
16 CLIP; HARNESS
(F) L=300 THA 		1-09707-001-1 01 1 0210- ● ●
16 CLIP; HARNESS
(G) L=250 THA 		5-09707-030-1 01 1 0210- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 THA 		9-09917-430-0 03 1 0210- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 THA 		9-09917-430-0 03 1 0210- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 THA 		8-97916-115-0 11 1 0210- ●
48 CLIP; FRAME HARNESS
(B) ID=35 L=75 		1-09700-608-2 01 1 0210- ● ●
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 THA 		1-09700-858-0 08 1 0210- ● ●
48 CLIP; FRAME HARNESS
(D) ID=24.5 H=35 L=25 		1-09700-990-0 02 1 0210- ● ●
48 CLIP; FRAME HARNESS
(E) L=250 THA 		5-09707-030-1 01 1 0210- ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 01 1 0210- ● ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 THA 		8-97916-115-0 02 1 0210- ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=28 		9-09525-856-0 01 1 0210- ● ●
48 CLIP; FRAME HARNESS
(H) ID=19 L=60 		9-09525-896-0 01 1 0210- ● ●
48 CLIP; FRAME HARNESS
(I) ID=32 L=75 		1-09700-704-1 02 1 0210- ● ●
48 CLIP; FRAME HARNESS
(J) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0210- ● ●
48 CLIP; FRAME HARNESS
(K) ID=11 L=61 THA 		1-09700-484-0 01 1 0210- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 THA 		8-97916-115-0 19 1 0210- ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0210- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0210- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0210- ● ●
171 CLIP; STARTER HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 01 1 0210- ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0210- ●
171 CLIP; STARTER HARNESS
(E) OD=9 H=6 THA 		1-09709-178-0 02 1 0210- ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 01 1 0210- ●
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		9-09525-876-0 01 1 0210- ●
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0210- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0210- ●
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0210- ● ●
194 CLIP; BAND
L=180 THA 		1-09707-162-1 01 1 0210- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0210- ● ●
208 CLIP; HARNESS,MAG VLV
L=250 THA 		5-09707-030-1 01 1 0210- ●
213 CLIP; END CROSS HARNESS
ID=20 L=50 THA 		8-97916-115-0 03 1 0210- ● ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0210- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 THA 		5-09707-030-1 02 1 0210- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 02 1 0210- ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 07 1 0210- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 0210- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0210- ● ●
230 CLIP; C/MBR HARNESS
ID=20 L=50 THA 		9-09917-430-0 02 1 0210- ● ●
231 CLIP; BAND,OIL PRESS
L=250 THA 		5-09707-030-1 01 1 0210- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0210- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 THA 		5-09707-030-1 01 1 0210- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 0210- ●
237 CLIP; BAND,ACL
(A) L=600 		1-09707-107-1 01 1 0210- ● ●
237 CLIP; BAND,ACL
(B) L=180 THA 		1-09707-162-1 01 1 0210- ● ●
305 CLIP; ENG HARNESS
(A) L=140 THA 		8-97920-656-0 02 1 0303- ●
305 CLIP; ENG HARNESS
6SD1 TCN ENG<31L> (A) L=140 THA 		8-97920-656-0 02 1 0303- ●
305 CLIP; ENG HARNESS
(B) L=300 THA 		1-09707-001-1 01 1 0210- ● ●
çizim 81382
217 148 235 148 168 171 223 470 16 171 116 421 121
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0210- ●
16 CLIP; HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 03 1 0210- ● ●
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 THA 		1-09700-905-0 01 1 0210- ● ●
16 CLIP; HARNESS
(D) ID=25 L=50 		1-09701-019-0 01 1 0210- ● ●
16 CLIP; HARNESS
(E) ID=24 L=40 		1-09701-139-0 01 1 0210- ● ●
16 CLIP; HARNESS
(F) L=300 THA 		1-09707-001-1 01 1 0210- ● ●
16 CLIP; HARNESS
(G) L=250 THA 		5-09707-030-1 01 1 0210- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 THA 		9-09917-430-0 03 1 0210- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 THA 		9-09917-430-0 03 1 0210- ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 03 1 0210- ● ●
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0210- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 THA 		8-94232-611-0 01 1 0210- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 THA 		8-97069-515-0 01 1 0210- ● ●
168 CLIP; DASH HARNESS
ID=6 & 10-13 THA 		8-97069-515-0 05 1 0210- ● ●
171 CLIP; STARTER HARNESS
(C) ID=11 L=41 THA 		1-09700-403-0 01 1 0210- ●
171 CLIP; STARTER HARNESS
(D) ID=21 L=30 H=40 		1-09700-991-1 01 1 0210- ●
171 CLIP; STARTER HARNESS
(E) OD=9 H=6 THA 		1-09709-178-0 02 1 0210- ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 01 1 0210- ●
171 CLIP; STARTER HARNESS
(F) ID=19 L=40 		9-09525-876-0 01 1 0210- ●
171 CLIP; STARTER HARNESS
(A) L=63 		1-09700-418-1 01 1 0210- ● ●
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0210- ●
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 THA 		1-09700-980-0 02 1 0210- ● ●
217 CLIP; RR BODY HARNESS
(B) L=250 THA 		5-09707-030-1 02 1 0210- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 02 1 0210- ●
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 THA 		1-09700-403-0 07 1 0210- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 THA 		1-09709-178-0 01 1 0210- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 THA 		9-09917-427-0 02 1 0210- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(C) ID=6 H=25 L=21 THA 		1-09700-432-0 01 1 0210- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) L=250 THA 		5-09707-030-1 01 1 0210- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=140 		5-09707-031-1 01 1 0210- ●
421 CLIP; FLOOR HARNESS
L=20 		1-09987-246-2 01 1 0210- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 THA 		1-09709-178-0 01 1 0210- ● ●
çizim 81605
334 178 178 334 334 530 335 59 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS 1-47476-200-0 01 1 0210- ● ●
59 BRACKET; FRAME HARNESS
L=95 THA 		1-82699-085-0 01 1 0210- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0210- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0210- ● ●
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0210- ● ●
334 BRACKET
(A) 		1-47477-840-0 02 1 0210- ●
334 BRACKET
(B) 		1-82699-639-1 02 1 0210- ●
334 BRACKET
(C) L=60 		1-82699-875-0 01 1 0210- ●
335 BRACKET; CONNECTOR
THA 		1-82698-167-0 01 1 0210- ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0210- ● ●

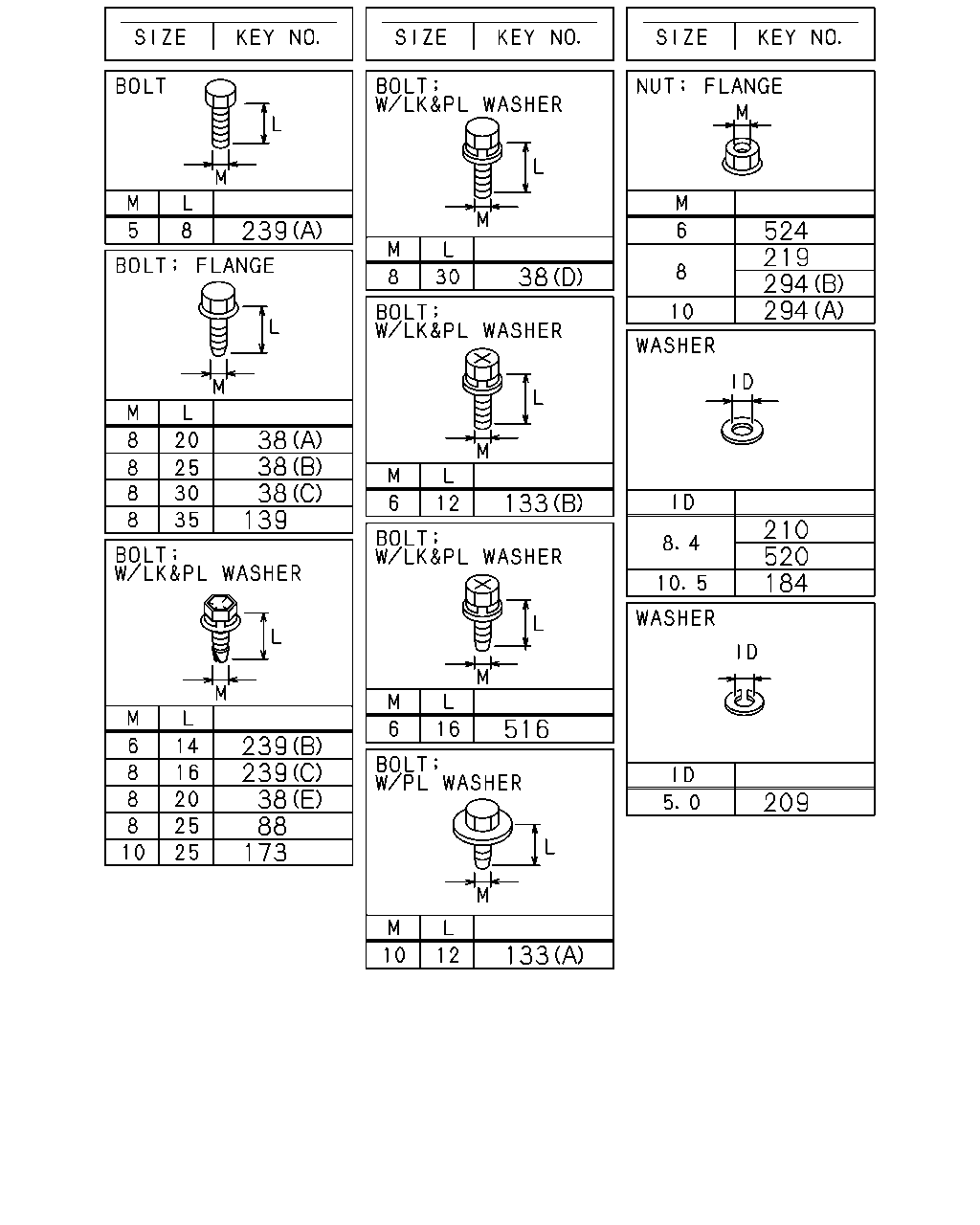

çizim 85310
239 524 219 294 294 38 38 38 38 139 133 210 520 184 516 239 239 38 88 173 209 133
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0210- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0210- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0210- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28680-825-0 03 1 0210- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 04 1 0210- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0210- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0210- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0210- ●
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0210- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0210-0210 ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0210- ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0210- ● ●
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0210- ●
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0210- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 		1-09503-265-0 01 1 0210- ● ●
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0210- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0210- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 03 1 0210- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 05 1 0210- ● ●
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0210- ●
239 BOLT; GRAND
(A) M5X8 THA 		0-20800-508-0 01 1 0210- ● ●
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0210- ● ●
239 BOLT; GRAND
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0210- ● ●
294 NUT
(A) M10 FLANGE 		0-91150-210-0 04 1 0210- ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0210- ● ●
294 NUT
(B) M8 FLANGE 		0-91150-108-0 01 1 0210- ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 02 1 0210- ● ●
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0210- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0210- ● ●
