Isuzu WW
▶
TRUCKS
▶
FXZ
▶
10907 - FXZ(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#27252) — 64 parça
Tümü
A - FXZ5MC
B - FXZ5MF
◀
[810A] INST PANEL SIDE;FACIA HARNESS (7 parça)
[810A] WIRING;FRAME SIDE HARNESS (4 parça)
[810A] FUSE BOX,FUSE,PULLER AND DIODE (17 parça)
[810A] CONNECTOR BOX AND T/M HARNESS (11 parça)
[810A] WIRING;CAB SIDE HARNESS (13 parça)
[810A] HARNESS BOX AND CONT UNIT HARNESS (12 parça)
▶

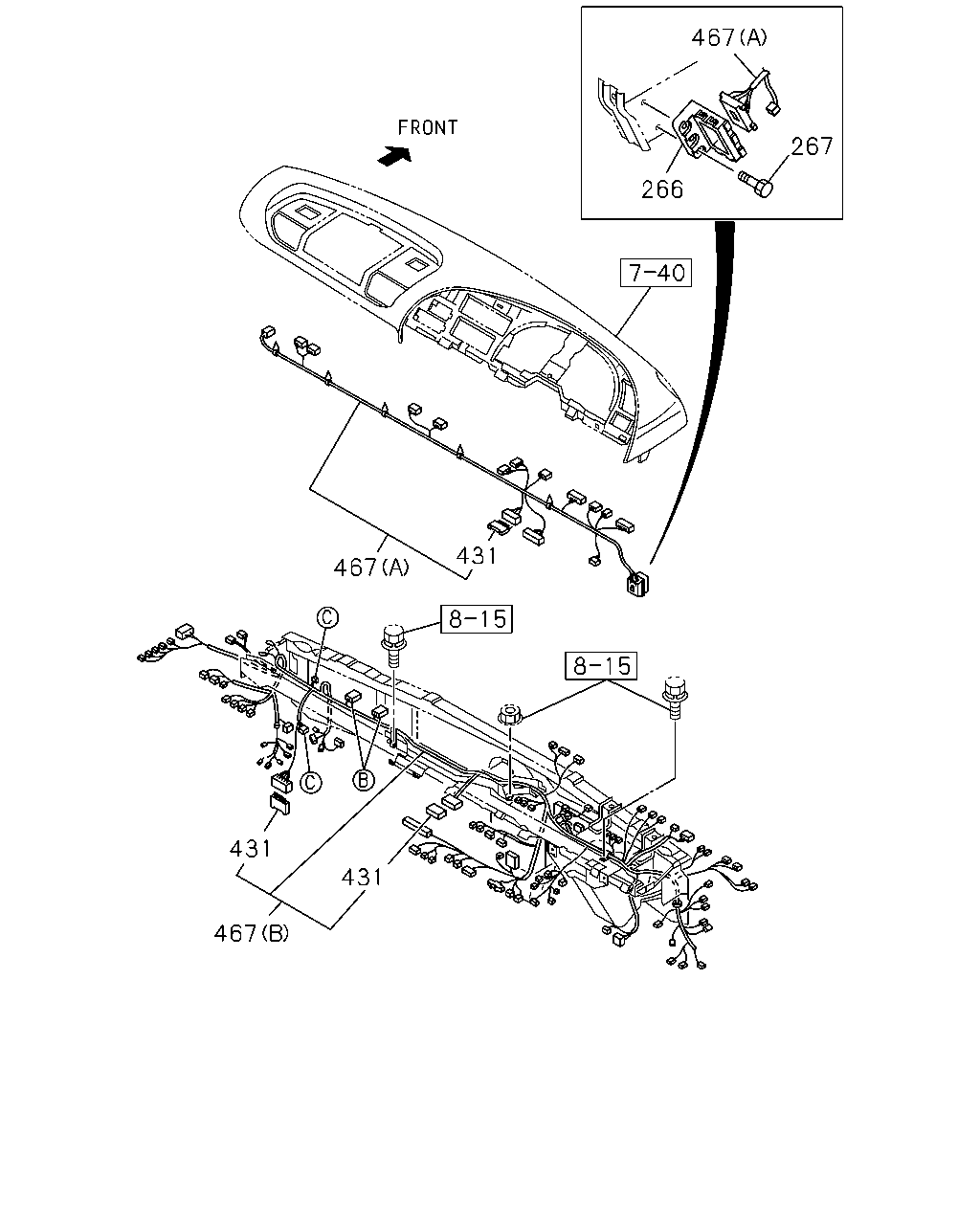

467
267
266
431
467
431
431
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0210-
●
●
267
BOLT; BRKT
M6X16 W/PL WASHER THA
1-09981-438-0
02
1
0210-
●
●
431
CONNECTOR; JOINT
BROWN 10P THA
1-82699-601-0
01
1
0210-
●
●
431
CONNECTOR; JOINT
BROWN 10P THA
1-82699-601-0
02
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-544-3
01
1
0210-
●
467
HARNESS; FACIA
(A) THA
8-97915-002-0
01
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-542-3
01
1
0210-
●

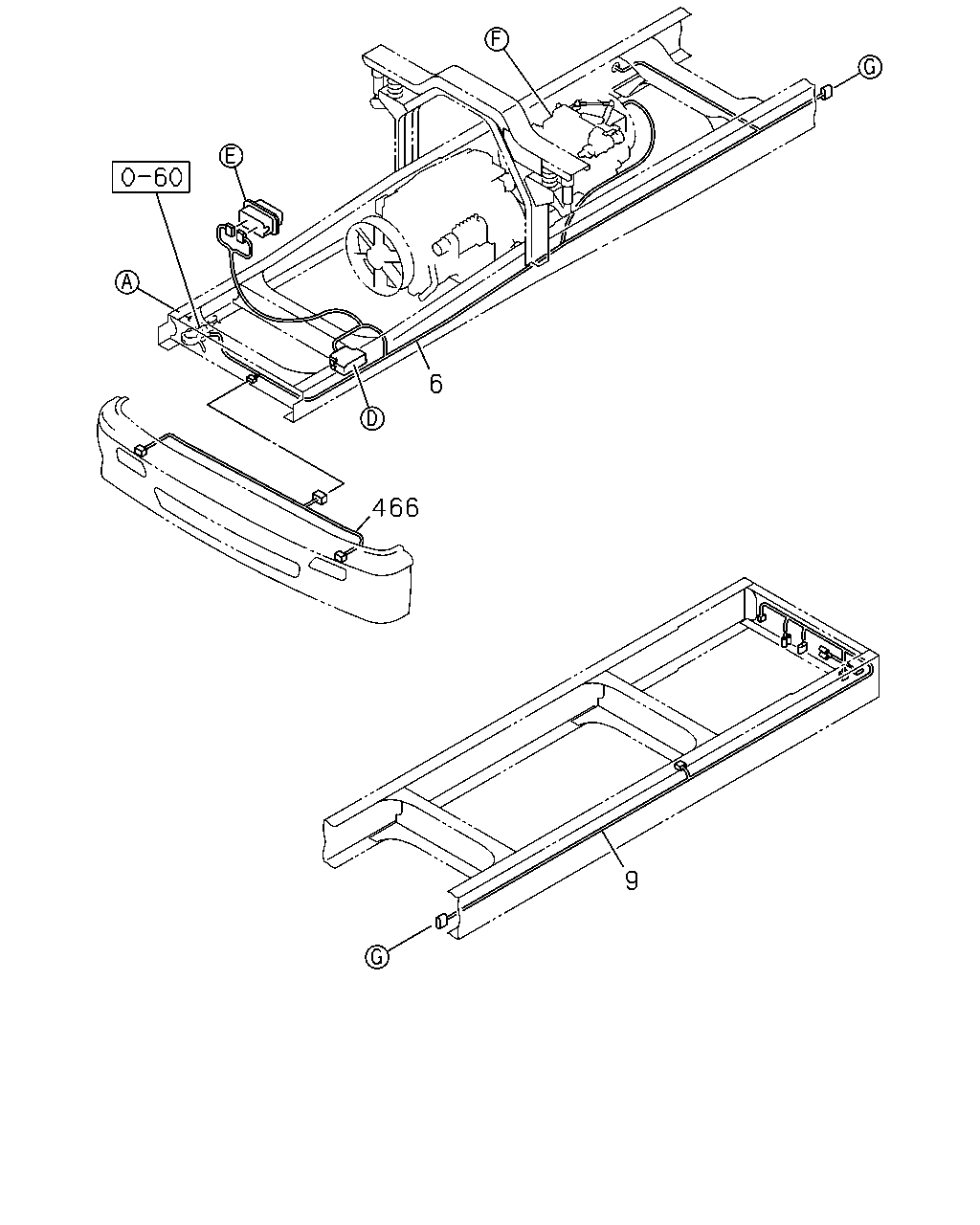

6
466
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HARNESS; FRAME
THA
8-97917-541-2
01
1
0210-
●
6
HARNESS; FRAME
THA
8-97915-008-1
01
1
0210-
●
9
HARNESS; FRAME,RR
THA
8-97916-640-0
01
1
0210-
●
466
HARNESS; BUMPER
THA
8-97916-311-0
01
1
0210-
●
●
467
41
5
4
467
62
62
62
431
6
10
27
27
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
4
BOX ASM; FUSE,HARNESS
7.5AX14 15AX13 THA
1-82510-562-0
01
1
0210-
●
●
5
FUSE; FACIA HARNESS
15A BLUE THA
5-82516-003-0
13
1
0210-
●
●
5
FUSE; FACIA HARNESS
7.5A BROWN THA
8-94159-007-0
14
1
0210-
●
●
6
HARNESS; FRAME
THA
8-97917-541-2
01
1
0210-
●
6
HARNESS; FRAME
THA
8-97915-008-1
01
1
0210-
●
10
BOX; FUSE,HARNESS
THA
1-82510-409-0
01
1
0210-
●
●
27
FUSE UNIT
(A) 40A GREEN THA
8-94468-662-0
03
1
0210-
●
●
27
FUSE UNIT
(B) 60A YELLOW THA
8-94468-669-0
01
1
0210-
●
●
41
PULLER; FUSE
L=25.3 B=11.5 THA
8-94121-482-0
01
1
0210-
●
●
62
DIODE; HARNESS
(A) BLACK 10P THA
1-82699-703-0
02
1
0210-
●
●
62
DIODE; HARNESS
(B) BLACK 3P-1.5A THA
8-94416-438-1
01
1
0210-
●
●
62
DIODE; HARNESS
(C) BLACK 2P-1.5A THA
8-94422-639-1
01
1
0210-
●
●
431
CONNECTOR; JOINT
BROWN 10P THA
1-82699-601-0
01
1
0210-
●
●
431
CONNECTOR; JOINT
BROWN 10P THA
1-82699-601-0
02
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-544-3
01
1
0210-
●
467
HARNESS; FACIA
(A) THA
8-97915-002-0
01
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-542-3
01
1
0210-
●
276
277
265
262
264
6
211
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HARNESS; FRAME
THA
8-97917-541-2
01
1
0210-
●
6
HARNESS; FRAME
THA
8-97915-008-1
01
1
0210-
●
199
HARNESS; STARTER
THA
8-97913-065-0
01
1
0210-
●
199
HARNESS; STARTER
THA
8-97916-313-0
01
1
0210-
●
211
WIRE; FUSIBLE LINK,STARTER
WHITE THA
1-82659-124-0
01
1
0210-
●
●
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0210-
●
●
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0210-
●
●
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0210-
●
●
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0210-
●
●
277
BOLT; BOX ASM FIX
(A) M8X25 FLANGE
0-28680-825-0
02
1
0210-
●
●
277
BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
0210-
●
●

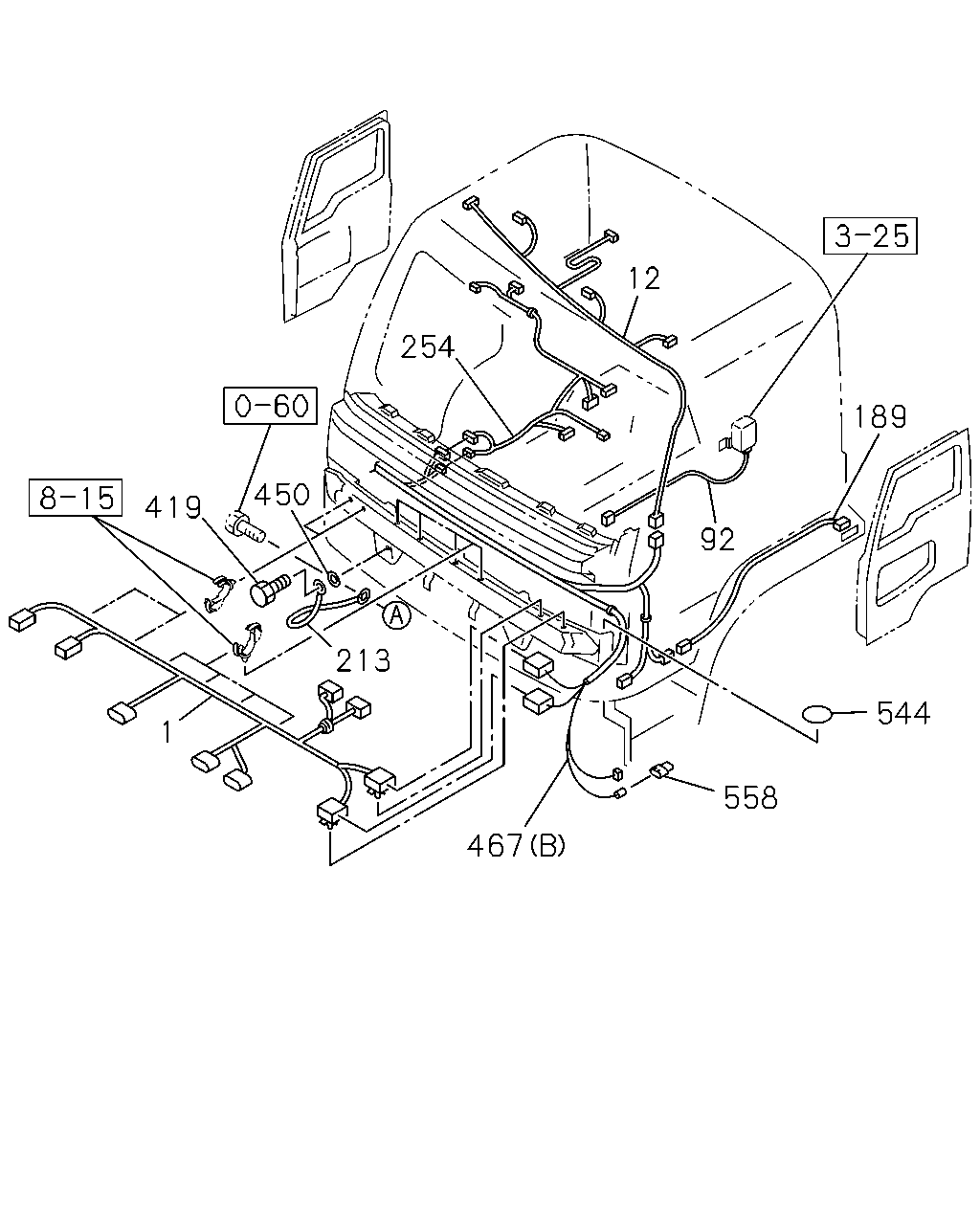

12
254
189
450
419
92
213
544
1
558
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HARNESS; CAB
THA
1-82625-717-1
01
1
0210-
●
●
12
HARNESS; ROOF
THA
8-97917-543-0
01
1
0210-
●
●
92
HARNESS; FLOOR
THA
8-97915-875-0
01
1
0210-
●
189
HARNESS; EXT
THA
8-97916-648-0
02
1
0210-
●
●
213
CABLE; EARTH,CAB TO FRAME
THA
8-97916-647-0
01
1
0210-
●
●
254
HARNESS; CAB FLOOR
THA
8-97917-850-1
01
1
0210-
●
●
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0210-
●
●
450
WASHER; PL,CAB EARTH
ID=8.4 OD=18
9-09164-608-0
01
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-544-3
01
1
0210-
●
467
HARNESS; FACIA
(A) THA
8-97915-002-0
01
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-542-3
01
1
0210-
●
544
SEAL; FRT MTG RAIL
OD=25 BLACK THA
1-76798-019-0
01
1
0210-
●
●
558
CONNECTOR; HARNESS
1-82690-666-0
02
1
0210-
●
●

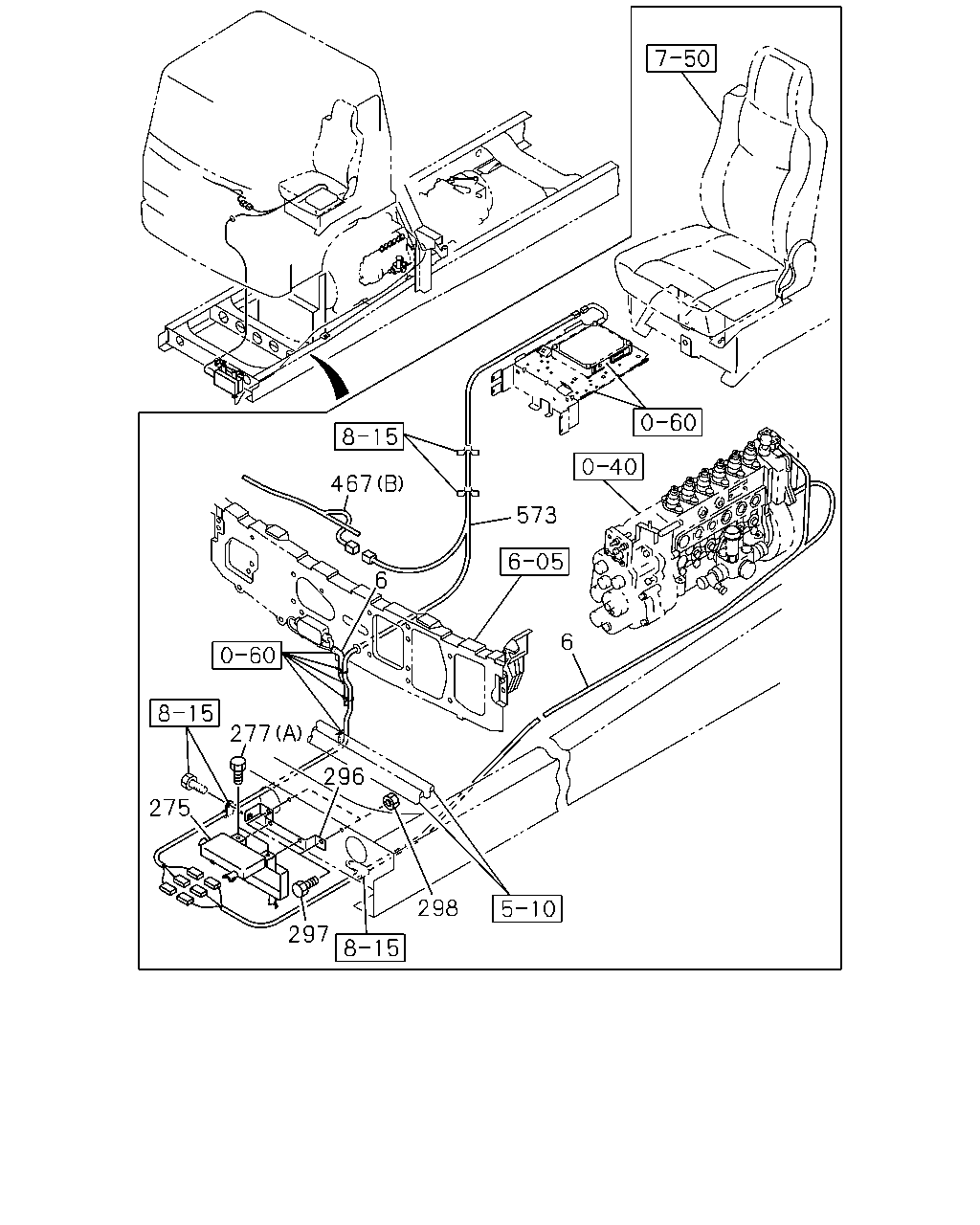

467
573
6
6
277
296
275
298
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HARNESS; FRAME
THA
8-97917-541-2
01
1
0210-
●
6
HARNESS; FRAME
THA
8-97915-008-1
01
1
0210-
●
275
BOX ASM; FRAME HARNESS
1-82699-378-0
01
1
0210-
●
●
277
BOLT; BOX ASM FIX
(A) M8X25 FLANGE
0-28680-825-0
02
1
0210-
●
●
277
BOLT; BOX ASM FIX
(B) M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
0210-
●
●
296
BRACKET; HARNESS BOX
1-82699-923-0
01
1
0210-
●
●
297
BOLT; BOX BRKT
M8X25 FLANGE
0-28680-825-0
02
1
0210-
●
●
298
NUT; BOX BRKT
M8 FLANGE
0-91150-108-0
02
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-544-3
01
1
0210-
●
467
HARNESS; FACIA
(A) THA
8-97915-002-0
01
1
0210-
●
●
467
HARNESS; FACIA
(B) THA
8-97917-542-3
01
1
0210-
●
573
HARNESS; CONTROL UNIT
THA
8-97915-004-0
01
1
0210-
●
●
