Isuzu WW
▶
TRUCKS
▶
EXR
▶
11047 - EXR LHD EURO4 WITH 2STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#27236) — 26 parça
◀

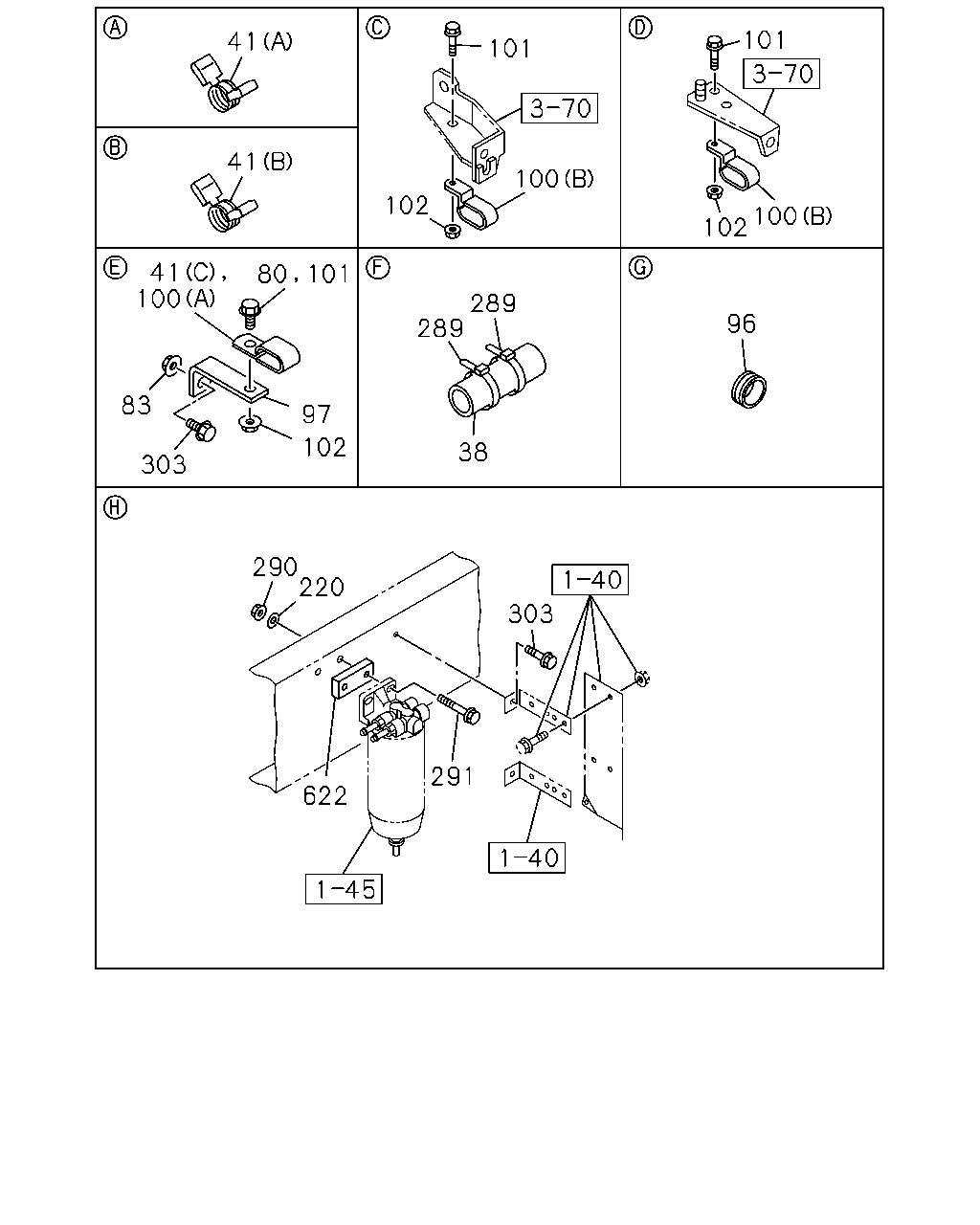

[141A] FIXING (23 parça)

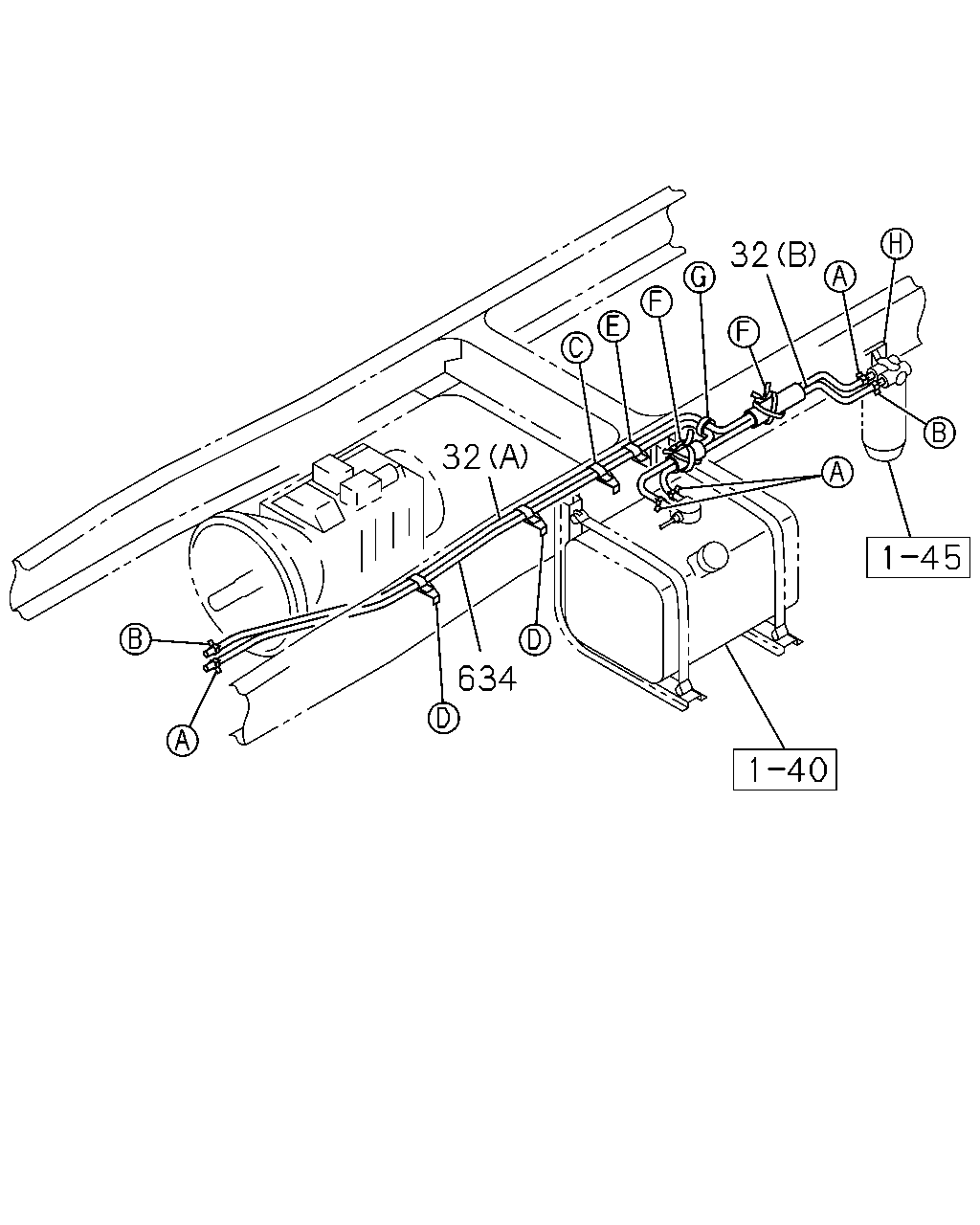

[141A] PIPING (3 parça)
▶
101
41
101
41
100
102
100
102
41
100
289
289
96
83
97
102
38
303
290
220
303
622
291
80
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
38
SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300
1-09360-677-1
02
1
0611-
41
CLIP; FUEL PIPE,FUEL TANK
(C) ID=14X29 H=15 L=20
1-09700-744-0
01
1
0703-
41
CLIP; FUEL PIPE,FUEL TANK
(A) ID=14
1-09704-102-0
04
1
0611-
41
CLIP; FUEL PIPE,FUEL TANK
(B) ID=19
8-94238-569-0
02
1
0611-
80
BOLT; CLIP,FUEL TANK
M8X25 FLANGE
0-28650-825-0
01
1
0703-
83
NUT; CLIP,FUEL TANK
M8 FLANGE
0-91180-108-0
01
1
0703-
96
GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18
1-09891-003-0
01
1
0611-
97
BRACKET; CLIP
1-47475-927-0
01
1
0611-1010
97
BRACKET; CLIP
L=68
1-47475-525-0
01
1
1011-
100
CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20
1-09700-744-0
01
1
0611-0702
100
CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=22.5
1-09701-315-0
03
1
0611-
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
0611-0702
101
BOLT; CLIP,FUEL PIPE
M8X25 FLANGE
0-28650-825-0
03
1
0703-
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
04
1
0611-0702
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91180-108-0
03
1
0703-
220
WASHER; PL
ID=10.5 OD=26
0-91614-710-0
02
1
0611-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
04
1
0611-
290
NUT; FILTER TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0611-
291
BOLT; FILER TO BRKT
M10X50 FLANGE
0-28051-050-0
02
1
0611-
303
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0611-
303
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0611-
622
SPACER; BRKT
1-53168-492-0
01
1
0611-0909
622
SPACER; BRKT
8-98124-944-0
01
1
0910-
32
32
634
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000
0-01260-300-0
01
1
0611-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1850 SERVICED BY L=3000
0-01262-300-0
01
1
0611-
634
HOSE; RUBBER RETURN
L=1600 SERVICED BY L=3000
0-01260-300-0
01
1
0611-
