9-01 — TOOLS (#2722) — 89 parça

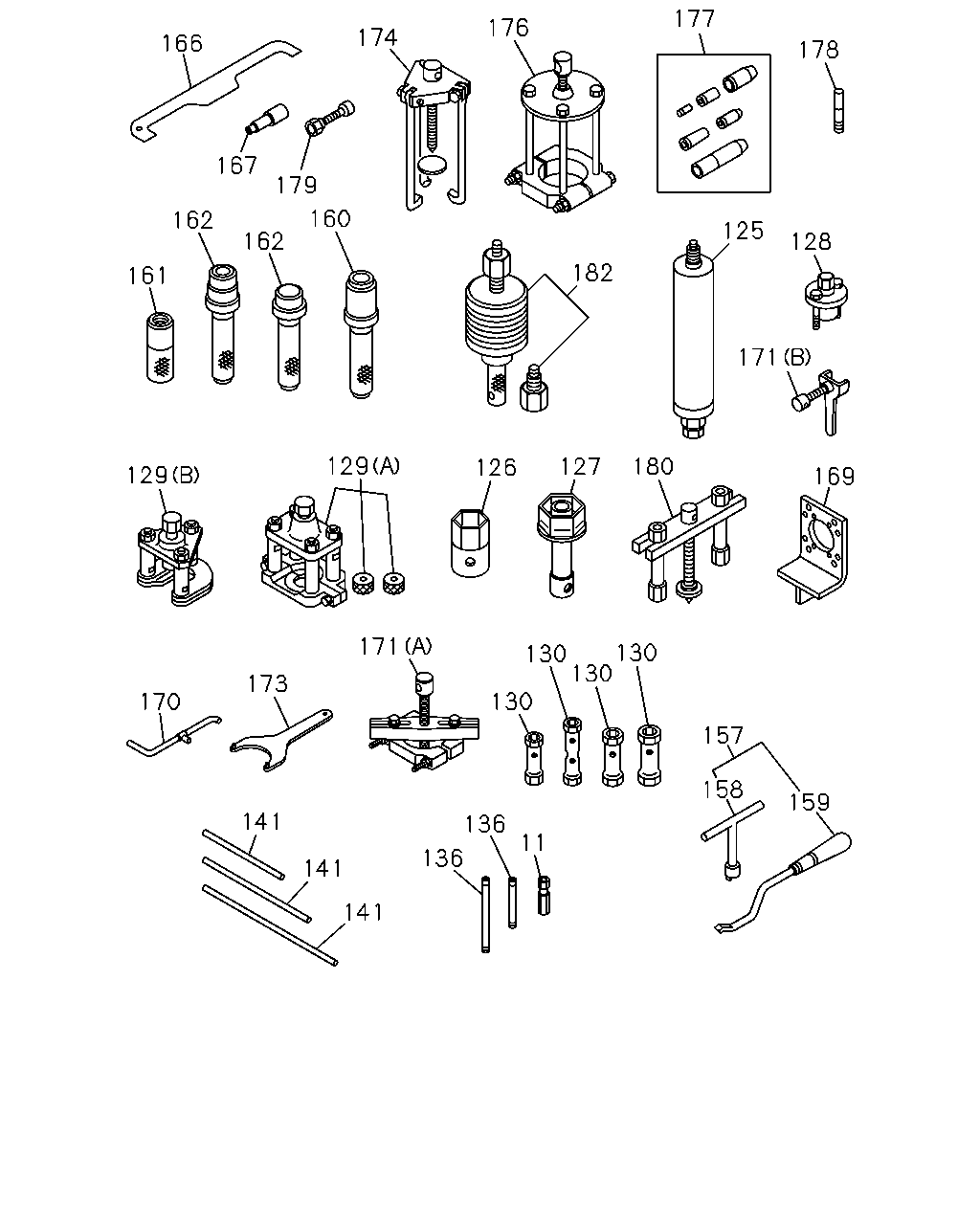

çizim 6005
177 176 174 166 178 167 179 160 162 125 162 128 182 161 171 129 127 180 126 129 169 171 130 130 130 173 130 170 157 158 159 141 136 11 136 141 141
BalonParca AdiParca NoAdetTipApplied Date A B
11 SOCKET; FLEX PLATE
AT545 A/T ALLISON(MD1) 		1-85115-017-0 01 1 9101- ● ●
125 PULLER ASM; KING PIN 9-85210-151-0 01 1 9101- ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=54 		1-85111-011-0 01 1 9101- ● ●
127 WRENCH ASM; HUB BRG NUT
L=260 B=90 		9-85113-534-0 01 1 9101- ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9101- ● ●
129 PULLER ASM; PITMAN ARM
(A) 		9-85210-147-0 01 1 9101- ● ●
129 PULLER ASM; PITMAN ARM
(B) 		9-85210-170-0 01 1 9101- ● ●
130 WRENCH; BOX
46X54 B=46 & 54 L=165 		9-85112-320-0 01 1 9101- ● ●
130 WRENCH; BOX
32X41 B=32 & 41 L=150 		9-85112-322-0 01 1 9101- ● ●
130 WRENCH; BOX
36X41 B=36 & 41 L=200 		9-85112-330-0 01 1 9101- ● ●
130 WRENCH; BOX
41X46 B=41 & 46 L=165 		9-85113-401-0 01 1 9101- ● ●
136 TOOL; PILOT,A/T
AT545 A/T ALLISON(MD1) L=120 		1-85221-021-0 01 1 9101- ● ●
136 TOOL; PILOT,A/T
AT545 A/T ALLISON(MD1) L=75 		1-85221-022-0 01 1 9101- ● ●
141 HANDLE; WRENCH
L=480 		1-85116-011-0 01 1 9101- ● ●
141 HANDLE; WRENCH
L=400 		9-09593-919-0 01 1 9101- ● ●
141 HANDLE; WRENCH
OD=16 L=300 		9-85114-307-0 01 1 9101- ● ●
141 HANDLE; WRENCH
L=480 		1-85116-011-0 01 1 9606-9805 ● ●
157 REPLACER KIT; RETURN SPR 9-85231-554-0 01 1 9101- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 9101- ● ●
159 REMOVER; RETURN SPR 9-85231-555-0 01 1 9101- ● ●
160 REMOVER; NEEDLE BRG
L=215 		1-85238-007-0 01 1 9101- ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 9101- ● ●
162 SETTING TOOL; NEEDLE BRG
L=200 		1-85238-005-0 01 1 9101- ● ●
162 SETTING TOOL; NEEDLE BRG
L=175 		1-85238-006-0 01 1 9101- ● ●
166 ALIGNER; CLU RELEASE LEVER
L=460 		9-85241-420-0 01 1 9101- ● ●
167 ALIGNER; CLU PILOT 9-85241-421-0 01 1 9101- ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9101- ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9101- ● ●
171 PULLER ASM; PINION BRG
(A) 		9-85210-172-0 01 1 9101- ● ●
171 PULLER ASM; PINION BRG
(B) 		9-85210-173-0 01 1 9101- ● ●
173 WRENCH; COUPLING DRIVER 9-85111-942-0 01 1 9101- ● ●
174 PULLER ASM; MAIN CLU SHAFT 9-85210-148-0 01 1 9101- ● ●
176 PULLER ASM; COUNTER SHAFT MAIN 9-85210-169-0 01 1 9101- ● ●
177 SETTING TOOL KIT 9-85220-040-0 01 1 9101- ● ●
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 9101- ● ●
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9101- ● ●
180 PULLER; FRT & RR HUB 9-85210-187-0 01 1 9101- ● ●
182 REMOVER ASM 9-85210-095-0 01 1 9101- ● ●

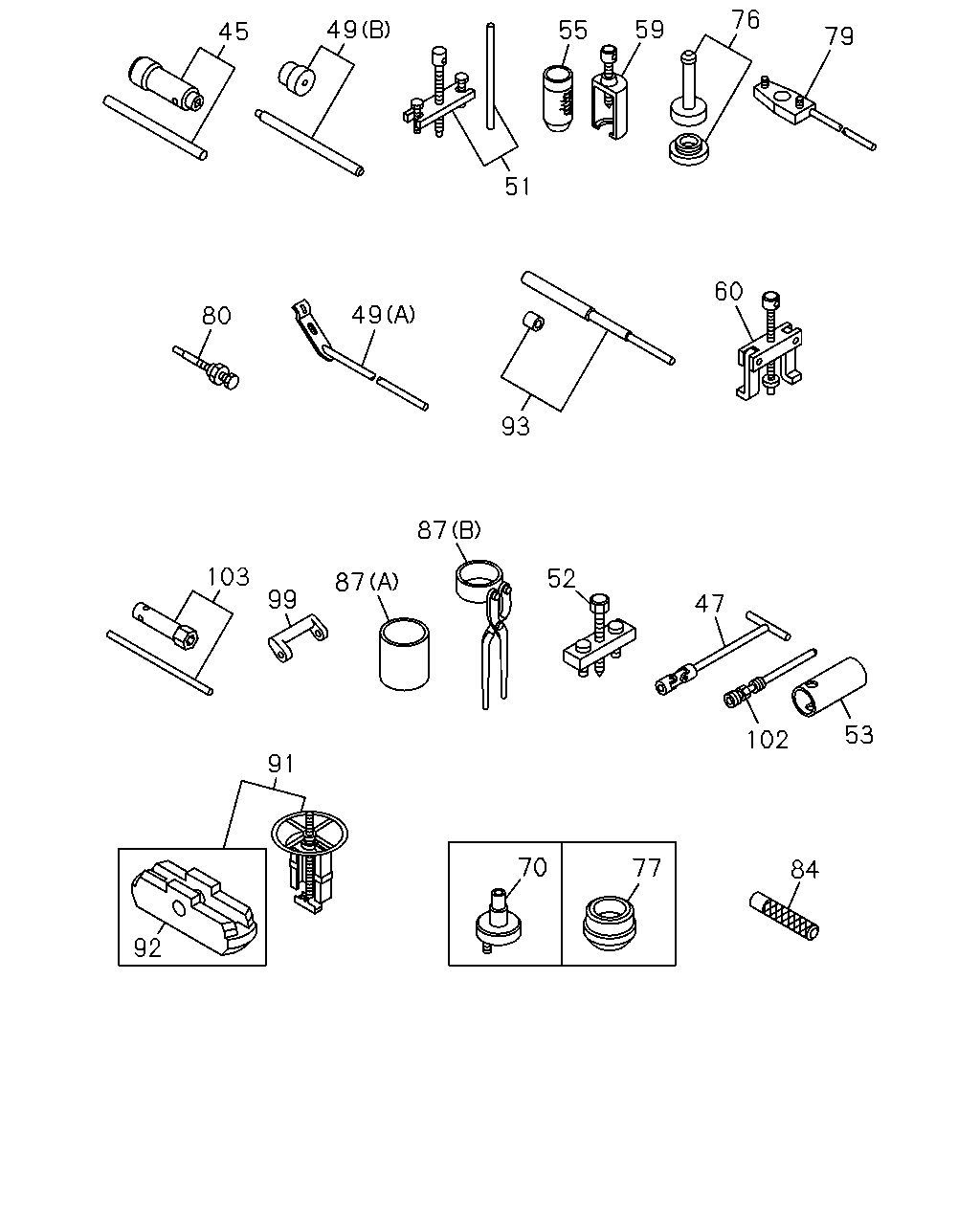

çizim 36973
76 59 49 55 45 79 51 60 49 80 93 87 103 52 87 99 47 53 102 91 70 77 84 92
BalonParca AdiParca NoAdetTipApplied Date A B
45 WRENCH; FRT NUT 1-85111-001-0 01 1 9101- ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-702-0 01 1 9101- ● ●
49 REPLACER ASM; VALVE
(A) 		1-85235-006-0 01 1 9101- ● ●
49 REPLACER ASM; VALVE
(B) 		9-85231-818-0 01 1 9101- ● ●
51 PULLER ASM; WATER PUMP 9-85210-120-0 01 1 9101- ● ●
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9101- ● ●
53 PULLER; TAPER BUSHING 9-85210-122-0 01 1 9101- ● ●
55 SETTING TOOL; TIMING GEAR 9-85220-033-0 01 1 9101- ● ●
59 PULLER ASM; TIMING GEAR 9-85210-141-0 01 1 9101- ● ●
60 PULLER; TIMING GEAR 9-85210-505-0 01 1 9101- ● ●
70 TOOL; SETTING,OIL SEAL 5-85220-044-0 01 1 9101- ● ●
76 TOOL; SETTING,SEAL 9-85220-034-0 01 1 9101- ● ●
77 TOOL; SETTING,CYL LINER
6BD1 STD ENG(L21) 		9-85232-554-0 01 1 9101- ● ●
77 TOOL; SETTING,CYL LINER
6BG1 STD ENG(16L) 		5-85221-018-0 01 1 9101- ● ●
79 RETAINER; AUTO TIMER 9-85111-930-0 01 1 9101- ● ●
80 PULLER ASM; AUTO TIMER 9-85210-154-0 01 1 9101- ● ●
84 REPLACER; VALVE SEAL 1-85221-005-0 01 1 9101- ● ●
87 TOOL; PISTON
6BD1 STD ENG(L21) (A) OD=116 		9-85221-172-0 01 1 9101- ● ●
87 TOOL; PISTON
6BD1 STD ENG(L21) (B) 		9-85221-251-0 01 1 9101- ● ●
87 TOOL; PISTON
6BG1 STD ENG(16L) (A) OD=119 		9-85221-173-0 01 1 9101- ● ●
91 REPLACER ASM; CYL LINER
6BD1 STD ENG(L21) 		1-85231-003-0 01 1 9101- ● ●
92 ANKLE; REPLACER,CYL LINER
6BD1 STD ENG(L21) OD=104.5 		9-85232-557-0 03 1 9101- ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9101- ● ●
99 WRENCH; CYL HD BOLT 1-85111-003-0 01 1 9101- ● ●
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 9101- ● ●
103 SPANNER; BOX,OIL PRESSURE 9-85163-102-0 01 1 9101- ● ●

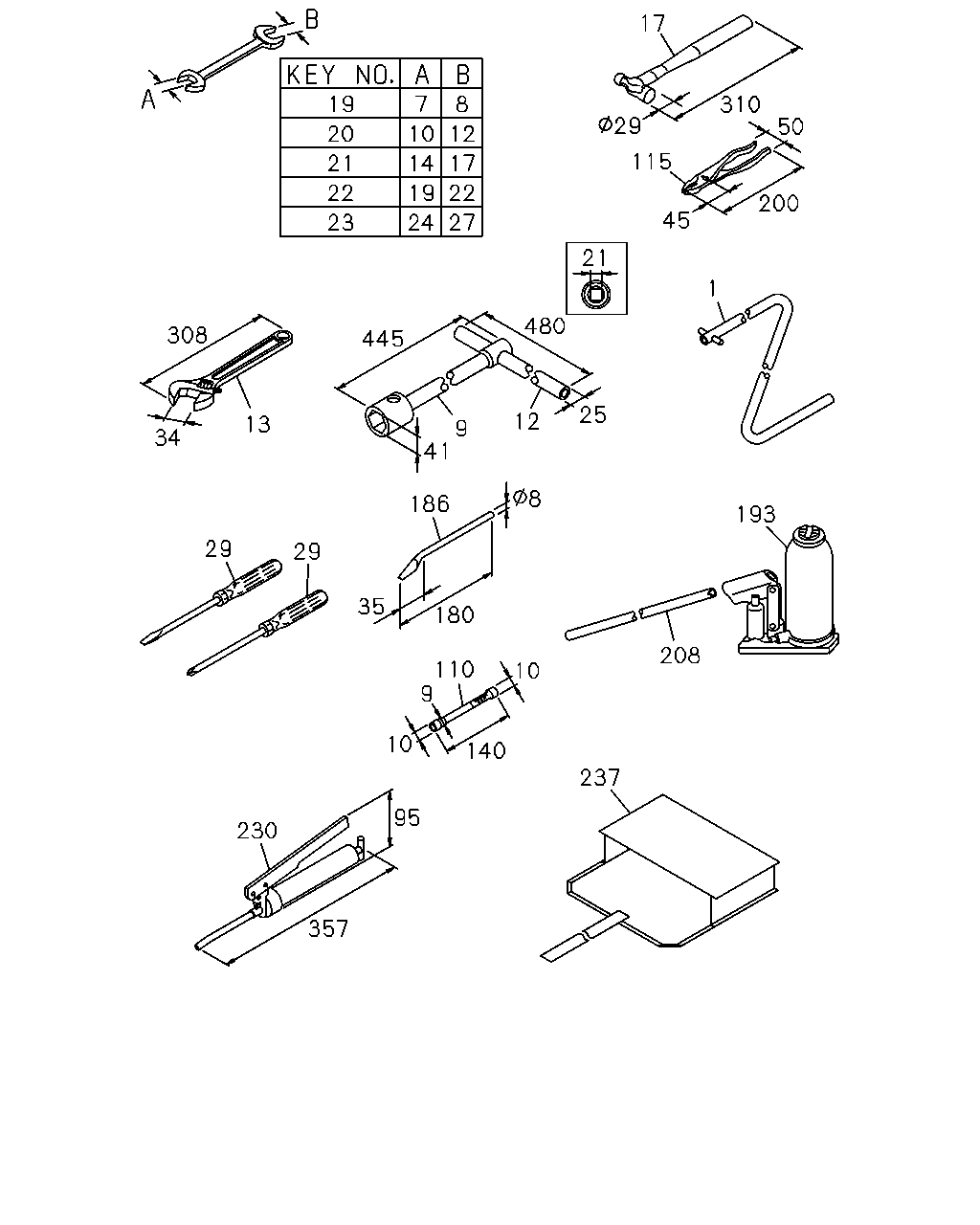

çizim 37139
17 19 20 21 22 23 1 12 13 9 186 193 29 29 208 110 237 230 115 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-035-1 01 1 9101- ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9101- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9101- ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9606-9805 ● ●
13 WRENCH; MONKEY 1-85117-003-1 01 1 9101-9304 ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305- ● ●
17 HAMMER 9-85121-406-0 01 1 9101- ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9101- ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9101- ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9101- ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9101- ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9101- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 9101- ● ●
29 DRIVER; SCREW
<-> L=320 		9-09595-729-0 01 1 9101- ● ●
110 CAP; VALVE 9-85163-906-1 01 1 9101- ● ●
115 PLIER 5-85171-001-0 01 1 9101- ● ●
186 ADJUSTER; BRAKE 1-85269-007-0 01 1 9101-9311 ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 9312- ● ●
193 JACK ASM
7TON 		1-85510-005-2 01 1 9101-9501 ● ●
193 JACK ASM
7TON 		1-85510-017-0 01 1 9502- ● ●
208 HANDLE; JACK 1-85515-004-0 01 1 9101-9405 ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406- ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9101- ● ●
237 BAG; TOOL 8-94367-102-0 01 1 9101-9509 ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9510- ● ●
