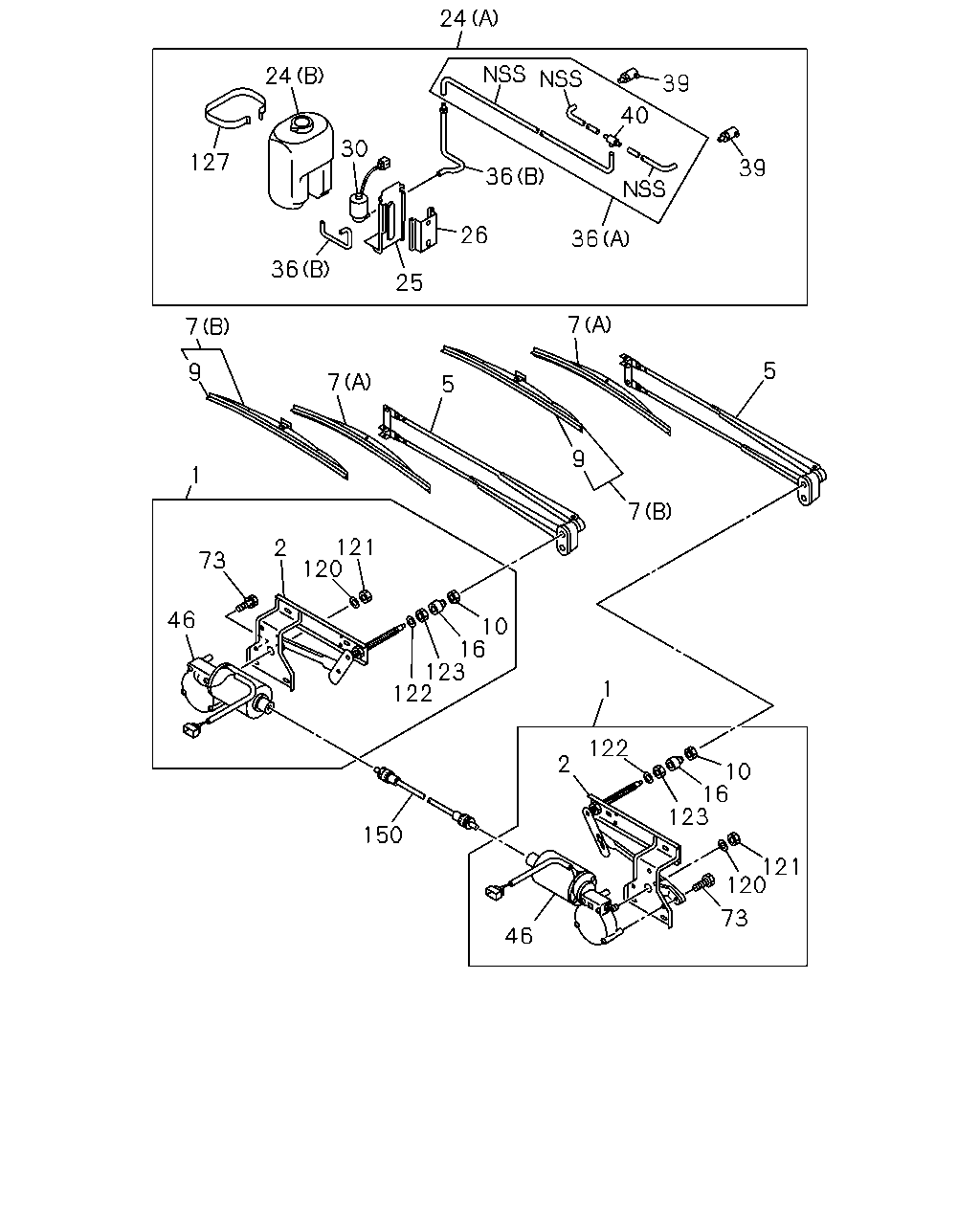

8-80 — WINDSHIELD WIPER AND WASHER (#2720) — 34 parça

24 24 39 40 30 127 39 36 26 36 36 25 7 7 5 9 7 5 9 1 7 121 120 2 73 46 10 16 123 122 1 122 2 10 16 123 150 121 120 73 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINK ASM; FRT WIPER WIPER MOTOR KIT<ST7>	1-83310-108-0	01	1	9101-	●	●
1	LINK ASM; FRT WIPER WIPER MOTOR KIT<ST7>	1-83310-109-0	01	1	9101-	●	●
2	LINK; FRT WIPER WIPER MOTOR KIT<ST7>	1-83312-081-0	01	1	9101-	●	●
2	LINK; FRT WIPER WIPER MOTOR KIT<ST7>	1-83312-080-0	01	1	9101-	●	●
5	ARM; WIPER WIPER MOTOR KIT<ST7>	1-83314-109-0	02	1	9101-	●	●
5	ARM; WIPER VENEZUELA ENCAVAPACKAGE(WN4)	1-83314-051-0	01	1	9101-		●
5	ARM; WIPER VENEZUELA ENCAVAPACKAGE(WN4)	1-83314-050-0	01	1	9101-		●
7	BLADE; WIPER WIPER MOTOR KIT<ST7> (A)	1-83315-026-1	02	1	9101-	●	●
7	BLADE; WIPER VENEZUELA ENCAVAPACKAGE(WN4) (B)	1-83315-024-1	02	1	9101-		●
9	RUBBER; FRT WIPER BLADE VENEZUELA ENCAVAPACKAGE(WN4)	1-83355-007-0	02	1	9101-		●
10	NUT; WIPER ARM TO WIPER PIVOT WIPER MOTOR KIT<ST7>	1-83318-041-0	02	1	9101-	●	●
16	SEAL; BALL JOINT WIPER MOTOR KIT<ST7>	1-83318-042-0	02	1	9101-	●	●
24	TANK ASM; WASHER WINDSHIELD WASHER<C11> (A)	1-83330-015-0	01	1	9101-9109	●	●
24	TANK ASM; WASHER WINDSHIELD WASHER<C11> (A)	1-83330-033-0	01	1	9110-	●	●
24	TANK ASM; WASHER WINDSHIELD WASHER<C11> (B)	9-83561-322-0	01	1	9101-9109	●	●
25	BRACKET; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-926-0	01	1	9101-	●	●
26	HANGER; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-929-0	01	1	9101-9109	●	●
26	HANGER; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-925-0	01	1	9110-	●	●
30	MOTOR ASM; FRT WASHER TANK WINDSHIELD WASHER<C11>	9-83561-208-0	01	1	9101-	●	●
36	HOSE; WASHER WINDSHIELD WASHER<C11> (A) L=700	9-83561-441-0	01	1	9101-9109	●	●
36	HOSE; WASHER WINDSHIELD WASHER<C11> (B) SERVICED BY L=10000	9-09914-906-0	01	1	9110-	●	●
39	NOZZLE; WINDSHIELD WASHER WINDSHIELD WASHER<C11>	1-83334-005-0	02	1	9101-9109	●	●
39	NOZZLE; WINDSHIELD WASHER WINDSHIELD WASHER<C11>	1-83334-012-0	02	1	9110-	●	●
40	JOINT; WASHER HOSE WINDSHIELD WASHER<C11>	9-83565-006-0	01	1	9110-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER WIPER MOTOR KIT<ST7>	1-83311-059-0	01	1	9101-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER WIPER MOTOR KIT<ST7>	1-83311-058-0	01	1	9101-	●	●
73	BOLT WIPER MOTOR KIT<ST7>	1-83318-079-0	06	1	9101-	●	●
120	WASHER; ARM TO BRKT WIPER MOTOR KIT<ST7>	1-83318-045-0	02	1	9101-	●	●
121	NUT; ARM TO BRKT WIPER MOTOR KIT<ST7>	1-83318-044-0	02	1	9101-	●	●
122	WASHER; PIVOT FIX,FRT WIPER WIPER MOTOR KIT<ST7>	1-83312-040-0	01	1	9101-	●	●
122	WASHER; PIVOT FIX,FRT WIPER WIPER MOTOR KIT<ST7>	1-83318-040-0	01	1	9101-	●	●
123	NUT; PIVOT FIX,FRT WIPER WIPER MOTOR KIT<ST7>	1-83319-031-0	02	1	9101-	●	●
127	BAND; WASHER TANK WINDSHIELD WASHER<C11>	9-83561-928-0	01	1	9101-	●	●
150	SHAFT; FLEX,WIPER MOTOR TO WIPER WIPER MOTOR KIT<ST7> L=700	1-83123-776-0	01	1	9101-	●	●
