Isuzu WW
▶
BUSES
▶
MR
▶
10663 - MR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

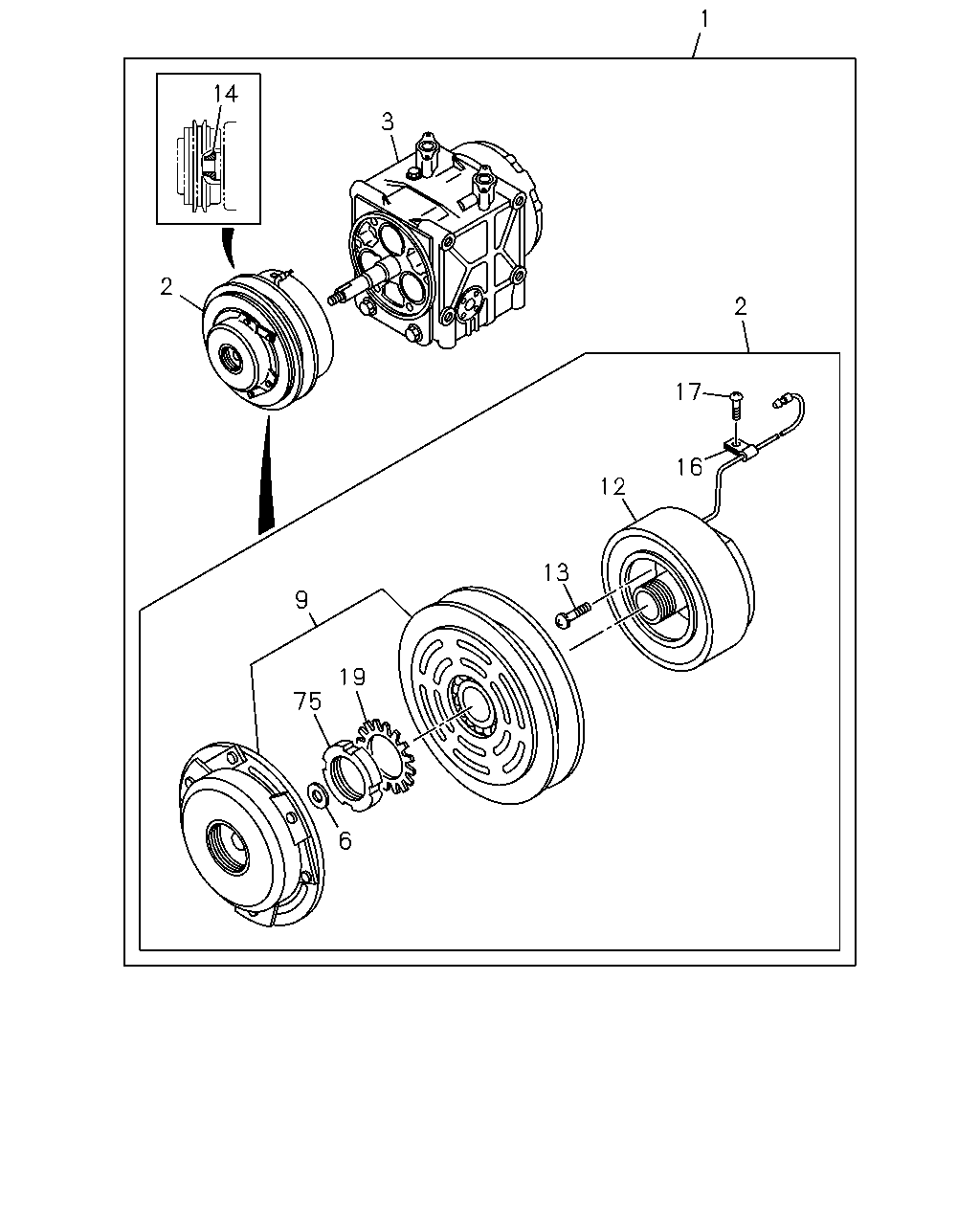

8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#2719) — 15 parça
1
14
3
2
2
17
16
12
13
9
19
75
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
1-83532-171-0
01
1
9112-
2
CLUTCH; MAGNET,A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
5-83533-014-0
01
1
9112-
3
COMPRESSOR ASM; A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
1-83532-183-0
01
1
9112-
6
SHIM; MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> T=0.1
8-94480-979-0
AR
1
9112-
6
SHIM; MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> T=0.3
8-94480-980-0
AR
1
9112-
6
SHIM; MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> T=0.5
8-94480-981-0
AR
1
9112-
6
SHIM; MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> T=0.8
8-94480-982-0
AR
1
9112-
9
PULLEY; MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
8-94480-972-0
01
1
9112-
12
COIL; FIELD,MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
8-94480-971-0
01
1
9112-
13
SCREW; COIL FIELD
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M6X16 W/LK WASHER
9-03910-616-0
06
1
9112-
14
FELT; SHAFT SEAL,CYL HD,FRT
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
5-83539-077-0
01
1
9112-
16
CLIP; WIRE,MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
8-94480-983-0
01
1
9112-
17
SCREW; WIRE CLIP MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
8-94480-984-0
01
1
9112-
19
WASHER; LK,PULLEY,MAGNET CLU
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
8-94480-978-0
01
1
9112-
75
NUT; PULLEY MAGNET CLU,CMPR
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9>
8-94480-977-0
01
1
9112-
