8-65 — CONTROL LEVER; HEATER AND AIR CON (#2718) — 7 parça

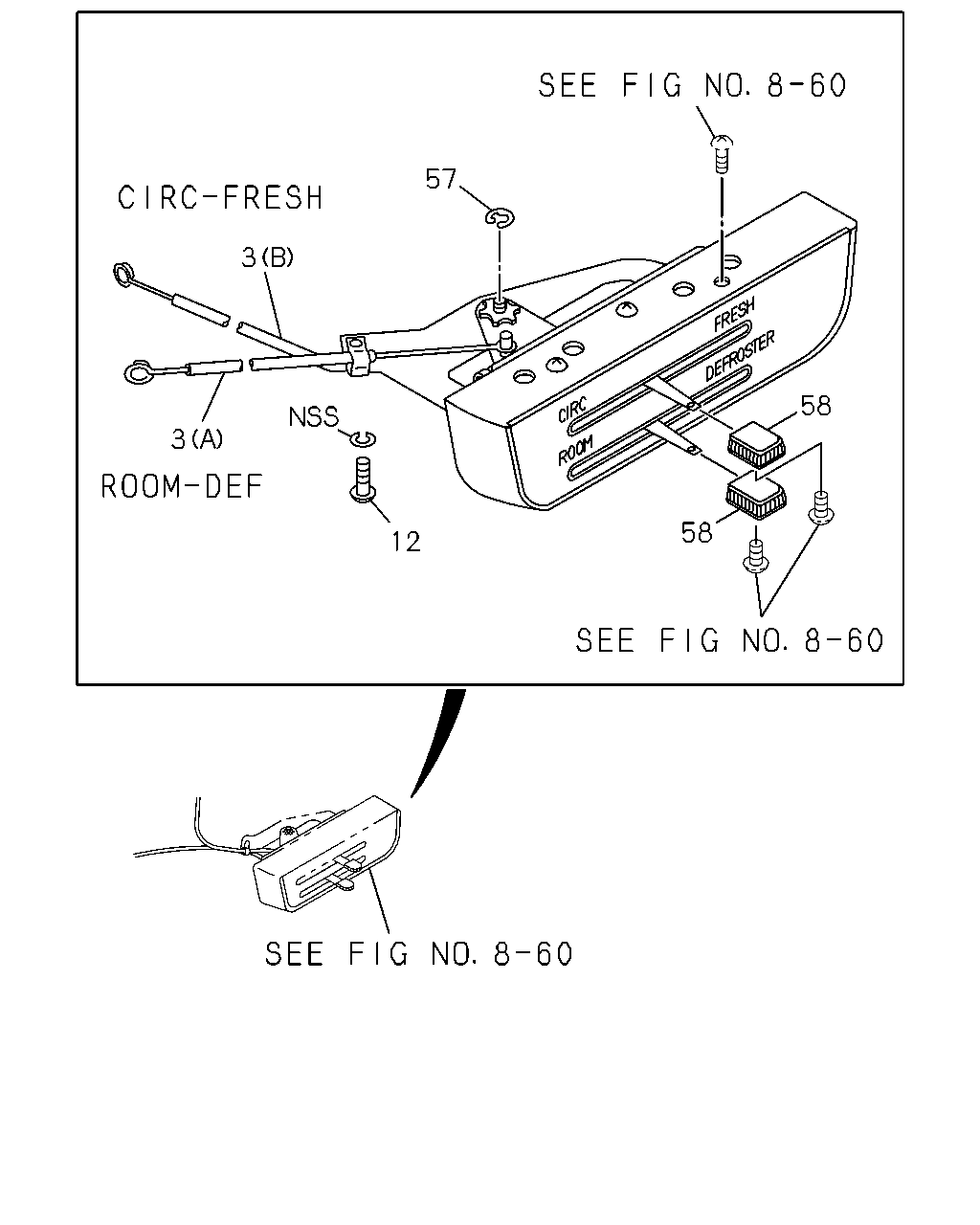

çizim 6006
57 3 58 3 58 12
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
AUXILIARY HEATER(C36) (A) 		1-83564-049-0 01 1 9101- ●
3 CABLE; HTR CONT LVR
AUXILIARY HEATER(C36) (B) 		1-83564-050-0 01 1 9101- ●
3 CABLE; HTR CONT LVR
AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A) 		1-83579-404-0 01 1 9101- ●
3 CABLE; HTR CONT LVR
AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (B) 		1-83579-405-0 01 1 9101- ●
12 SCREW; CABLE CLIP,HTR CONT LVR
AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) M5X12 W/LK WASHER 		9-03910-512-0 01 1 9101- ● ●
57 RING; SNAP,HTR CONT LVR
AUXILIARY HEATER(C36) 		9-88410-199-0 02 1 9101- ●
58 KNOB; LVR,HTR CONT LVR
AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) 		9-83652-838-0 02 1 9101- ● ●
