◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11046 - CYZ LHD EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#27178) — 92 parça
çizim 91496
255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
(A) 		8-97611-877-2 01 1 0611-1202
255 HARNESS; ELEC GOV
(A) 		8-97641-995-1 01 1 1203-
255 HARNESS; ELEC GOV
(B) 		8-97611-878-1 01 1 0611-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-998-0 01 1 1203-
533 CLIP
ID=26 L=26 		1-09701-236-0 02 1 0611-0907
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 0908-
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0611-

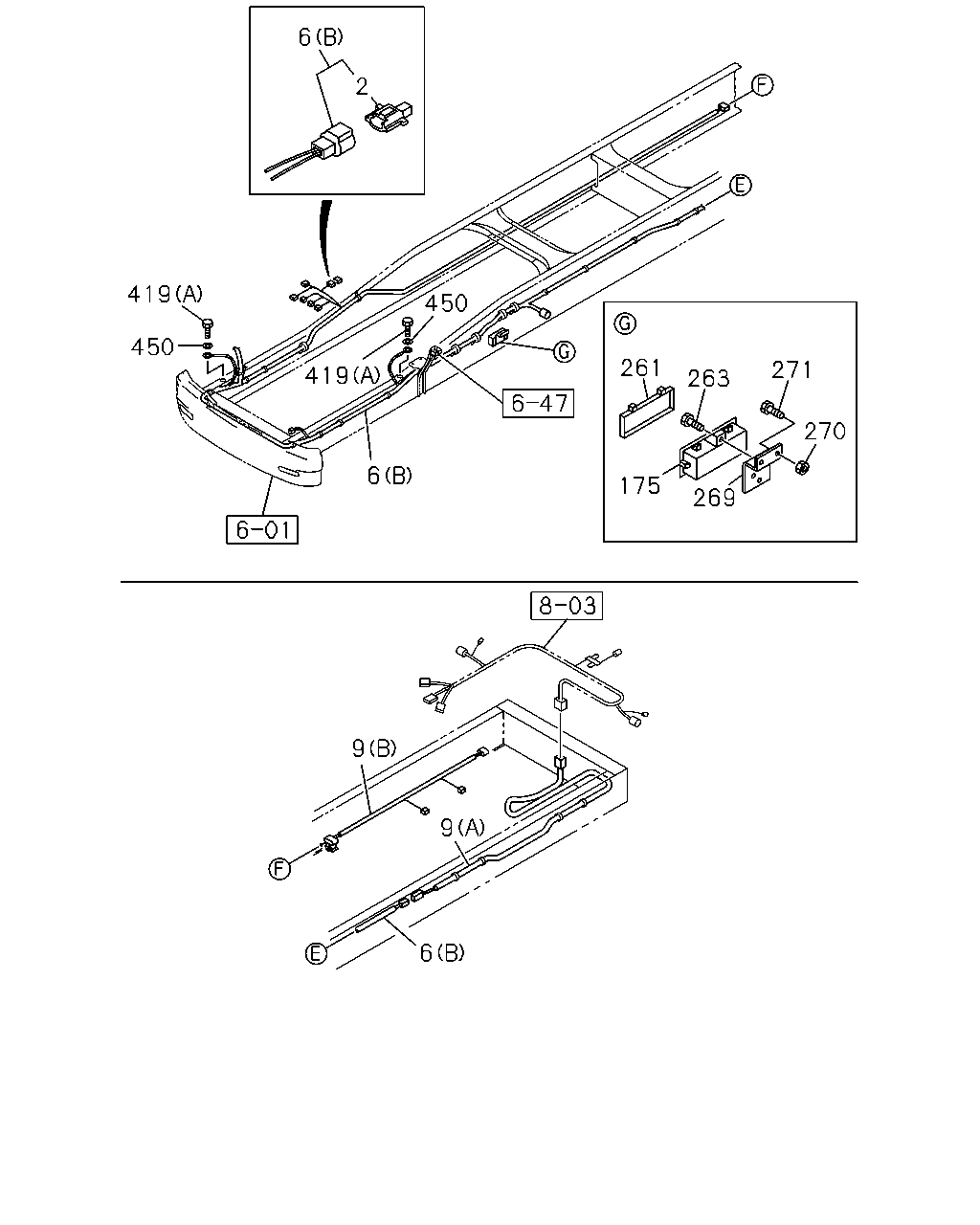

çizim 91603
6 2 419 450 450 419 261 271 263 270 6 175 269 9 9 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0611-
6 HARNESS; FRAME
(A) 		1-82678-325-2 01 1 0611-
6 HARNESS; FRAME
(B) 		8-97613-302-6 01 1 0611-
9 HARNESS; FRAME,RR
(A) 		1-82678-201-0 01 1 0611-
9 HARNESS; FRAME,RR
(B) 		1-82678-204-0 01 1 0611-
175 BOX; CONNECTOR 1-82699-467-0 01 1 0611-
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0611-
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0611-
269 BRACKET; CONNECTOR BOX 1-82698-424-0 01 1 0611-
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0611-
271 BOLT; BRKT CONNECTOR BOX
M8X35 FLANGE 		0-28650-835-0 02 1 0611-1109
271 BOLT; BRKT CONNECTOR BOX
M8X40 FLANGE 		0-28650-840-0 02 1 1110-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0611-0611
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0611-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 07 1 0611-0611
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0611-1201
419 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
419 BOLT; CAB EARTH
(C) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0611-1201
419 BOLT; CAB EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0611-

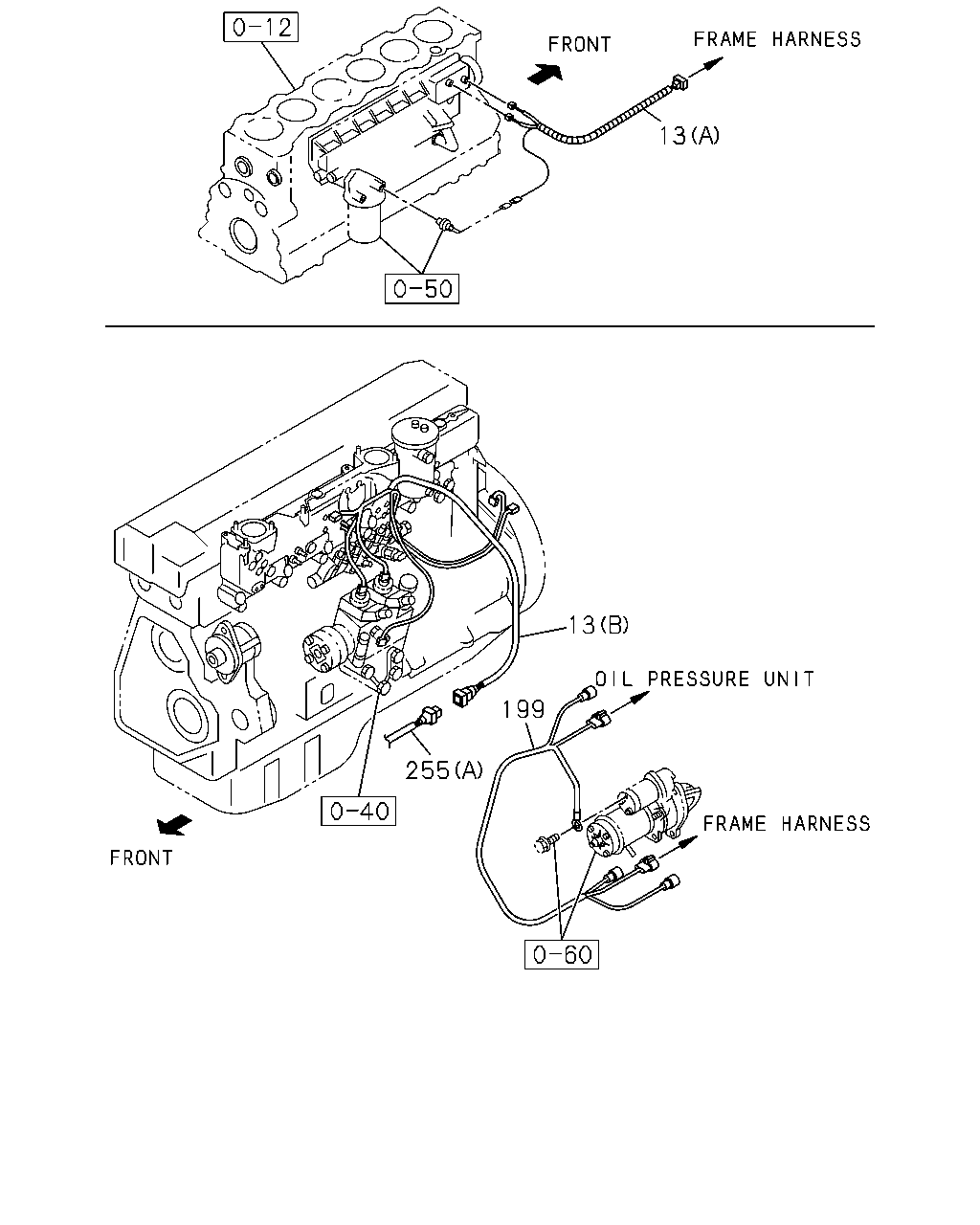

çizim 91607
13 13 199 255
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97611-417-5 01 1 0611-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0611-0703
13 HARNESS; ENG
(A) 		8-98076-007-0 01 1 0704-
199 HARNESS; STARTER 8-97616-095-0 01 1 0611-
255 HARNESS; ELEC GOV
(A) 		8-97611-877-2 01 1 0611-1202
255 HARNESS; ELEC GOV
(A) 		8-97641-995-1 01 1 1203-
255 HARNESS; ELEC GOV
(B) 		8-97611-878-1 01 1 0611-1202
255 HARNESS; ELEC GOV
(B) 		8-97641-998-0 01 1 1203-

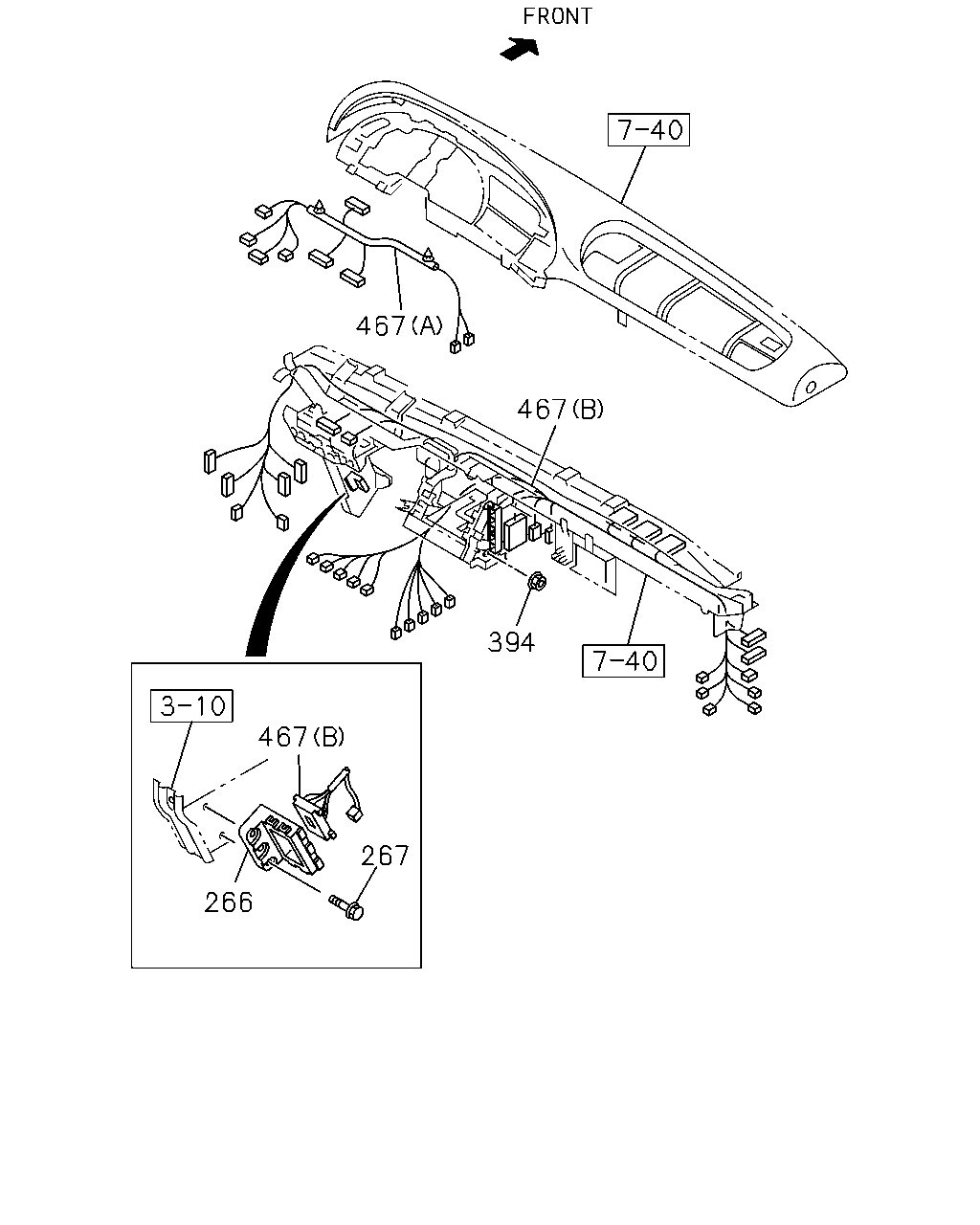

çizim 91641
467 467 394 467 267 266
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0611-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0611-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0611-
467 HARNESS; FACIA
(A) 		8-97611-879-2 01 1 0611-
467 HARNESS; FACIA
(B) 		8-97614-148-6 01 1 0611-

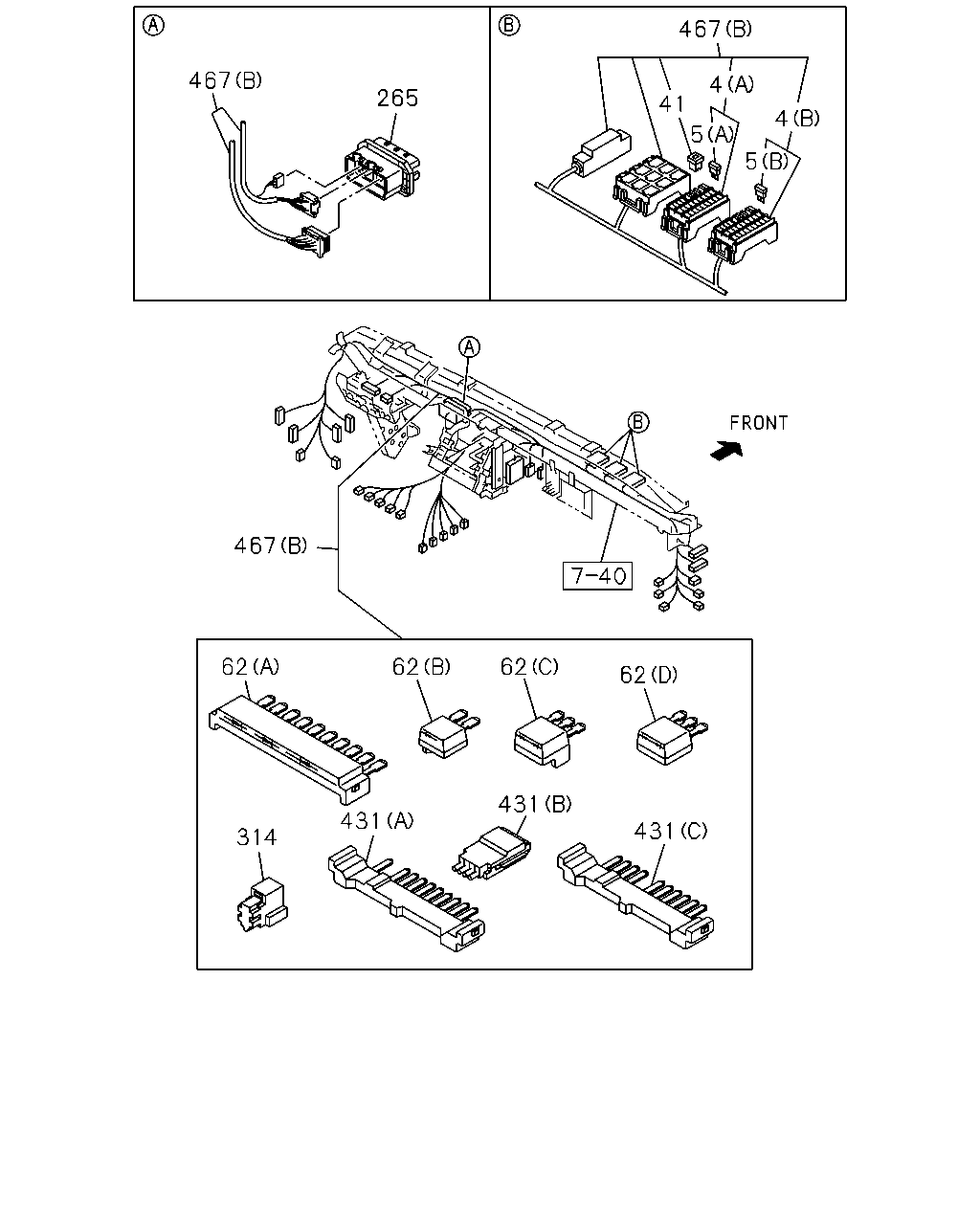

çizim 91714
467 467 4 265 41 4 5 5 467 62 62 62 62 431 431 431 314
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 0611-
4 BOX ASM; FUSE,HARNESS
(B) 15AX20 25AX2 		1-82510-520-0 01 1 0611-
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 20 1 0611-
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 0611-
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 21 1 0611-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0611-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0611-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 03 1 0611-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 0611-1211
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 07 1 1212-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 01 1 0611-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0611-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0611-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 0611-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0611-
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 04 1 0611-
467 HARNESS; FACIA
(A) 		8-97611-879-2 01 1 0611-
467 HARNESS; FACIA
(B) 		8-97614-148-6 01 1 0611-

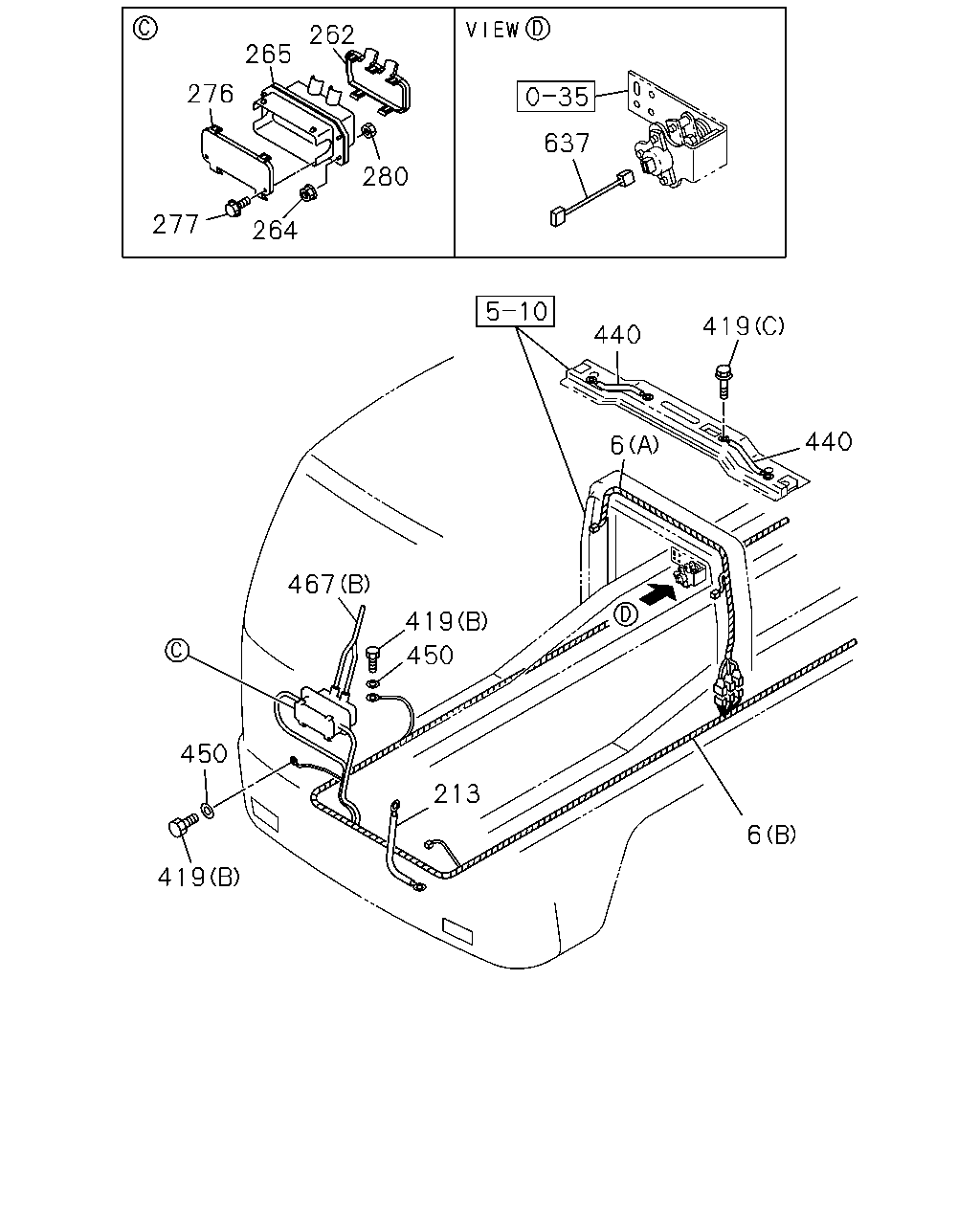

çizim 91748
262 265 276 637 280 277 264 419 440 440 6 467 419 450 450 213 6 419
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		1-82678-325-2 01 1 0611-
6 HARNESS; FRAME
(B) 		8-97613-302-6 01 1 0611-
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 0611-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0611-
264 NUT; CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 01 1 0911-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0611-
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0611-
276 COVER; BOX,FRAME HARNESS 1-82699-892-1 01 1 0611-
277 BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0611-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0611-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0611-0611
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0611-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 07 1 0611-0611
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0611-1201
419 BOLT; CAB EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
419 BOLT; CAB EARTH
(C) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0611-1201
419 BOLT; CAB EARTH
(C) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
440 CABLE; EARTH 1-82678-273-0 02 1 0611-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0611-
467 HARNESS; FACIA
(A) 		8-97611-879-2 01 1 0611-
467 HARNESS; FACIA
(B) 		8-97614-148-6 01 1 0611-
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0611-

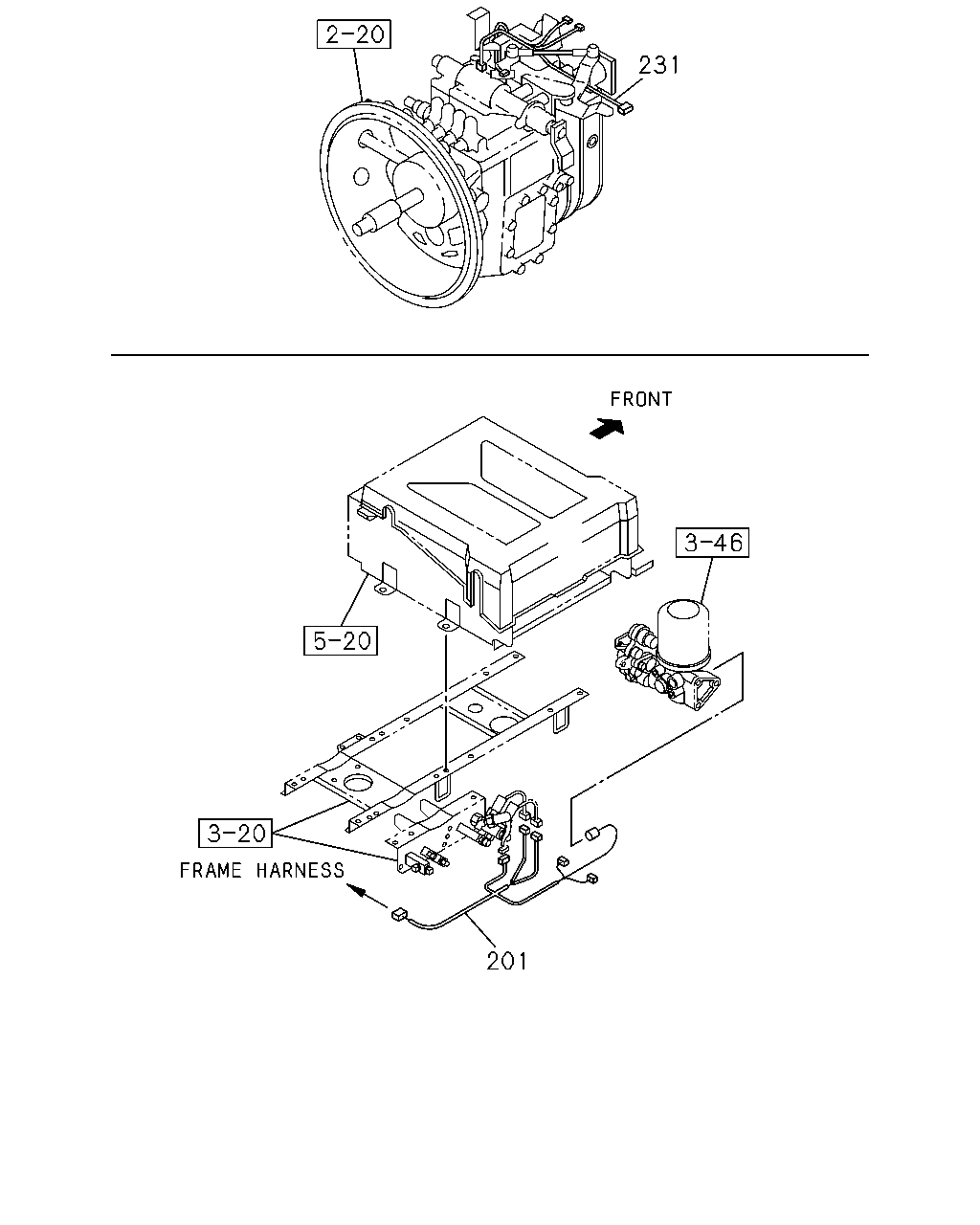

çizim 105612
231 201
BalonParca AdiParca NoAdetTipApplied Date
201 HARNESS; AIR TANK 8-97616-655-1 01 1 0611-1004
201 HARNESS; AIR TANK 8-97637-238-0 01 1 1005-
231 HARNESS; TRANS 1-82676-855-5 01 1 0611-

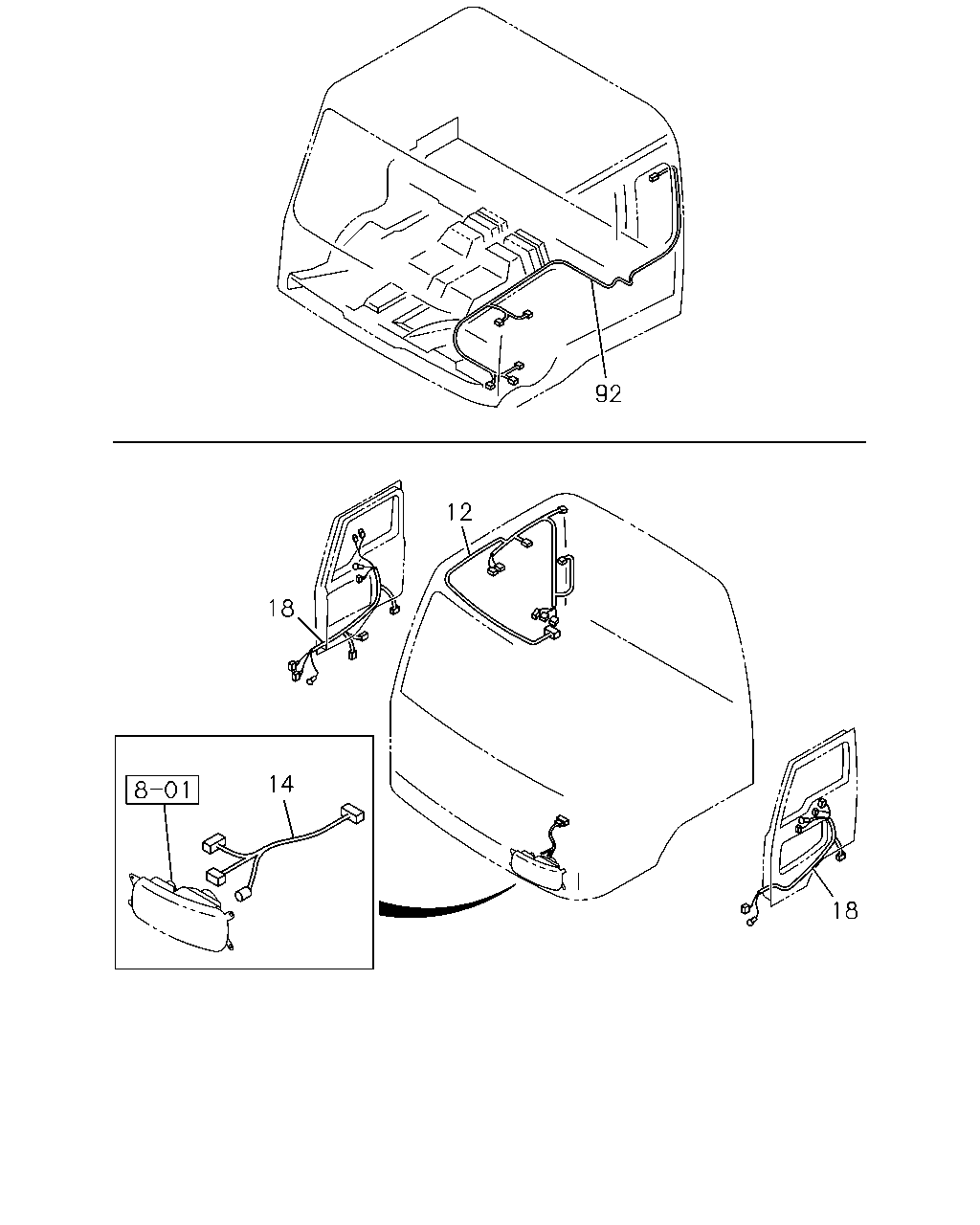

çizim 105690
92 12 18 14 18
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF 1-82629-921-2 01 1 0611-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> 		1-82677-628-3 02 1 0611-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-582-0 01 1 0611-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-584-0 01 1 0611-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-032-0 01 1 0611-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-037-0 01 1 0611-
92 HARNESS; FLOOR 1-82662-036-2 01 1 0611-
