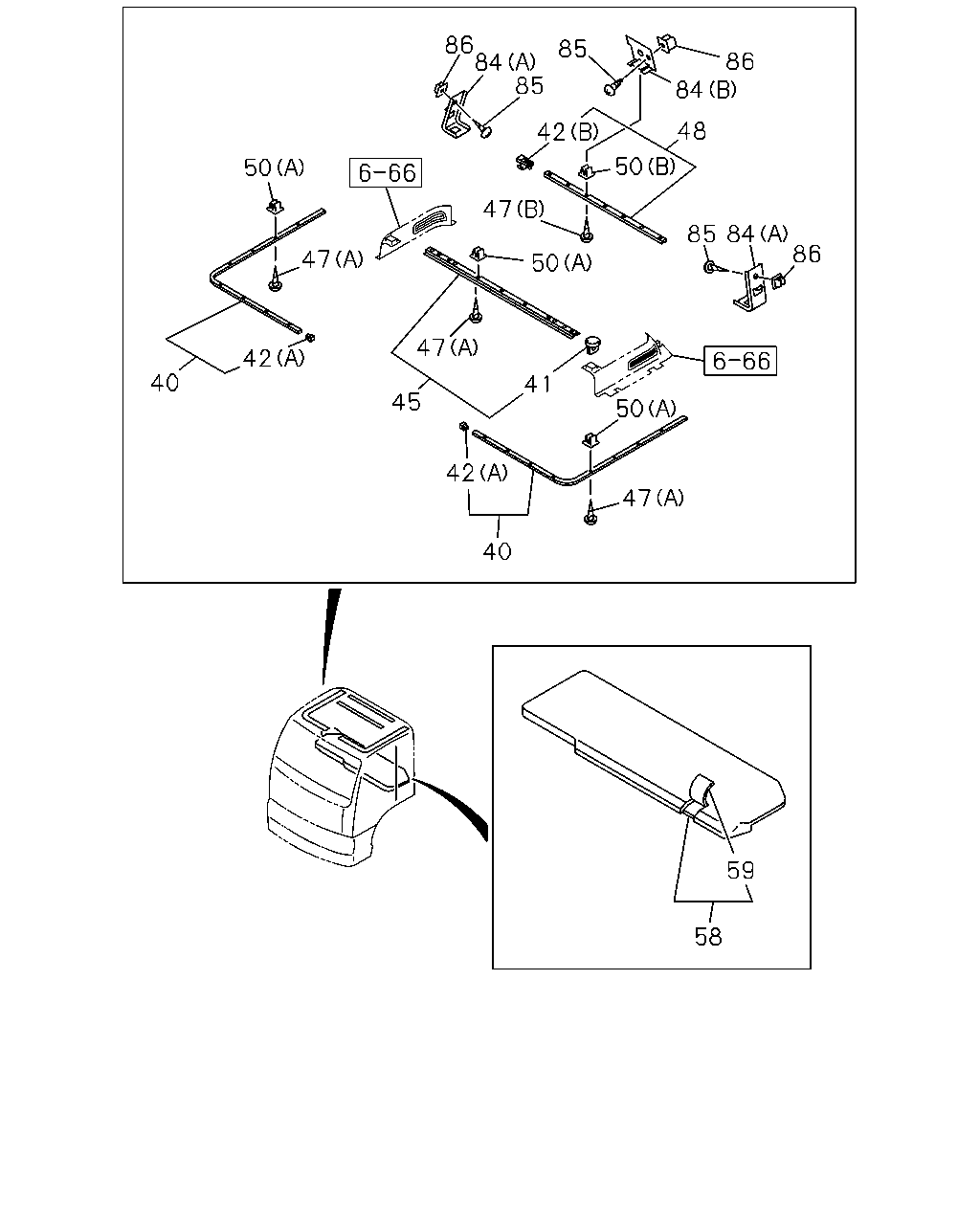

7-70 — SEPARATER AND BED (#27174) — 22 parça

86 84 85 85 86 84 48 42 50 50 47 85 84 86 47 50 47 42 40 41 45 50 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE	1-73907-536-1	01	1	0611-
40	RAIL; CURTAIN,SIDE	1-73907-535-1	01	1	0611-
41	HOOK; CURTAIN RAIL CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0611-
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0611-
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	01	1	0611-
45	RAIL; CURTAIN,FRT CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-546-3	01	1	0611-
45	RAIL; CURTAIN,FRT EXC. CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-545-2	01	1	0611-
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0611-
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0611-
48	RAIL; CURTAIN,BACK	1-73996-385-1	01	1	0611-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	07	1	0611-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0611-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0611-
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75117-979-3	01	1	0611-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0611-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-981-1	01	1	0611-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0611-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0611-
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0611-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0611-

44 44

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-480-1	01	1	0611-
	44	CURTAIN ASM; CABIN CENTER CURTAIN SLEEPER COMPARTMENT<E25>	1-73907-481-1	01	1	0611-
