8-60 — HEATER UNIT; FRONT (#2717) — 74 parça

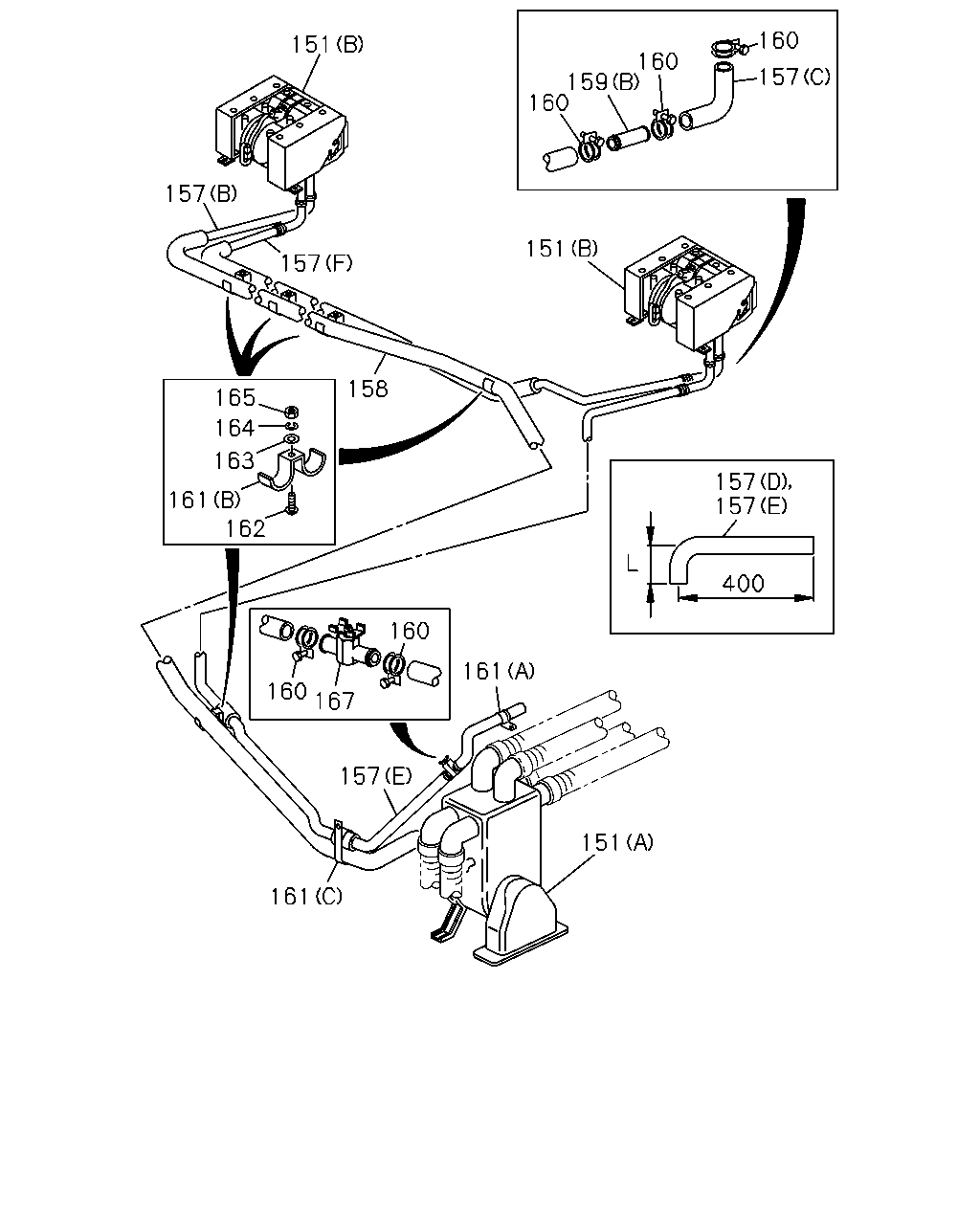

160 151 160 159 160 157 157 151 157 158 165 164 163 157 157 161 162 160 161 160 167 157 151 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) FRT (A)	1-83511-111-0	01	1	9101-	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER(C41) RR (B)	1-83511-118-0	02	1	9101-	●	●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) FRT (A)	1-83511-071-0	01	1	9101-		●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER(C36) (A) L=2000	1-83565-083-0	02	1	9101-	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-		●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (B) L=7000	1-83565-101-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (C) LTYPE L=60+60	1-83565-102-0	04	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (D) L=50	1-83565-103-0	03	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (E) L=120	1-83565-104-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (F) L=3000	5-09360-036-0	02	1	9101-	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER(C36) (F) L=3000	5-09360-036-0	01	1	9101-		●
158	INSULATOR; HTR KIT AUXILIARY HEATER(C36)	9-83651-991-0	01	1	9101-	●
158	INSULATOR; HTR KIT HEATER & DEFROSTER(C41)	9-83651-991-0	06	1	9101-	●	●
158	INSULATOR; HTR KIT AUXILIARY HEATER(C36)	9-83651-991-0	03	1	9101-		●
159	CONNECTOR; HOSE,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A)	1-83575-019-0	02	1	9101-	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER(C41) (B)	9-09903-482-0	04	1	9101-	●	●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER(C36)	9-09915-642-0	06	1	9101-	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER(C41)	9-09915-642-2	28	1	9101-	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER(C36) (C)	9-83651-990-0	01	1	9101-	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A)	1-09700-092-0	01	1	9101-	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER(C41) (B)	9-83651-989-0	05	1	9101-	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER(C41) (C)	9-83651-990-0	02	1	9101-	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER(C36)	9-03490-625-0	01	1	9101-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41)	9-03490-625-0	07	1	9101-	●	●
163	WASHER; CLIP FIX AUXILIARY HEATER(C36)	9-09160-506-0	01	1	9101-	●	●
163	WASHER; CLIP FIX HEATER & DEFROSTER(C41)	9-09160-506-0	07	1	9101-	●	●
164	WASHER; LK,CLIP FIX AUXILIARY HEATER(C36)	9-09150-506-0	01	1	9101-	●	●
164	WASHER; LK,CLIP FIX HEATER & DEFROSTER(C41)	9-09150-506-0	07	1	9101-	●	●
165	NUT; CLIP FIX AUXILIARY HEATER(C36)	9-09110-406-0	01	1	9101-	●	●
165	NUT; CLIP FIX HEATER & DEFROSTER(C41)	1-15729-006-0	07	1	9101-	●	●
167	COCK ASM; DRAIN,HTR KIT HEATER & DEFROSTER(C41)	1-83519-003-0	01	1	9101-	●
167	COCK ASM; DRAIN,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41)	1-83519-003-0	01	1	9101-		●

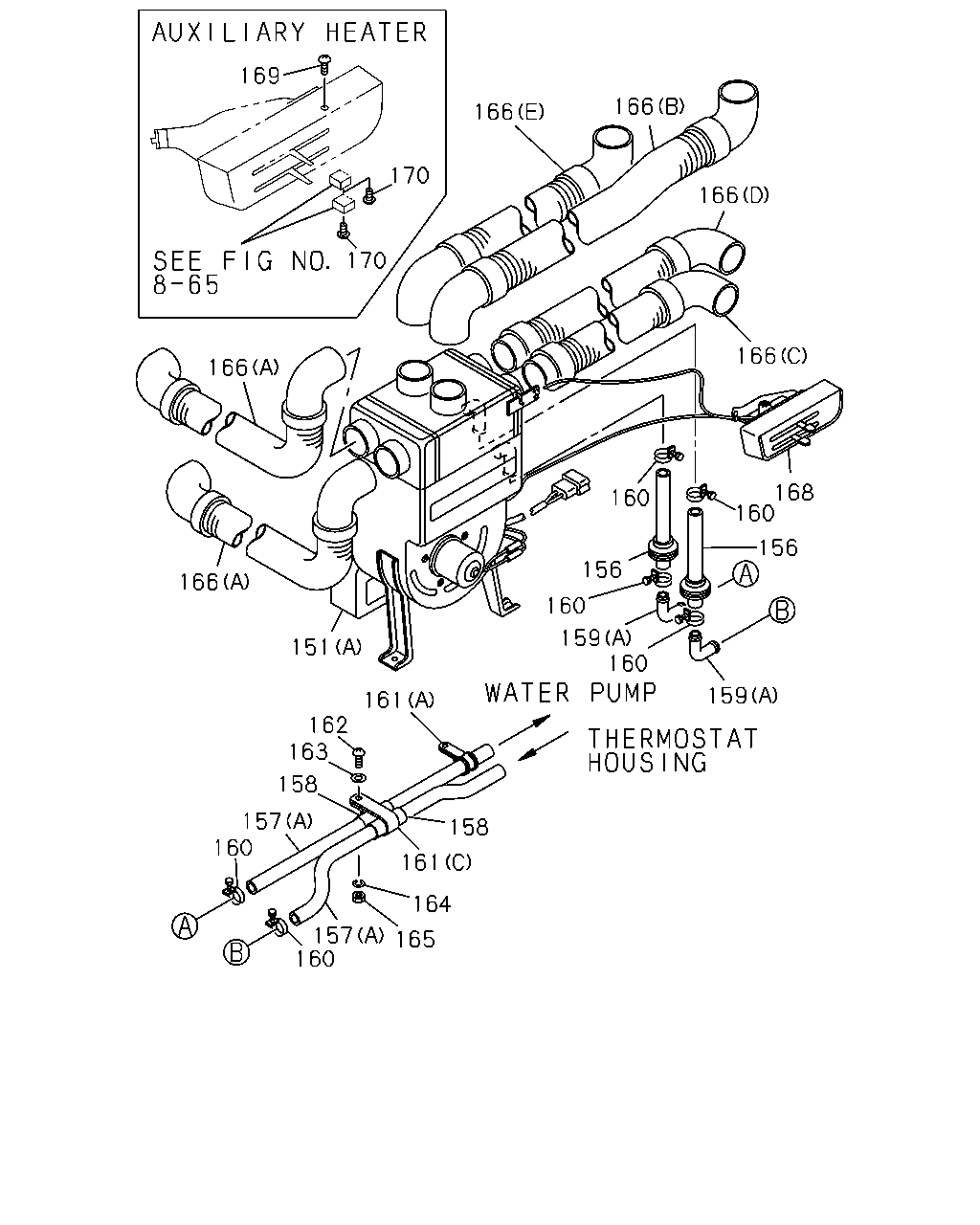

169 166 166 170 166 170 166 166 168 160 160 156 156 166 160 159 160 151 159 161 162 163 158 157 160 158 161 164 157 160 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
151	HEATER UNIT; HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) FRT (A)	1-83511-111-0	01	1	9101-	●
151	HEATER UNIT; HTR KIT HEATER & DEFROSTER(C41) RR (B)	1-83511-118-0	02	1	9101-	●	●
151	HEATER UNIT; HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) FRT (A)	1-83511-071-0	01	1	9101-		●
156	GROMMET; HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41)	9-09956-292-0	02	1	9101-	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER(C36) (A) L=2000	1-83565-083-0	02	1	9101-	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A) L=2000	1-83565-083-0	01	1	9101-		●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (B) L=7000	1-83565-101-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (C) LTYPE L=60+60	1-83565-102-0	04	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (D) L=50	1-83565-103-0	03	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (E) L=120	1-83565-104-0	01	1	9101-	●	●
157	HOSE; WATER,HTR KIT HEATER & DEFROSTER(C41) (F) L=3000	5-09360-036-0	02	1	9101-	●	●
157	HOSE; WATER,HTR KIT AUXILIARY HEATER(C36) (F) L=3000	5-09360-036-0	01	1	9101-		●
158	INSULATOR; HTR KIT AUXILIARY HEATER(C36)	9-83651-991-0	01	1	9101-	●
158	INSULATOR; HTR KIT HEATER & DEFROSTER(C41)	9-83651-991-0	06	1	9101-	●	●
158	INSULATOR; HTR KIT AUXILIARY HEATER(C36)	9-83651-991-0	03	1	9101-		●
159	CONNECTOR; HOSE,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A)	1-83575-019-0	02	1	9101-	●	●
159	CONNECTOR; HOSE,HTR KIT HEATER & DEFROSTER(C41) (B)	9-09903-482-0	04	1	9101-	●	●
160	CLAMP; HOSE,HTR KIT AUXILIARY HEATER(C36)	9-09915-642-0	06	1	9101-	●
160	CLAMP; HOSE,HTR KIT HEATER & DEFROSTER(C41)	9-09915-642-2	28	1	9101-	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER(C36) (C)	9-83651-990-0	01	1	9101-	●	●
161	CLIP; HOSE FIX AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A)	1-09700-092-0	01	1	9101-	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER(C41) (B)	9-83651-989-0	05	1	9101-	●	●
161	CLIP; HOSE FIX HEATER & DEFROSTER(C41) (C)	9-83651-990-0	02	1	9101-	●	●
162	SCREW; CLIP FIX AUXILIARY HEATER(C36)	9-03490-625-0	01	1	9101-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41)	9-03490-625-0	07	1	9101-	●	●
163	WASHER; CLIP FIX AUXILIARY HEATER(C36)	9-09160-506-0	01	1	9101-	●	●
163	WASHER; CLIP FIX HEATER & DEFROSTER(C41)	9-09160-506-0	07	1	9101-	●	●
164	WASHER; LK,CLIP FIX AUXILIARY HEATER(C36)	9-09150-506-0	01	1	9101-	●	●
164	WASHER; LK,CLIP FIX HEATER & DEFROSTER(C41)	9-09150-506-0	07	1	9101-	●	●
165	NUT; CLIP FIX AUXILIARY HEATER(C36)	9-09110-406-0	01	1	9101-	●	●
165	NUT; CLIP FIX HEATER & DEFROSTER(C41)	1-15729-006-0	07	1	9101-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (A) L=400	9-83653-188-0	02	1	9101-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (B) SERVICED BY L=1800	9-83653-191-0	01	1	9101-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (C) L=1500	9-83653-229-0	01	1	9101-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (D) SERVICED BY L=1800	9-83653-230-0	01	1	9101-	●	●
166	HOSE; AIR,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41) (E) L=1000	9-83653-231-0	01	1	9101-	●	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41)	1-83543-014-1	01	1	9101-	●
168	LEVER ASM; CONT,HTR KIT AUXILIARY HEATER(C36),HEATER & DEFROSTER(C41)	1-83513-093-0	01	1	9101-		●
169	SCREW; PANEL,HTR CONT LVR AUXILIARY HEATER(C36)	9-93490-410-0	03	1	9101-	●
170	SCREW; LVR KNOB,HTR CONT LVR AUXILIARY HEATER(C36)	9-93090-306-0	02	1	9101-	●
