◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#2716) — 25 parça

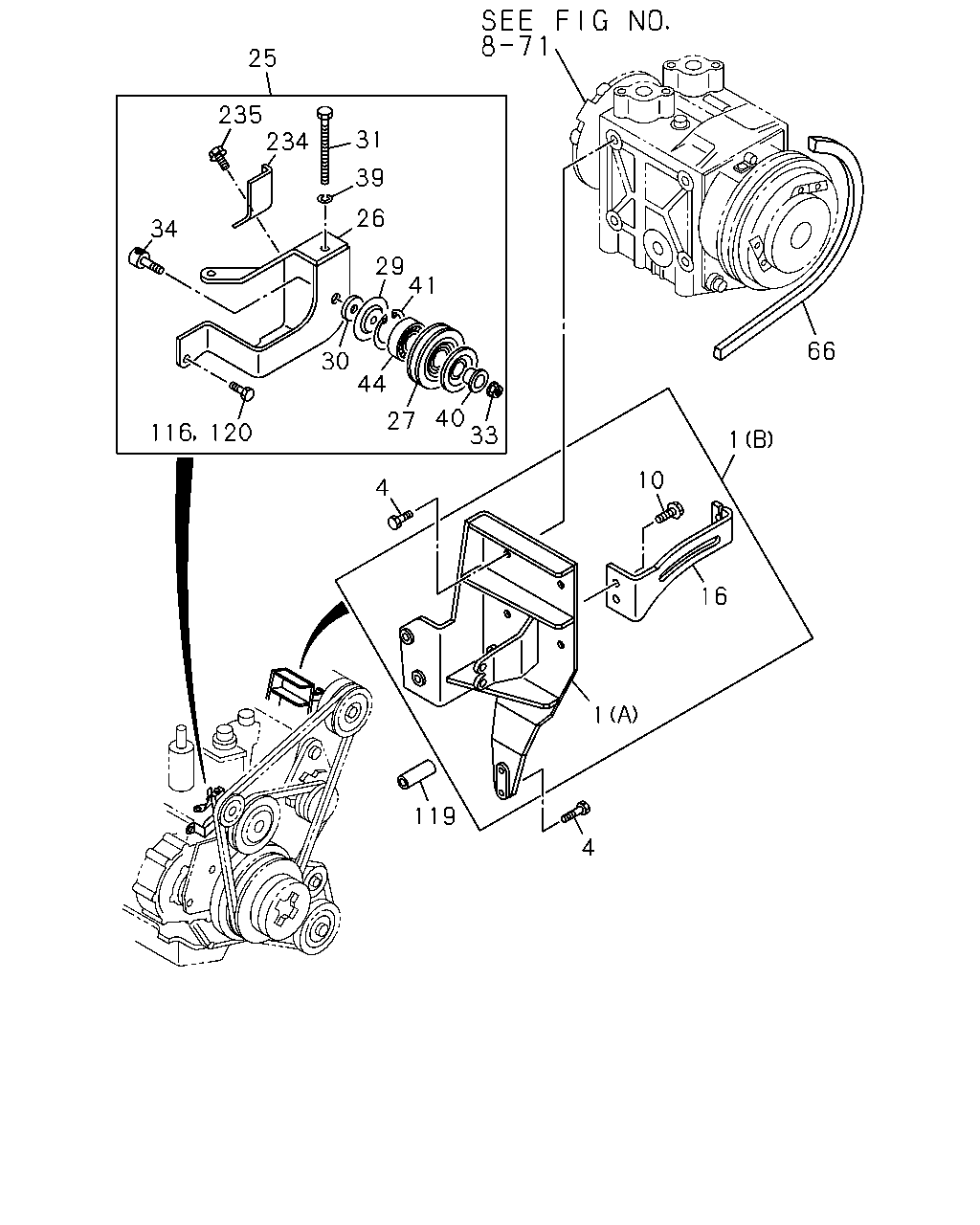

çizim 37116
25 235 234 31 39 26 34 29 41 66 44 40 33 27 116 120 1 10 4 16 1 119 4 30
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> (A) 		1-83571-638-1 01 1 9112-
1 BRACKET; A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> (B) 		1-83571-653-2 01 1 9112-
4 BOLT; A/C CMPR BRKT
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10X100 		0-10806-000-0 01 1 9112-
4 BOLT; A/C CMPR BRKT
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10X35 W/LK WASHER 		0-50041-035-0 01 1 9112-
4 BOLT; A/C CMPR BRKT
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10X28 		0-50051-028-0 04 1 9112-
10 BOLT; ADJ PLATE
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10X35 W/LK WASHER 		0-50041-035-0 02 1 9112-
16 PLATE; ADJ,CMPR
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-13674-202-0 01 1 9112-
25 PULLEY ASM; IDLER,CMPR
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83571-659-1 01 1 9112-
26 BRACKET; IDLE PULLEY,A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-520-0 01 1 9112-
27 PULLEY; IDLE,A/C
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-13660-179-0 01 1 9112-
29 COVER; DUST,IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-407-0 01 1 9112-
30 COLLAR; IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-489-0 01 1 9112-
31 BOLT; ADJ,IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-143-0 01 1 9112-
33 NUT; IDLER PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10 FLANGE 		5-09440-006-0 01 1 9112-
34 SHAFT; IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-409-0 01 1 9112-
39 WASHER; LK,ADJ BOLT
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-492-0 01 1 9112-
40 BUSHING; IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83576-033-1 01 1 9112-
41 RING; SNAP,IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83579-561-0 01 1 9112-
44 BEARING; IDLE PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-83576-032-0 01 1 9112-
66 BELT; A/C CMPR
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> L=1916 		1-13671-134-0 01 1 9112-
116 BOLT; IDLER PULLEY TO TIMING GEAR CASE
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10X22 W/LK WASHER 		0-50041-022-0 02 1 9112-
119 TUBE; ASM
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		5-83571-176-0 01 1 9112-
120 BOLT; BRKT TO CMPR LWR
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M10X22 		9-02061-022-0 02 1 9112-
234 STAY; BRKT,PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> 		1-21439-076-1 01 1 9112-
235 BOLT; STAY,PULLEY
6BD1 STD ENG(L21) OVERHEAD COOLING SYSTEM<YS9> M8X14 W/LK WASHER 		9-01910-814-0 01 1 9112-
