Sayfa 6-31 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11046 - CYZ LHD EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶

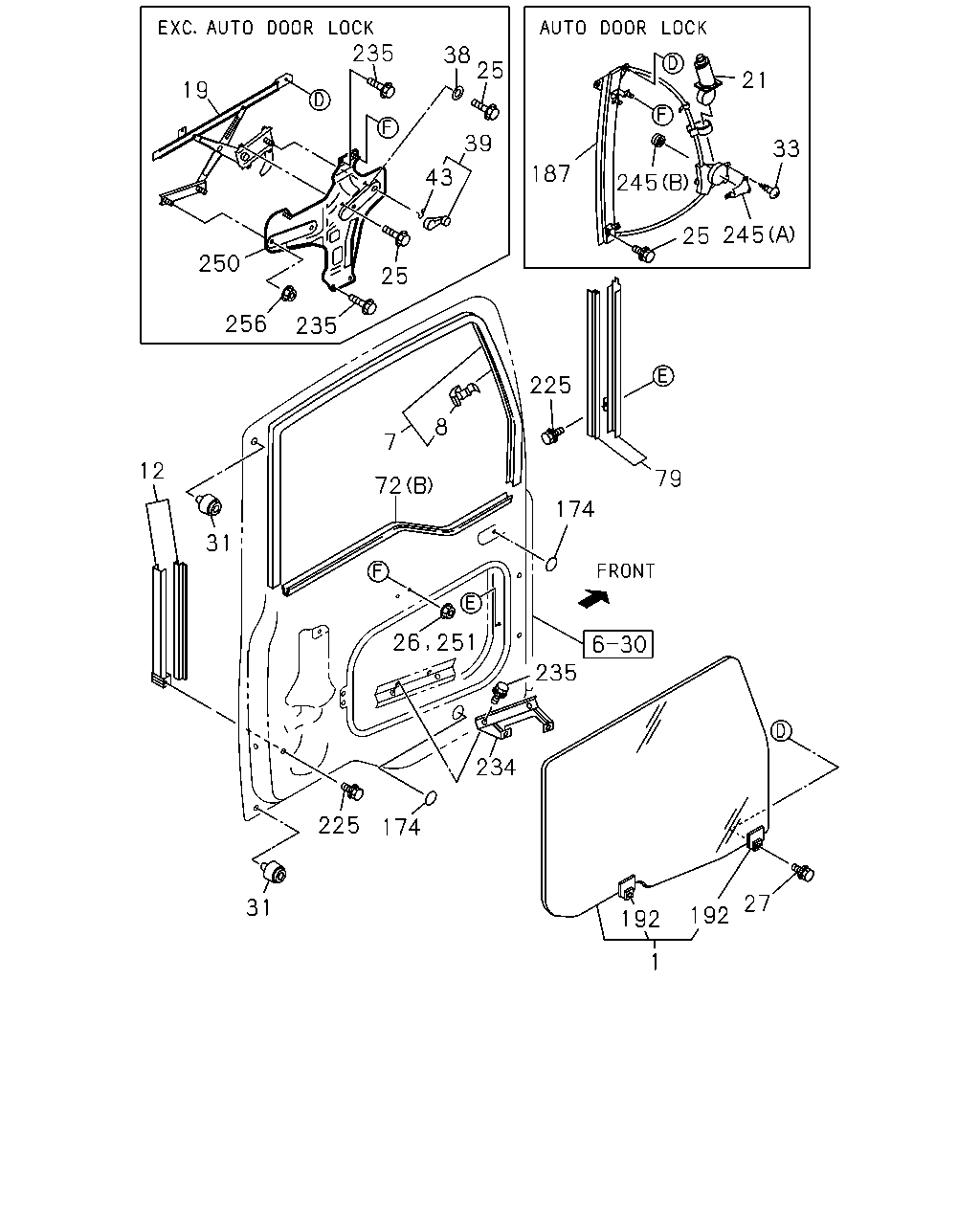

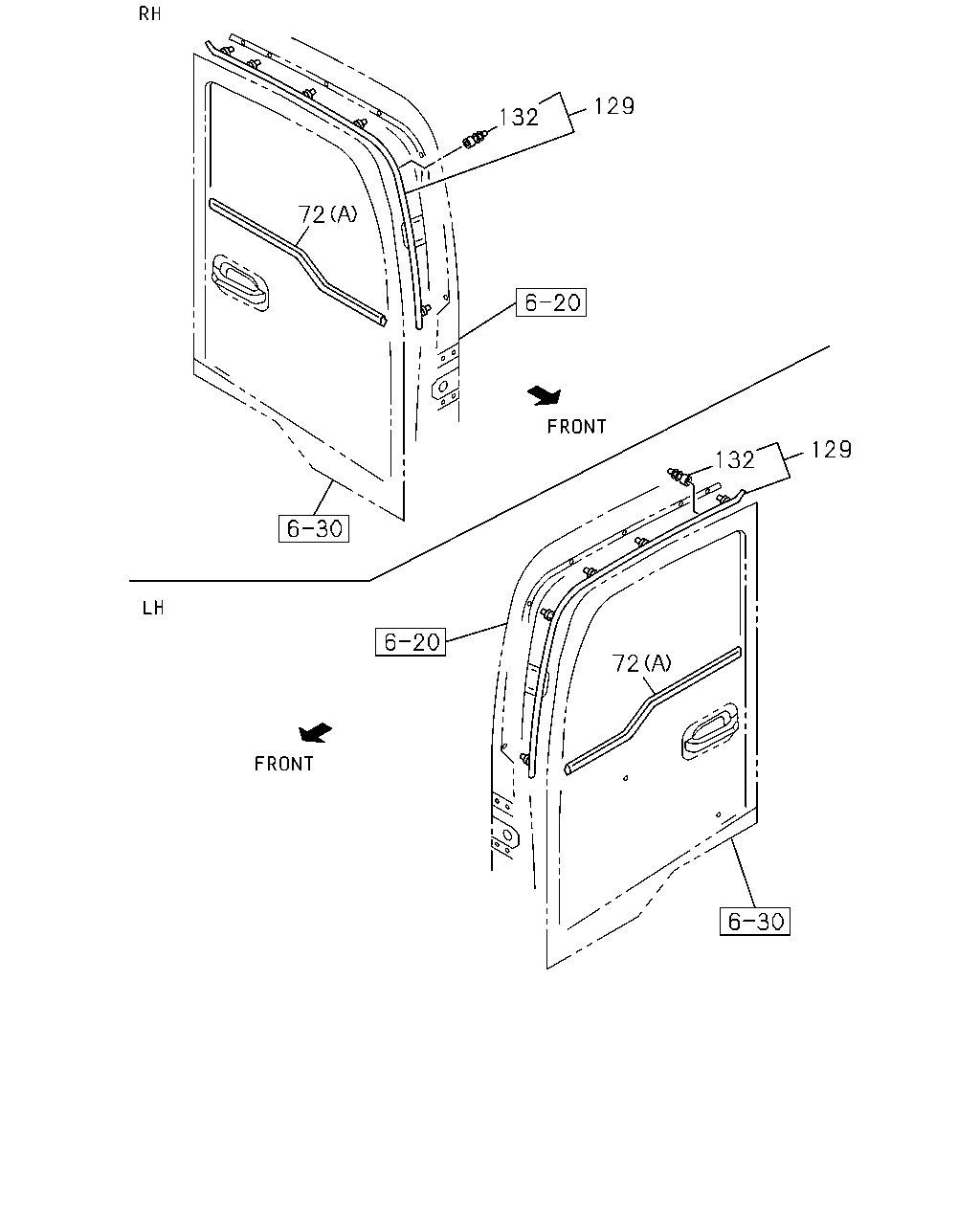

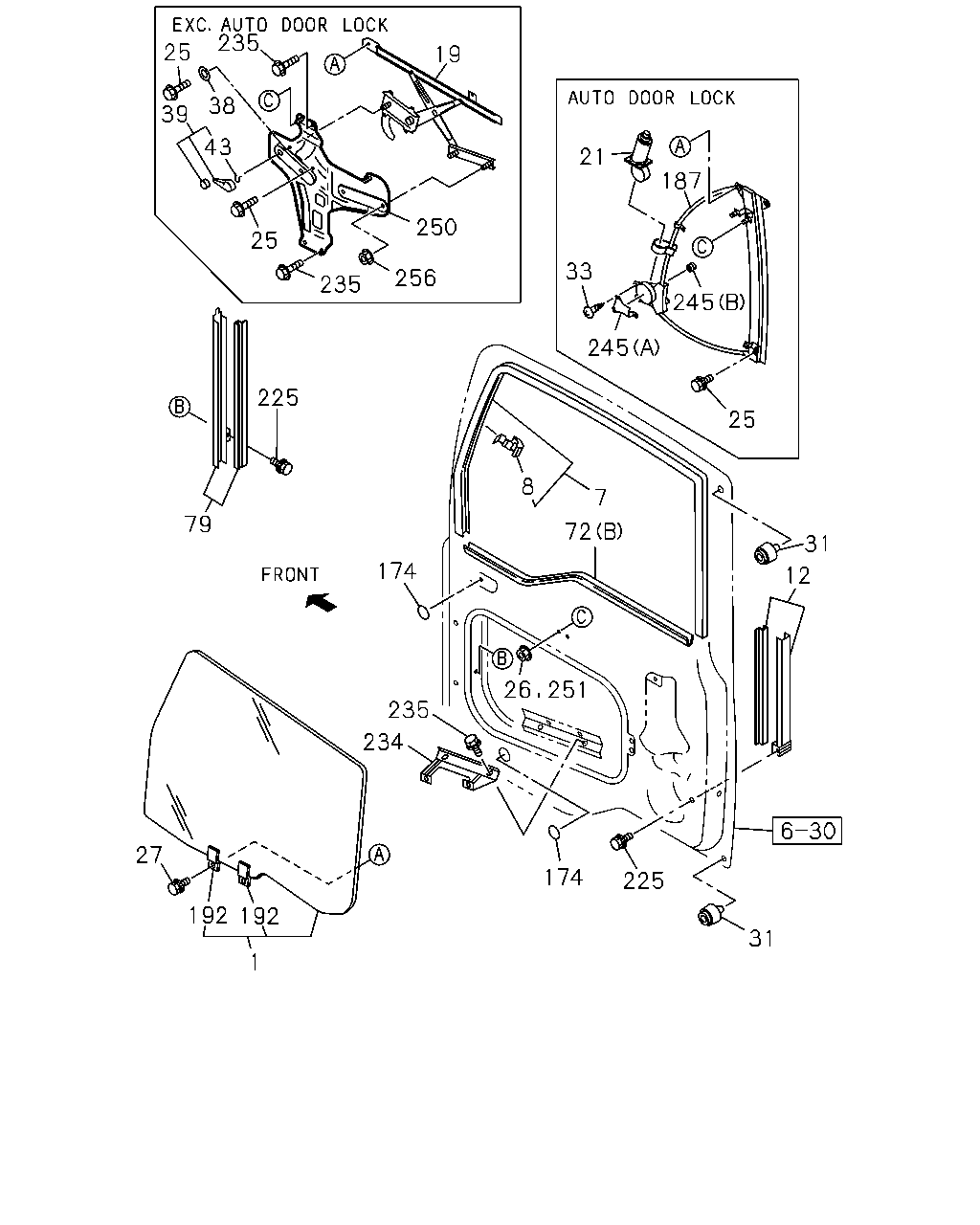

6-31 — FRONT DOOR GLASS AND REGULATOR (#27148) — 110 parça

129 132 72 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0611-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0611-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0611-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0611-
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0611-
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0611-
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0611-
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0611-

235 25 19 38 39 43 21 187 250 25 33 256 235 245 245 225 25 8 7 79 72 31 174 12 235 234 27 174 225 192 192 31 1 26 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR AUTO DOOR LOCK<AU4>	1-76148-095-2	01	1	0611-
1	GLASS; FRT DOOR AUTO DOOR LOCK<AU4>	1-76167-177-2	01	1	0611-
1	GLASS; FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-76148-094-2	01	1	0611-
1	GLASS; FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-76167-174-2	01	1	0611-
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0611-
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0611-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0611-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-3	01	1	0611-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-3	01	1	0611-
19	REGULATOR; WINDOW,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74418-134-5	01	1	0611-
19	REGULATOR; WINDOW,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74418-144-5	01	1	0611-
21	MOTOR; POWER WINDOW REG,FRT DOOR AUTO DOOR LOCK<AU4>	1-74418-177-0	01	1	0611-
21	MOTOR; POWER WINDOW REG,FRT DOOR AUTO DOOR LOCK<AU4>	1-74418-176-0	01	1	0611-
25	BOLT; WINDOW REG AUTO DOOR LOCK<AU4> M6X16 FLANGE	0-28050-616-0	10	1	0611-0710
25	BOLT; WINDOW REG AUTO DOOR LOCK<AU4> M6X10 FLANGE	0-28050-610-0	10	1	0711-
25	BOLT; WINDOW REG EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0611-
26	NUT; FLANGE,WINDOW REG AUTO DOOR LOCK<AU4> M6 FLANGE	1-09984-141-0	06	1	0611-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0611-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0611-
33	SCREW; REG MOTOR AUTO DOOR LOCK<AU4>	8-98099-646-0	06	1	0611-
38	WASHER; PL,WINDOW REG EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0611-
39	HANDLE; WINDOW REG,FRT DOOR EXC. AUTO DOOR LOCK<AU4> BLACK	8-94371-427-0	02	1	0611-
43	CLIP; REG HANDLE,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	8-94220-591-0	02	1	0611-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0611-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0611-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0611-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0611-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0611-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0611-
174	SEAL; LOCATION HOLE AUTO DOOR LOCK<AU4> OD=25 BLACK	1-76798-019-0	16	1	0611-
174	SEAL; LOCATION HOLE EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK	1-76798-019-0	22	1	0611-
174	SEAL; LOCATION HOLE EXC. AUTO DOOR LOCK<AU4> OD=52 BLACK	1-76798-041-0	02	1	0611-
187	REGULATOR ASM; DOOR AUTO DOOR LOCK<AU4>	1-74418-179-3	01	1	0611-
187	REGULATOR ASM; DOOR AUTO DOOR LOCK<AU4>	1-74418-178-3	01	1	0611-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0611-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0611-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0611-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0611-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0611-
235	BOLT; BRKT EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE	0-28050-616-0	08	1	0611-0710
235	BOLT; BRKT EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE	0-28050-610-0	08	1	0711-
245	DAMPER; WINDOW REGULATOR AUTO DOOR LOCK<AU4> (B)	1-74417-074-0	02	1	0611-
245	DAMPER; WINDOW REGULATOR AUTO DOOR LOCK<AU4> (A)	1-74418-181-0	01	1	0611-
245	DAMPER; WINDOW REGULATOR AUTO DOOR LOCK<AU4> (A)	1-74418-180-0	01	1	0611-
250	BRACKET; REGULATOR EXC. AUTO DOOR LOCK<AU4>	1-74418-149-0	01	1	0611-
250	BRACKET; REGULATOR EXC. AUTO DOOR LOCK<AU4>	1-74418-148-0	01	1	0611-
251	NUT; BRKT EXC. AUTO DOOR LOCK<AU4> M6 FLANGE	1-09984-141-0	04	1	0611-
256	NUT EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0611-

235 38 25 21 19 39 33 187 43 245 245 25 250 25 256 235 225 8 7 12 79 72 174 31 235 234 225 174 27 31 192 192 1 26 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GLASS; FRT DOOR AUTO DOOR LOCK<AU4>	1-76148-095-2	01	1	0611-
1	GLASS; FRT DOOR AUTO DOOR LOCK<AU4>	1-76167-177-2	01	1	0611-
1	GLASS; FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-76148-094-2	01	1	0611-
1	GLASS; FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-76167-174-2	01	1	0611-
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0611-
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0611-
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0611-
12	CHANNEL; GLASS RUN,FRT	1-74338-071-3	01	1	0611-
12	CHANNEL; GLASS RUN,FRT	1-74338-070-3	01	1	0611-
19	REGULATOR; WINDOW,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74418-134-5	01	1	0611-
19	REGULATOR; WINDOW,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	1-74418-144-5	01	1	0611-
21	MOTOR; POWER WINDOW REG,FRT DOOR AUTO DOOR LOCK<AU4>	1-74418-177-0	01	1	0611-
21	MOTOR; POWER WINDOW REG,FRT DOOR AUTO DOOR LOCK<AU4>	1-74418-176-0	01	1	0611-
25	BOLT; WINDOW REG AUTO DOOR LOCK<AU4> M6X16 FLANGE	0-28050-616-0	10	1	0611-0710
25	BOLT; WINDOW REG AUTO DOOR LOCK<AU4> M6X10 FLANGE	0-28050-610-0	10	1	0711-
25	BOLT; WINDOW REG EXC. AUTO DOOR LOCK<AU4> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0611-
26	NUT; FLANGE,WINDOW REG AUTO DOOR LOCK<AU4> M6 FLANGE	1-09984-141-0	06	1	0611-
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0611-
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0611-
33	SCREW; REG MOTOR AUTO DOOR LOCK<AU4>	8-98099-646-0	06	1	0611-
38	WASHER; PL,WINDOW REG EXC. AUTO DOOR LOCK<AU4> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0611-
39	HANDLE; WINDOW REG,FRT DOOR EXC. AUTO DOOR LOCK<AU4> BLACK	8-94371-427-0	02	1	0611-
43	CLIP; REG HANDLE,FRT DOOR EXC. AUTO DOOR LOCK<AU4>	8-94220-591-0	02	1	0611-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0611-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0611-
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0611-1207
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0611-
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0611-
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0611-
174	SEAL; LOCATION HOLE AUTO DOOR LOCK<AU4> OD=25 BLACK	1-76798-019-0	16	1	0611-
174	SEAL; LOCATION HOLE EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK	1-76798-019-0	22	1	0611-
174	SEAL; LOCATION HOLE EXC. AUTO DOOR LOCK<AU4> OD=52 BLACK	1-76798-041-0	02	1	0611-
187	REGULATOR ASM; DOOR AUTO DOOR LOCK<AU4>	1-74418-179-3	01	1	0611-
187	REGULATOR ASM; DOOR AUTO DOOR LOCK<AU4>	1-74418-178-3	01	1	0611-
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0611-
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0611-
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0611-
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0611-
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0611-
235	BOLT; BRKT EXC. AUTO DOOR LOCK<AU4> M6X16 FLANGE	0-28050-616-0	08	1	0611-0710
235	BOLT; BRKT EXC. AUTO DOOR LOCK<AU4> M6X10 FLANGE	0-28050-610-0	08	1	0711-
245	DAMPER; WINDOW REGULATOR AUTO DOOR LOCK<AU4> (B)	1-74417-074-0	02	1	0611-
245	DAMPER; WINDOW REGULATOR AUTO DOOR LOCK<AU4> (A)	1-74418-181-0	01	1	0611-
245	DAMPER; WINDOW REGULATOR AUTO DOOR LOCK<AU4> (A)	1-74418-180-0	01	1	0611-
250	BRACKET; REGULATOR EXC. AUTO DOOR LOCK<AU4>	1-74418-149-0	01	1	0611-
250	BRACKET; REGULATOR EXC. AUTO DOOR LOCK<AU4>	1-74418-148-0	01	1	0611-
251	NUT; BRKT EXC. AUTO DOOR LOCK<AU4> M6 FLANGE	1-09984-141-0	04	1	0611-
256	NUT EXC. AUTO DOOR LOCK<AU4> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
