Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11046 - CYZ LHD EURO4
▶
5 - Frame, Cab Mounting
▶

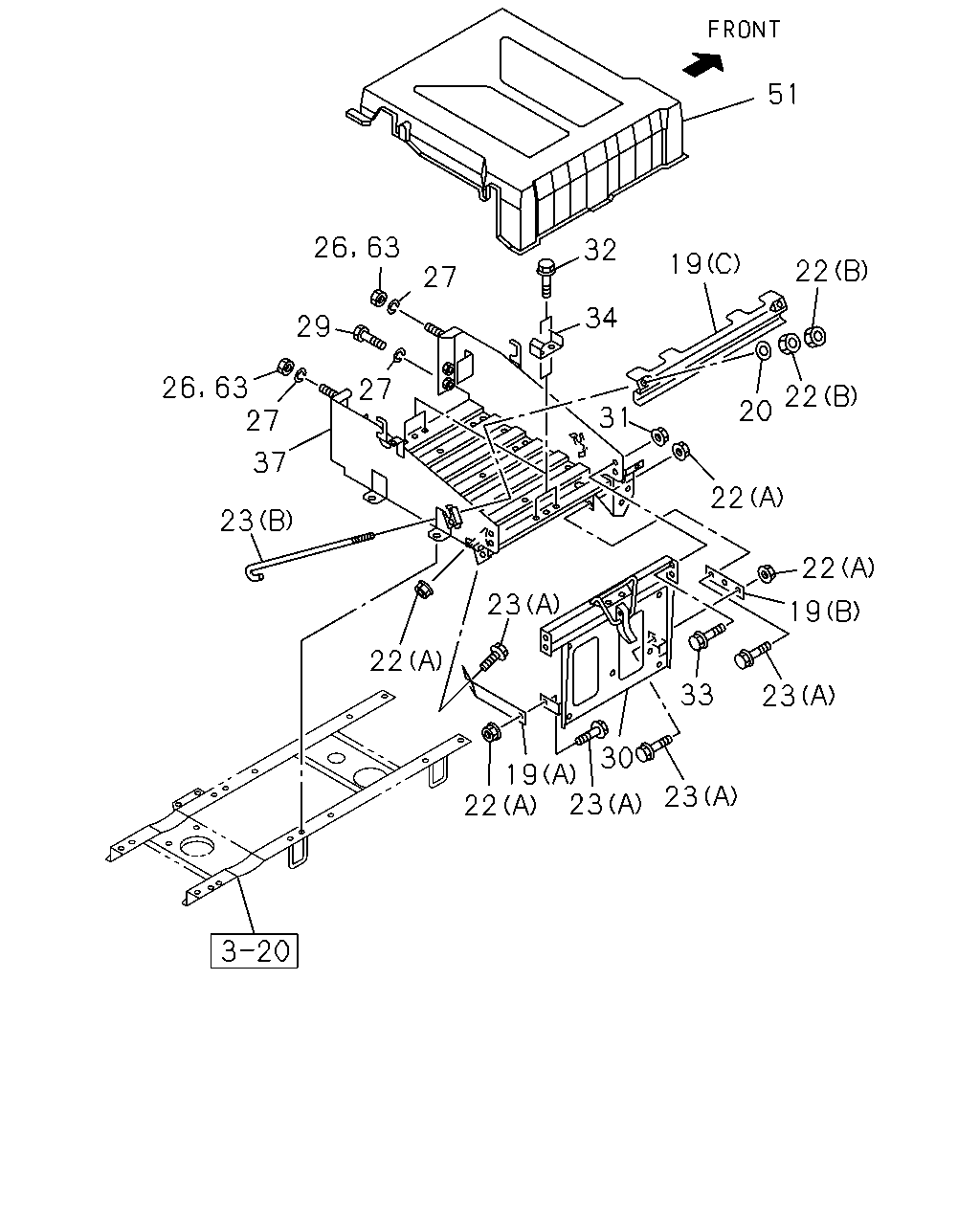

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#27140) — 21 parça
51
26
32
19
22
27
34
29
26
27
27
22
20
31
37
22
23
22
23
19
22
33
23
30
19
22
23
23
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0611-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0611-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0611-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0611-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0611-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
04
1
0611-0702
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0703-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0611-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0611-
26
NUT; BRKT
M14
1-09440-072-0
02
1
0611-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0611-
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0611-
30
PLATE; BATTERY
1-53619-148-1
01
1
0611-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0611-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0611-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0611-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0611-
37
BRACKET; BATTERY
1-53610-161-3
01
1
0611-
51
COVER; BATTERY
1-53612-068-0
01
1
0611-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0611-
