Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11046 - CYZ LHD EURO4
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#27135) — 54 parça
◀

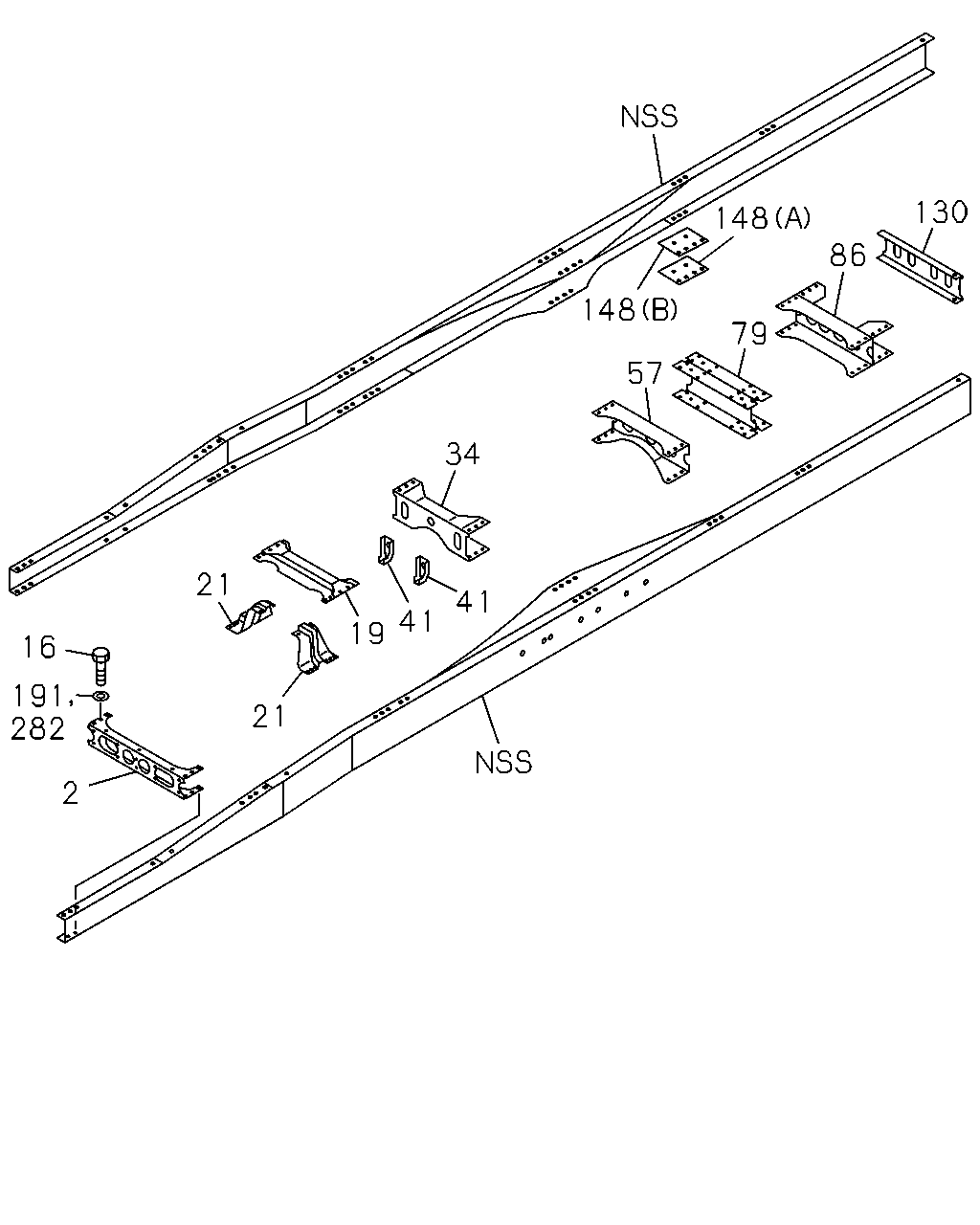

[501A] CROSS MEMBER (16 parça)

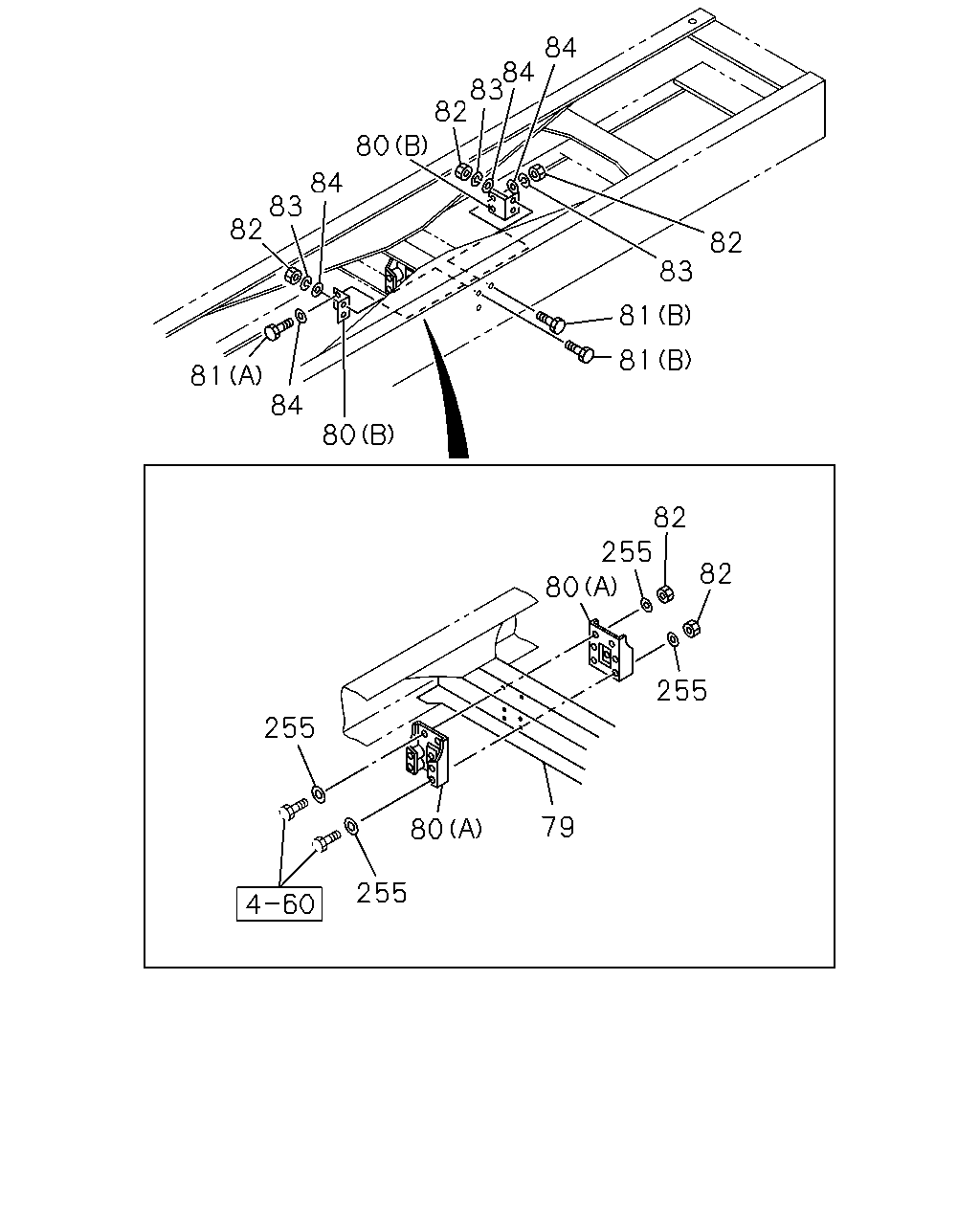

[501A] BRACKET;REAR (12 parça)

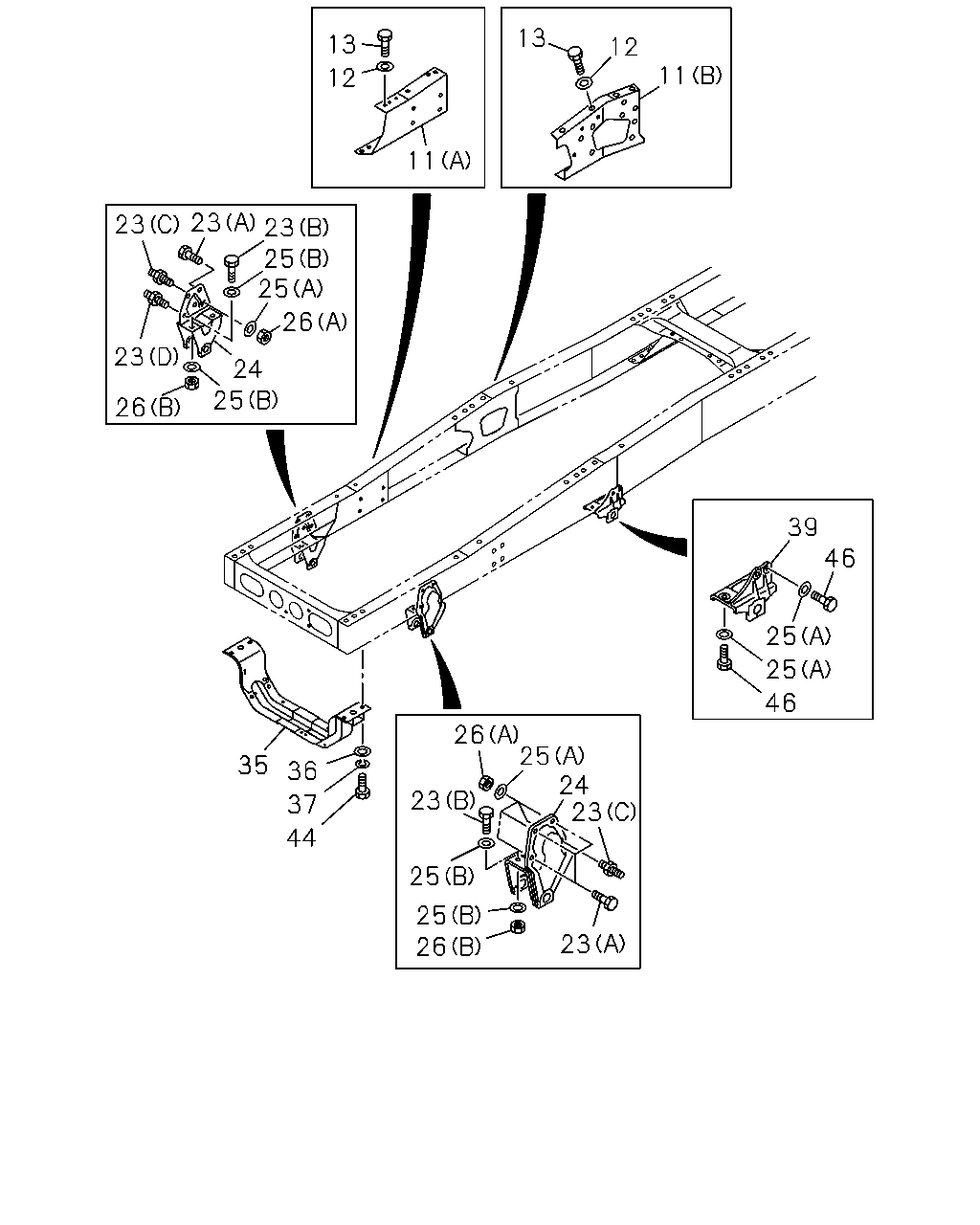

[501A] BRACKET;FRONT AND UNDER MEMBER (26 parça)
▶
130
148
148
86
79
57
34
21
41
41
19
16
191
282
21
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98057-315-3
01
1
0611-
16
BOLT; 1ST C/MBR TO S/MBR
M14X40
0-20951-440-0
02
1
0611-
19
MEMBER; CROSS,2ND
1-53174-221-0
01
1
0611-
21
GUSSET; 2ND CROSS
1-53164-208-0
02
1
0611-
34
MEMBER; CROSS,3RD
1-53182-072-1
01
1
0611-
41
BRACKET; CENTER BRG,FRAME SIDE
L=320
1-53271-385-0
02
1
0611-
57
MEMBER; CROSS,RR SUSP FRT
1-53171-685-3
01
1
0611-
79
MEMBER; CROSS,TRUNNION ASM
1-53182-054-1
01
1
0611-
86
MEMBER; CROSS,RR SUSP RR
1-53181-134-2
01
1
0611-
130
MEMBER; CROSS,END
1-53171-876-4
01
1
0611-
148
SPACER; C/MBR
(A) T=7.0
1-53168-486-0
02
1
0611-
148
SPACER; C/MBR
(B) T=8.0
1-53168-508-0
02
1
0611-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
9-09651-069-0
02
1
0611-1201
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=15
8-98010-627-1
02
1
1202-
282
WASHER; PL,STOPPER
ID=15
9-09651-069-0
04
1
0611-1201
282
WASHER; PL,STOPPER
ID=15
8-98010-627-1
04
1
1202-
84
84
83
82
80
84
83
82
82
83
81
81
81
84
80
82
255
80
82
255
255
79
80
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
1-53182-054-1
01
1
0611-
80
BRACKET; C/MBR
(B)
1-53167-288-1
04
1
0611-
80
BRACKET; C/MBR
(A)
1-53363-031-2
02
1
0611-
81
BOLT; BRKT
(A) M14X55
9-91066-455-0
04
1
0611-
81
BOLT; BRKT
(B) M14X45
9-92061-445-0
08
1
0611-
82
NUT; BRKT
M14
0-91110-514-0
04
1
0611-
82
NUT; BRKT
M14
0-91110-514-0
12
1
0611-
83
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
12
1
0611-
84
WASHER; PL,BRKT
ID=15 OD=26
9-09164-514-0
16
1
0611-1104
84
WASHER; PL,BRKT
ID=15 OD=26
0-91614-514-0
16
1
1105-
255
WASHER; PL,BRKT
ID=15
9-09651-069-0
08
1
0611-1201
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1202-
13
13
12
11
12
11
23
25
25
23
26
24
25
26
39
46
25
25
46
26
25
24
23
35
36
23
37
44
25
25
26
23
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-399-0
01
1
0611-
11
BRACKET; ENG MTG
(A)
1-53211-400-0
01
1
0611-
11
BRACKET; ENG MTG
(B)
1-53239-141-1
01
1
0611-
11
BRACKET; ENG MTG
(B)
1-53239-142-1
01
1
0611-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
06
1
0611-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
06
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
06
1
0611-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
04
1
0611-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0611-
23
BOLT; BRKT,SPR
(C) M12X35,M14X45 L=100
1-09029-075-0
02
1
0611-
23
BOLT; BRKT,SPR
(D) M12X25,M14X45 L=81
1-09029-103-0
02
1
0611-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0611-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0611-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0611-1504
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1505-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
16
1
0611-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
08
1
0611-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0611-
35
MEMBER; UNDER
1-53174-301-3
01
1
0611-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0611-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0611-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0611-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0611-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0611-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0611-
