8-28 — CHASSIS ELECTRICAL (#2713) — 58 parça

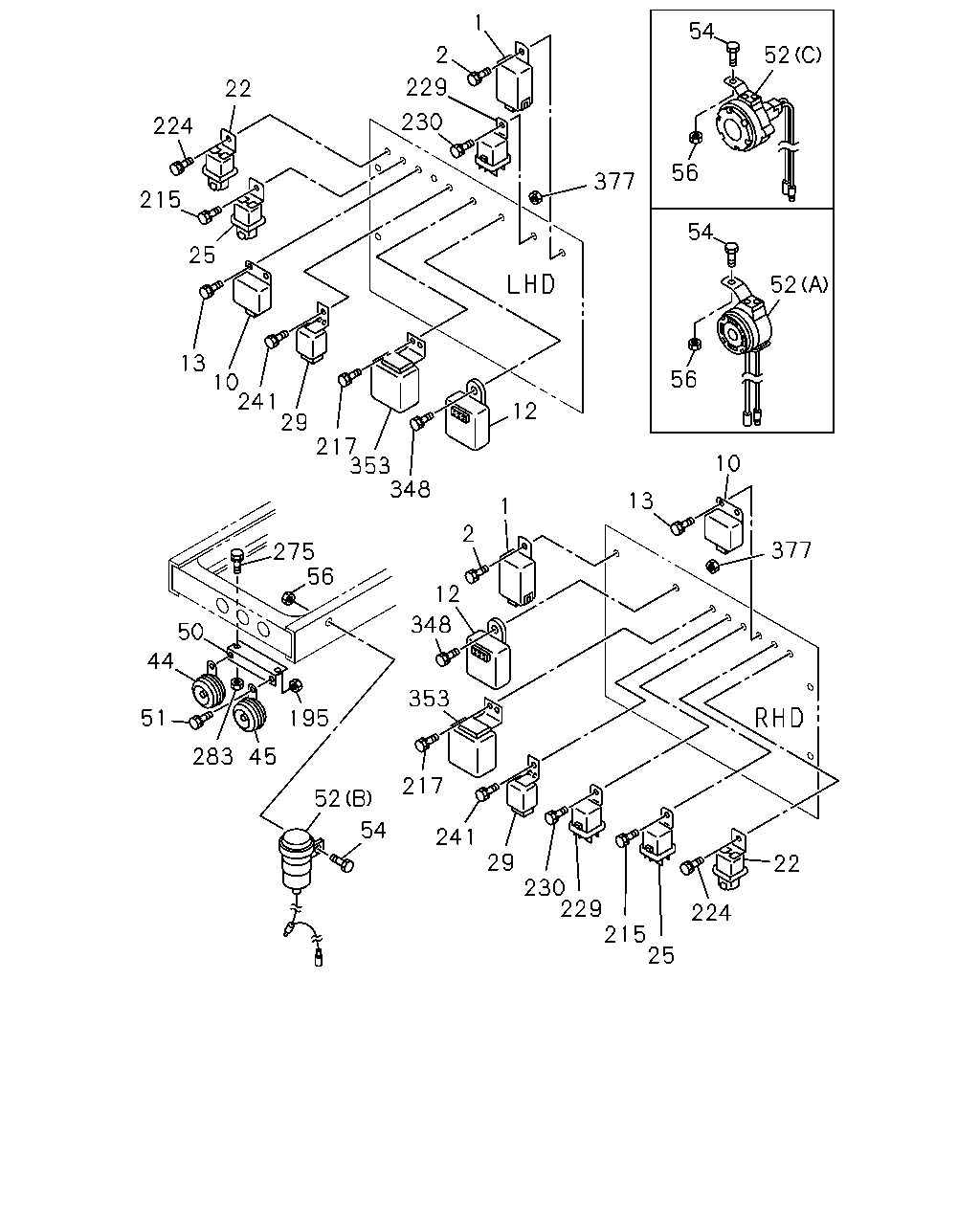

çizim 5655
1 54 2 52 229 22 230 224 56 377 215 54 25 52 13 10 241 29 217 353 348 56 12 10 13 1 2 377 275 56 12 50 348 44 353 51 195 283 45 217 52 54 241 29 230 229 215 25 22 224
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER
BUS BODY MAKER KITAMURA<Y08> 		1-83470-040-0 01 1 9101- ● ●
1 UNIT; FLASHER
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-83470-034-1 01 1 9101- ● ●
1 UNIT; FLASHER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83470-036-0 01 1 9101-9506 ●
1 UNIT; FLASHER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83470-048-1 01 1 9507- ●
2 BOLT; FLASHER UNIT 0-50040-616-0 01 1 9101- ● ●
10 DETECTOR ASM; FUEL
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-81553-001-0 01 1 9101- ● ●
10 DETECTOR ASM; FUEL
VENEZUELA ENCAVAPACKAGE(WN4) 		1-81553-002-0 01 1 9101- ●
12 RELAY; LAMP,FAILURE INDICATOR
BUS BODY MAKER KITAMURA<Y08> 		1-82550-201-0 01 1 9101- ● ●
12 RELAY; LAMP,FAILURE INDICATOR
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82550-143-2 01 1 9101- ● ●
12 RELAY; LAMP,FAILURE INDICATOR
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82550-166-0 01 1 9101- ●
13 BOLT; FUEL DETECTOR 0-50040-616-0 02 1 9101- ● ●
22 RELAY; STOP LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 		1-82550-176-0 01 1 9101- ● ●
22 RELAY; STOP LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 		8-94112-912-0 01 1 9101- ●
25 RELAY; TAIL LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 		1-82550-176-0 01 1 9101- ● ●
25 RELAY; TAIL LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 		8-94112-912-0 01 1 9101- ●
29 RELAY; HORN
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83420-001-0 01 1 9101- ● ●
29 RELAY; HORN
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83420-002-0 01 1 9101- ●
44 HORN; HIGH NOTE
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83410-037-0 01 1 9101-9303 ● ●
44 HORN; HIGH NOTE
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83410-057-1 01 1 9304- ● ●
44 HORN; HIGH NOTE
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83410-045-1 01 1 9101- ●
45 HORN; LOW NOTE
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83410-038-0 01 1 9101-9303 ● ●
45 HORN; LOW NOTE
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83410-058-1 01 1 9304- ● ●
45 HORN; LOW NOTE
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83410-046-1 01 1 9101- ●
50 BRACKET; HORN 1-83437-013-1 01 1 9101- ● ●
51 BOLT; HORN TO BRKT 9-01900-820-0 04 1 9101-9204 ● ●
51 BOLT; HORN TO BRKT 0-50040-820-0 04 1 9205- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> VENEZUELA ENCAVAPACKAGE(WN4) (A) NIKKO 		1-83460-050-0 01 1 9210- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> VENEZUELA ENCAVAPACKAGE(WN4) (C) METRO 		1-83460-086-0 01 1 9904-9907 ● ●
52 BUZZER; BACK
GENERATOR DENSO 12V-65A 800W(K91) VENEZUELA ENCAVAPACKAGE(WN4) REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> (C) METRO 		1-83460-086-1 01 1 9908- ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. VENEZUELA ENCAVAPACKAGE(WN4) (B) 		1-83460-009-0 01 1 9101-9112 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. VENEZUELA ENCAVAPACKAGE(WN4) (A) NIKKO 		8-97061-718-0 01 1 9201- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. VENEZUELA ENCAVAPACKAGE(WN4) (C) METRO 		1-83460-091-0 01 1 9904-9907 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> (C) METRO 		1-83460-091-1 01 1 9908- ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. GENERATOR DENSO 12V-65A 800W(K91),VENEZUELA ENCAVAPACKAGE(WN4) (C) METRO 		1-83460-091-1 01 1 9908- ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		9-01901-025-0 01 1 9101-9204 ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		0-50041-025-0 01 1 9205- ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> 		9-09110-410-0 01 1 9101-9307 ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> 		9-09110-510-0 01 1 9308- ● ●
195 NUT; HORN TO BRKT 9-09110-408-0 04 1 9101- ● ●
215 BOLT; TAIL LAMP RELAY 0-50040-616-0 01 1 9101- ● ●
217 BOLT; RELAY,WARNING CHECK 0-50040-616-0 03 1 9101- ● ●
224 BOLT; STOP LAMP RELAY 0-50040-616-0 01 1 9101- ● ●
229 RELAY; BRAKE WARNING
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		5-82550-046-0 01 1 9101- ● ●
229 RELAY; BRAKE WARNING
VENEZUELA ENCAVAPACKAGE(WN4) 		8-94118-913-0 01 1 9101- ●
230 BOLT; BRAKE WARNING RELAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50040-616-0 01 1 9101- ● ●
241 BOLT; HORN RELAY 0-50040-616-0 01 1 9101- ● ●
275 BOLT; BRKT
AUTO ENG SHUTOFF(KB6) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ● ●
275 BOLT; BRKT
AUTO ENG SHUTOFF(KB6) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205- ● ●
283 NUT; BRKT
AUTO ENG SHUTOFF(KB6) 		9-09110-406-0 02 1 9101- ● ●
348 SCREW; LAMP FAILURE RELAY
BUS BODY MAKER KITAMURA<Y08> M6X16 W/LK WASHER 		0-50040-616-0 01 1 9101- ● ●
348 SCREW; LAMP FAILURE RELAY
VENEZUELA ENCAVAPACKAGE(WN4) M6X16 W/LK WASHER 		0-50040-616-0 01 1 9101- ●
348 SCREW; LAMP FAILURE RELAY
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M8X12 W/LK WASHER 		9-01900-812-0 01 1 9101-9204 ● ●
348 SCREW; LAMP FAILURE RELAY
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M8X12 W/LK WASHER 		0-50040-812-0 01 1 9205- ● ●
353 RELAY; WARNING CHECK
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82550-191-0 01 1 9101- ● ●
353 RELAY; WARNING CHECK
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82550-193-0 01 1 9101- ●
377 NUT; RELAY
BUS BODY MAKER KITAMURA<Y08> M6 		9-09110-406-0 01 1 9101- ● ●
377 NUT; RELAY
VENEZUELA ENCAVAPACKAGE(WN4) M6 		9-09110-406-0 01 1 9101- ●
377 NUT; RELAY
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M8 		9-09110-408-0 01 1 9101- ●
