Sayfa 8-40 - Isuzu EPC

8-40 — HEATER SYSTEM (#27122) — 41 parça

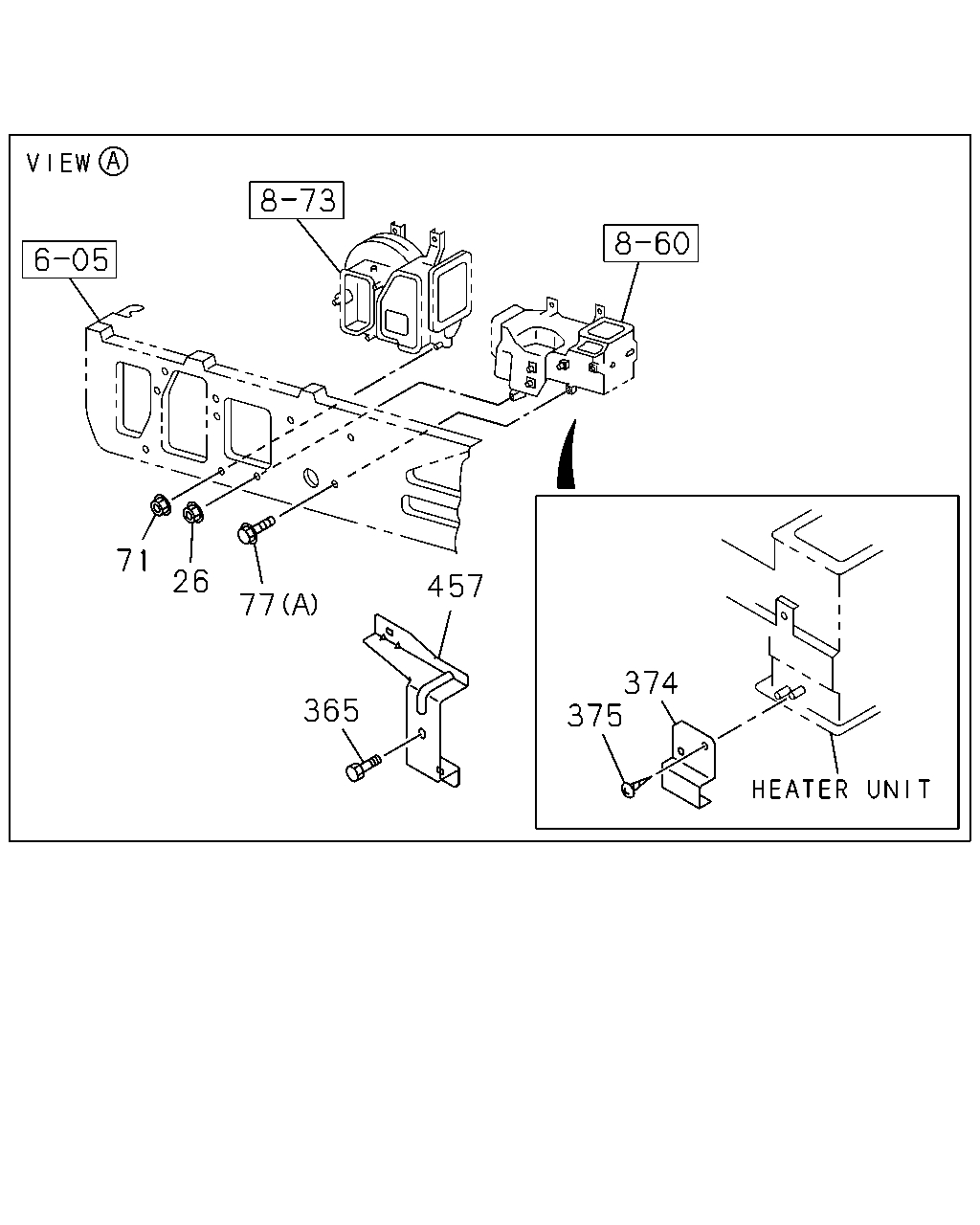

71 26 457 77 374 375 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	NUT; HTR M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0509-
71	NUT; BLOWER UNIT TO DASH M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0509-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0509-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0509-
365	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0509-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76398-012-1	01	1	0509-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	0509-
457	BRACKET; SENSOR	1-71907-603-1	01	1	0509-

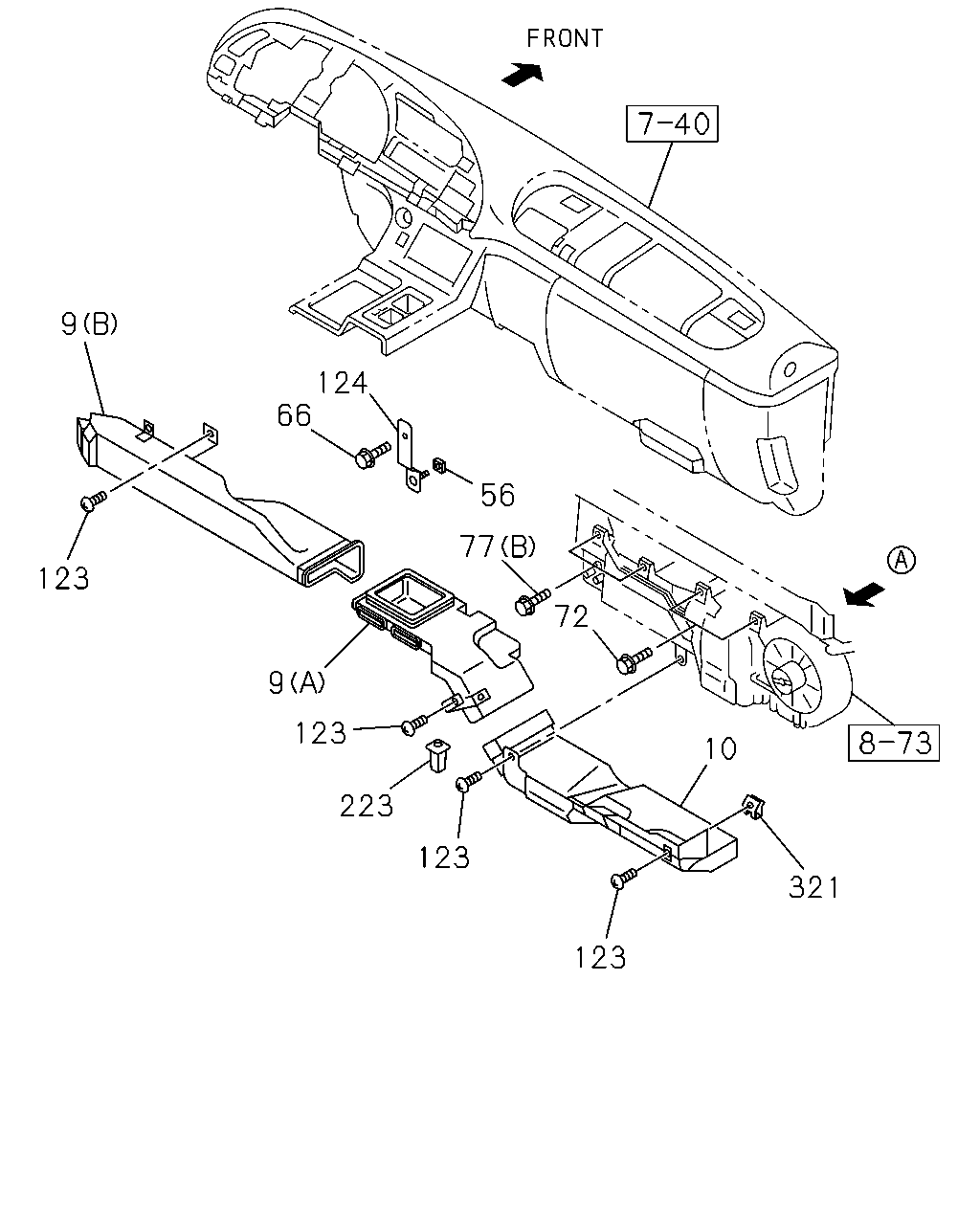

9 124 66 56 77 123 72 9 123 10 223 123 321 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-76377-199-1	01	1	0509-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-76377-228-2	01	1	0509-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-76377-200-1	01	1	0509-
56	NUT; INL DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0509-
66	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	0509-
72	BOLT; BLOWER UNIT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0509-
77	BOLT; HTR UNIT (A) M6X16	1-09980-598-1	02	1	0509-
77	BOLT; HTR UNIT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0509-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	0509-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0509-
124	BRACKET ASM; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-79738-186-1	01	1	0509-
223	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0509-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5	1-09984-196-0	01	1	0509-

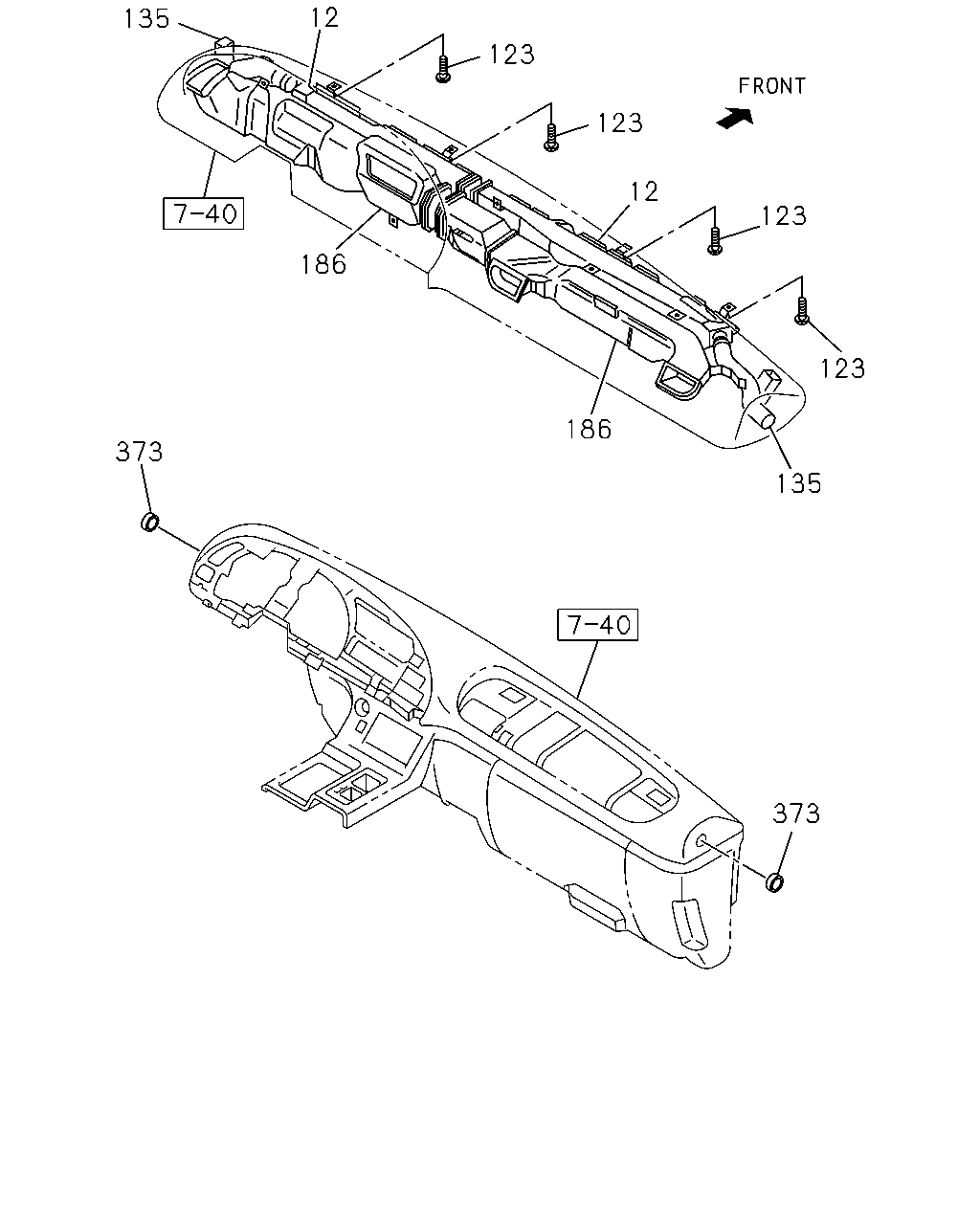

12 135 123 123 12 123 186 123 186 373 135 373

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER	1-76377-196-1	01	1	0509-
12	NOZZLE; DEFROSTER	1-76378-360-2	01	1	0509-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	0509-
123	SCREW; DUCT M5X14	8-94279-325-0	08	1	0509-
135	HOSE; DEFROSTER	1-76377-231-0	01	1	0509-
135	HOSE; DEFROSTER	1-76378-364-3	01	1	0509-
186	DUCT; VENTILATOR	1-76377-197-2	01	1	0509-
186	DUCT; VENTILATOR	1-76378-362-4	01	1	0509-
373	RUBBER; JOINT	1-76378-291-0	02	1	0509-

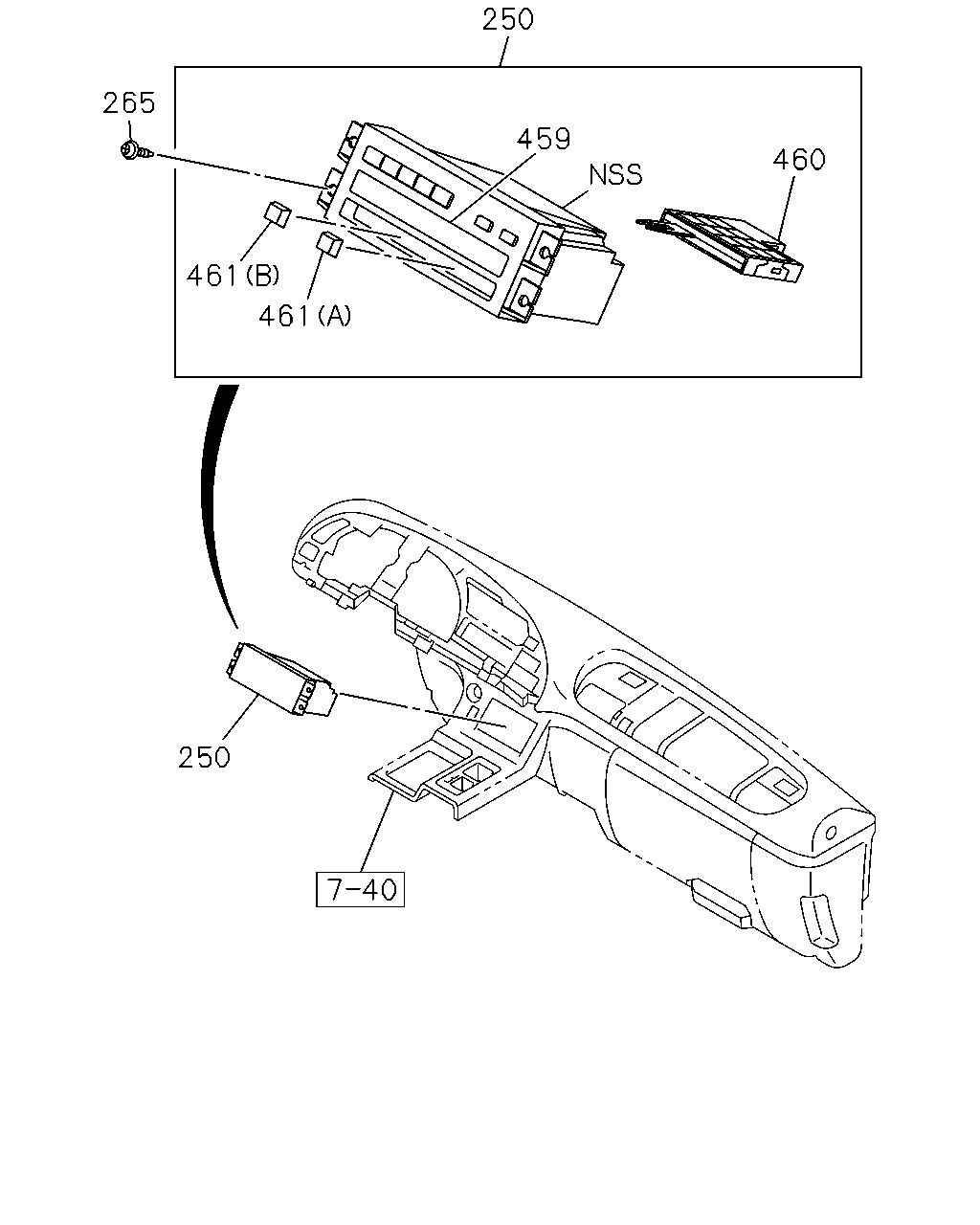

250 265 459 460 461 461 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CHINA EQUIPMENT(YT2)	1-83543-050-0	01	1	0603-0609
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83543-058-0	01	1	0509-0510
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98034-326-0	01	1	0511-0602
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) CHINA EQUIPMENT(YT2)	8-98034-326-0	01	1	0603-0609
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98034-326-0	01	1	0610-
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	0509-0604
265	SCREW; A/C CONT UNIT M6X20 TAPPING W/PL WASHER	0-74160-620-0	02	1	0605-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83549-013-0	01	1	0509-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-82489-006-0	01	1	0509-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83549-015-0	01	1	0509-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83549-016-0	01	1	0509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
