8-28 — CHASSIS ELECTRICAL (#27121) — 185 parça

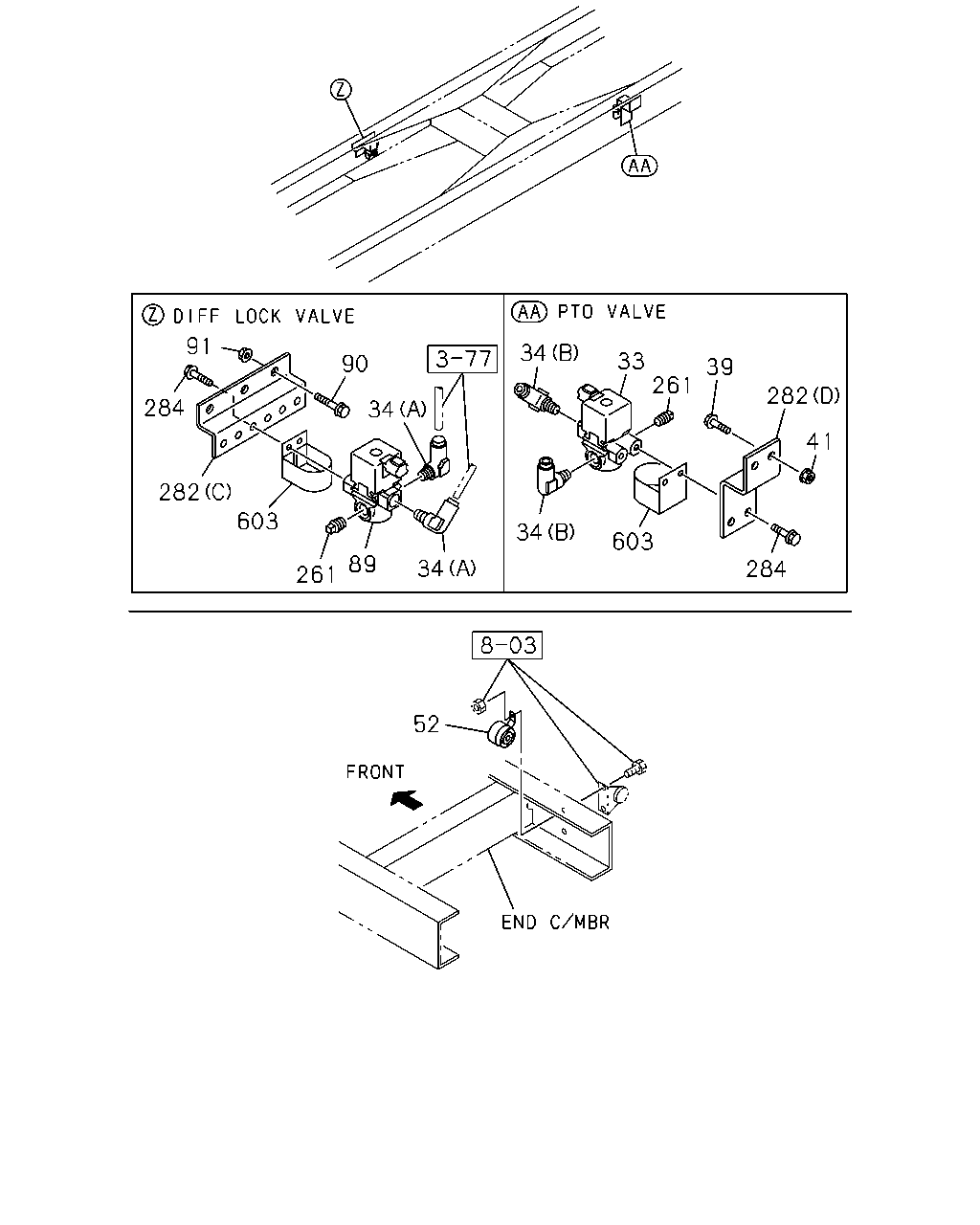

91 34 33 261 90 39 282 284 34 41 282 603 34 603 89 34 284 261 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82563-871-2	01	1	0810-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0810-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0509-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE	0-28650-825-0	02	1	0810-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-0706
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-0706
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0707-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	02	1	0707-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	02	1	0810-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-083-0	01	1	0603-0604
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-083-0	01	1	0605-0612
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) METRO DENSO	8-98069-861-0	01	1	0701-0811
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) METRO DENSO	8-98069-861-0	01	1	0812-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0509-1205
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV M8X40 FLANGE	0-28680-840-0	02	1	0509-0512
90	BOLT; MAG VLV M8X40 FLANGE	0-28650-840-0	02	1	0601-
91	NUT; MAG VLV M8 FLANGE	0-91150-108-0	02	1	0509-0602
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0603-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0509-0809
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0509-0809
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0810-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	0810-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0810-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0810-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D)	1-47471-175-0	01	1	0810-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0509-
282	BRACKET; MAG VLV (A)	1-82569-290-0	01	1	0509-0706
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (A)	1-82569-290-0	01	1	0707-
282	BRACKET; MAG VLV (C)	1-82569-421-0	01	1	0509-
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0509-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-0706
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0707-
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-0809
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	0810-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0810-
603	PROTECTOR; MAG VLV	1-47471-044-0	01	1	0509-0706
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0707-0809
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-47471-046-0	01	1	0810-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0810-

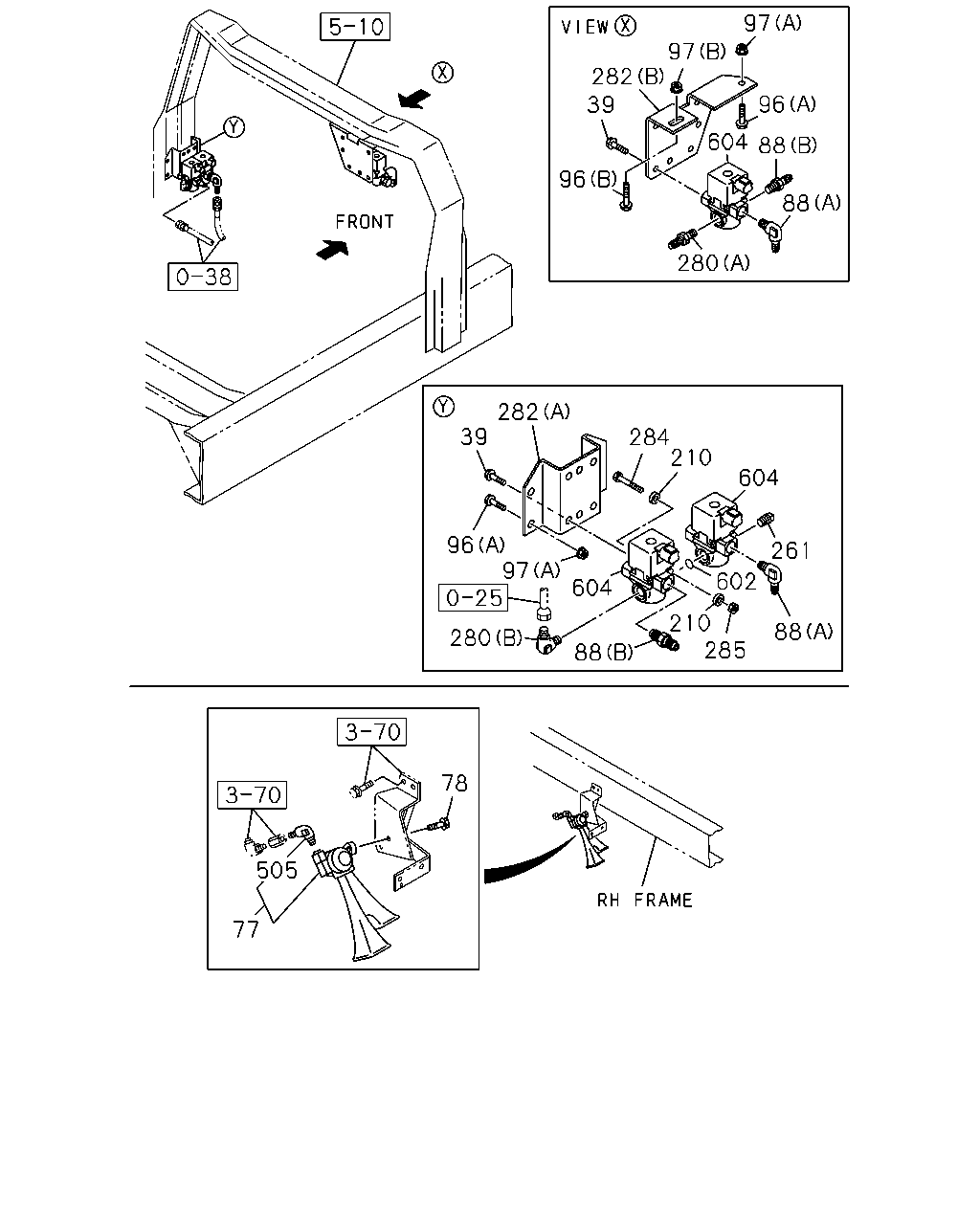

97 97 282 39 96 604 88 96 88 280 282 39 284 210 604 96 97 602 210 285 261 604 88 280 88 78 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE	0-28650-825-0	02	1	0810-
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-0706
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-0706
39	BOLT; BRKT,MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0707-
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> M8X20 FLANGE	0-28650-820-0	02	1	0707-
77	HORN ASM CHINA EQUIPMENT(YT2)	1-83430-043-0	01	1	0610-0809
77	HORN ASM RUSSIA COUNTRY<CZ3>	1-83430-043-0	01	1	0810-
77	HORN ASM CHINA EQUIPMENT(YT2)	1-83430-043-0	01	1	0810-
77	HORN ASM	1-83430-041-2	01	1	0509-0609
77	HORN ASM EXC. CHINA EQUIPMENT(YT2)	1-83430-041-2	01	1	0610-0809
77	HORN ASM EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2)	1-83430-041-2	01	1	0810-
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0601-
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0509-0706
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0509-0706
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0707-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0707-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0509-0706
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0509-0706
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0707-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0707-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	05	1	0509-0512
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	05	1	0601-0810
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	01	1	0811-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28681-025-0	01	1	0509-0512
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0509-0602
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-0810
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	01	1	0811-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-110-0	01	1	0509-0602
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-110-0	01	1	0603-0810
97	NUT; BRKT FIX (C) M10 FLANGE	0-91150-210-0	01	1	0509-0602
97	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	01	1	0603-0810
210	WASHER; PL,BRKT	1-82569-266-0	02	1	0509-0706
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX>	1-82569-266-0	02	1	0707-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0509-0809
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0509-0809
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> PT1/4	9-99204-513-0	01	1	0810-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	0810-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4	9-99204-513-0	01	1	0810-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0810-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0509-
280	CONNECTOR; IN,MAG VLV (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0509-0706
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0707-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D)	1-47471-175-0	01	1	0810-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0509-
282	BRACKET; MAG VLV (A)	1-82569-290-0	01	1	0509-0706
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> (A)	1-82569-290-0	01	1	0707-
282	BRACKET; MAG VLV (C)	1-82569-421-0	01	1	0509-
284	BOLT; MAG VLV M6X50 FLANGE	0-28080-650-0	01	1	0509-0512
284	BOLT; MAG VLV M6X50 FLANGE	0-28050-650-0	01	1	0601-0706
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> M6X50 FLANGE	0-28050-650-0	01	1	0707-
284	BOLT; MAG VLV M8X20 FLANGE	0-28680-820-0	02	1	0509-0512
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0601-0809
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	0810-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0810-
285	NUT; MAG VLV M6 FLANGE	0-91150-106-0	01	1	0509-0602
285	NUT; MAG VLV M6 FLANGE	0-91180-106-0	01	1	0603-0706
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> M6 FLANGE	0-91180-106-0	01	1	0707-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0509-0809
505	JOINT; AIR HORN EXC. RUSSIA COUNTRY<CZ3>,CHINA EQUIPMENT(YT2)	1-83439-006-0	01	1	0810-
505	JOINT; AIR HORN RUSSIA COUNTRY<CZ3>	1-83439-006-0	01	1	0810-
505	JOINT; AIR HORN CHINA EQUIPMENT(YT2)	1-83439-006-0	01	1	0810-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	01	1	0509-0706
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ID=16.8	9-09565-117-0	01	1	0707-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0509-0706
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX>	1-82563-871-2	02	1	0707-
604	VALVE; MAG,ENG CONT	1-82563-871-2	02	1	0509-0706
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0707-

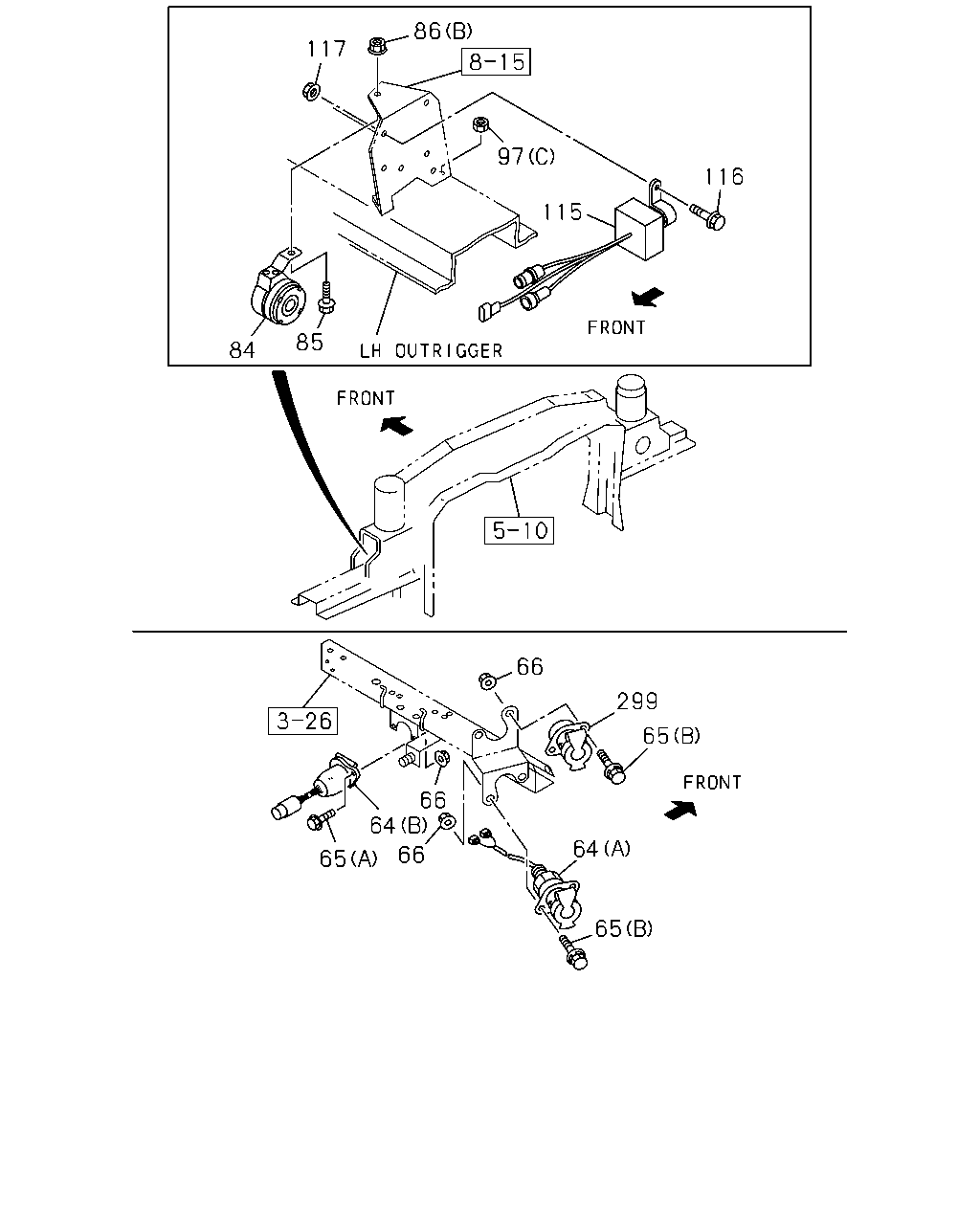

86 117 97 116 115 85 84 66 299 65 66 64 64 66 65 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	SOCKET; TRAILER (B) 7P	1-82523-014-0	01	1	0509-
64	SOCKET; TRAILER (A) L=860	1-82699-449-2	01	1	0509-0602
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM(BFA) (A) L=860	1-82699-449-2	01	1	0603-0710
64	SOCKET; TRAILER (A) L=860	1-82699-449-2	01	1	0711-1008
64	SOCKET; TRAILER (A) L=860	8-98172-008-0	01	1	1009-
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28680-825-0	04	1	0509-0512
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-0602
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	04	1	0603-0710
65	BOLT; SOCKET FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0711-
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28680-830-0	02	1	0509-0512
65	BOLT; SOCKET FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0601-
66	NUT; SOCKET FIX M8 FLANGE	0-91150-108-0	05	1	0509-0602
66	NUT; SOCKET FIX M8 FLANGE	0-91180-108-0	05	1	0603-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0509-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28680-820-0	01	1	0509-0512
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0601-
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0509-0602
86	NUT; BUZZER (A) M6 FLANGE	0-91180-106-0	01	1	0603-
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0509-0602
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91150-108-0	05	1	0509-0602
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0603-0810
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	01	1	0811-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91150-110-0	01	1	0509-0602
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-110-0	01	1	0603-0810
97	NUT; BRKT FIX (C) M10 FLANGE	0-91150-210-0	01	1	0509-0602
97	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	01	1	0603-0810
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0509-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	0509-0512
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0601-
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	0509-0602
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0603-
299	SOCKET; PARKING	1-82699-396-2	01	1	0509-0602
299	SOCKET; PARKING ANTILOCK BRAKE SYSTEM(BFA)	1-82699-396-2	01	1	0603-0710
299	SOCKET; PARKING	1-82699-396-2	01	1	0711-

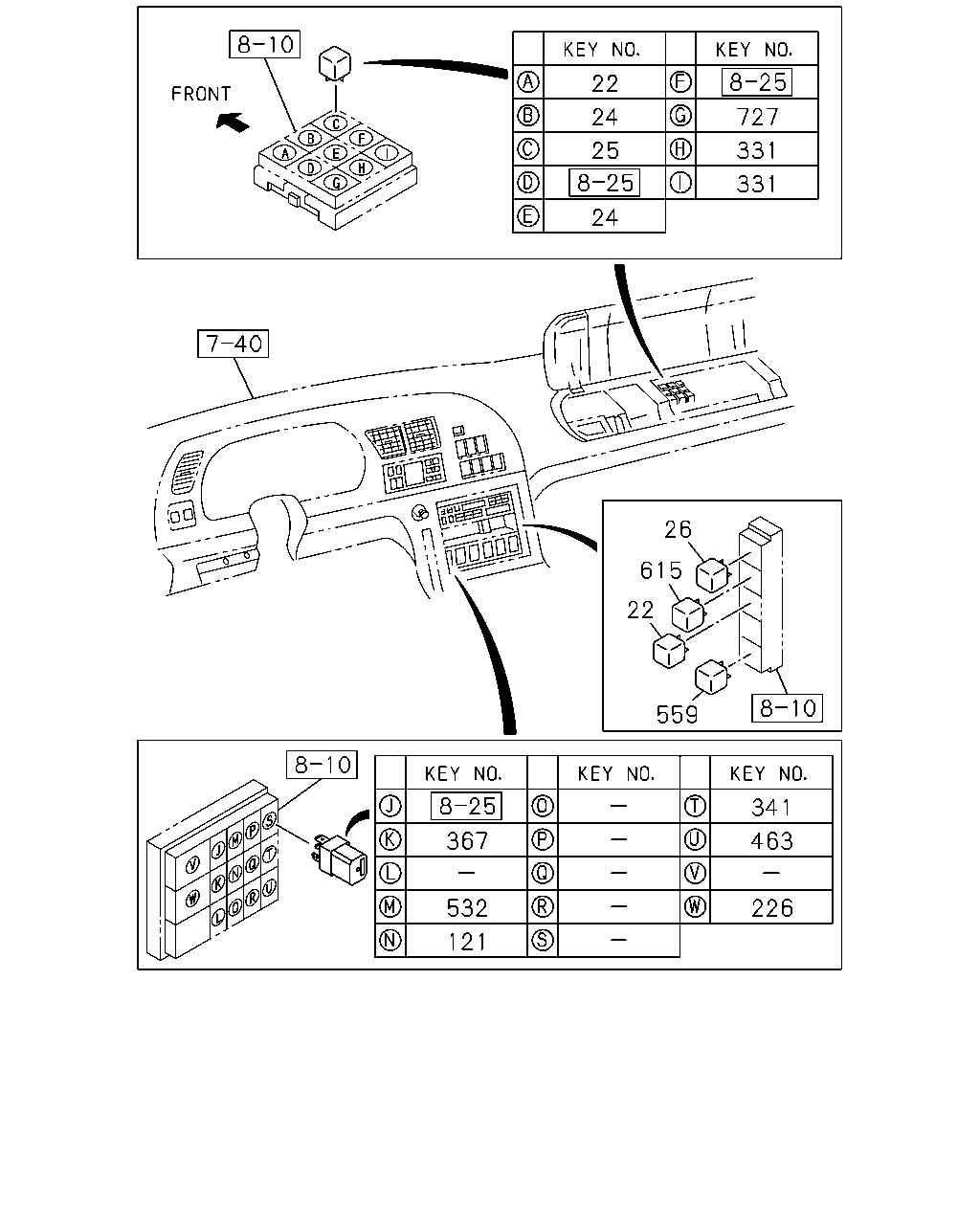

22 24 727 25 331 331 24 26 615 22 559 341 463 367 226 532 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	02	1	0509-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0509-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0509-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0509-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0509-
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0509-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0509-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0603-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0509-
463	RELAY; ABS SIGNAL 24V 10A PANASONIC	8-97173-035-1	01	1	0509-
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 10A PANASONIC	8-97173-035-1	01	1	0812-
559	RELAY; MAG VLV 24V 12.5A PANASONIC	8-97262-933-0	01	1	0509-
615	RELAY; TRAILER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0509-
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0509-

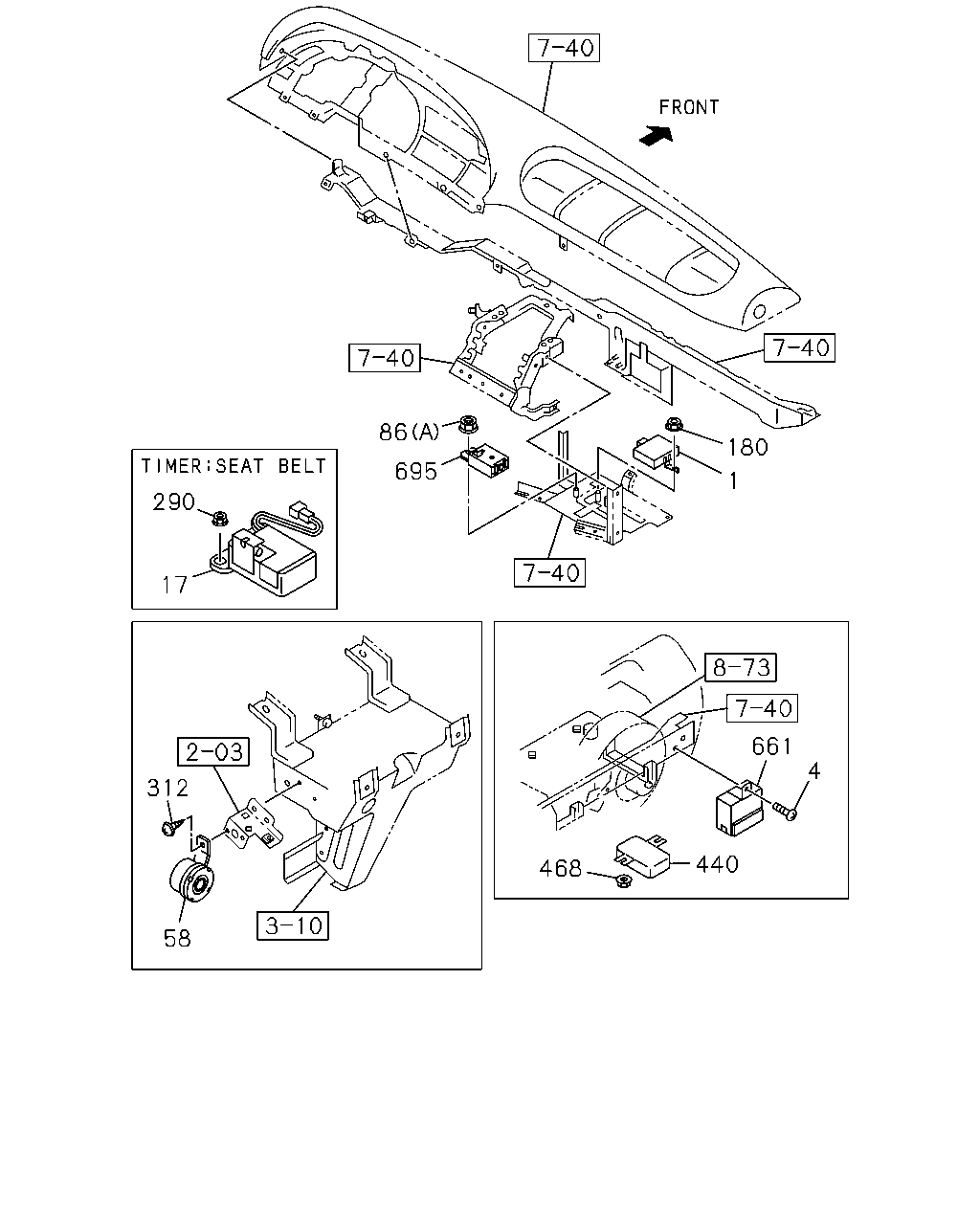

86 180 695 1 290 17 661 4 312 440 468 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-1	01	1	0509-
4	SCREW; FLASHER UNIT M5X14	8-94279-325-0	01	1	0509-
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	0812-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0509-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-
86	NUT; BUZZER (A) M6 FLANGE	0-91150-106-0	01	1	0509-0602
86	NUT; BUZZER (A) M6 FLANGE	0-91180-106-0	01	1	0603-
86	NUT; BUZZER (B) M8 FLANGE	0-91150-108-0	01	1	0509-0602
86	NUT; BUZZER (B) M8 FLANGE	0-91180-108-0	01	1	0603-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	0509-0602
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0603-
290	NUT SAUDI ARABIA EQUIPMENT(WH1) M6 FLANGE	0-91180-106-0	02	1	0812-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0509-
440	MODULE; INFORMATION,ABS	1-81510-701-0	01	1	0509-
468	NUT; MODULE M6 FLANGE	0-91150-106-0	02	1	0509-0602
468	NUT; MODULE M6 FLANGE	0-91180-106-0	02	1	0603-
661	CONTROL UNIT; FLASHER	1-83470-066-1	01	1	0509-
695	ALARM; OVER HEAT	1-83460-051-1	01	1	0509-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

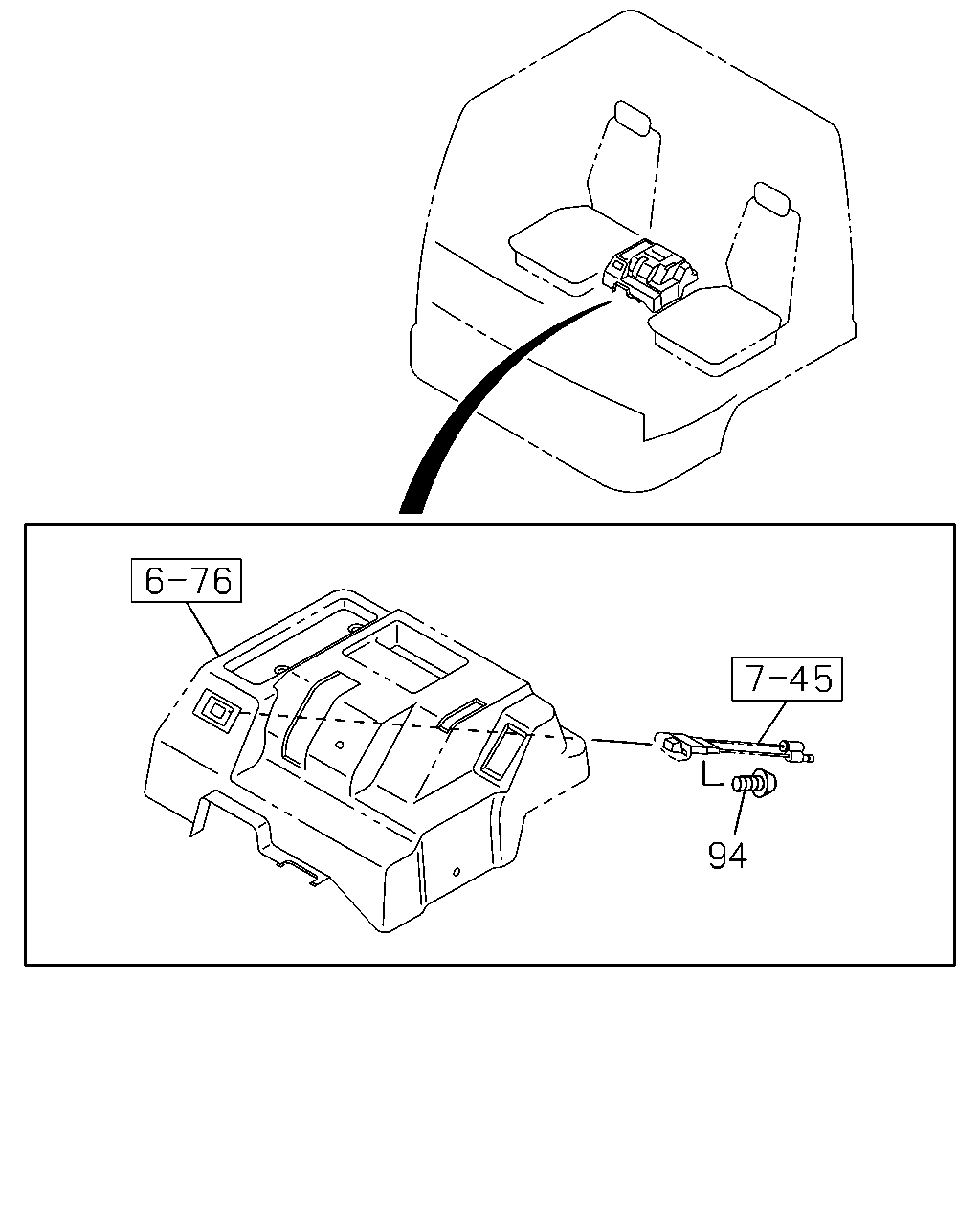

94	SCREW; CONSENT TO BLIND PNL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0603-0604
94	SCREW; CONSENT TO BLIND PNL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-0811
94	SCREW; CONSENT TO BLIND PNL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
