Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10964 - EXZ LHD WEDGE BRAKE
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#27119) — 64 parça
◀

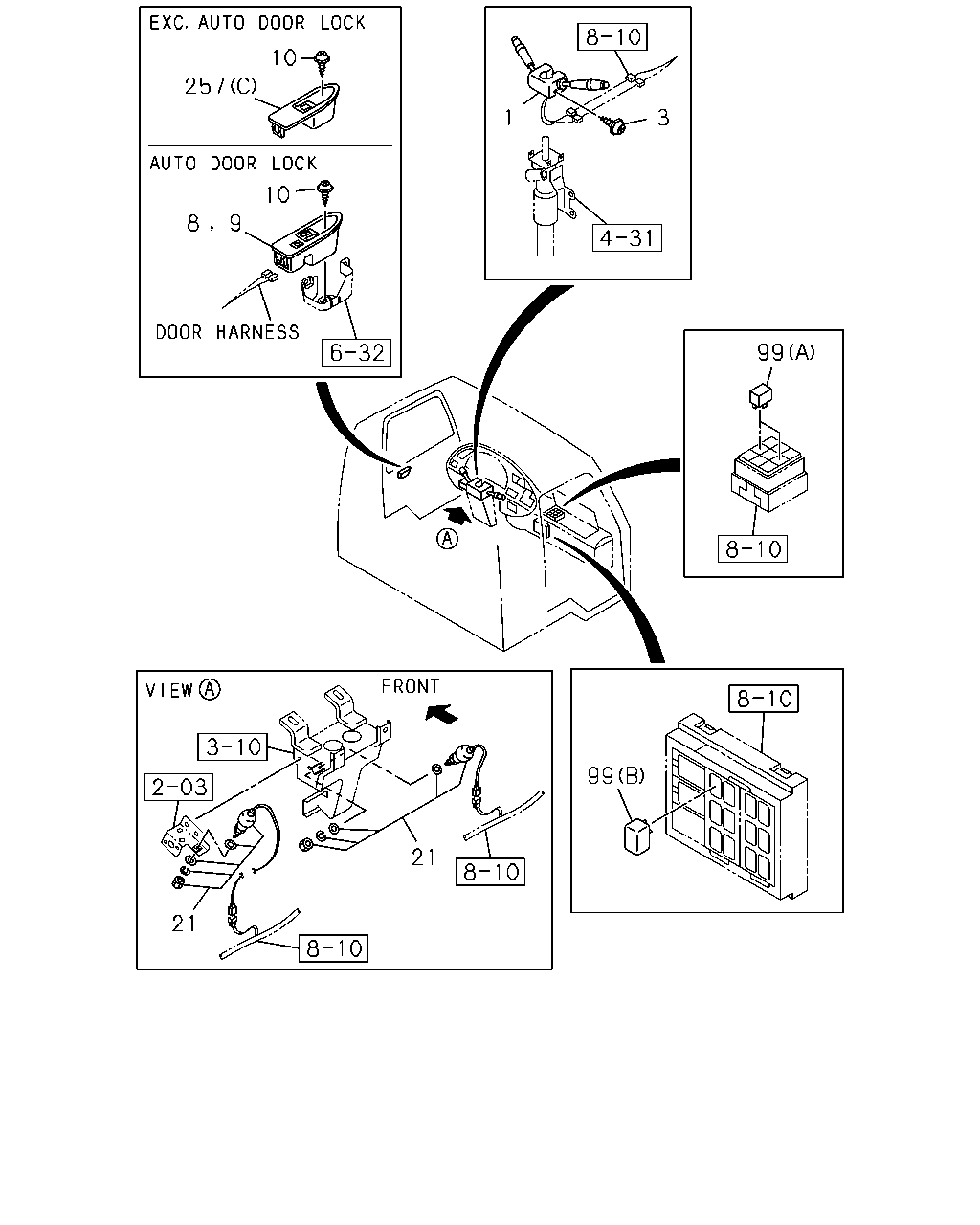

[825A] CAB SIDE NO.1 (27 parça)
[825A] FRAME SIDE NO.2 (12 parça)

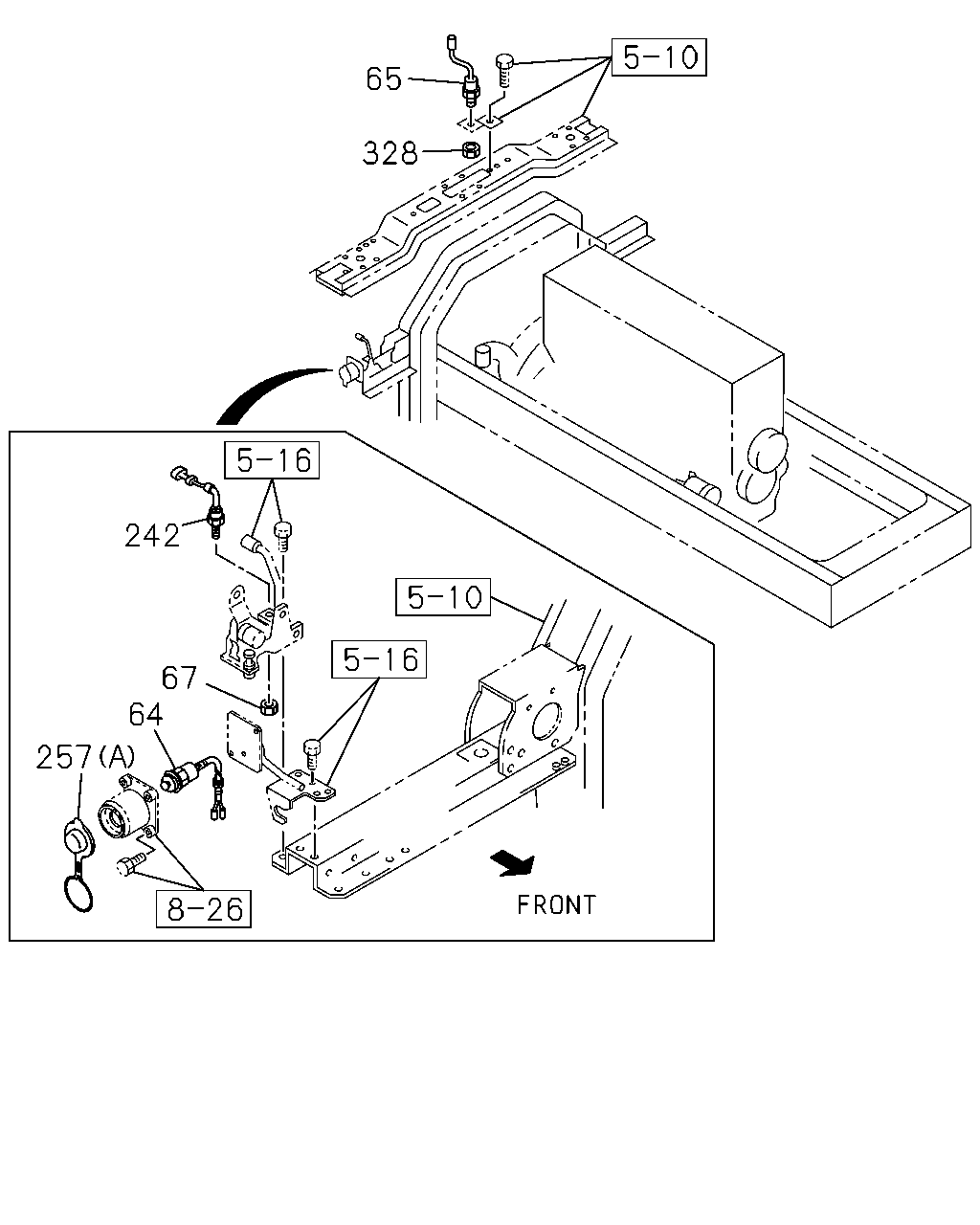

[825A] FRAME SIDE NO.1 (10 parça)

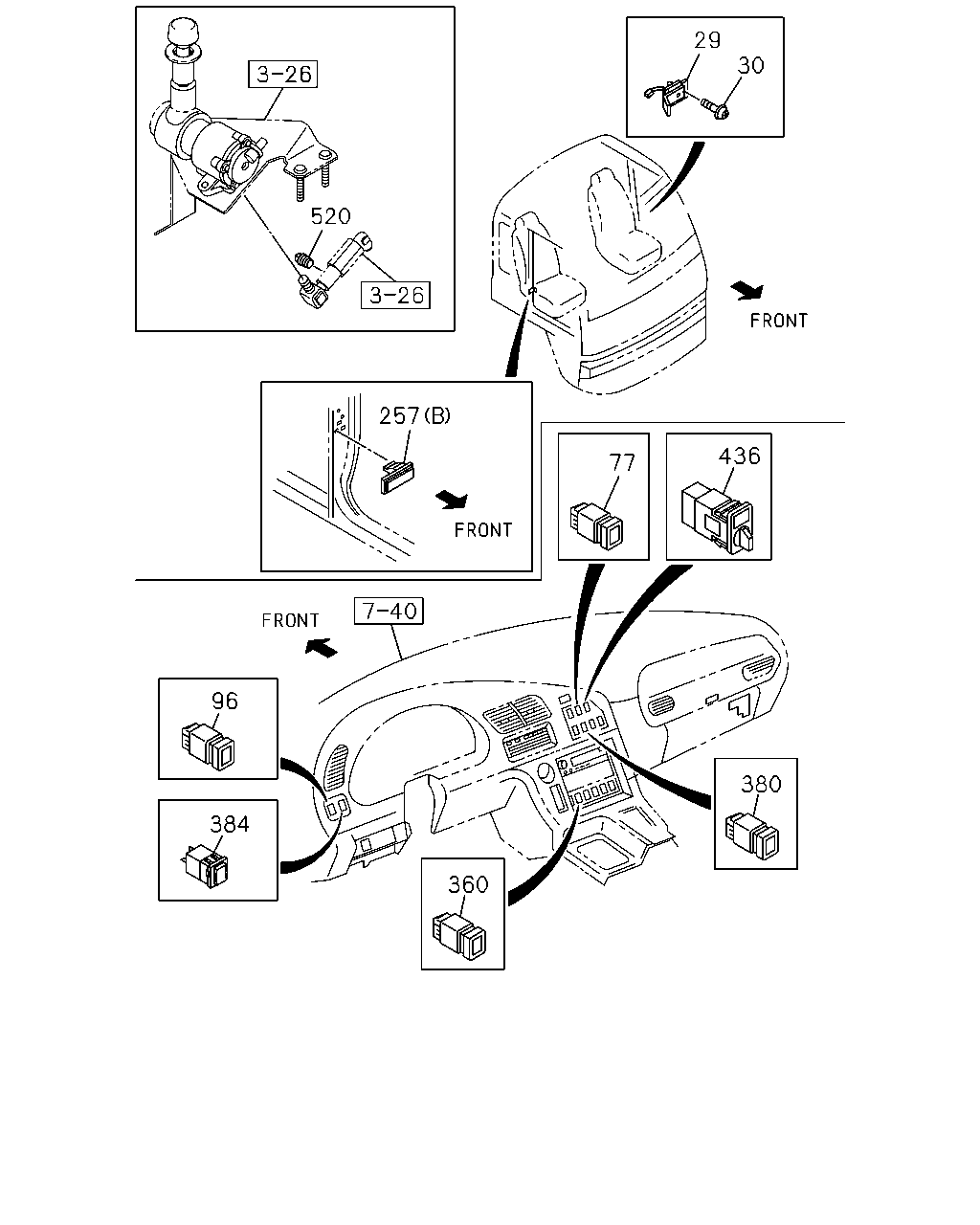

[825A] CAB SIDE NO.2 (15 parça)
▶
10
257
3
1
10
8
9
99
99
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
EXC. FOG LAMP REAR<NHD>
1-82360-734-0
01
1
0603-
1
SWITCH; COMB
1-82360-704-1
01
1
0509-0602
1
SWITCH; COMB
FOG LAMP REAR<NHD>
1-82360-704-1
01
1
0603-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0509-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> EXC. CHINA EQUIPMENT(YT2) DRIVER
1-82380-157-3
01
1
0603-0811
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) DRIVER
1-82380-157-4
01
1
0812-
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER
1-82380-174-0
01
1
0509-0602
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> CHINA EQUIPMENT(YT2) DRIVER
1-82380-174-0
01
1
0603-0811
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) DRIVER
1-82380-174-1
01
1
0812-
9
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER
1-82380-158-3
01
1
0509-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0509-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
0509-
21
SWITCH; CLU
1-82380-114-3
01
1
0509-
99
RELAY; FOG LAMP
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
0509-0602
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> (B) 24V 10A PANASONIC
8-97173-035-1
01
1
0603-0809
99
RELAY; FOG LAMP
RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 10A PANASONIC
8-97173-035-1
01
1
0810-
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> (B) 24V 10A PANASONIC
8-97173-035-1
01
1
0810-
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0509-0602
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0509-0602
99
RELAY; FOG LAMP
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0603-
99
RELAY; FOG LAMP
FOG LAMP REAR<NHD> (A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
0603-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0509-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0509-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0509-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0509-
255
667
666
237
482
236
397
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
236
BRACKET; AXLE HARNESS,RR
1-47476-200-0
01
1
0701-
237
NUT
M8 FLANGE
0-91150-108-0
01
1
0509-0602
237
NUT
M8 FLANGE
0-91180-108-0
01
1
0603-0810
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
1-82340-360-1
01
1
0509-0706
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-97621-403-0
01
1
0707-0711
255
SWITCH; SEARCH LIGHT
INSPECTION LAMP<T95>
8-98106-483-0
01
1
0712-
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
0701-
482
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0701-
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
04
1
0509-
667
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
03
1
0509-0512
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0601-0612
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0701-
65
328
242
67
64
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0509-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0509-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0509-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
0509-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0509-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0509-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0509-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0509-
328
NUT; SW
M16
9-99110-416-0
01
1
0509-0512
328
NUT; SW
M16
0-91110-516-0
01
1
0601-
29
30
520
257
436
77
96
380
384
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0509-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0509-
77
SWITCH; PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)
1-82340-413-0
01
1
0810-
96
SWITCH; FOG LAMP
1-82340-628-0
01
1
0509-0602
96
SWITCH; FOG LAMP
FOG LAMP REAR<NHD>
1-82340-628-0
01
1
0603-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0509-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0509-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0509-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0509-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0509-
380
SWITCH; MARKER LAMP
ROOF MARKER LAMP<U01>
1-82340-405-0
01
1
0810-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0509-
436
SWITCH; HEADLAMP LEVELING
1-82330-043-0
01
1
0509-0602
436
SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS>
1-82330-043-0
01
1
0603-
520
PLUG; CONNECTOR
PT1/4
9-99204-513-0
01
1
0509-
