◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#27116) — 553 parça

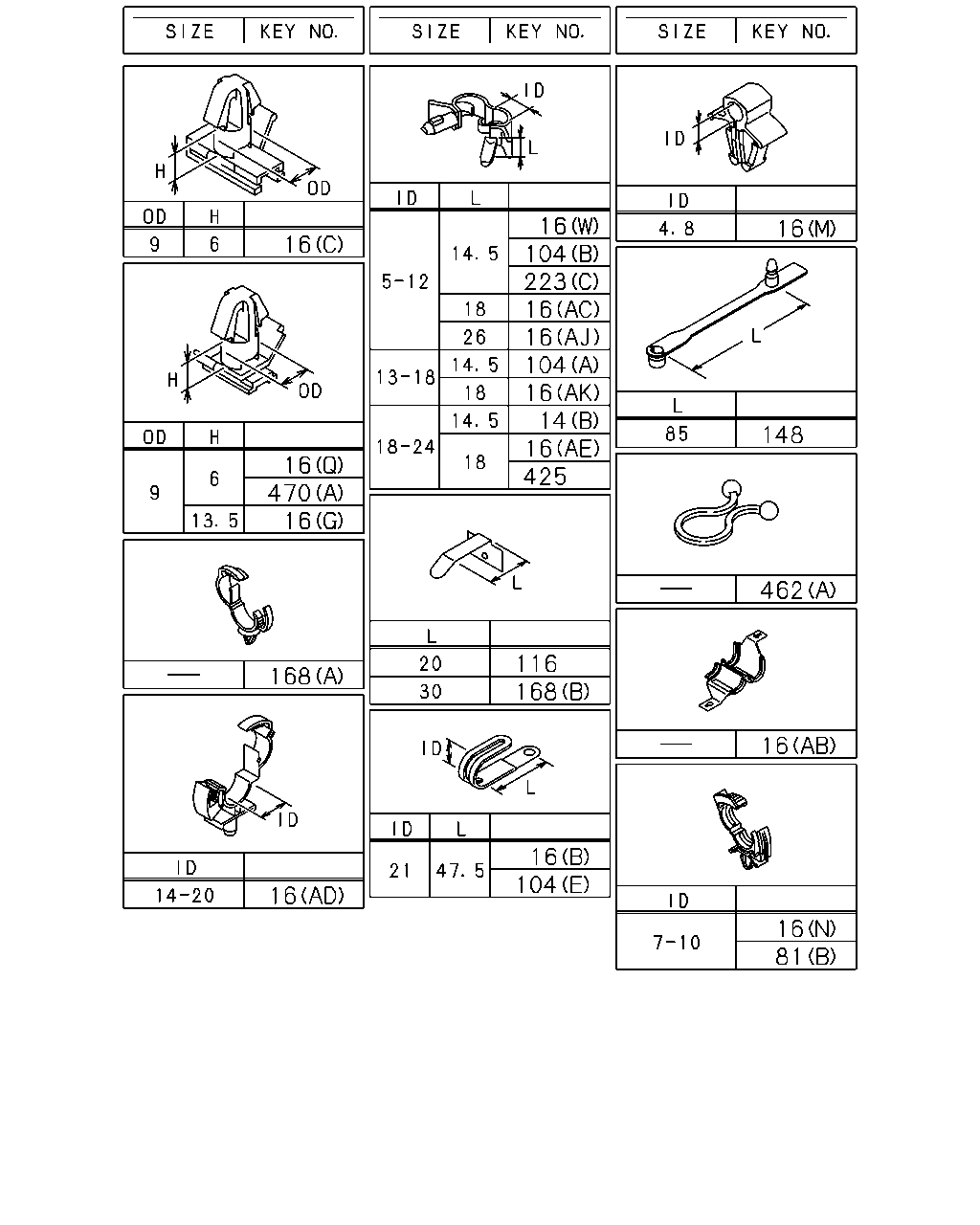

çizim 87988
16 16 470 16 168 16 16 104 223 16 16 104 16 14 16 425 116 168 16 104 16 148 462 16 16 81
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0602-0605
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0606-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0509-
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 01 1 0905-
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 02 1 0807-0904
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 02 1 0905-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 02 1 0905-
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AJ) ID=5-12 L=26 		1-09709-289-0 01 1 0807-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) ID=11 L=20 		0-95235-035-0 01 1 0707-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0509-
16 CLIP; HARNESS
(AI) L=175 		1-09707-176-1 01 1 0509-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 02 1 0509-
16 CLIP; HARNESS
(R) ID=19 H=70 L=25 		8-97360-209-0 01 1 0510-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0509-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0509-0606
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 02 1 0509-0810
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 01 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0509-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0509-0606
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0607-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0509-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0509-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0509-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0509-0810
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0509-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0509-0810
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 05 1 0811-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0509-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509-0602
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509-0602
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0509-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0509-
16 CLIP; HARNESS
(G) OD=9 H=13.5 		1-09709-180-0 01 1 0509-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 03 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AC) ID=5-12 L=18 		1-09709-287-0 03 1 0603-0610
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AC) ID=5-12 L=18 		1-09709-287-0 01 1 0611-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 01 1 0807-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 05 1 0509-0904
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 02 1 0905-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0509-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0509-0810
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0811-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0509-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0509-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0603-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6 		8-97368-793-0 01 1 0807-
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0509-0606
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=40 		9-09525-075-0 01 1 0509-0606
16 CLIP; HARNESS
(AG) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0509-0606
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AH) ID=16 L=40 		9-09525-576-0 01 1 0509-0606
16 CLIP; HARNESS
(AH) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0509-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0607-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 0509-0810
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0509-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0509-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0509-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0509-0510
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0511-0602
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0603-0710
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0711-0810
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0509-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (C) L=250 		5-09707-030-1 02 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (D) L=140 		5-09707-031-1 06 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0711-0711
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0509-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0509-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0509-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0509-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0509-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0509-0707
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 0509-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0509-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0509-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0509-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0509-
çizim 88023
119 64 524 24 219 294 340 515 515 423
BalonParca AdiParca NoAdetTipApplied Date
24 NUT; HARNESS
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0603-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0509-1202
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0509-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE 		0-91150-108-0 01 1 0603-0603
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ> M8 FLANGE 		0-91180-108-0 01 1 0603-0806
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0806
219 NUT
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> M8 FLANGE 		0-91180-108-0 01 1 0807-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0807-
219 NUT
M8 FLANGE 		0-91150-108-0 11 1 0509-0602
219 NUT
M8 FLANGE 		0-91180-108-0 11 1 0603-0806
219 NUT
M8 FLANGE 		0-91180-108-0 10 1 0807-0810
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 0811-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0603-0603
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0603-0603
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0603-0610
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0610
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 0611-0710
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0611-0710
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0711-
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0711-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 0603-0603
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-0605
294 NUT
M8 FLANGE 		0-91150-108-0 03 1 0509-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0509-0602
294 NUT
M8 FLANGE 		0-91180-108-0 03 1 0603-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0509-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0509-
515 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 03 1 0509-0602
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
515 NUT; BRKT
(B) M10 FLANGE 		0-91150-110-0 02 1 0509-0602
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0603-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0509-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0603-
çizim 88025
5 224 1 1 178 178 178 178 178 178 178 178 510 530 292 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=25 		1-09337-052-0 01 1 0509-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0509-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0509-
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (H) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0509-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0509-
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0509-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0509-0602
178 GROMMET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0603-0806
178 GROMMET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0807-
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0509-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0509-
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 0509-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0509-
178 GROMMET; HARNESS
(G) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0509-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0509-
292 CAP; RUBBER
EURO2 SPECIFICATION<THN> 		1-82691-239-0 02 1 0707-0810
292 CAP; RUBBER
EURO2 SPECIFICATION<THN> 		1-82691-239-0 03 1 0811-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0509-1202
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 04 1 0509-
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 08 1 0509-
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 01 1 0509-
530 SEAL; HARNESS
(B) 		1-76770-009-2 01 1 0509-1101
530 SEAL; HARNESS
(B) 		8-98119-974-0 01 1 1102-
çizim 88117
51 81 104 171 206 212 305 462 14 16 104 171 194 227 228 369 380 14 16 48 194 212 16 51 142 162 194 208 16 16
BalonParca AdiParca NoAdetTipApplied Date

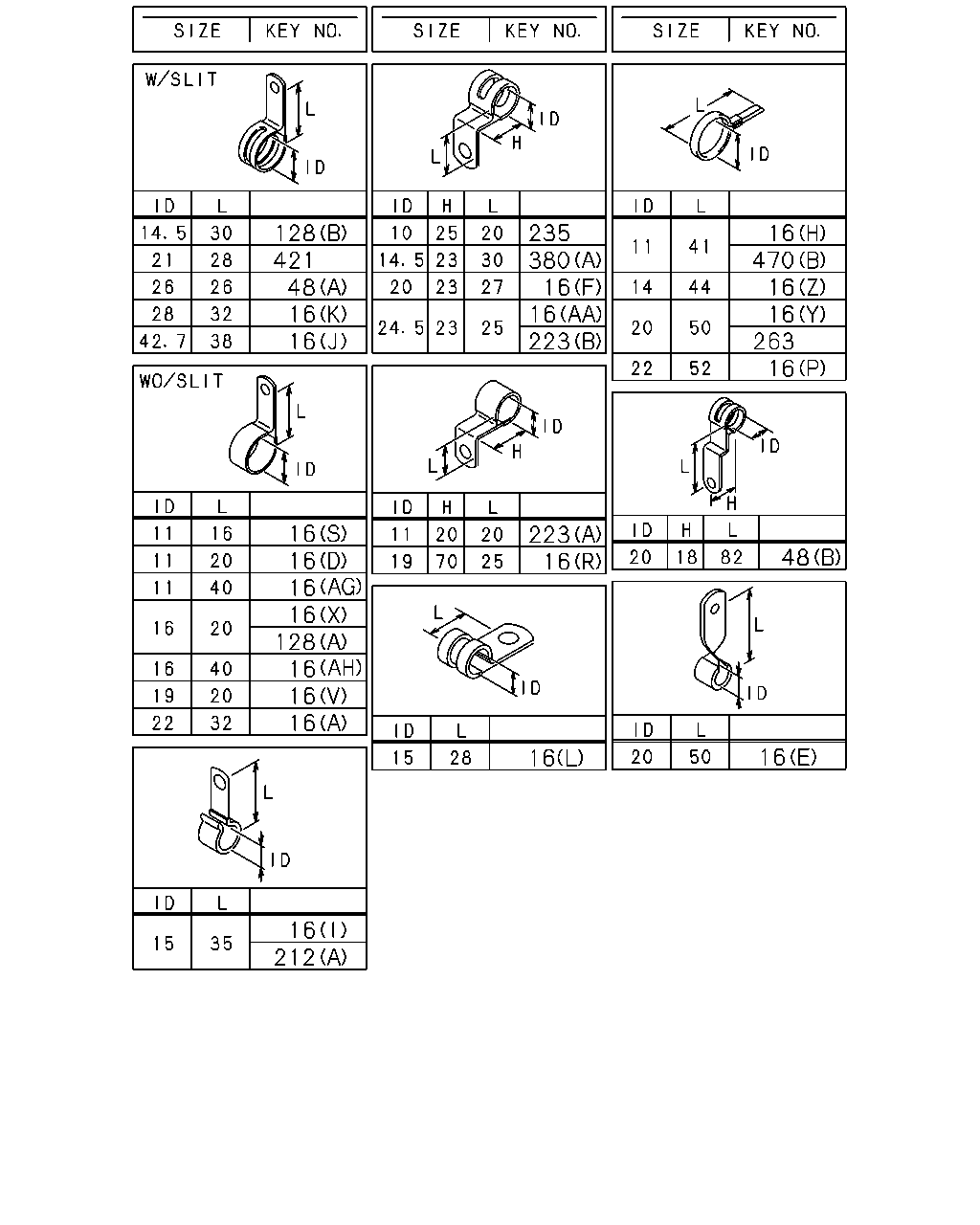

14 CLIP; BAND,HARNESS
(B) ID=18-24 L=14.5 		1-09709-298-0 02 1 0602-0605
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 02 1 0606-
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0509-
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 01 1 0905-
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 02 1 0807-0904
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 02 1 0905-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 02 1 0905-
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AJ) ID=5-12 L=26 		1-09709-289-0 01 1 0807-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) ID=11 L=20 		0-95235-035-0 01 1 0707-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0509-
16 CLIP; HARNESS
(AI) L=175 		1-09707-176-1 01 1 0509-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 02 1 0509-
16 CLIP; HARNESS
(R) ID=19 H=70 L=25 		8-97360-209-0 01 1 0510-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0509-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0509-0606
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 02 1 0509-0810
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 01 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0509-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0509-0606
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0607-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0509-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0509-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0509-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0509-0810
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0509-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0509-0810
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 05 1 0811-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0509-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509-0602
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509-0602
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0509-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0509-
16 CLIP; HARNESS
(G) OD=9 H=13.5 		1-09709-180-0 01 1 0509-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 03 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AC) ID=5-12 L=18 		1-09709-287-0 03 1 0603-0610
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AC) ID=5-12 L=18 		1-09709-287-0 01 1 0611-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 01 1 0807-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 05 1 0509-0904
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 02 1 0905-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0509-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0509-0810
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0811-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0509-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0509-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0603-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6 		8-97368-793-0 01 1 0807-
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0509-0606
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=40 		9-09525-075-0 01 1 0509-0606
16 CLIP; HARNESS
(AG) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0509-0606
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AH) ID=16 L=40 		9-09525-576-0 01 1 0509-0606
16 CLIP; HARNESS
(AH) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0509-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0607-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 0509-0810
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0509-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0509-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0509-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0509-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0509-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0509-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0509-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0509-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0509-0510
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0511-0602
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=7-10 		8-94472-578-0 02 1 0603-0710
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0711-0810
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0509-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) L=250 		5-09707-030-1 02 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (C) L=250 		5-09707-030-1 02 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (D) L=140 		5-09707-031-1 06 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (D) L=140 		5-09707-031-1 06 1 0711-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0509-0510
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0511-0602
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0603-0710
104 CLIP; HEADLAMP HARNESS
HEADLAMPS VARIANT SQUARE<TEA> (E) ID=21 L=47.5 		8-94178-108-0 02 1 0711-0711
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0509-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0509-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0509-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0509-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 0509-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 0509-0804
194 CLIP; BAND
(B) L=350 		1-09707-183-0 08 1 0805-0810
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 0811-1202
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 1203-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0509-1001
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0509-
194 CLIP; BAND
(A) L=250 		5-09707-030-1 05 1 0509-0602
194 CLIP; BAND
ANTILOCK BRAKE SYSTEM(BFA) (A) L=250 		5-09707-030-1 05 1 0603-0710
194 CLIP; BAND
(A) L=250 		5-09707-030-1 05 1 0711-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0509-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0810-
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0509-0806
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0509-0810
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0509-
227 CLIP; FOG LAMP HARNESS
L=250 		5-09707-030-1 01 1 0509-0810
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0509-1112
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1201-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0509-0810
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 02 1 0811-
369 CLIP; BAND EDS HARNESS
EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 0707-
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0509-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0509-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0509-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0509-

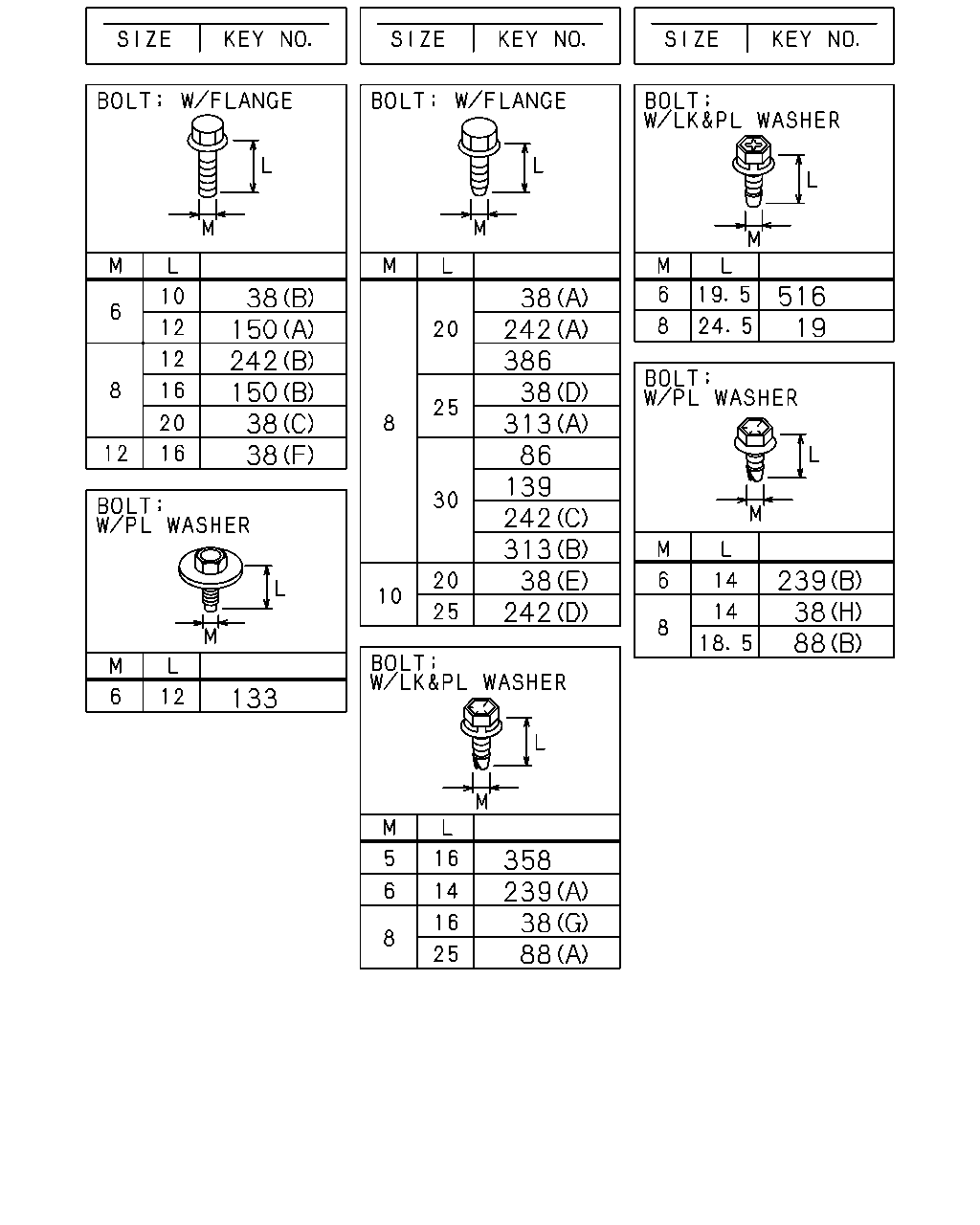

çizim 88370
516 19 88 38 239 88 358 239 38 242 38 313 242 139 86 313 38 386 242 38 133 38 38 150 242 150 38
BalonParca AdiParca NoAdetTipApplied Date
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0701-0904
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0811-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28080-610-0 01 1 0509-0512
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28080-820-0 01 1 0509-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0509-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0509-0512
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28781-020-0 01 1 0509-0512
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0509-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0509-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0509-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0509-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0807-1001
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0807-1001
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0602
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0602
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-0602
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0710
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0710
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0603-0710
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0711-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0711-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0711-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807-0810
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807-0810
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807-0810
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0811-1001
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1002-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1002-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1002-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0509-1007
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0509-1007
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0509-
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0606-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0509-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0509-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-0602
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-0602
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28650-830-0 04 1 0603-0605
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0603-0605
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0606-
150 BOLT; CLIP
EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0707-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 02 1 0509-0509
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 03 1 0510-0512
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0601-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1209-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0509-0512
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0509-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0509-0512
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0601-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0509-0512
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0610
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0509-0512
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0601-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0601-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0509-0512
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-0602
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0603-0806
313 BOLT; BRKT
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0807-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0509-
386 BOLT; GRAND HARNESS
M8X20 FLANGE 		0-28680-820-0 01 1 0509-0512
386 BOLT; GRAND HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0509-
çizim 88408
211 27 53 53 312 334 211 342 342 375
BalonParca AdiParca NoAdetTipApplied Date
27 PROTECTOR; EDGE 8-97618-028-0 01 1 0701-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0509-
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0509-0602
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (B) 		1-82698-382-0 01 1 0603-0806
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (B) 		8-98124-778-0 01 1 0807-0807
53 BRACKET; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-98124-778-0 01 1 0807-
211 BRACKET; AXLE HARNESS
(A) 		1-82698-588-0 02 1 0509-0605
211 BRACKET; AXLE HARNESS
(B) L=95 		1-82699-085-0 02 1 0509-
312 BRACKET; CLIP HARNESS
L=120 H=35 		1-82698-088-0 01 1 0509-0702
312 BRACKET; CLIP HARNESS
L=120 		8-97619-440-0 01 1 0703-
334 BRACKET 1-53458-709-1 01 1 0509-
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-974-0 01 1 0509-0610
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0509-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0509-
çizim 88478
128 421 48 16 16 235 380 16 16 223 16 470 16 16 263 16 16 16 16 128 16 16 223 16 48 16 16 16 212 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AK) ID=13-18 L=18 		1-09709-291-0 01 1 0905-
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 02 1 0807-0904
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 02 1 0905-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 02 1 0905-
16 CLIP; HARNESS
FUEL SEDIMENTER WITH HEATER<6HU> (AJ) ID=5-12 L=26 		1-09709-289-0 01 1 0807-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) ID=11 L=20 		0-95235-035-0 01 1 0707-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0509-
16 CLIP; HARNESS
(AI) L=175 		1-09707-176-1 01 1 0509-
16 CLIP; HARNESS
(W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0603-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (W) ID=5-12 L=14.5 		1-09987-221-0 01 1 0807-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 02 1 0509-
16 CLIP; HARNESS
(R) ID=19 H=70 L=25 		8-97360-209-0 01 1 0510-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0509-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0509-0606
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 02 1 0509-0606
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1209-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 02 1 0509-0810
16 CLIP; HARNESS
INSPECTION LAMP<T95> (O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0811-
16 CLIP; HARNESS
INSPECTION LAMP<T95> (Q) OD=9 H=6 		1-09709-178-0 01 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 01 1 0509-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 10 1 0509-0606
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 12 1 0607-
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0509-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0509-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0509-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0509-0810
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0509-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0509-0810
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 05 1 0811-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0509-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509-0602
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0509-0602
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (O) L=180 		1-09707-162-1 01 1 0603-0810
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0509-
16 CLIP; HARNESS
(AB) W/SPONGE RUBBER 		1-09709-150-0 01 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 03 1 0509-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0509-
16 CLIP; HARNESS
(G) OD=9 H=13.5 		1-09709-180-0 01 1 0509-
16 CLIP; HARNESS
(AC) ID=5-12 L=18 		1-09709-287-0 03 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AC) ID=5-12 L=18 		1-09709-287-0 03 1 0603-0610
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (AC) ID=5-12 L=18 		1-09709-287-0 01 1 0611-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (AC) ID=5-12 L=18 		1-09709-287-0 01 1 0807-
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 05 1 0509-0904
16 CLIP; HARNESS
(AE) ID=18-24 L=18 		1-09709-294-0 02 1 0905-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 02 1 0509-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 03 1 0509-0810
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0811-
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0509-
16 CLIP; HARNESS
(AD) ID=14-20 		8-97061-603-0 03 1 0509-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0509-0602
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ> (C) OD=9 H=6 		8-97368-793-0 01 1 0603-0806
16 CLIP; HARNESS
FUEL SEDIMENTER WITH WARNING<EBJ>,FUEL SEDIMENTER WITH HEATER<6HU> (C) OD=9 H=6 		8-97368-793-0 01 1 0807-
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0509-0606
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(AG) ID=11 L=40 		9-09525-075-0 01 1 0509-0606
16 CLIP; HARNESS
(AG) ID=11 L=40 		0-95235-075-0 01 1 0607-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0509-0606
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
(AH) ID=16 L=40 		9-09525-576-0 01 1 0509-0606
16 CLIP; HARNESS
(AH) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 05 1 0509-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0607-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 01 1 0509-0810
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 03 1 0509-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0509-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0509-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0509-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0509-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0509-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0509-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0509-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0509-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0509-
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0509-0806
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0509-0810
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0509-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0509-
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0509-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0509-0707
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0509-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0509-0810
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0509-
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0509-
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 0509-1202
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0509-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
