Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#27115) — 184 parça

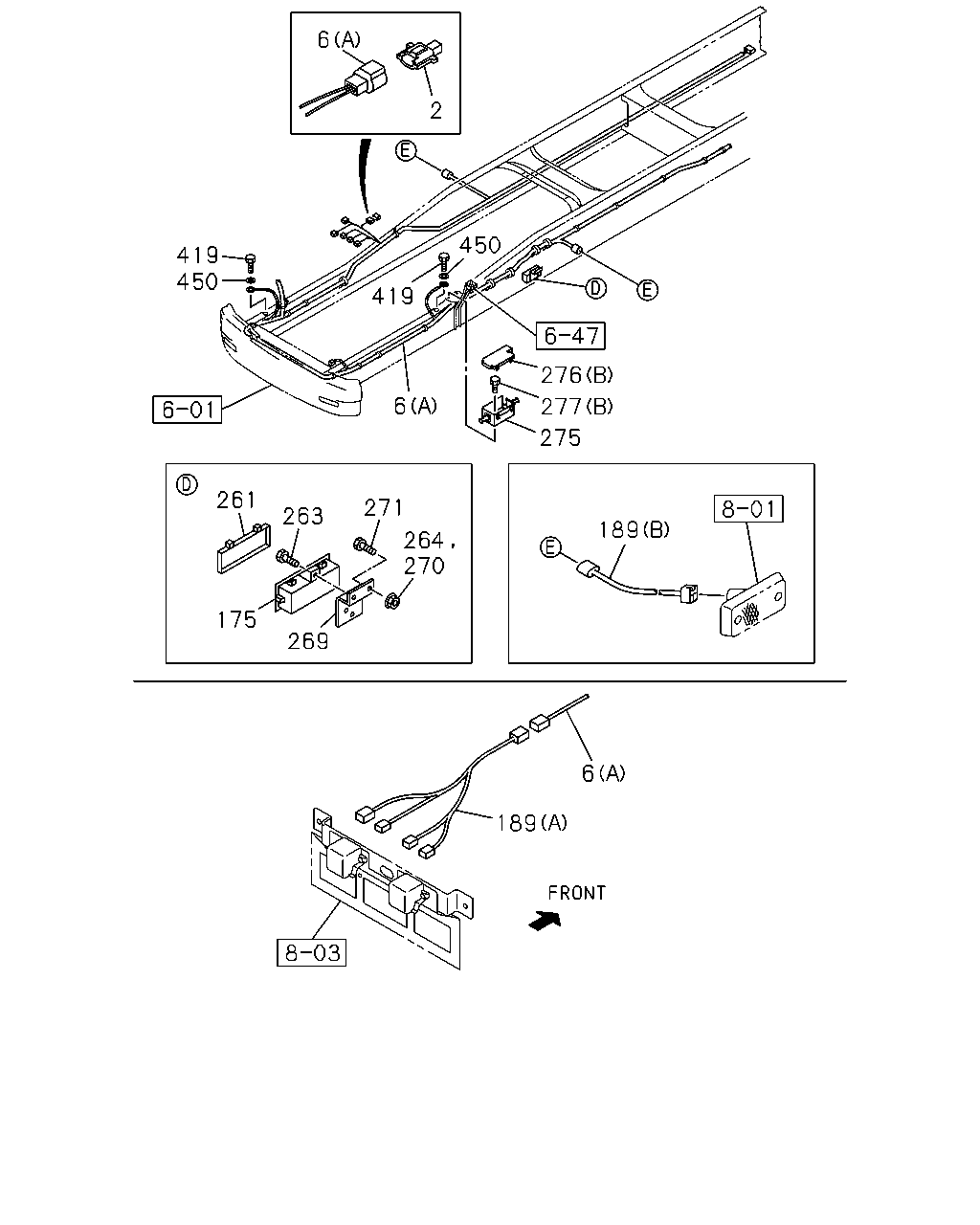

6 2 450 276 277 275 189 6 189 175 261 263 271 6 419 450 419 264 270 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	0509-0602
2	DIODE; CABLE HARNESS GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) GRAY 2P-1.3A	1-81514-015-0	01	1	0603-
6	HARNESS; FRAME TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A)	8-98131-405-0	01	1	0810-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A)	8-98124-610-0	01	1	0807-0809
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),FULL FLOATING CAB(W16) (A)	8-98124-610-0	01	1	0810-
6	HARNESS; FRAME (B)	1-82677-379-4	01	1	0509-
6	HARNESS; FRAME (A)	1-82677-528-5	01	1	0509-0602
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (A)	1-82677-528-5	01	1	0603-0806
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16),FUEL SEDIMENTER WITH HEATER<6HU> (A)	1-82677-528-6	01	1	0807-
175	BOX; CONNECTOR	1-82699-467-0	01	1	0509-
189	HARNESS; EXT RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B)	1-82673-735-0	06	1	0810-
189	HARNESS; EXT RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-066-0	01	1	0810-
261	COVER; CONNECTOR BOX	1-82699-320-0	01	1	0509-
263	BOLT; CONNECTOR BOX M8X30 W/LK&PL WASHER	8-94279-144-0	01	1	0509-
264	NUT; CONNECTOR BOX M8 FLANGE	0-91180-108-0	01	1	0911-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0509-
269	BRACKET; CONNECTOR BOX	1-82698-424-0	01	1	0509-
270	NUT; BRKT,CONNECTOR BOX M8 FLANGE	0-91180-108-0	02	1	0911-
271	BOLT; BRKT CONNECTOR BOX M8X25 FLANGE	0-28680-825-0	02	1	0509-0512
271	BOLT; BRKT CONNECTOR BOX M8X25 FLANGE	0-28650-825-0	02	1	0601-
275	BOX ASM; FRAME HARNESS	1-82699-474-2	01	1	0509-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0509-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0509-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0509-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0509-
419	BOLT; CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0707-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH M8X30 W/LK&PL WASHER	8-97087-204-0	02	1	0509-0706
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X30 W/LK&PL WASHER	8-97087-204-0	02	1	0707-1201
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	02	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	07	1	0509-1201
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
450	WASHER; PL,CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4	1-09503-264-0	02	1	0707-0810
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	0509-0810
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0811-

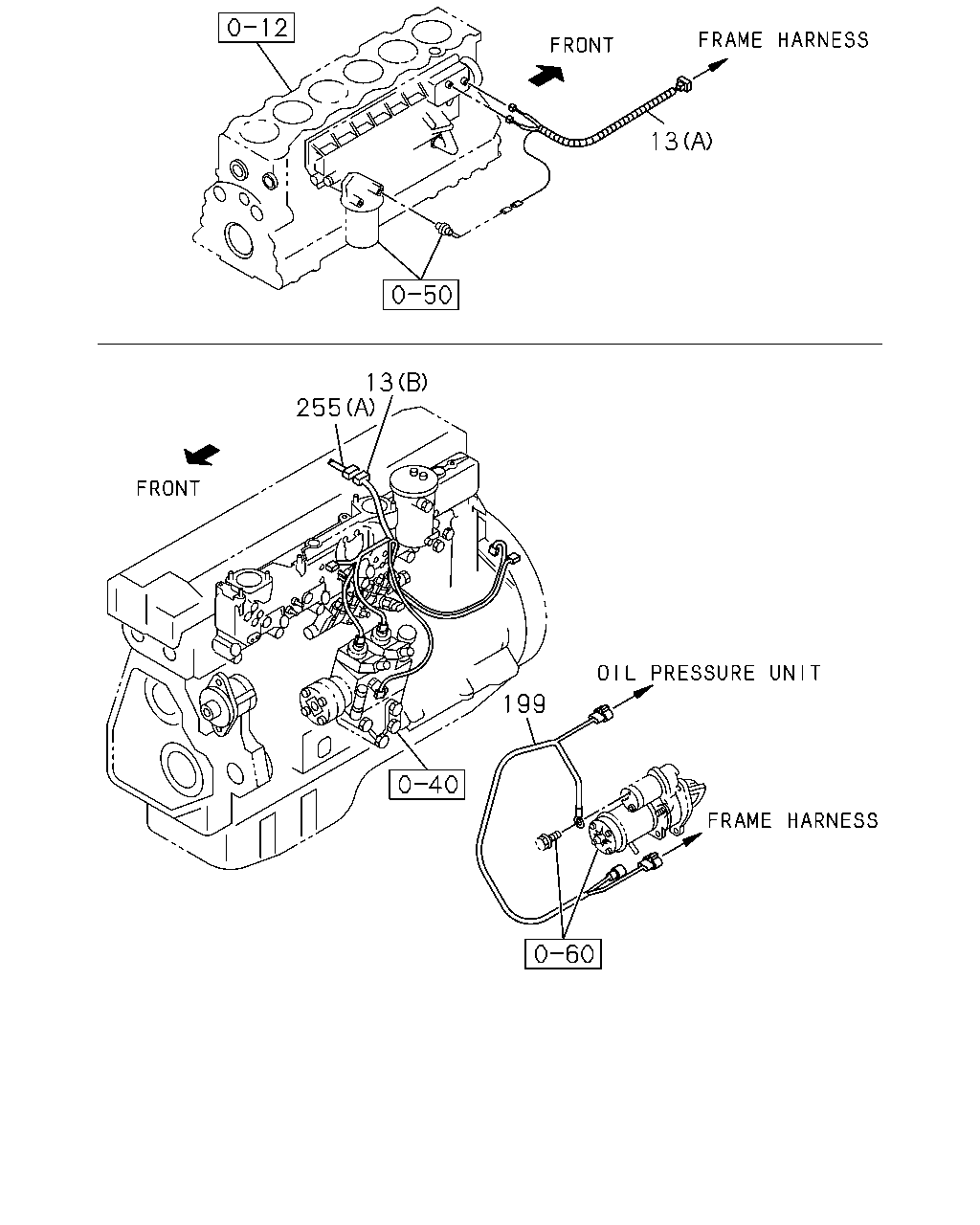

199 255 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	1-82641-345-0	01	1	0509-0612
13	HARNESS; ENG (B)	8-97617-395-0	01	1	0701-1004
13	HARNESS; ENG (B)	8-98169-641-0	01	1	1005-
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0509-
199	HARNESS; STARTER	1-82641-329-3	01	1	0509-
255	HARNESS; ELEC GOV (A)	1-82662-241-2	01	1	0509-1202
255	HARNESS; ELEC GOV (A)	8-97642-187-1	01	1	1203-
255	HARNESS; ELEC GOV (B)	1-82662-741-1	01	1	0509-1202
255	HARNESS; ELEC GOV (B)	8-97641-997-0	01	1	1203-

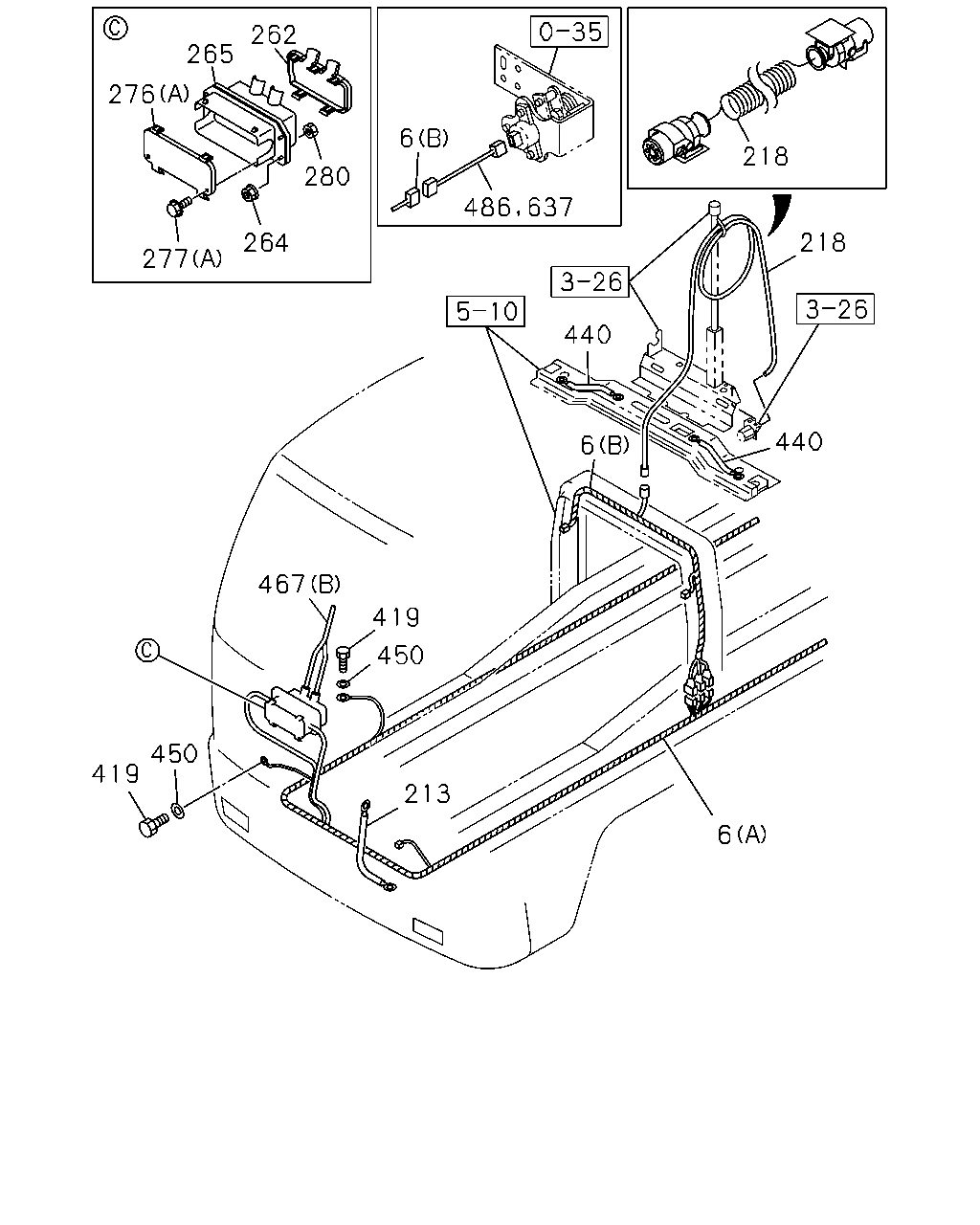

262 265 276 6 218 280 218 264 277 440 440 6 467 419 450 450 419 213 6 486 637

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A)	8-98131-405-0	01	1	0810-
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. FULL FLOATING CAB(W16) (A)	8-98124-610-0	01	1	0807-0809
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),FULL FLOATING CAB(W16) (A)	8-98124-610-0	01	1	0810-
6	HARNESS; FRAME (B)	1-82677-379-4	01	1	0509-
6	HARNESS; FRAME (A)	1-82677-528-5	01	1	0509-0602
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16) (A)	1-82677-528-5	01	1	0603-0806
6	HARNESS; FRAME GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. FULL FLOATING CAB(W16),FUEL SEDIMENTER WITH HEATER<6HU> (A)	1-82677-528-6	01	1	0807-
213	CABLE; EARTH,CAB TO FRAME	1-82677-900-1	01	1	0509-
218	CABLE; JUMPER,ABS L=5500	1-82659-198-3	01	1	0509-0602
218	CABLE; JUMPER,ABS ANTILOCK BRAKE SYSTEM(BFA) L=5500	1-82659-198-3	01	1	0603-0710
218	CABLE; JUMPER,ABS L=5500	1-82659-198-3	01	1	0711-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-605-1	01	1	0509-
264	NUT; CONNECTOR BOX M8 FLANGE	0-91180-108-0	01	1	0911-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0509-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0509-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0509-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-892-1	01	1	0509-
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50140-625-0	02	1	0509-0512
277	BOLT; BOX ASM FIX (A) M6X25 W/LK&PL WASHER	0-50640-625-0	02	1	0601-
277	BOLT; BOX ASM FIX (B) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0509-
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0509-0810
419	BOLT; CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0707-1201
419	BOLT; CAB EARTH M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
419	BOLT; CAB EARTH M8X30 W/LK&PL WASHER	8-97087-204-0	02	1	0509-0706
419	BOLT; CAB EARTH ENGINE CONTROL COMMON RAIL(Q4R) M8X30 W/LK&PL WASHER	8-97087-204-0	02	1	0707-1201
419	BOLT; CAB EARTH M8X24 W/PL WASHER	8-98141-256-1	02	1	1202-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	07	1	0509-1201
419	BOLT; CAB EARTH M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
440	CABLE; EARTH	1-82678-273-0	02	1	0509-
450	WASHER; PL,CAB EARTH EXC. ENGINE CONTROL COMMON RAIL(Q4R) ID=8.4	1-09503-264-0	02	1	0707-0810
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	03	1	0509-0810
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0811-
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-514-0	01	1	0807-0811
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98126-514-1	01	1	0812-0907
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-974-3	01	1	0908-
467	HARNESS; FACIA SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-269-0	01	1	0812-0907
467	HARNESS; FACIA SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-966-2	01	1	0908-
467	HARNESS; FACIA RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-064-0	01	1	0810-
467	HARNESS; FACIA (A)	1-82662-742-1	01	1	0509-0809
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3> (A)	1-82662-742-1	01	1	0810-
467	HARNESS; FACIA (B)	1-82662-743-3	01	1	0509-0805
467	HARNESS; FACIA (B)	8-97625-937-0	01	1	0806-0806
467	HARNESS; FACIA EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-513-0	01	1	0807-0811
467	HARNESS; FACIA EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-513-0	01	1	0812-0907
467	HARNESS; FACIA EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-973-3	01	1	0908-
486	HARNESS; ALL SPEED ACCEL PTO CONTROL OPERATION CAB BACK<TBZ>	1-82676-925-0	01	1	0907-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	0810-

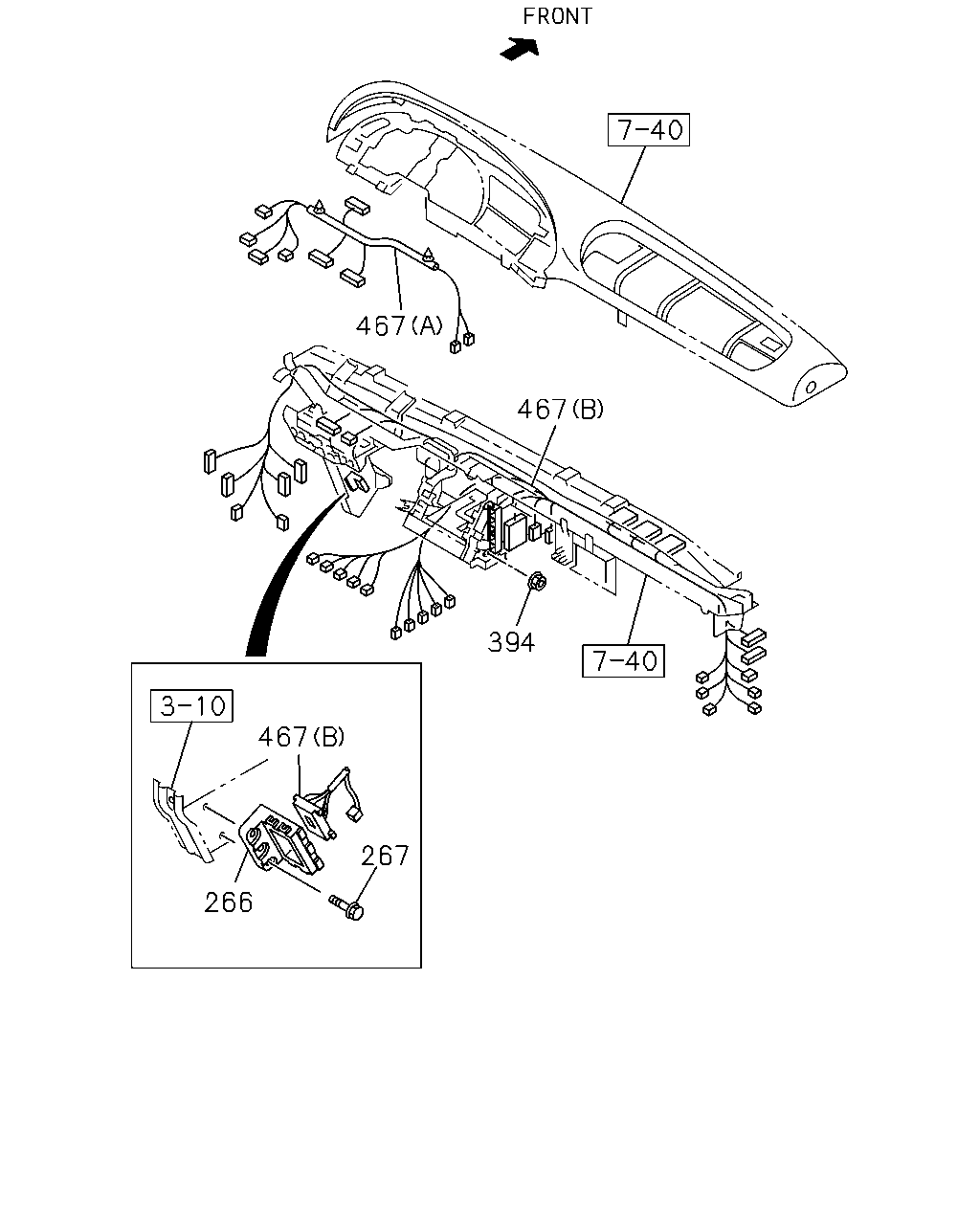

467 467 394 467 267 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0509-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0509-
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91150-106-0	01	1	0509-0602
394	NUT; RELAY BOX TO BODY M6 FLANGE	0-91180-106-0	01	1	0603-
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-514-0	01	1	0807-0811
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98126-514-1	01	1	0812-0907
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-974-3	01	1	0908-
467	HARNESS; FACIA SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-269-0	01	1	0812-0907
467	HARNESS; FACIA SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-966-2	01	1	0908-
467	HARNESS; FACIA RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-064-0	01	1	0810-
467	HARNESS; FACIA (A)	1-82662-742-1	01	1	0509-0809
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3> (A)	1-82662-742-1	01	1	0810-
467	HARNESS; FACIA (B)	1-82662-743-3	01	1	0509-0805
467	HARNESS; FACIA (B)	8-97625-937-0	01	1	0806-0806
467	HARNESS; FACIA EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-513-0	01	1	0807-0811
467	HARNESS; FACIA EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-513-0	01	1	0812-0907
467	HARNESS; FACIA EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-973-3	01	1	0908-

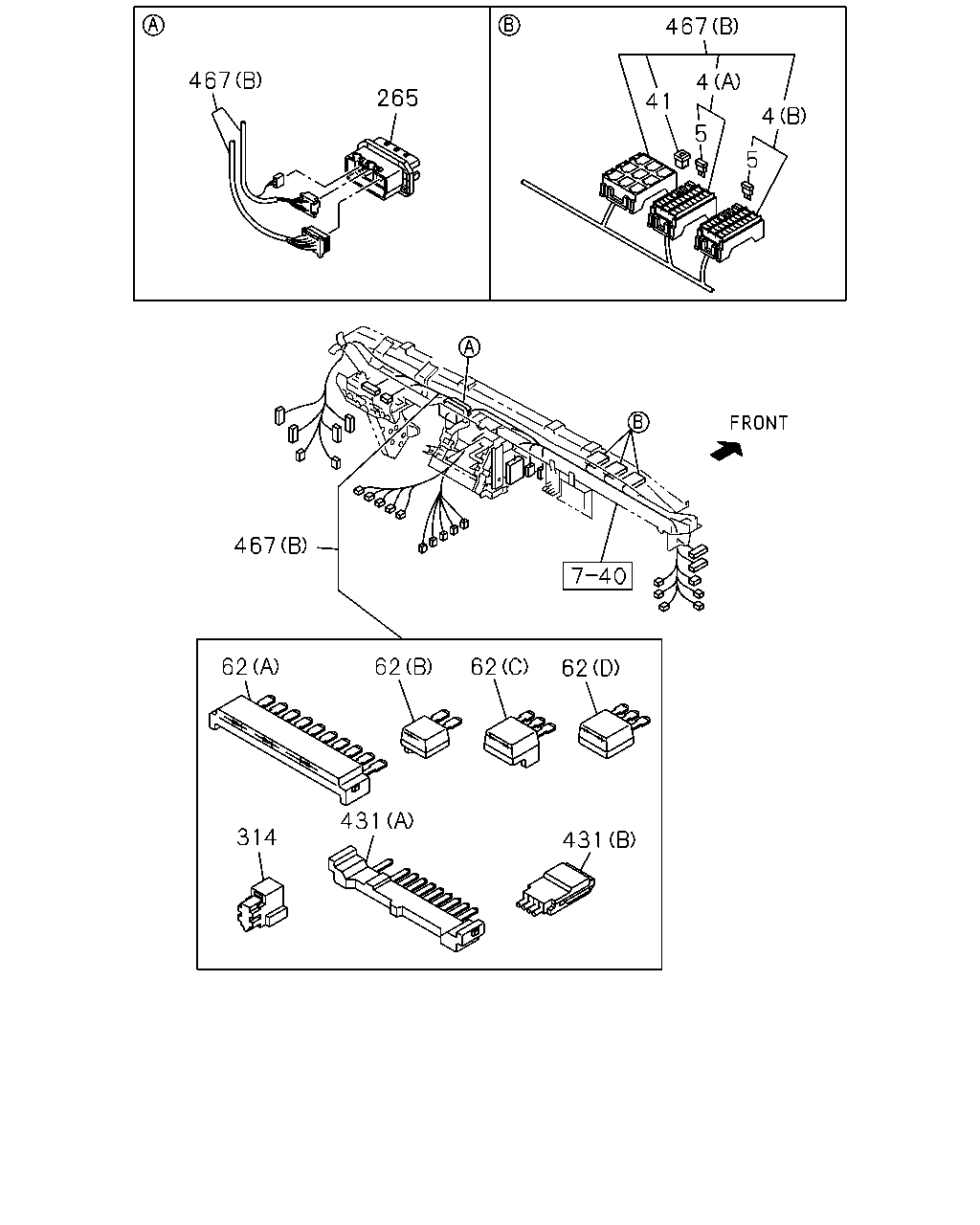

467 467 4 265 41 4 5 5 467 62 62 62 62 431 314 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> (B) 15AX22 25AX3	8-98126-046-0	01	1	0807-0811
4	BOX ASM; FUSE,HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98126-046-0	01	1	0812-
4	BOX ASM; FUSE,HARNESS (A)	1-82510-420-0	01	1	0509-
4	BOX ASM; FUSE,HARNESS (B)	1-82510-513-0	01	1	0509-0806
4	BOX ASM; FUSE,HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	1-82510-513-0	01	1	0807-0811
4	BOX ASM; FUSE,HARNESS SAUDI ARABIA EQUIPMENT(WH1) (B)	1-82510-513-0	01	1	0812-
4	BOX ASM; FUSE,HARNESS EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	1-82510-513-0	01	1	0812-
5	FUSE; FACIA HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> 15A BLUE	5-82516-003-0	21	1	0807-0811
5	FUSE; FACIA HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) 15A BLUE	5-82516-003-0	22	1	0812-
5	FUSE; FACIA HARNESS EXC. FUEL SEDIMENTER WITH HEATER<6HU> 25A CLEAR	5-82516-005-0	02	1	0807-0811
5	FUSE; FACIA HARNESS FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) 25A CLEAR	5-82516-005-0	03	1	0812-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	21	1	0509-0806
5	FUSE; FACIA HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 15A BLUE	5-82516-003-0	22	1	0807-0811
5	FUSE; FACIA HARNESS SAUDI ARABIA EQUIPMENT(WH1) 15A BLUE	5-82516-003-0	21	1	0812-
5	FUSE; FACIA HARNESS EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> 15A BLUE	5-82516-003-0	21	1	0812-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	0509-0806
5	FUSE; FACIA HARNESS FUEL SEDIMENTER WITH HEATER<6HU> 25A CLEAR	5-82516-005-0	03	1	0807-0811
5	FUSE; FACIA HARNESS SAUDI ARABIA EQUIPMENT(WH1) 25A CLEAR	5-82516-005-0	02	1	0812-
5	FUSE; FACIA HARNESS EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> 25A CLEAR	5-82516-005-0	02	1	0812-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	21	1	0509-
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0509-
62	DIODE; HARNESS EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0812-0907
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0806-0811
62	DIODE; HARNESS EXC. SAUDI ARABIA EQUIPMENT(WH1) (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0812-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	04	1	0509-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0509-
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0509-0805
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	10	1	0806-0811
62	DIODE; HARNESS SAUDI ARABIA EQUIPMENT(WH1) (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0812-0907
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	06	1	0908-
265	BOX; CONN,FRT PNL	1-82699-538-3	01	1	0509-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0509-
431	CONNECTOR; JOINT (B) 4P	8-97376-776-0	02	1	0509-0805
431	CONNECTOR; JOINT (B) 4P	8-97376-776-0	03	1	0806-0811
431	CONNECTOR; JOINT EXC. SAUDI ARABIA EQUIPMENT(WH1) (B) 4P	8-97376-776-0	03	1	0812-0907
431	CONNECTOR; JOINT (B) 4P	8-97376-776-0	03	1	0908-
431	CONNECTOR; JOINT (A) 10P BROWN	1-82699-601-0	02	1	0509-
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-514-0	01	1	0807-0811
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98126-514-1	01	1	0812-0907
467	HARNESS; FACIA FUEL SEDIMENTER WITH HEATER<6HU> EXC. SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-974-3	01	1	0908-
467	HARNESS; FACIA SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98094-269-0	01	1	0812-0907
467	HARNESS; FACIA SAUDI ARABIA EQUIPMENT(WH1) (B)	8-98142-966-2	01	1	0908-
467	HARNESS; FACIA RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (A)	8-98131-064-0	01	1	0810-
467	HARNESS; FACIA (A)	1-82662-742-1	01	1	0509-0809
467	HARNESS; FACIA EXC. RUSSIA COUNTRY<CZ3> (A)	1-82662-742-1	01	1	0810-
467	HARNESS; FACIA (B)	1-82662-743-3	01	1	0509-0805
467	HARNESS; FACIA (B)	8-97625-937-0	01	1	0806-0806
467	HARNESS; FACIA EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-513-0	01	1	0807-0811
467	HARNESS; FACIA EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98126-513-0	01	1	0812-0907
467	HARNESS; FACIA EXC. SAUDI ARABIA EQUIPMENT(WH1),FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-98142-973-3	01	1	0908-

255 255 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
255	HARNESS; ELEC GOV (A)	1-82662-241-2	01	1	0509-1202
255	HARNESS; ELEC GOV (A)	8-97642-187-1	01	1	1203-
255	HARNESS; ELEC GOV (B)	1-82662-741-1	01	1	0509-1202
255	HARNESS; ELEC GOV (B)	8-97641-997-0	01	1	1203-
533	CLIP ID=26 L=26	1-09701-236-0	02	1	0509-0907
533	CLIP ID=25 L=40	1-09700-215-1	02	1	0908-
534	BOLT M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0509-

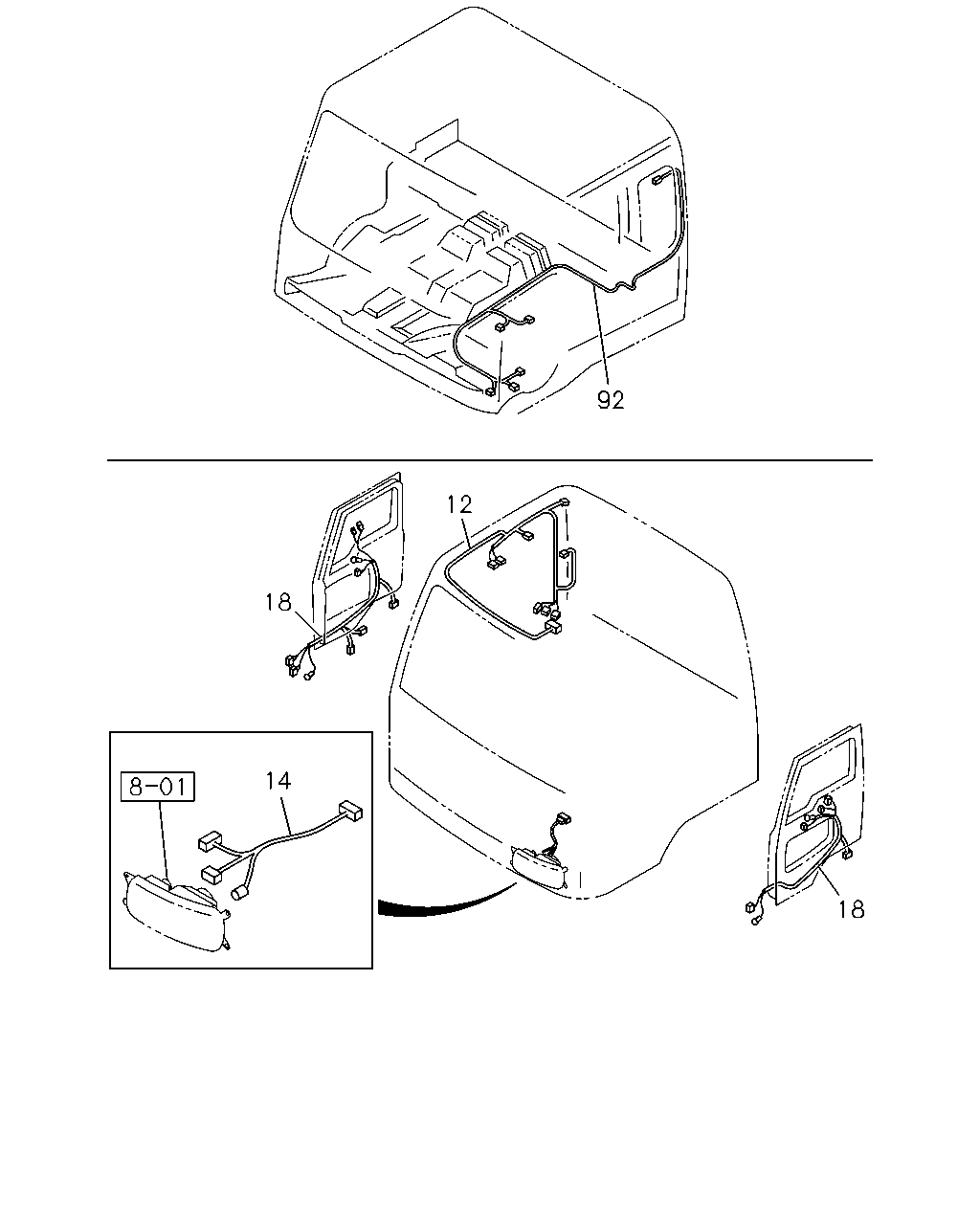

92 12 18 14 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF ROOF MARKER LAMP<U01>	8-98131-062-0	01	1	0810-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>	1-82629-920-2	01	1	0603-0809
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>,ROOF MARKER LAMP<U01>	1-82629-920-2	01	1	0810-
12	HARNESS; ROOF	1-82629-921-2	01	1	0509-0602
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC>	1-82629-921-2	01	1	0603-
14	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-82625-150-2	02	1	0603-0710
14	HARNESS; HEADLAMP	1-82677-628-3	02	1	0509-0602
14	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82677-628-3	02	1	0603-0710
14	HARNESS; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA>	1-82677-628-3	02	1	0711-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	1-82628-582-0	01	1	0509-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	1-82628-584-0	01	1	0509-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	1-82662-032-0	01	1	0509-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	1-82662-037-0	01	1	0509-
92	HARNESS; FLOOR SAUDI ARABIA EQUIPMENT(WH1)	8-98093-664-0	01	1	0812-
92	HARNESS; FLOOR	1-82662-036-2	01	1	0509-0811
92	HARNESS; FLOOR EXC. SAUDI ARABIA EQUIPMENT(WH1)	1-82662-036-2	01	1	0812-

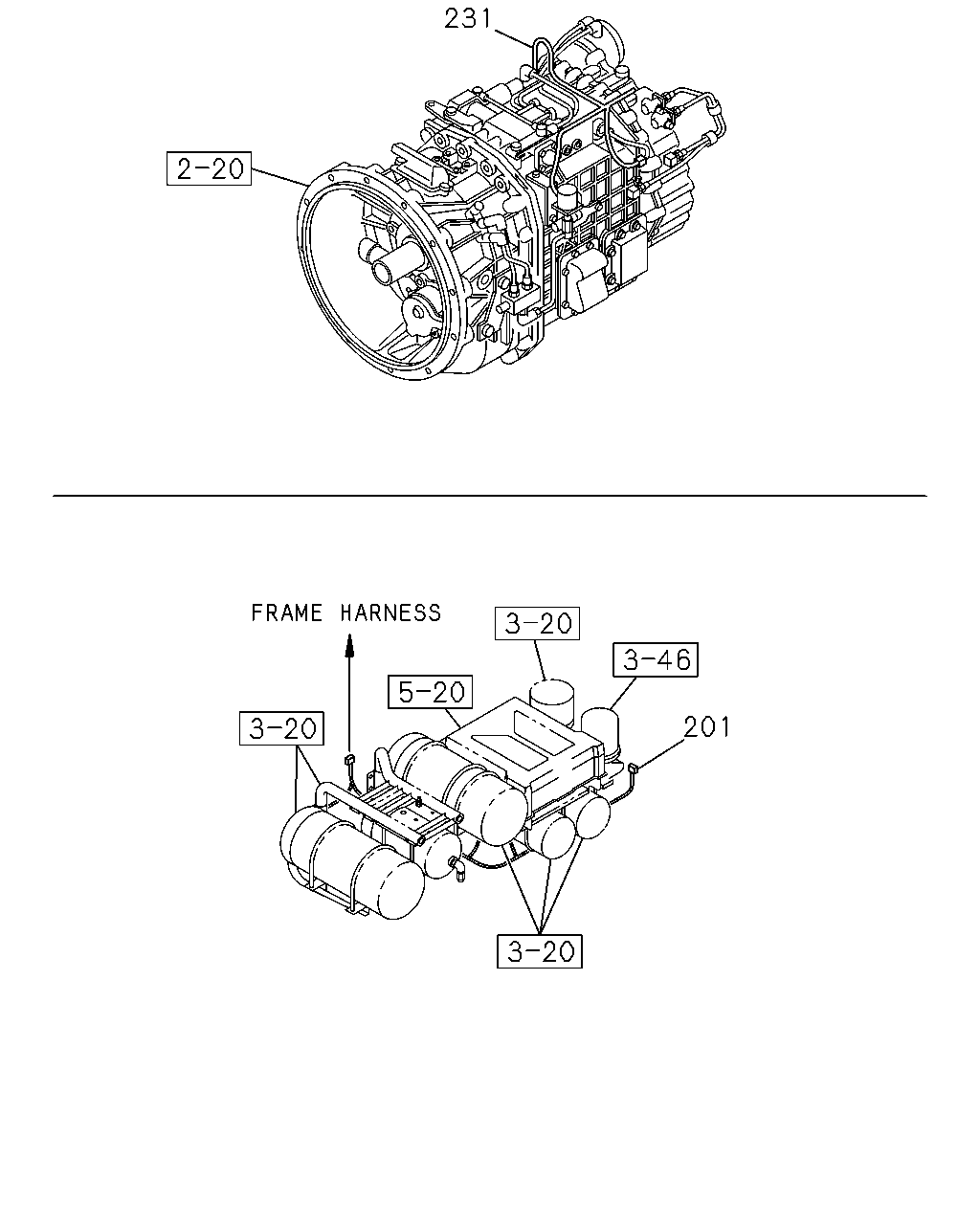

231 201

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	201	HARNESS; AIR TANK	1-82678-222-1	01	1	0509-
	231	HARNESS; TRANS	1-82676-973-3	01	1	0509-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
