◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#2711) — 19 parça

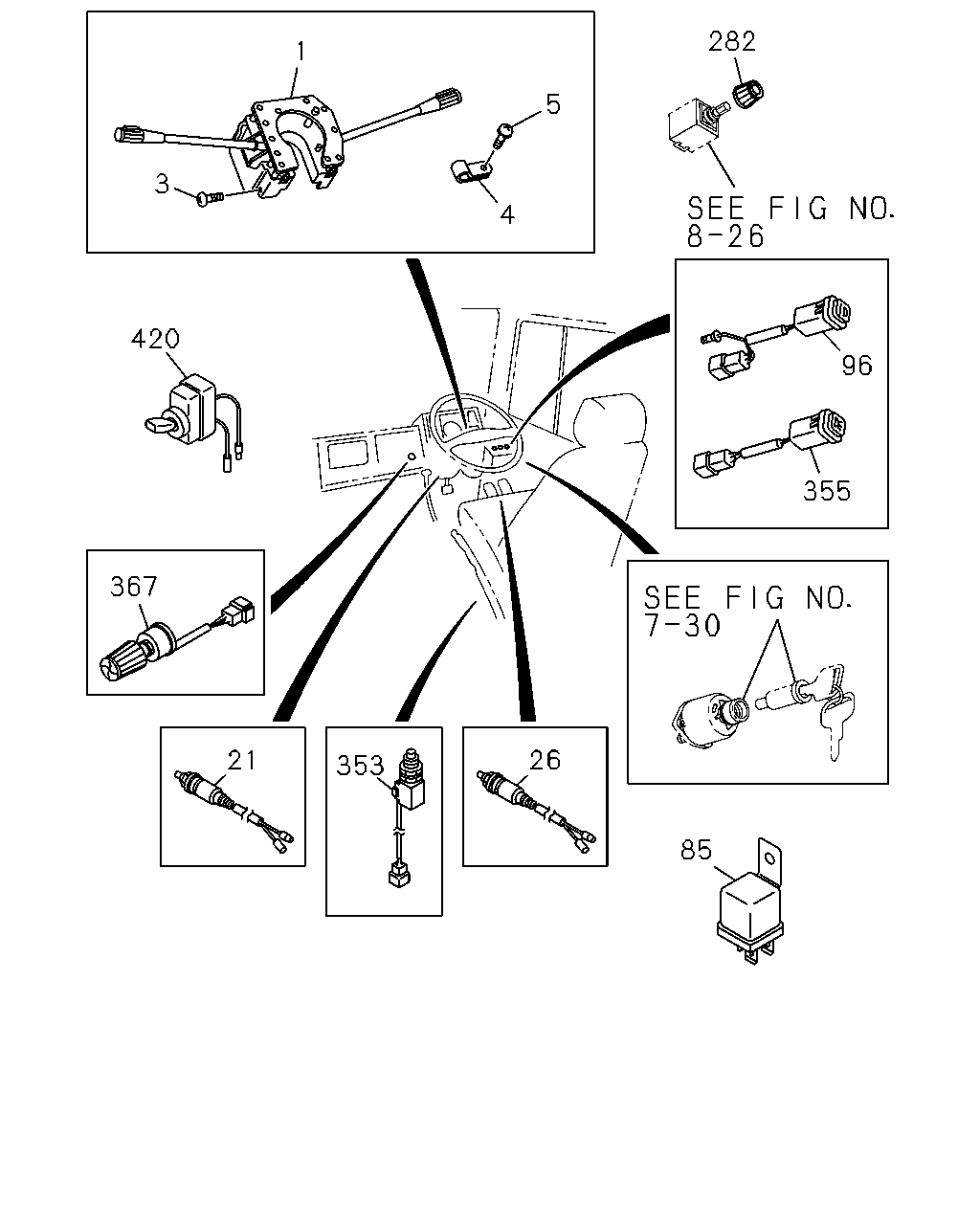

çizim 35568
282 1 5 3 4 420 96 355 367 21 26 353 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-258-6 01 1 9101- ●
1 SWITCH; COMB
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82360-231-9 01 1 9101- ●
1 SWITCH; COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82360-240-7 01 1 9101- ●
3 SCREW; COMB SW 0-74105-512-0 03 1 9101- ● ●
4 CLIP; COMB SW 9-09525-832-0 01 1 9101- ● ●
5 SCREW; COMB SW CABLE 9-03910-612-0 01 1 9101- ● ●
21 SWITCH; CLU
ISUZU M/T<X9A> 		1-82380-009-3 02 1 9101- ● ●
26 SWITCH; ACCEL
AT545 A/T ALLISON(MD1) 		1-82380-009-3 01 1 9101- ● ●
85 RELAY; HEADLAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 		1-82550-176-0 02 1 9101- ● ●
85 RELAY; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 		8-94112-912-0 02 1 9101- ●
96 SWITCH; FOG LAMP 5-82340-043-1 01 1 9101- ● ●
282 KNOB; ILLUMINATION CONT 1-82386-001-0 01 1 9101- ● ●
353 SWITCH ASM; PARKING BRAKE 1-82440-023-0 01 1 9101- ● ●
355 SWITCH; PARKING LAMP
BUS BODY MAKER KITAMURA<Y08> EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82340-207-0 01 1 9101- ● ●
355 SWITCH; PARKING LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82340-255-0 01 1 9101- ● ●
367 SWITCH; HTR 9-82951-699-0 01 1 9101- ● ●
367 SWITCH; HTR
AUXILIARY HEATER(C36) 		1-82380-023-0 01 1 9101- ● ●
367 SWITCH; HTR
HEATER & DEFROSTER(C41) 		1-82380-023-0 02 1 9101- ● ●
420 SWITCH; WATER PUMP
HEATER & DEFROSTER(C41) 		1-82350-023-0 01 1 9101- ● ●
