5-01 — FRAME AND OTHER PARTS (#27103) — 47 parça

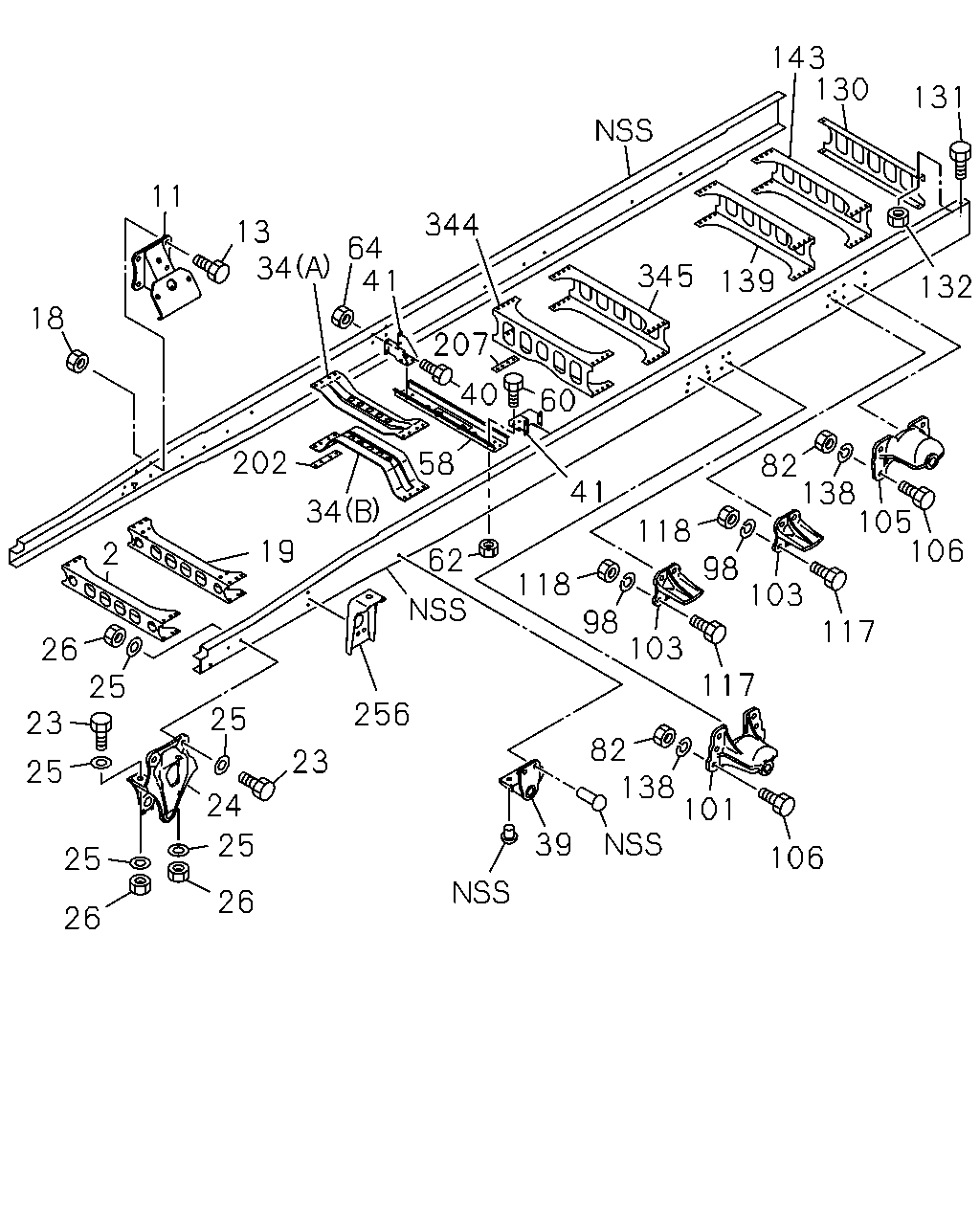

çizim 27078
143 130 131 11 344 13 34 64 41 345 139 132 18 40 60 58 82 138 105 106 202 41 34 62 118 98 103 2 19 118 98 103 117 26 25 117 25 256 23 82 138 101 23 25 24 39 25 106 25 26 26 207
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 1-53181-892-4 01 1 0612- ● ● ● ●
11 BRACKET; ENG MTG 1-53211-195-0 02 1 0612- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0612- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0612- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97606-307-1 01 1 0612- ● ● ● ●
23 BOLT; BRKT,SPR
M14X40 		0-20951-440-0 08 1 0612- ● ●
23 BOLT; BRKT,SPR
M14X45 		9-92061-445-0 08 1 0612- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-233-0 01 1 0612- ●
24 BRACKET; FRT SPR,FRT 1-53351-234-0 01 1 0612- ●
24 BRACKET; FRT SPR,FRT 1-53351-215-0 01 1 0612- ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-216-0 01 1 0612- ● ● ●
25 WASHER; PL,BRKT
ID=15 		9-09651-069-0 16 1 0612-1201 ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 1202- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 08 1 0612- ● ● ● ●
34 MEMBER; CROSS,3RD
(A) 		1-53175-358-1 01 1 0612- ● ● ● ●
34 MEMBER; CROSS,3RD
(B) 		1-53175-360-1 01 1 0612- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0612- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0612- ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-086-0 02 1 0612- ●
58 MEMBER; CENTER BRG 1-37529-082-0 01 1 0612- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0612- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0612- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0612- ●
82 NUT; BRKT
M14 		0-91110-514-0 22 1 0612- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0612- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0612- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0612- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0612- ● ● ● ●
106 BOLT; BRKT
M14X40 		0-20851-440-0 22 1 0612- ● ● ● ●
117 BOLT; STOPPER
M14X45 		0-20801-445-0 16 1 0612- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0612- ● ● ● ●
130 MEMBER; CROSS,END 1-53181-469-2 01 1 0612- ●
130 MEMBER; CROSS,END 1-53181-516-2 01 1 0612- ● ● ●
131 BOLT; END C/MBR
M10X25 FLANGE 		0-28651-025-0 04 1 0612- ● ● ● ●
132 NUT; END C/MBR
M10 FLANGE 		0-91180-110-0 04 1 0612- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 22 1 0612- ● ● ● ●
139 MEMBER; CROSS,6TH 1-53181-465-9 01 1 0612- ● ● ●
143 MEMBER; CROSS,7TH 1-53181-465-9 01 1 0612- ●
202 SPACER; 3RD C/MBR 1-53178-015-0 02 1 0612- ● ● ● ●
207 SPACER; 4TH C/MBR
T=4.5 		1-53168-357-0 02 1 0612- ● ●
207 SPACER; 4TH C/MBR
T=7.0 		1-53168-321-0 02 1 0612- ● ● ●
256 BRACKET; S/ABS 1-51681-494-0 02 1 0612- ● ● ● ●
344 MEMBER; CROSS,4TH 1-53181-520-8 01 1 0612- ●
344 MEMBER; CROSS,4TH 1-53181-604-3 01 1 0612- ● ● ●
345 MEMBER; CROSS,5TH 1-53181-521-3 01 1 0612- ●
345 MEMBER; CROSS,5TH 1-53181-465-9 01 1 0612- ● ●
345 MEMBER; CROSS,5TH 1-53181-604-3 01 1 0612- ●
