Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

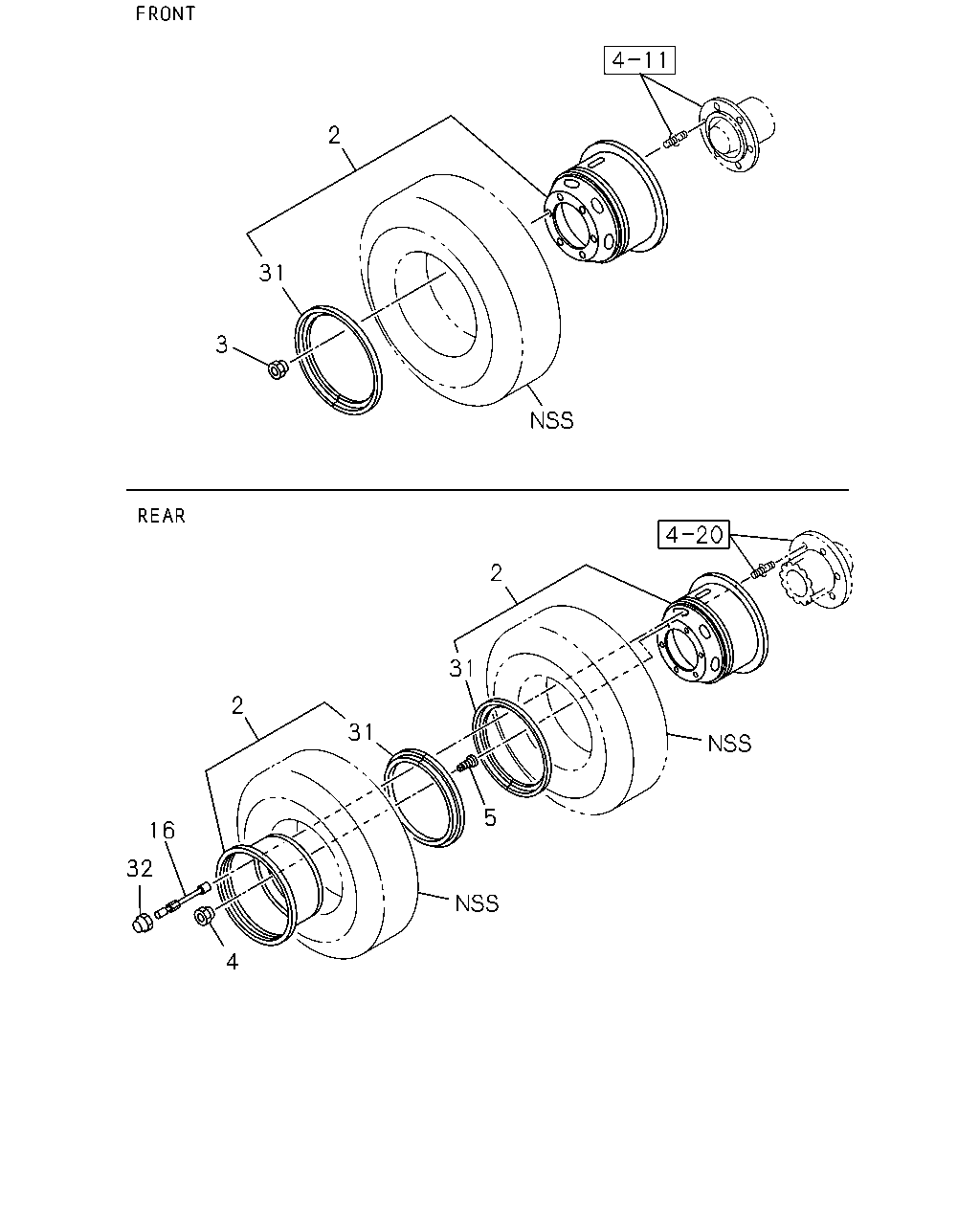

4-80 — ROAD WHEEL
(#27102) — 17 parça
2
31
3
2
31
2
31
5
16
32
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
6.00GSX16 OFFSET=135 BLACK 6-HOLE
1-42350-417-0
06
1
0612-
2
WHEEL; DISC
DISC WHEEL SPARE<N79> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE
1-42350-417-0
01
1
0612-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE
1-42350-417-0
01
1
0612-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
0612-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
0612-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0612-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0612-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0612-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0612-
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
1-42370-015-2
04
1
0612-0612
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
1-42370-015-2
02
1
0701-1003
16
HOLDER; TIRE VALVE,DISC WHEEL
L=115
8-98167-051-0
02
1
1004-
31
RING; SIDE,DISC WHEEL
16X6.00GS STAMP, BLACK
1-42355-015-2
06
1
0612-
31
RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> 16X6.00GS STAMP, BLACK
1-42355-015-2
01
1
0612-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL REAR<R46> EXC. DISC WHEEL SPARE<N79> 16X6.00GS STAMP, BLACK
1-42355-015-2
01
1
0612-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL REAR<R46>
1-42374-001-0
05
1
0612-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL REAR<R46>
1-42374-001-0
04
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
