8-21 — METER ASM (#2710) — 61 parça

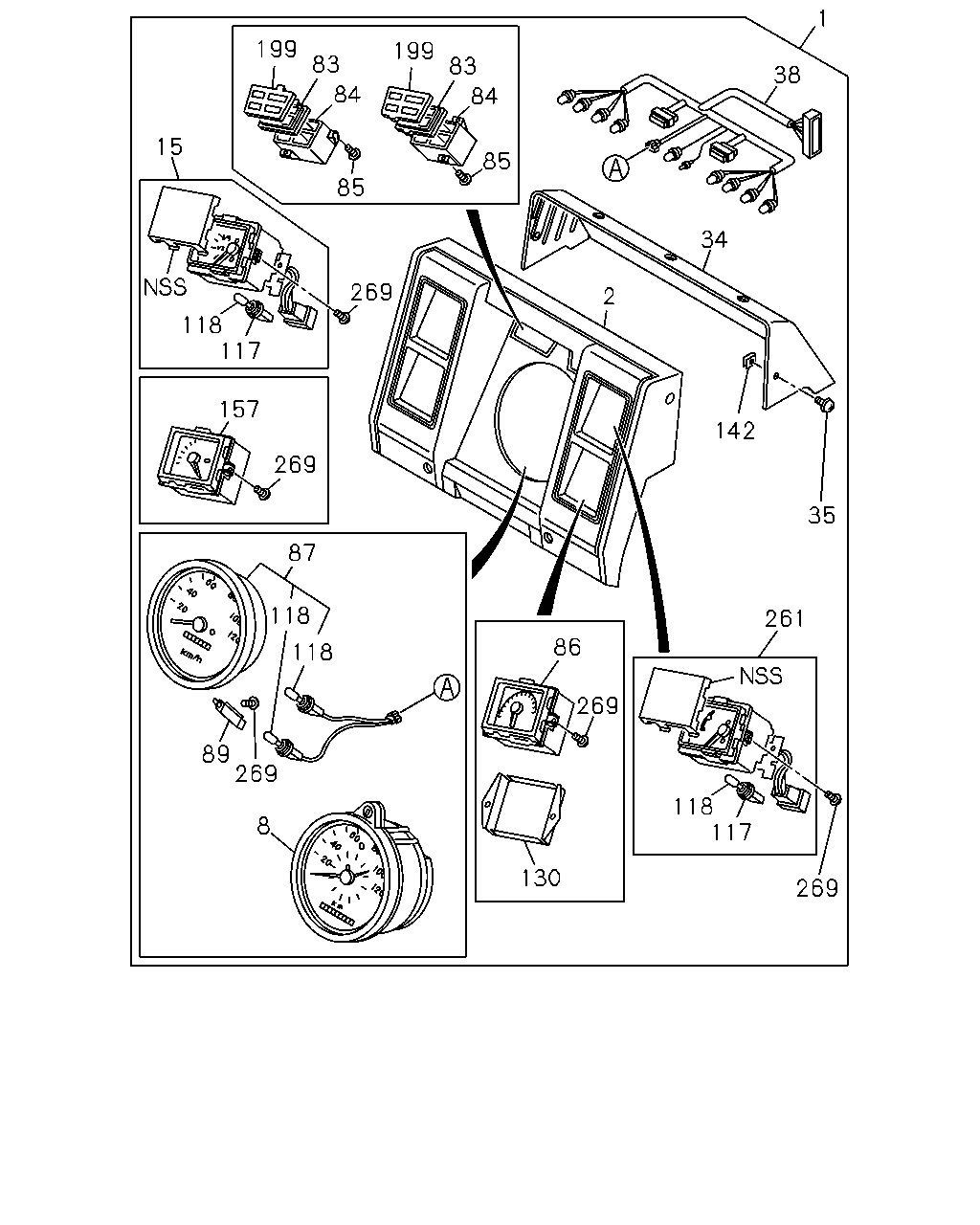

çizim 36997
1 199 199 83 83 38 84 84 15 85 85 34 269 2 118 117 157 142 269 35 87 118 261 86 118 269 89 269 118 117 8 130 269
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MILE SPEEDOMETER<UC1> EXC. TACHOMETER<UD7> 		1-83113-314-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MILE SPEEDOMETER<UC1> TACHOMETER<UD7> 		1-83113-321-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOGRAPH 120KM/H<SM8> EXC. TACHOMETER<UD7> 		1-83113-316-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOGRAPH 120KM/H<SM8> TACHOMETER<UD7> 		1-83113-322-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,TACHOMETER<UD7>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83113-313-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOMETER<UD7> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83113-320-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) MILE SPEEDOMETER<UC1> TACHOMETER<UD7> 		1-83113-318-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) MILE SPEEDOMETER<UC1> EXC. TACHOMETER<UD7> 		1-83111-257-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) TACHOGRAPH 120KM/H<SM8> TACHOMETER<UD7> 		1-83113-319-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) TACHOGRAPH 120KM/H<SM8> EXC. TACHOMETER<UD7> 		1-83111-258-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,TACHOMETER<UD7>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83111-256-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) TACHOMETER<UD7> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83113-317-0 01 1 9101- ● ●
1 METER COMPL; CLUSTER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83113-315-0 01 1 9101- ●
2 PANEL; CLUSTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83117-184-0 01 1 9101- ● ●
2 PANEL; CLUSTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-83117-194-0 01 1 9101- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 120KM/H 		1-83120-243-0 01 1 9101- ● ●
15 METER; FUEL
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83140-041-0 01 1 9101- ● ●
15 METER; FUEL
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83140-040-0 01 1 9101- ●
34 HOOD; CLUSTER METER 1-83117-185-0 01 1 9101- ● ●
35 SCREW; HOOD FIX,CLUSTER METER
M4 TAPPING 		1-87590-049-0 05 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MILE SPEEDOMETER<UC1> EXC. TACHOMETER<UD7> 		1-83118-223-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,TACHOMETER<UD7>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83118-223-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MILE SPEEDOMETER<UC1> TACHOMETER<UD7> 		1-83118-290-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOMETER<UD7> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83118-290-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOGRAPH 120KM/H<SM8> EXC. TACHOMETER<UD7> 		1-83118-275-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOGRAPH 120KM/H<SM8> TACHOMETER<UD7> 		1-83118-276-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) MILE SPEEDOMETER<UC1> TACHOMETER<UD7> 		1-83118-289-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) TACHOMETER<UD7> EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83118-289-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) MILE SPEEDOMETER<UC1> EXC. TACHOMETER<UD7> 		1-83118-240-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,TACHOMETER<UD7>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83118-240-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) TACHOGRAPH 120KM/H<SM8> TACHOMETER<UD7> 		1-83118-288-0 01 1 9101- ● ●
38 HARNESS; METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) TACHOGRAPH 120KM/H<SM8> EXC. TACHOMETER<UD7> 		1-83118-287-0 01 1 9101- ● ●
38 HARNESS; METER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83118-219-0 01 1 9101- ●
83 LENS; SMOKE,CLUSTER METER
LEFT SIDE 		1-83119-062-0 01 1 9101- ● ●
83 LENS; SMOKE,CLUSTER METER
RIGHT SIDE 		1-83119-066-0 01 1 9101- ● ●
84 COVER; WARNING LAMP,CLUSTER METER
LEFT SIDE 		1-83119-064-0 01 1 9101- ● ●
84 COVER; WARNING LAMP,CLUSTER METER
RIGHT SIDE 		1-83119-065-0 01 1 9101- ● ●
85 SCREW; WARNING LAMP COVER,CLUSTER METE
M3X16 		1-09140-004-0 05 1 9101- ● ●
86 TACHOMETER; CLUSTER METER
TACHOMETER<UD7> EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83120-261-0 01 1 9101- ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> 		1-83120-272-0 01 1 9101- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,VENEZUELA ENCAVAPACKAGE(WN4) 		1-83120-253-0 01 1 9101- ● ●
87 SPEEDOMETER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83120-290-0 01 1 9101- ●
89 CLIP; HARNESS 1-83119-032-0 02 1 9101- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
12V 3.4W 		5-82188-001-0 02 1 9101- ● ●
118 BULB; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TACHOGRAPH 120KM/H<SM8>,MILE SPEEDOMETER<UC1> ,TACHOMETER<UD7>,VENEZUELA ENCAVAPACKAGE(WN4) 24V 3W 		9-82691-603-0 04 1 9101- ● ●
118 BULB; CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TACHOMETER<UD7> 24V 3W 		9-82691-603-0 03 1 9101- ● ●
118 BULB; CLUSTER METER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 24V 3W 		9-82691-603-0 03 1 9101- ● ●
118 BULB; CLUSTER METER
EXC. TACHOGRAPH 120KM/H<SM8> W/GREEN FILTER 24V 3W 		1-82194-022-0 02 1 9101- ● ●
130 COVER; METER HOLE,CLUSTER METER
EXC. TACHOMETER<UD7> 		1-83119-071-0 01 1 9101- ● ●
142 NUT; HOOD FIX,CLUSTER METER 1-83119-028-0 05 1 9101- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MILE SPEEDOMETER<UC1> 		1-83150-158-0 01 1 9101- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MILE SPEEDOMETER<UC1> 		1-83150-140-0 01 1 9101- ● ●
199 LENS; WARNING LAMP 1-83119-067-0 01 1 9101- ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-83119-063-0 01 1 9101- ● ●
199 LENS; WARNING LAMP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-83119-074-0 01 1 9101- ● ●
261 THERMOMETER
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-83160-074-0 01 1 9101- ● ●
261 THERMOMETER
VENEZUELA ENCAVAPACKAGE(WN4) 		1-83160-070-0 01 1 9101- ●
269 SCREW; METER CLUSTER
M3X16 		1-09140-004-0 06 1 9101- ● ●
269 SCREW; METER CLUSTER
M4X14 		1-09140-006-0 02 1 9101- ● ●
269 SCREW; METER CLUSTER
M6X16 		1-09981-363-0 02 1 9101- ● ●
269 SCREW; METER CLUSTER
M6X35 		1-09981-364-0 02 1 9101- ● ●
