Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

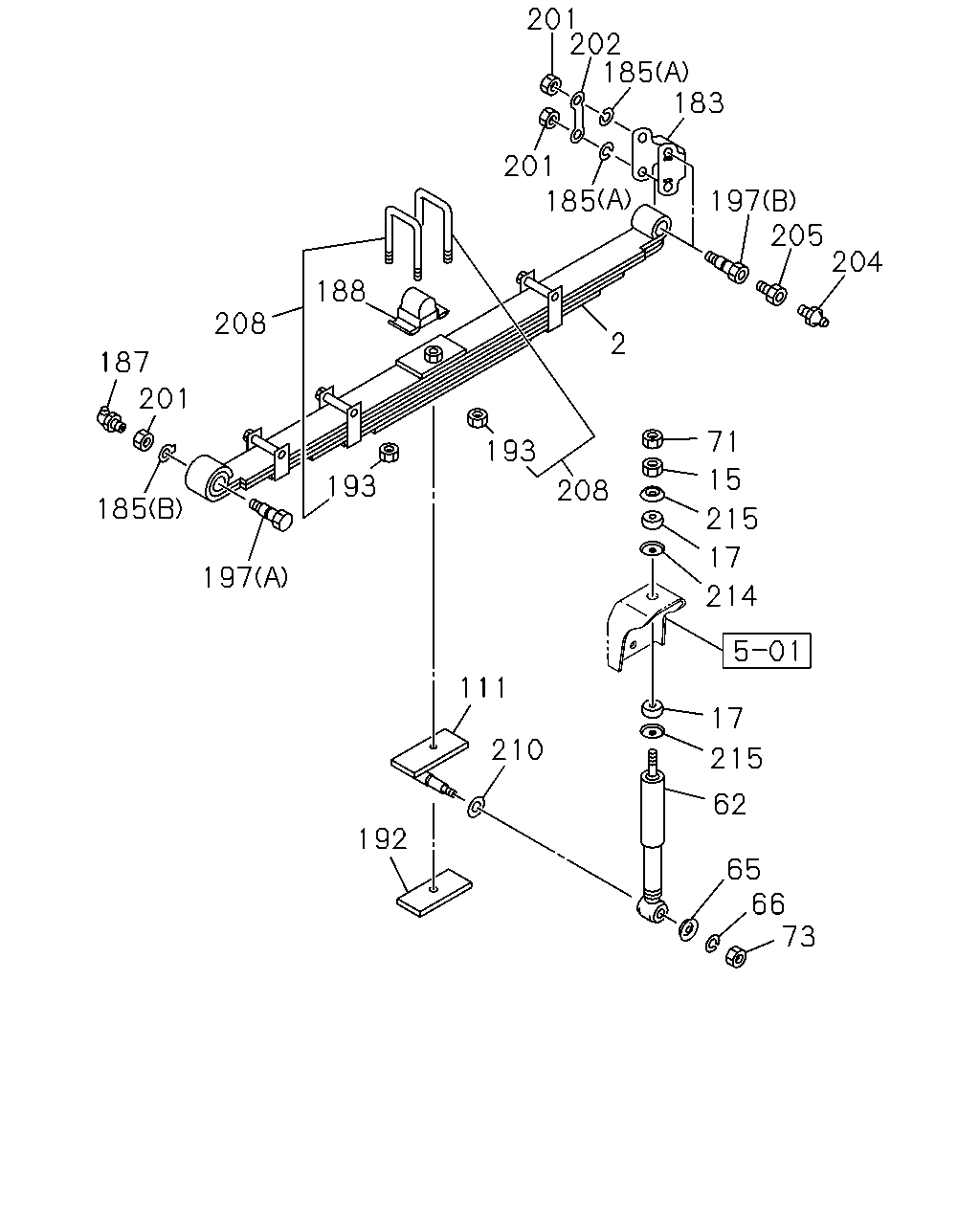

4-50 — FRONT SUSPENSION
(#27098) — 34 parça
201
202
185
183
201
197
205
204
188
208
2
187
201
71
193
15
193
208
185
215
17
197
214
111
17
210
215
62
192
65
66
73
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 8-LEAF
1-51130-110-0
02
1
0612-
15
NUT; S/ABS,UPR
M10 FLANGE
0-91180-210-0
02
1
0612-
17
BUSHING; RUBBER,S/ABS
1-51631-004-0
04
1
0612-
62
ABSORBER ASM; SHOCK,FRT
1-51630-838-0
02
1
0612-
65
WASHER; S/ABS
ID=17
9-09164-516-0
02
1
0612-
66
WASHER; LK,S/ABS SETTING
ID=12.2
0-91510-512-0
02
1
0612-
71
NUT; LK,S/ABS,UPR
M10
0-91111-510-0
02
1
0612-
73
NUT; BRKT,SHOCK
M12
0-91110-512-0
02
1
0612-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-742-0
01
1
0612-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-741-0
01
1
0612-
183
SHACKLE; FRT SUSP
1-51162-037-0
02
1
0612-
185
WASHER; LK,PIN
(A) ID=25.5
1-09503-011-0
04
1
0612-0910
185
WASHER; LK,PIN
(A) ID=25.5
8-98010-404-0
04
1
0911-
185
WASHER; LK,PIN
(B) ID=23
1-51169-003-0
02
1
0612-0910
185
WASHER; LK,PIN
(B) ID=23
8-98010-411-0
02
1
0911-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
0612-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-112-0
02
1
0612-
192
PIECE; DIST
T=4.5
1-51177-149-0
01
1
0612-
193
NUT; U BOLT
M16
8-94107-767-0
08
1
0612-0706
193
NUT; U BOLT
M16
8-97360-121-0
08
1
0707-
197
PIN; FRT SPR,FRT
(A)
1-51161-004-3
02
1
0612-0911
197
PIN; FRT SPR,FRT
(A)
8-98060-335-0
02
1
0912-
197
PIN; FRT SPR,FRT
(B)
1-51161-005-3
04
1
0612-0911
197
PIN; FRT SPR,FRT
(B)
8-98060-333-0
04
1
0912-
201
NUT; PIN LK
M22
0-91111-522-0
06
1
0612-
202
PLATE; LK,SPR PIN
1-51169-016-0
02
1
0612-0910
202
PLATE; LK,SPR PIN
8-98010-648-0
02
1
0911-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
0612-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
04
1
0612-
208
U-BOLT SET; FRT SPRING
L=165
1-87870-447-0
04
1
0612-0706
208
U-BOLT SET; FRT SPRING
L=165
1-87870-483-0
04
1
0707-
210
WASHER; S/ABS,OUTER
ID=12.5
1-09503-171-0
02
1
0612-
214
WASHER; S/ABS,UPR,INNER
1-51631-023-0
02
1
0612-
215
WASHER; S/ABS,UPR,OUTER
ID=10.5 OD=40 T=3.2
9-09651-094-0
04
1
0612-
