4-25 — REAR FINAL DRIVE (#27090) — 86 parça

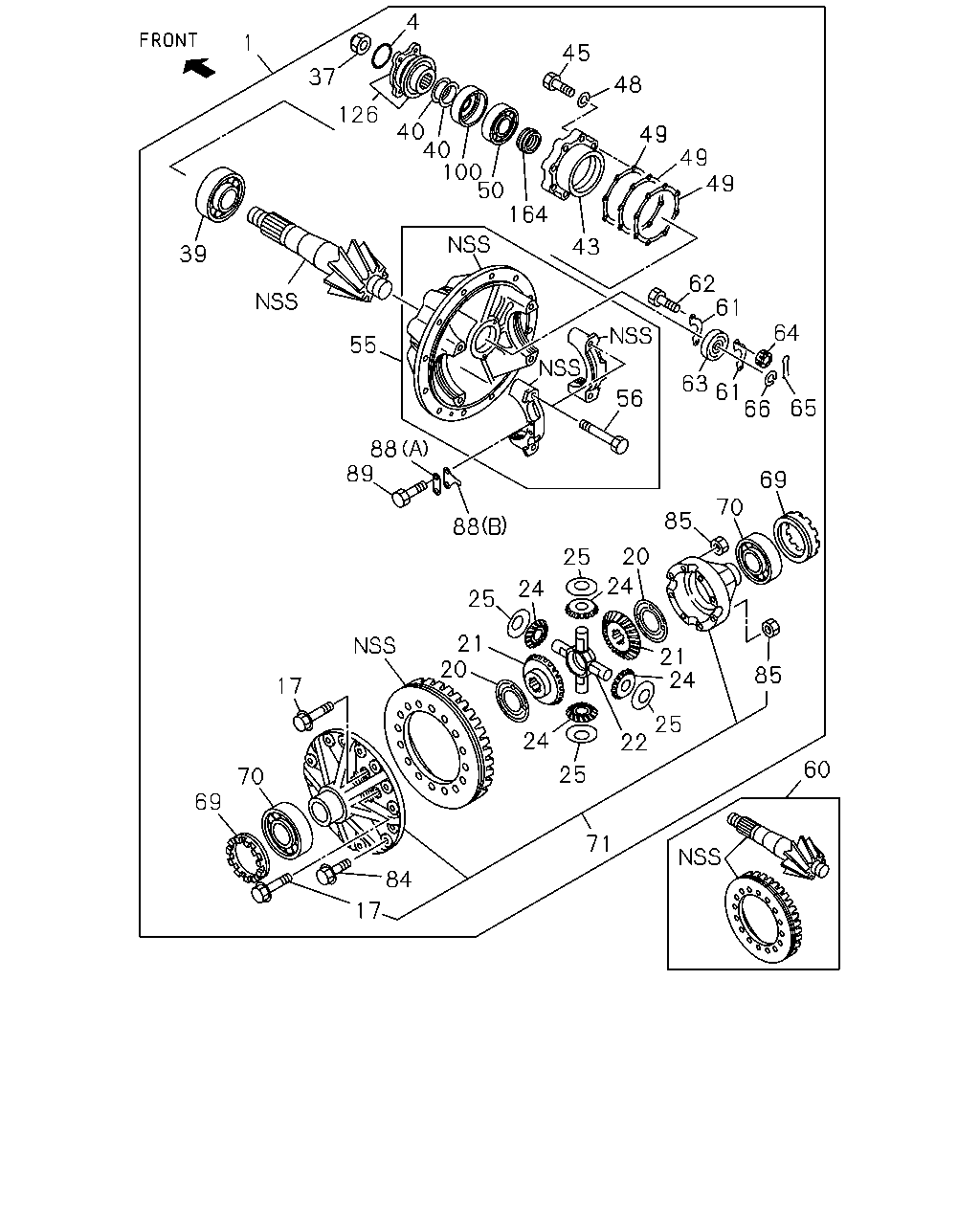

çizim 27063
4 1 45 37 48 126 40 40 100 50 164 49 49 49 43 39 62 61 64 55 63 61 66 56 65 88 89 69 70 85 88 20 25 24 24 25 21 20 21 24 85 17 25 22 24 60 25 70 69 71 84 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/8 		1-41003-188-0 01 1 0612- ●
1 DRIVE ASM; FINAL,RR
41/9 		1-41003-268-0 01 1 0612- ●
4 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 0612- ● ●
17 BOLT; DIFF CAGE SETTING
M14X121 FLANGE 		1-09044-006-0 04 1 0612- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 0612- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 0612- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-125-0 02 1 0612-0905 ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 0906- ● ●
22 SPIDER; DIFF PINION 1-41521-050-2 01 1 0612- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-042-0 04 1 0612-0905 ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-049-0 04 1 0906- ● ●
25 WASHER; THRUST,PINION
ID=29 OD=60 		1-41562-119-0 04 1 0612- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-058-2 01 1 0612-0804 ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-083-0 01 1 0805- ● ●
39 BEARING; FINAL PINION
JTEKT 		5-09812-062-1 01 1 1001- ● ●
39 BEARING; FINAL PINION
NSK 		1-09812-026-0 01 1 0612-1001 ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 1002- ● ●
40 SHIM; FINAL PINION
T=1.60 		1-41229-179-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.61 		1-41229-180-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.62 		1-41229-181-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.63 		1-41229-182-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.64 		1-41229-183-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.65 		1-41229-184-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.66 		1-41229-185-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.67 		1-41229-186-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.68 		1-41229-187-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.69 		1-41229-188-0 AR 1 0612- ● ●
40 SHIM; FINAL PINION
T=1.70 		1-41229-189-0 AR 1 0612- ● ●
43 CAGE; FINAL PINION 1-41151-027-0 01 1 0612- ● ●
45 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 0612- ● ●
48 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-512-0 06 1 0612- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 0612- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 0612- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 0612- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 0612- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0612- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0612- ● ●
55 CARRIER; DIFF 1-41110-129-0 01 1 1007- ●
55 CARRIER; DIFF 1-41110-048-1 01 1 0612-1006 ● ●
55 CARRIER; DIFF 1-41110-048-1 01 1 1007- ●
56 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 0612- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/8 		1-41210-454-0 01 1 0612- ●
60 GEAR SET; FINAL DRIVE,RR
41/9 		1-41210-673-0 01 1 0612- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0612- ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-034-0 02 1 0612-0804 ● ●
62 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 0805- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-073-2 01 1 0612- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-074-1 01 1 0612- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0612- ● ●
65 PIN; SPLIT,RET 9-08112-012-0 02 1 0612-0805 ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0806- ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-066-1 01 1 0612-1109 ● ●
66 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1110- ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 0612- ● ●
69 NUT; ADJ,DIFF CAGE
M128 H=30 		1-41121-015-0 01 1 0612- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-063-1 01 1 0612-0704 ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 0705- ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3 		1-09812-056-1 01 1 0612- ● ●
70 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 0612- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3 		1-09812-062-2 01 1 0612- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-343-0 01 1 1007- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 0612-1006 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-112-0 01 1 1007- ●
84 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 0612- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 08 1 0612- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 0612- ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		9-41124-015-0 02 1 0612- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0612- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 0612- ● ●
100 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 0612- ● ●
126 COUPLING; DRIVING PINION 1-37245-069-6 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 0612- ● ●
164 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 0612- ● ●
