Isuzu WW
▶
TRUCKS
▶
FRR
▶
11040 - FRR(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#27084) — 15 parça
◀

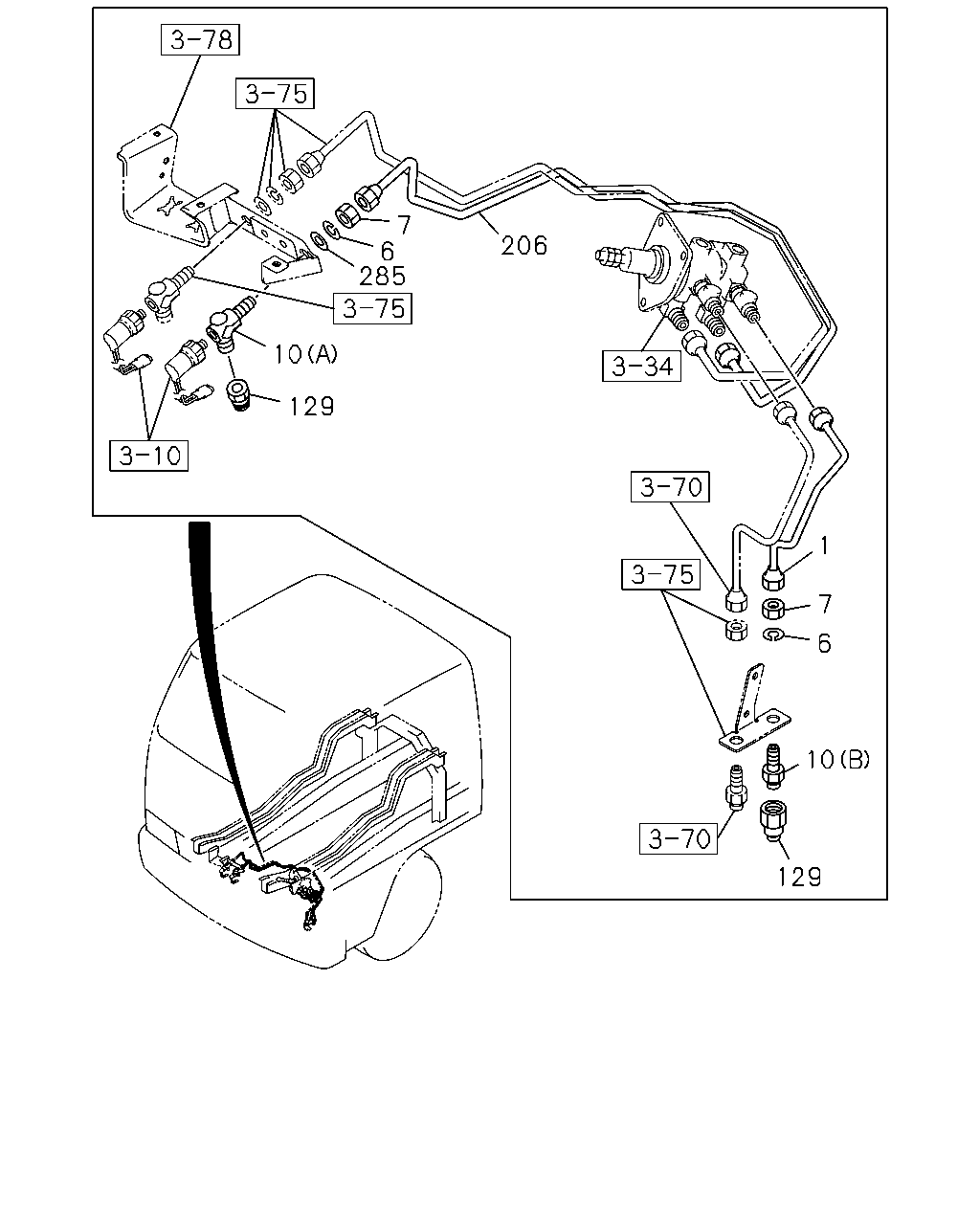

[377A] CAB SIDE (9 parça)

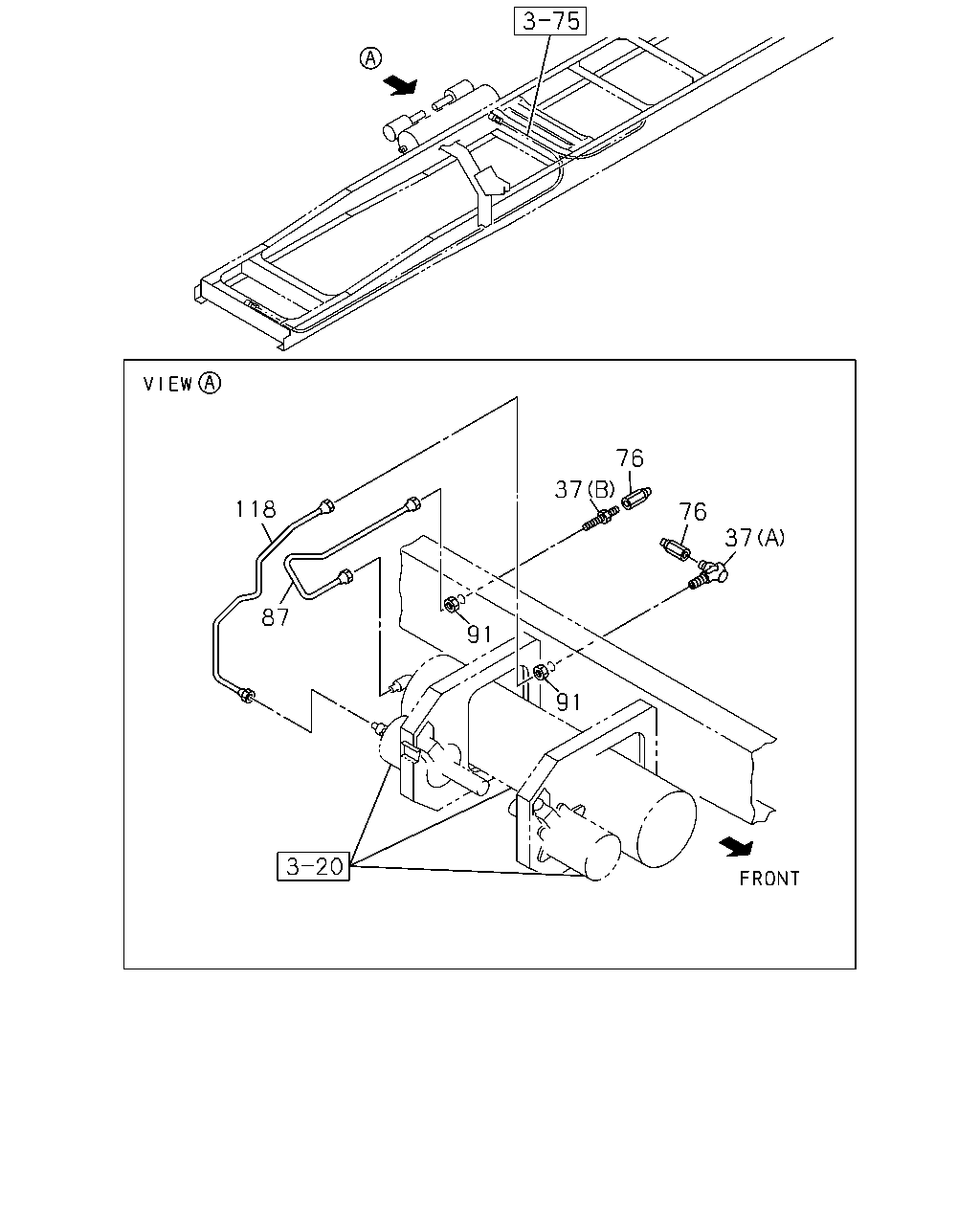

[377A] FRAME SIDE (6 parça)
▶
7
6
285
206
10
129
1
7
6
10
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
1-49116-436-1
01
1
0612-
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0612-
7
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0612-
10
CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT
1-09654-380-0
01
1
0612-
10
CONNECTOR; FLEX HOSE
(A) M16X2 & PT1/4 3WAY
1-09656-329-1
01
1
0612-
129
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0612-
129
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0612-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=1267
1-49121-665-0
01
1
0612-
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0612-
76
37
118
76
37
87
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(B) M16 L=74
0-92123-310-0
01
1
0612-
37
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
01
1
0612-
76
ADAPTER; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0612-
87
PIPE; AIR,AIR TANK TO UNION
1-49123-092-0
01
1
0612-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
0612-
118
PIPE; AIR,UNION TO AIR MASTER
1-49123-093-0
01
1
0612-
