3-55 — BRAKE PIPING; OIL,REAR (#27080) — 20 parça

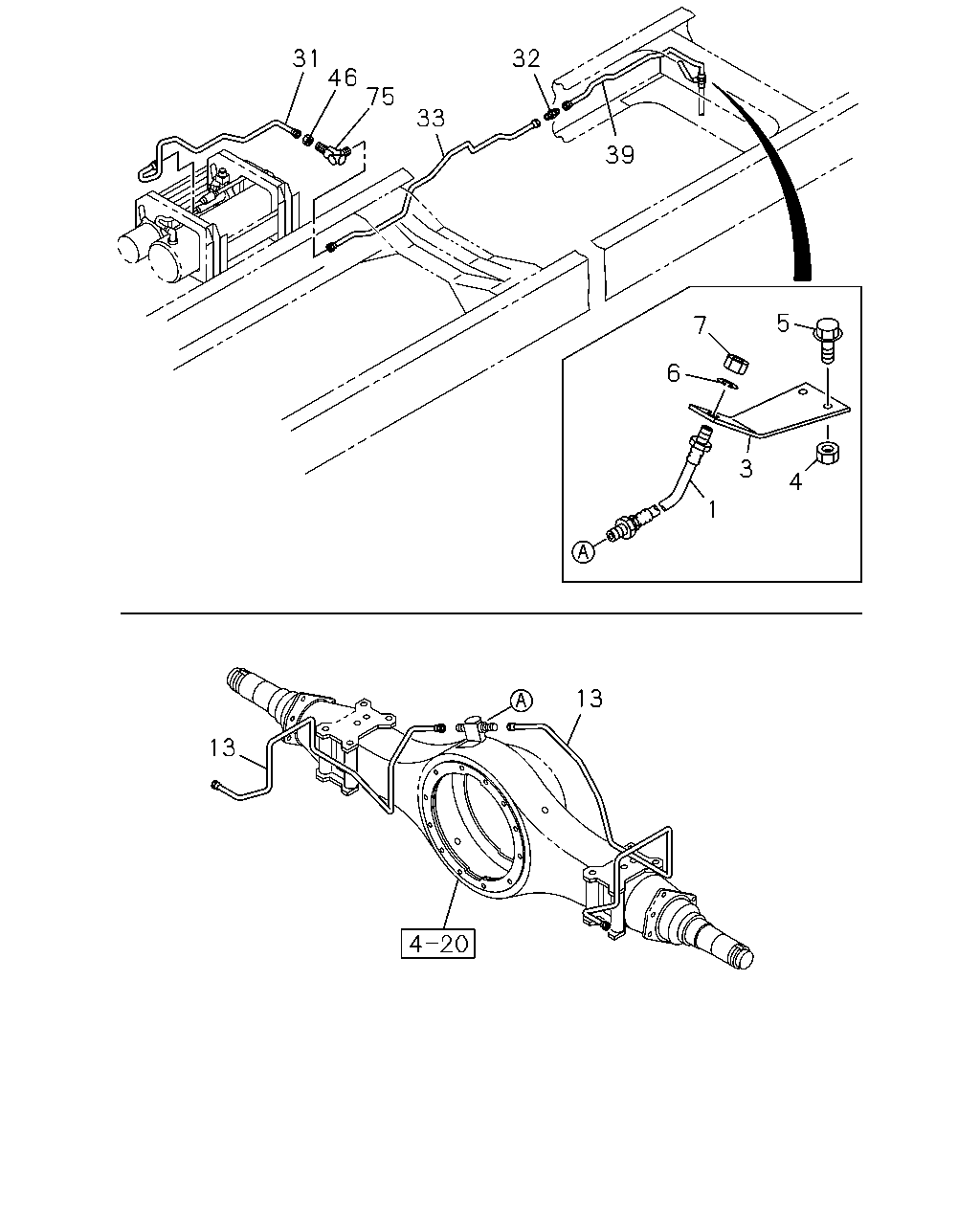

çizim 85146
31 32 46 75 33 39 5 7 6 3 4 1 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
L=610 		0-05213-610-0 01 1 0612-
3 BRACKET; FLEX HOSE,RR BRK 1-47465-251-0 01 1 0612-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 0612-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X25 FLANGE 		0-28650-825-0 02 1 0612-
6 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0612-
7 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 0612-
13 PIPE; BRK,RR AXLE
L=675 		1-47427-105-0 01 1 0612-
13 PIPE; BRK,RR AXLE
L=847 		1-47427-106-0 01 1 0612-
31 PIPE; OIL,AIR MASTER TO UNION
L=890 		1-49161-560-0 01 1 0612-
32 UNION; OIL PIPE
M12 L=40 		0-92113-006-0 01 1 0612-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5500MM(55W) L=2926 SERVICED BY L=3200 		1-47426-365-0 01 1 0612-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) L=1090 SERVICED BY L=1100 		1-47426-351-0 01 1 0612-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4200MM(42W) L=1580 SERVICED BY L=1620 		1-47426-356-0 01 1 0612-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4800MM(48W) L=2195 SERVICED BY L=2200 		1-47426-360-0 01 1 0612-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3700MM(37W) L=2046 SERVICED BY L=2200 		1-47426-360-0 01 1 0612-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) FRAME EQUIPMENT HEAVY DUTY VAR2(F01) L=1961 SERVICED BY L=2000 		1-47426-359-0 01 1 0612-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) L=1961 SERVICED BY L=2000 		1-47426-359-0 01 1 0612-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4200MM(42W) EXC. FRAME EQUIPMENT HEAVY DUTY VAR2(F01) L=2040 SERVICED BY L=2200 		1-47426-360-0 01 1 0612-
46 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0612-
75 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 0612-
