8-15 — FIXING PARTS; WIRING HARNESS (#2708) — 91 parça

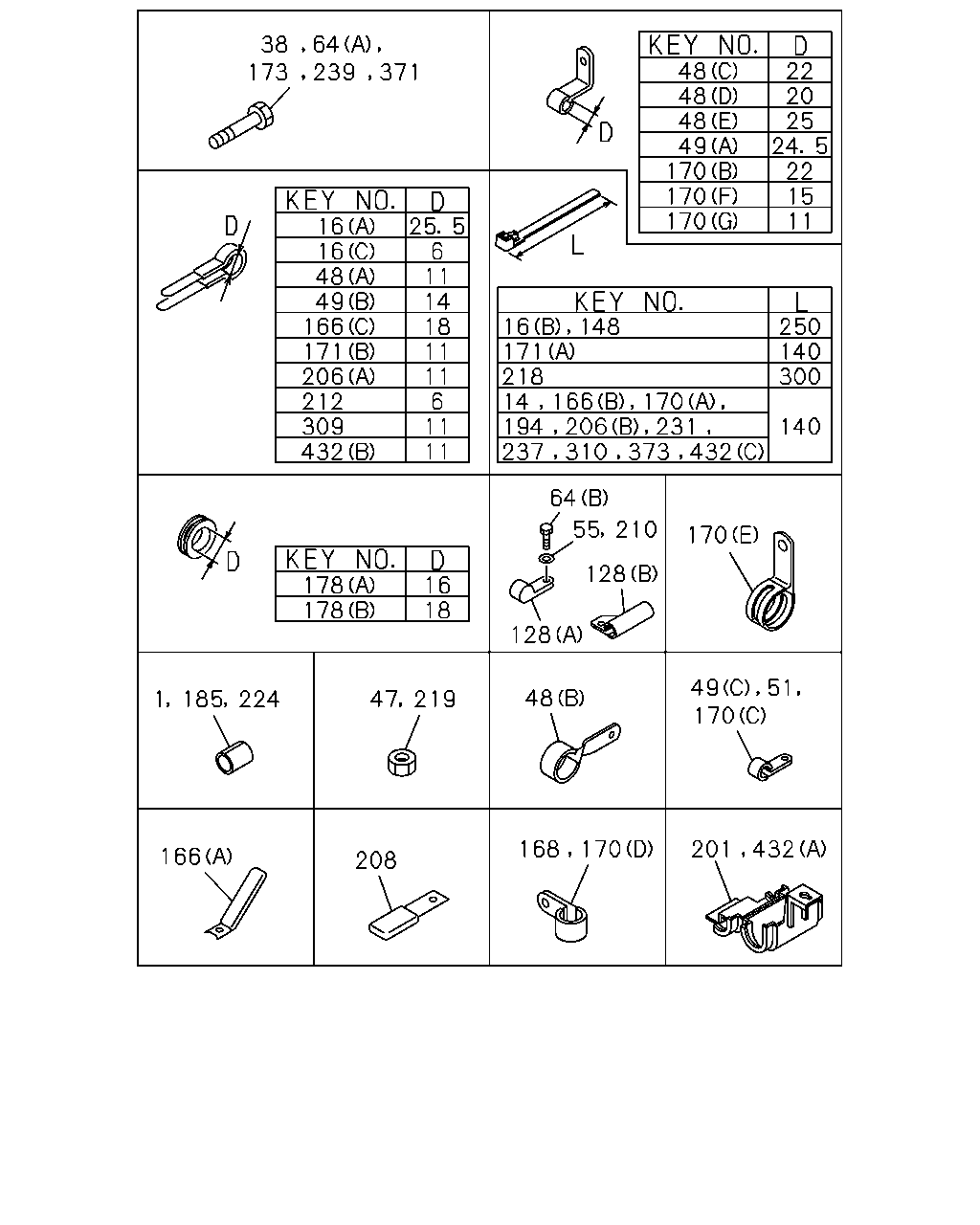

çizim 5657
38 173 64 239 371 48 48 48 49 170 170 170 16 16 48 49 166 171 206 212 309 432 16 148 171 218 14 194 237 166 170 64 55 210 170 128 178 178 128 170 48 185 224 47 219 1 168 170 201 432 166 208 231 206 310 373 432 49 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=15 OD=19 L=20 		1-09337-007-0 01 1 9101- ● ●
14 CLIP; BAND,HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-1 05 1 9101- ● ●
16 CLIP; HARNESS
(C) ID=6 L=36 		9-09917-423-0 01 1 9101- ● ●
16 CLIP; HARNESS
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) ID=6 L=36 		9-09917-423-0 01 1 9101- ● ●
16 CLIP; HARNESS
AT545 A/T ALLISON(MD1) (B) L=250 		5-09707-030-1 01 1 9101- ● ●
16 CLIP; HARNESS
(A) ID=25 L=40 		1-09700-215-1 02 1 9101- ●
38 BOLT; CLIP,HARNESS
M6X12 W/LK WASHER 		9-01900-612-0 01 1 9101-9204 ●
38 BOLT; CLIP,HARNESS
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9205- ●
38 BOLT; CLIP,HARNESS
OVERHEAD COOLING SYSTEM<YS9> M10X20 W/LK WASHER 		0-50051-020-0 02 1 9205- ●
38 BOLT; CLIP,HARNESS
M6X16 W/LK WASHER 		0-50040-616-0 09 1 9101- ● ●
38 BOLT; CLIP,HARNESS
M8X16 W/LK WASHER 		9-01900-816-0 01 1 9101-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X16 W/LK WASHER 		0-50040-816-0 01 1 9205- ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 01 1 9101-9204 ● ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9205- ● ●
38 BOLT; CLIP,HARNESS
AUTO ENG SHUTOFF(KB6) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9101- ● ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ●
38 BOLT; CLIP,HARNESS
EXC. STEERING COLUMN TILT TELESCOPING(N37) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ●
38 BOLT; CLIP,HARNESS
M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205- ●
38 BOLT; CLIP,HARNESS
EXC. STEERING COLUMN TILT TELESCOPING(N37) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205- ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		9-01900-825-0 02 1 9101-9204 ●
38 BOLT; CLIP,HARNESS
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205- ●
38 BOLT; CLIP,HARNESS
VENEZUELA ENCAVAPACKAGE(WN4) M6X16 W/LK&PL WASHER 		0-50140-616-0 02 1 9101- ●
47 NUT; GEN TERMINAL
M8 		9-09110-408-0 01 1 9101-9204 ● ●
47 NUT; GEN TERMINAL
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8 		9-09110-408-0 01 1 9205- ● ●
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 10 1 9101- ● ●
48 CLIP; FRAME HARNESS
(B) ID=28 L=60 		1-09700-585-1 01 1 9101- ● ●
48 CLIP; FRAME HARNESS
(E) ID=25 L=55 		9-09917-573-0 05 1 9101- ● ●
48 CLIP; FRAME HARNESS
EXC. VENEZUELA ENCAVAPACKAGE(WN4) (C) ID=22 L=52 		9-09917-431-0 25 1 9101- ● ●
48 CLIP; FRAME HARNESS
VENEZUELA ENCAVAPACKAGE(WN4) (D) ID=20 L=50 		9-09917-430-0 24 1 9101- ●
49 CLIP; GEN HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9205- ●
49 CLIP; GEN HARNESS
GENERATOR NIKKO 24V-90A 2.5KW(SD2) (B) ID=20 L=50 		9-09917-430-0 02 1 9205- ●
49 CLIP; GEN HARNESS
(C) ID=19 L=20 		9-09525-835-0 01 1 9101-9204 ● ●
49 CLIP; GEN HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (C) ID=19 L=20 		9-09525-835-0 01 1 9205- ● ●
51 CLIP; COOLER CMPR
OVERHEAD COOLING SYSTEM<YS9> L=36 		8-94224-891-1 02 1 9205- ●
55 WASHER; PL,CLIP
ID=6.4 		9-09160-506-0 01 1 9101- ●
64 SCREW; CLIP
(A) M8X12 W/LK WASHER 		9-01900-812-0 01 1 9101-9204 ● ●
64 SCREW; CLIP
(A) M8X12 W/LK WASHER 		0-50040-812-0 01 1 9205- ● ●
64 SCREW; CLIP
(B) M6X12 W/LK WASHER 		9-03910-612-0 01 1 9101- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=19 L=20 		9-09525-832-0 01 1 9101- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
STEERING COLUMN TILT TELESCOPING(N37) (B) 		1-09709-148-0 01 1 9101- ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
EXC. STEERING COLUMN TILT TELESCOPING(N37) (A) ID=19 L=20 		9-09525-832-0 02 1 9101- ●
148 CLIP; BAND,HEADLAMP HARNESS
L=250 		5-09707-030-1 04 1 9101- ● ●
166 CLIP; HARNESS CLU SW
(A) 		8-94206-719-0 01 1 9101- ● ●
166 CLIP; HARNESS CLU SW
(B) L=140 		5-09707-031-1 02 1 9101- ●
166 CLIP; HARNESS CLU SW
(C) ID=18 L=48 		9-09917-429-0 01 1 9101- ●
168 CLIP; DASH HARNESS
ID=11 L=20 		9-09525-032-0 01 1 9101- ● ●
170 CLIP; ELEC HARNESS
(E) ID=25 		1-09700-724-1 02 1 9101- ●
170 CLIP; ELEC HARNESS
(A) L=140 		5-09707-031-1 02 1 9101- ●
170 CLIP; ELEC HARNESS
(D) ID=25 L=40 		1-09700-215-1 02 1 9101- ● ●
170 CLIP; ELEC HARNESS
(B) D=22 		1-09700-429-0 02 1 9101- ● ●
170 CLIP; ELEC HARNESS
(F) L=24 		1-09700-498-0 02 1 9101- ● ●
170 CLIP; ELEC HARNESS
(G) D=11 H=40 L=20 		8-94246-610-0 01 1 9101- ● ●
170 CLIP; ELEC HARNESS
(C) ID=19 L=20 		9-09525-832-0 02 1 9101- ●
171 CLIP; STARTER HARNESS
(A) L=140 		5-09707-031-1 02 1 9101- ● ●
171 CLIP; STARTER HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
171 CLIP; STARTER HARNESS
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) L=140 		5-09707-031-1 01 1 9101- ● ●
173 BOLT; STARTER EARTH
M10X20 W/LK WASHER 		9-01901-020-0 01 1 9101-9204 ● ●
173 BOLT; STARTER EARTH
M10X20 W/LK WASHER 		0-50041-020-0 01 1 9205- ● ●
178 GROMMET; HARNESS
(A) OD=20 		9-09576-716-0 02 1 9101- ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) OD=20 		9-09576-716-0 01 1 9101- ● ●
178 GROMMET; HARNESS
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) ID=18 OD=23 T=12 		1-09332-035-0 01 1 9101- ● ●
185 SLEEVE; RUBBER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ID=15 OD=19 L=20 		1-09337-007-0 01 1 9101- ● ●
194 CLIP; BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=140 		5-09707-031-1 02 1 9101- ● ●
201 CLIP; RR COMB CONN
VENEZUELA ENCAVAPACKAGE(WN4) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9101- ●
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9101- ● ●
206 CLIP; FUEL TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140 		5-09707-031-1 01 1 9101- ● ●
208 CLIP; HARNESS,MAG VLV
L=60 		1-09700-304-0 01 1 9101- ● ●
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 9301- ● ●
212 CLIP; HORN HARNESS
ID=6 L=36 		9-09917-423-0 02 1 9101- ●
218 CLIP; BAND,RR COMB
L=250 		5-09707-030-1 03 1 9101- ● ●
219 NUT
M6 		9-09110-406-0 03 1 9101- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9101- ● ●
219 NUT
M8 		9-09110-408-0 02 1 9101- ●
219 NUT
AUTO ENG SHUTOFF(KB6) M6 		9-09110-406-0 01 1 9101- ● ●
219 NUT
M6 		9-09110-406-0 01 1 9101- ●
219 NUT
EXC. STEERING COLUMN TILT TELESCOPING(N37) M6 		9-09110-406-0 01 1 9101- ●
219 NUT
VENEZUELA ENCAVAPACKAGE(WN4) M6 		9-09110-406-0 02 1 9101- ●
224 SLEEVE; RUBBER,HARNESS
ID=15 OD=19 L=20 		1-09337-007-0 02 1 9101- ● ●
231 CLIP; BAND,OIL PRESS
L=140 		5-09707-031-1 01 1 9101- ● ●
237 CLIP; BAND,ACL
L=140 		5-09707-031-1 01 1 9101- ● ●
239 BOLT; GRAND
M8X14 W/LK WASHER 		9-01900-814-0 01 1 9101-9204 ● ●
239 BOLT; GRAND
M8X14 W/LK WASHER 		0-50040-814-0 01 1 9205-9212 ● ●
239 BOLT; GRAND
M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9301- ● ●
309 CLIP; HARNESS,HAND BRAKE CABLE
ID=11 L=41 		1-09700-403-0 01 1 9101- ●
310 CLIP; A/T SELECTOR
AT545 A/T ALLISON(MD1) L=140 		5-09707-031-1 02 1 9101- ● ●
371 BOLT; GEN HARNESS
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ●
371 BOLT; GEN HARNESS
EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ●
373 CLIP; BAND,GEN HARNESS
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=140 		5-09707-031-1 01 1 9101- ● ●
432 CLIP; MOTOROID CONNECTOR
AUTO ENG SHUTOFF(KB6) (C) L=140 		5-09707-031-1 01 1 9101- ●
432 CLIP; MOTOROID CONNECTOR
AUTO ENG SHUTOFF(KB6) (A) WO/SPONGE RUBBER 		1-09709-103-1 01 1 9101- ● ●
432 CLIP; MOTOROID CONNECTOR
AUTO ENG SHUTOFF(KB6) (B) ID=11 L=41 		1-09700-403-0 03 1 9101- ●
