2-30 — GEAR SHIFTER AND QUADRANT BOX (#27063) — 101 parça

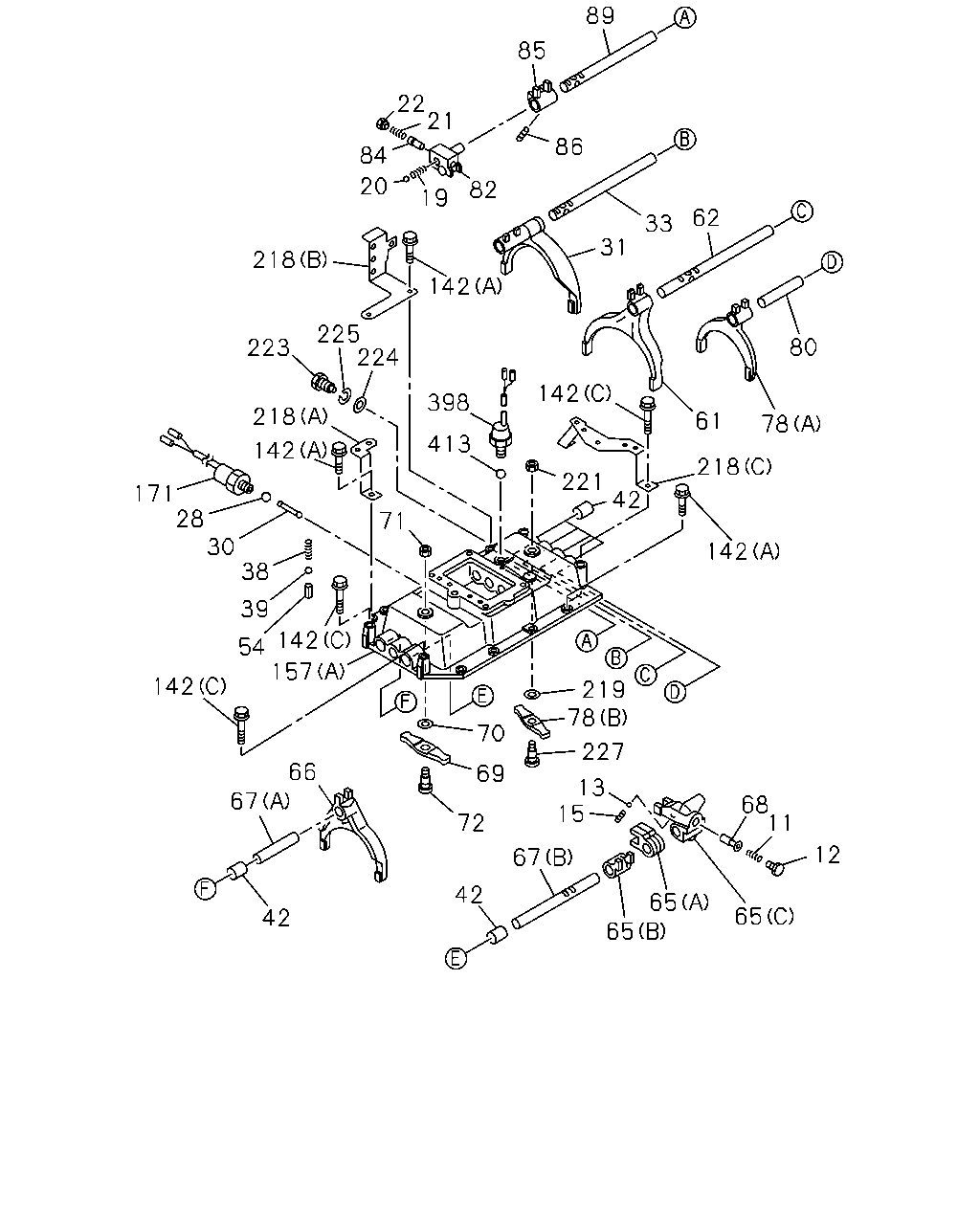

89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 80 223 142 398 218 61 78 413 142 218 221 42 171 28 30 38 71 142 39 142 54 157 142 219 78 70 227 66 69 13 15 67 68 11 72 12 67 42 65 65 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0612-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0612-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0612-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0612-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0612-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0612-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0612-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0612-
28	BALL; INTER LK	9-00097-501-0	04	1	0612-
30	PIN; INTER LK	9-33534-003-0	03	1	0612-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0612-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0612-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT	1-09580-379-0	04	1	0612-
39	BALL; DETENT	1-09843-012-0	04	1	0612-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0612-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0612-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0612-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0612-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0612-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0612-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0612-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0612-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0612-1202
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0612-1202
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0612-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0612-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0612-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0612-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0612-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0612-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0612-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0612-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0612-
84	SLEEVE; REV	1-33516-025-0	01	1	0612-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0612-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0612-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0612-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	04	1	0612-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0612-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0612-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0612-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0612-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0612-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0612-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0612-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0612-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0612-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0612-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0612-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0612-

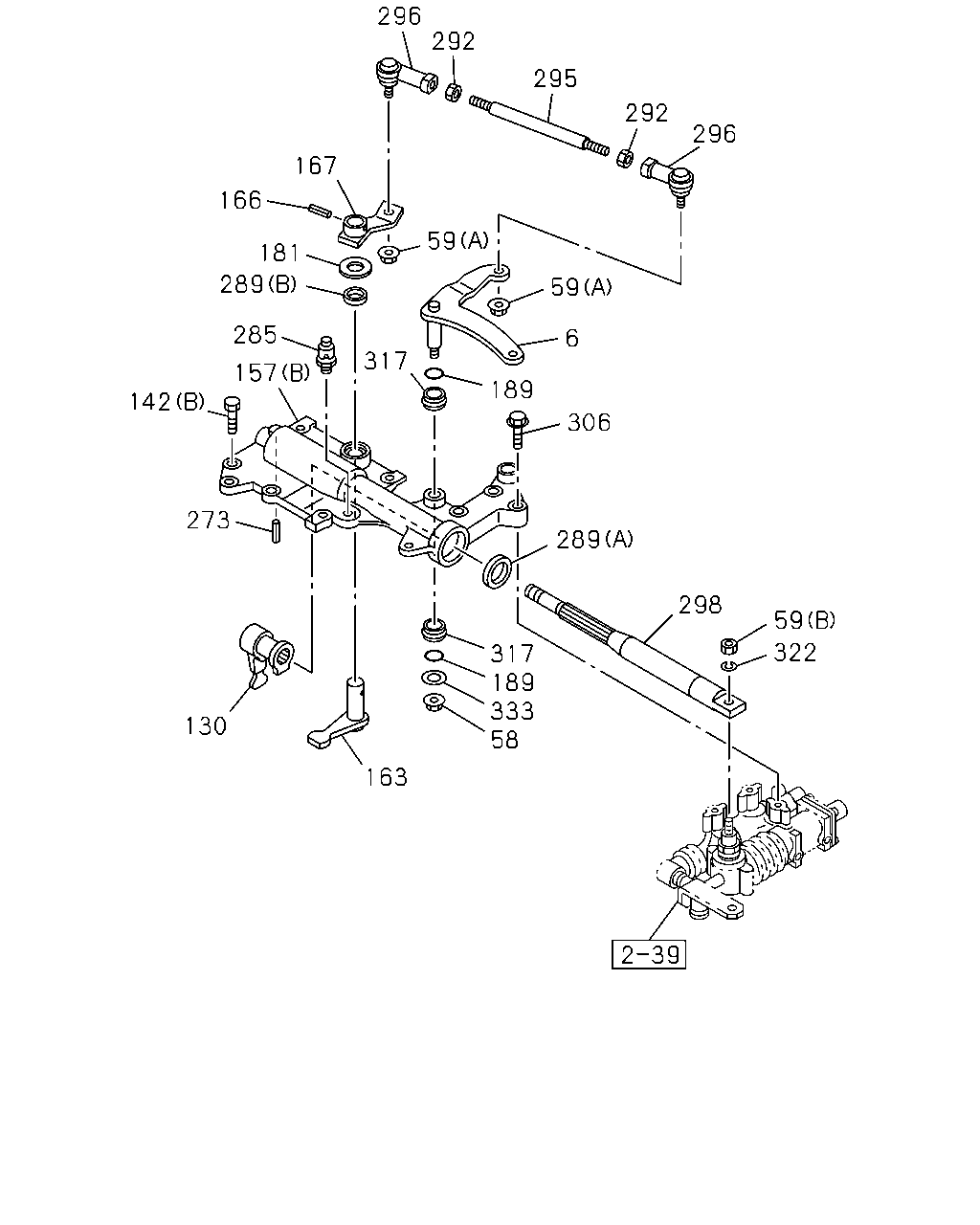

296 292 295 292 296 167 166 59 181 289 59 285 6 317 157 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY	1-33651-686-2	01	1	0612-
58	NUT M10 FLANGE	0-91180-110-0	01	1	0612-
59	NUT (B) M12	0-91110-512-0	01	1	0612-
59	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0612-
130	LEVER; SHIFT,INTERNAL	1-33521-165-0	01	1	0612-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	04	1	0612-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0612-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0612-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
157	BOX; QUAD,TRANS (B)	1-33541-479-0	01	1	0612-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0612-
163	LEVER; SELECT,INTERNAL	1-33522-153-0	01	1	0612-
166	PIN; SPR,SELECT LEVER L=25 OD=5	1-09748-032-0	01	1	0612-
167	LEVER; SELECT,EXTERNAL	1-33521-159-0	01	1	0612-
181	WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0612-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	0612-
273	PIN; SPR,STOPPER L=30 OD=4	1-09748-031-0	01	1	0612-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0612-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-600-0	01	1	0612-
292	NUT; LINK ROD M8	0-91111-508-0	02	1	0612-0705
295	ROD; LINK,RELAY LEVER	9-08400-808-0	01	1	0612-0705
295	ROD; LINK,RELAY LEVER	8-98023-095-0	01	1	0706-
296	ROD END L=45.5	1-09760-118-1	02	1	0612-0705
298	SHAFT; SHIFT LEVER	1-33522-163-0	01	1	0612-
306	BOLT; SHIFT ASSISTOR M10X50 FLANGE	0-28051-050-0	03	1	0612-
317	BUSHING; LEVER	1-09330-119-0	02	1	0612-
322	WASHER; LK ID=12.2	0-91510-512-0	01	1	0612-0705
322	WASHER; LK	8-98031-750-0	01	1	0706-
333	WASHER; PL,LEVER ID=10.5 OD=26	9-09160-710-0	01	1	0612-0705
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	0706-

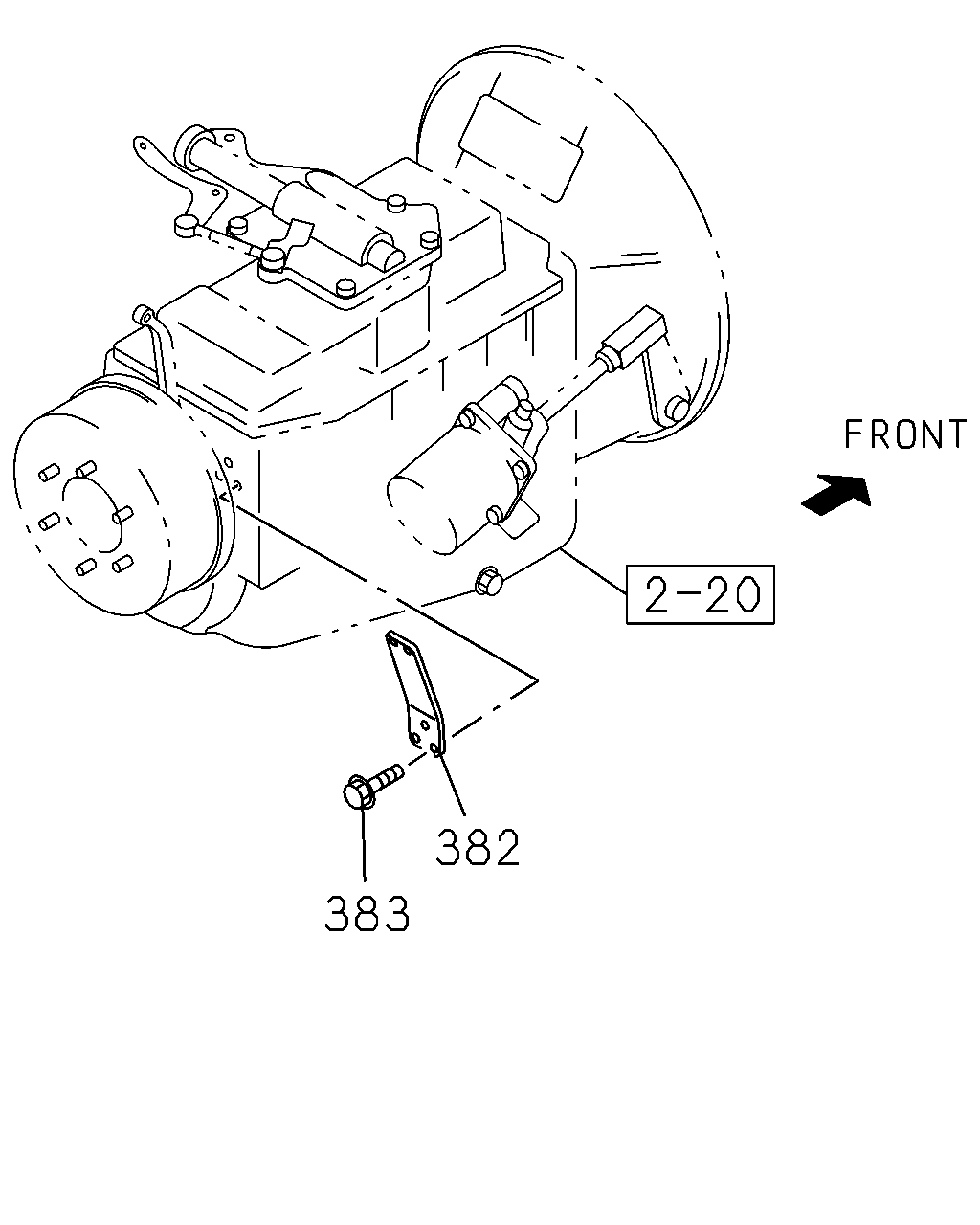

382 383

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	382	BRACKET; PARKING BRK CONT CABLE	1-46147-223-0	01	1	0612-
	383	BOLT; BRKT,PARK BRAKE M10X22 FLANGE	0-28181-022-0	03	1	0612-
