8-03 — LAMP; REAR AND REAR SIDE (#2706) — 69 parça

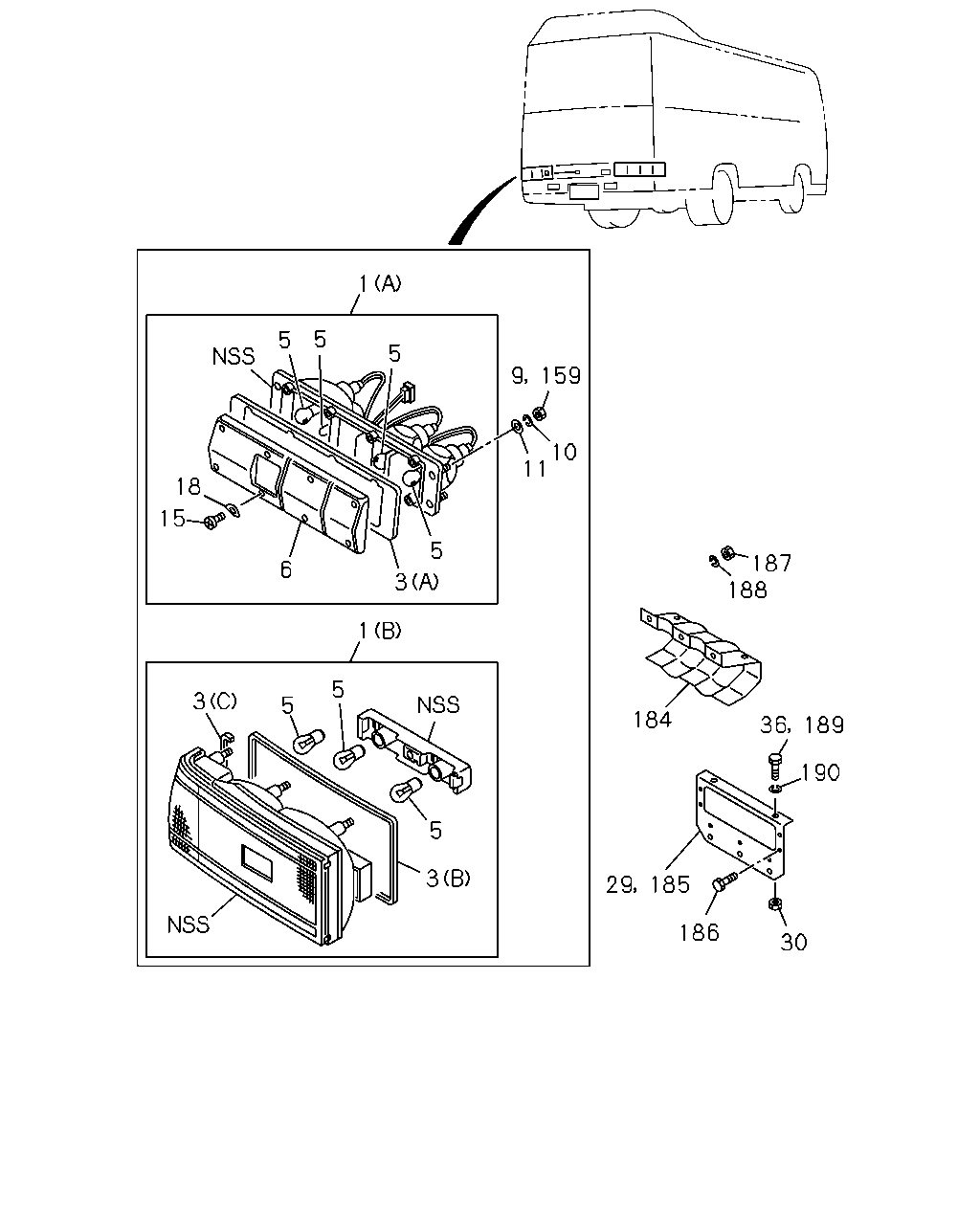

çizim 35248
1 5 5 5 9 159 10 11 18 15 5 187 188 6 3 1 5 3 5 184 36 189 190 5 3 29 185 186 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
(B) 		5-82230-021-3 01 1 9101- ●
1 LAMP ASM; RR COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4) (B) 		5-82230-021-3 01 1 9101- ●
1 LAMP ASM; RR COMB
(B) 		5-82230-020-3 01 1 9101- ●
1 LAMP ASM; RR COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4) (B) 		5-82230-020-3 01 1 9101- ●
1 LAMP ASM; RR COMB
BUS BODY MAKER KITAMURA<Y08> (B) 		1-82230-141-1 01 1 9101- ● ●
1 LAMP ASM; RR COMB
BUS BODY MAKER KITAMURA<Y08> (B) 		1-82230-140-1 01 1 9101- ● ●
1 LAMP ASM; RR COMB
VENEZUELA ENCAVAPACKAGE(WN4) (A) 		1-82230-114-0 01 1 9101- ●
1 LAMP ASM; RR COMB
VENEZUELA ENCAVAPACKAGE(WN4) (A) 		1-82230-113-0 01 1 9101- ●
3 GASKET; RR COMB LAMP
(A) 		5-82236-002-0 01 1 9101- ● ●
3 GASKET; RR COMB LAMP
(A) 		5-82236-001-0 01 1 9101- ● ●
3 GASKET; RR COMB LAMP
BUS BODY MAKER KITAMURA<Y08> (B) 		8-94117-006-0 01 1 9101- ● ●
3 GASKET; RR COMB LAMP
BUS BODY MAKER KITAMURA<Y08> (C) 		8-94137-695-0 01 1 9101- ● ●
3 GASKET; RR COMB LAMP
BUS BODY MAKER KITAMURA<Y08> (B) 		8-94117-005-0 01 1 9101- ● ●
3 GASKET; RR COMB LAMP
BUS BODY MAKER KITAMURA<Y08> (C) 		8-94137-694-0 01 1 9101- ● ●
5 BULB; RR COMB LAMP
24V 25/10W 		9-82691-335-0 02 1 9101- ●
5 BULB; RR COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 25/10W 		9-82691-335-0 02 1 9101- ●
5 BULB; RR COMB LAMP
24V 25W 		9-82691-347-0 04 1 9101- ●
5 BULB; RR COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 25W 		9-82691-347-0 04 1 9101- ●
5 BULB; RR COMB LAMP
24V 3W 		9-82691-603-0 02 1 9101- ●
5 BULB; RR COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 3W 		9-82691-603-0 02 1 9101- ●
5 BULB; RR COMB LAMP
BUS BODY MAKER KITAMURA<Y08> 24V 25/10W 		1-82194-028-0 04 1 9101- ● ●
5 BULB; RR COMB LAMP
BUS BODY MAKER KITAMURA<Y08> 24V 25W 		1-82194-029-0 02 1 9101- ● ●
5 BULB; RR COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 23W 		9-82692-131-0 04 1 9101- ●
5 BULB; RR COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 23/8W 		9-82692-132-0 02 1 9101- ●
6 LENS; RR COMB LAMP 5-82235-002-0 01 1 9101- ● ●
6 LENS; RR COMB LAMP 5-82235-001-0 01 1 9101- ● ●
9 NUT; LAMP,RR COMB 9-99110-405-0 08 1 9101- ● ●
10 WASHER; LK,RR COMB LAMP 9-09150-505-0 08 1 9101- ● ●
11 WASHER; PL,LAMP,RR COMB 9-09160-505-0 08 1 9101- ● ●
15 SCREW; RR COMB LAMP 5-82239-005-0 16 1 9101- ●
15 SCREW; RR COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		5-82239-005-0 16 1 9101- ●
15 SCREW; RR COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82239-023-0 16 1 9101- ●
18 WASHER; RR COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82239-035-0 16 1 9101- ●
29 BRACKET; LAMP,RR COMB
BUS BODY MAKER KITAMURA<Y08> 		1-82237-023-1 02 1 9101- ● ●
29 BRACKET; LAMP,RR COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82237-023-1 02 1 9101- ● ●
29 BRACKET; LAMP,RR COMB
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82237-047-0 02 1 9101- ●
30 NUT; BRKT,RR COMB
M10 		9-09110-410-0 04 1 9101-9307 ● ●
30 NUT; BRKT,RR COMB
M10 		9-09110-510-0 04 1 9308- ● ●
36 BOLT; BRKT,RR COMB
M10X22 		9-01901-022-0 04 1 9101-9204 ● ●
36 BOLT; BRKT,RR COMB
M10X22 W/LK WASHER 		0-50041-022-0 04 1 9205- ● ●
159 BOLT; HSG,RR COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82239-024-0 08 1 9101- ●
184 COVER; LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82237-045-0 02 1 9101- ●
185 BRACKET; LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82237-042-0 02 1 9101- ●
186 BOLT; BRKT
VENEZUELA ENCAVAPACKAGE(WN4) 		9-02040-820-0 02 1 9101- ●
187 NUT; BRKT
VENEZUELA ENCAVAPACKAGE(WN4) 		9-09110-408-0 02 1 9101- ●
188 WASHER; BRKT
VENEZUELA ENCAVAPACKAGE(WN4) ID=8.2 		9-09150-508-0 02 1 9101- ●
188 WASHER; BRKT
VENEZUELA ENCAVAPACKAGE(WN4) ID=8.4 		9-09160-508-0 02 1 9101- ●
189 BOLT; FIX
VENEZUELA ENCAVAPACKAGE(WN4) 		9-93490-412-0 04 1 9101- ●
190 WASHER; BRKT
VENEZUELA ENCAVAPACKAGE(WN4) 		9-09150-504-0 04 1 9101- ●
çizim 37124
60 63 61 62 64 55 56 49 53 51 50 58 57 54
BalonParca AdiParca NoAdetTipApplied Date A B
49 LAMP; LICENSE PLATE
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82120-016-2 02 1 9101- ● ●
49 LAMP; LICENSE PLATE
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82120-010-1 02 1 9101- ●
50 LENS; LICENSE PLATE LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82235-013-0 02 1 9101- ● ●
50 LENS; LICENSE PLATE LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82235-005-0 02 1 9101- ●
51 BULB; LICENSE PLATE LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 12W 		1-82194-004-0 02 1 9101- ● ●
51 BULB; LICENSE PLATE LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 8W 		9-82692-129-0 01 1 9101- ●
53 GASKET; LICENSE LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82126-009-0 02 1 9101- ● ●
53 GASKET; LICENSE LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82236-005-0 01 1 9101- ●
54 SCREW; LICENSE PLATE LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82129-004-0 02 1 9101- ● ●
54 SCREW; LICENSE PLATE LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82129-010-0 02 1 9101- ●
55 NUT; LICENSE PLATE LAMP 9-99110-405-0 04 1 9101- ● ●
56 WASHER; LK,LICENSE PLATE LAMP 9-09150-505-0 04 1 9101- ● ●
57 WASHER; PL,LICENSE PLATE LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82129-006-0 04 1 9101- ● ●
58 COVER; LICENSE PLATE LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82126-007-0 02 1 9101- ● ●
58 COVER; LICENSE PLATE LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82129-009-0 01 1 9101- ●
60 LAMP; BACKUP
BUS BODY MAKER KITAMURA<Y08> 		1-82130-011-3 01 1 9101- ● ●
61 LENS; BACKUP LAMP
BUS BODY MAKER KITAMURA<Y08> 		1-82135-002-0 01 1 9101- ● ●
62 BULB; BACKUP LAMP
BUS BODY MAKER KITAMURA<Y08> 24V 25W 		9-82691-347-0 01 1 9101- ● ●
63 GASKET; BACKUP LAMP
BUS BODY MAKER KITAMURA<Y08> 		1-82216-013-0 01 1 9101- ● ●
64 SCREW; BACKUP LAMP
BUS BODY MAKER KITAMURA<Y08> 		1-82139-003-0 02 1 9101- ● ●
