0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#27052) — 118 parça

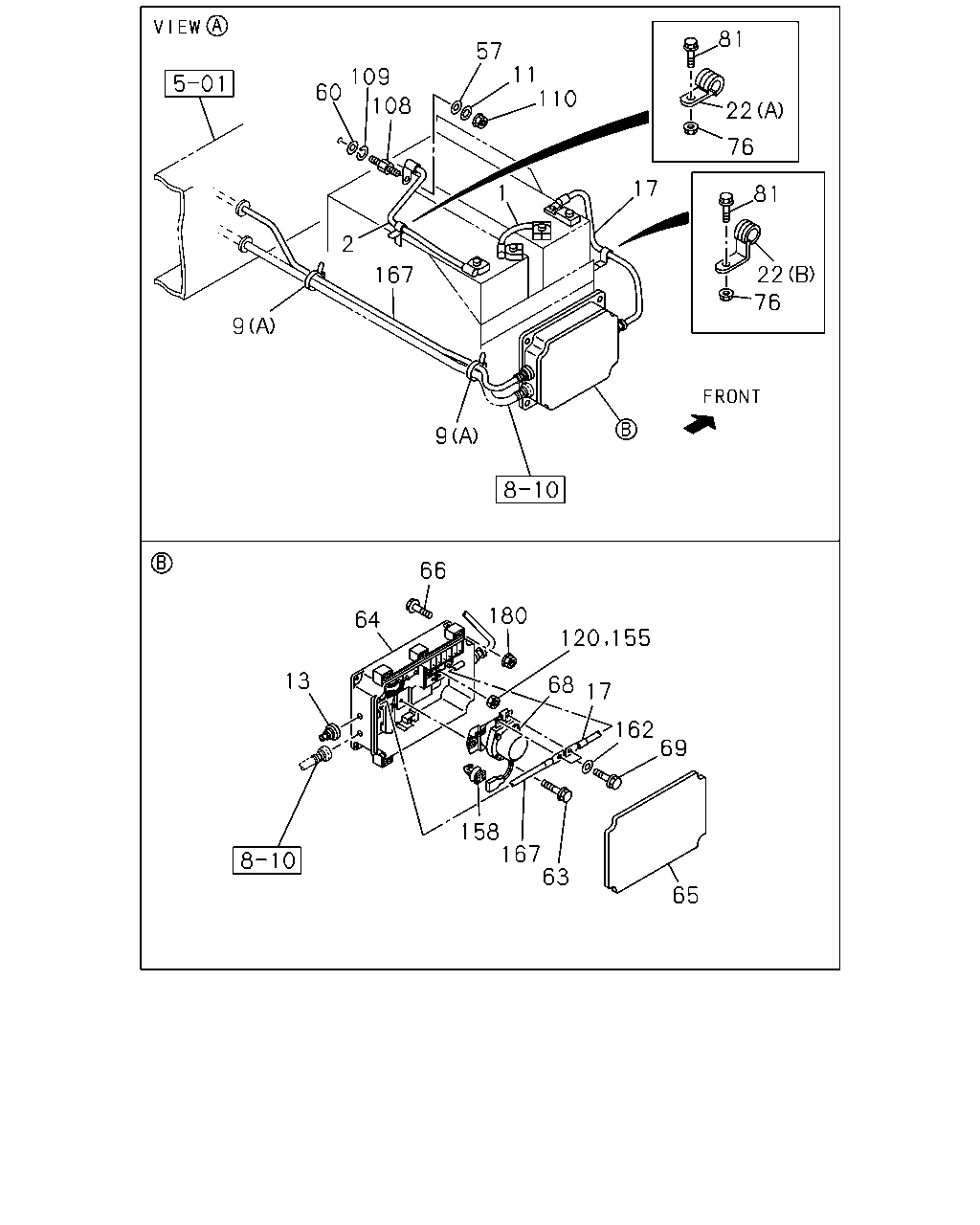

81 57 11 110 109 60 108 22 76 17 1 81 2 22 76 167 9 9 66 180 64 13 68 17 162 69 158 167 63 65 120 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CABLE; BATTERY BATTERY 115F51 N120<SJ3> L=265	1-82650-388-1	01	1	0610-	●	●
1	CABLE; BATTERY BATTERY 145G51 N150<SJ8> L=450	1-82650-389-1	01	1	0610-	●	●
2	CABLE; BATTERY L=720	1-82650-384-1	01	1	0610-	●
2	CABLE; BATTERY L=680	1-82650-385-1	01	1	0610-		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	0610-	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	0610-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	02	1	0610-	●	●
9	CLIP; BATTERY CABLE (G) ID=21 L=24	8-94176-807-1	02	1	0610-	●	●
9	CLIP; BATTERY CABLE (E) ID=19 L=28	0-95235-856-0	01	1	0610-		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0610-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0610-		●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0610-	●	●
13	GROMMET; BATTERY CABLE ID=26	1-09333-140-0	01	1	0610-	●	●
17	CABLE; BATTERY (+) TO RELAY L=640	1-82652-760-3	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0610-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0610-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0610-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0610-	●	●
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0610-	●
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0610-		●
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	0610-		●
65	COVER; BATTERY RELAY	1-82510-654-1	01	1	0610-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0610-	●	●
68	RELAY; BATTERY	1-82550-313-0	01	1	0610-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0610-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0610-	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	0610-		●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	06	1	0610-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	0610-		●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0610-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0610-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0610-	●	●
120	NUT; RELAY BATTERY M8 FLANGE	0-91180-108-0	01	1	0612-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0610-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0610-	●	●
167	CABLE; BATTERY RELAY TO STARTER MIXER TRUCK<RA2> L=5520	8-97616-788-1	01	1	0610-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. MIXER TRUCK<RA2> L=5500	8-97616-651-1	01	1	0610-	●
167	CABLE; BATTERY RELAY TO STARTER L=4740	1-82652-903-9	01	1	0610-0610		●
167	CABLE; BATTERY RELAY TO STARTER L=4740	8-97618-796-0	01	1	0611-		●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0610-	●	●

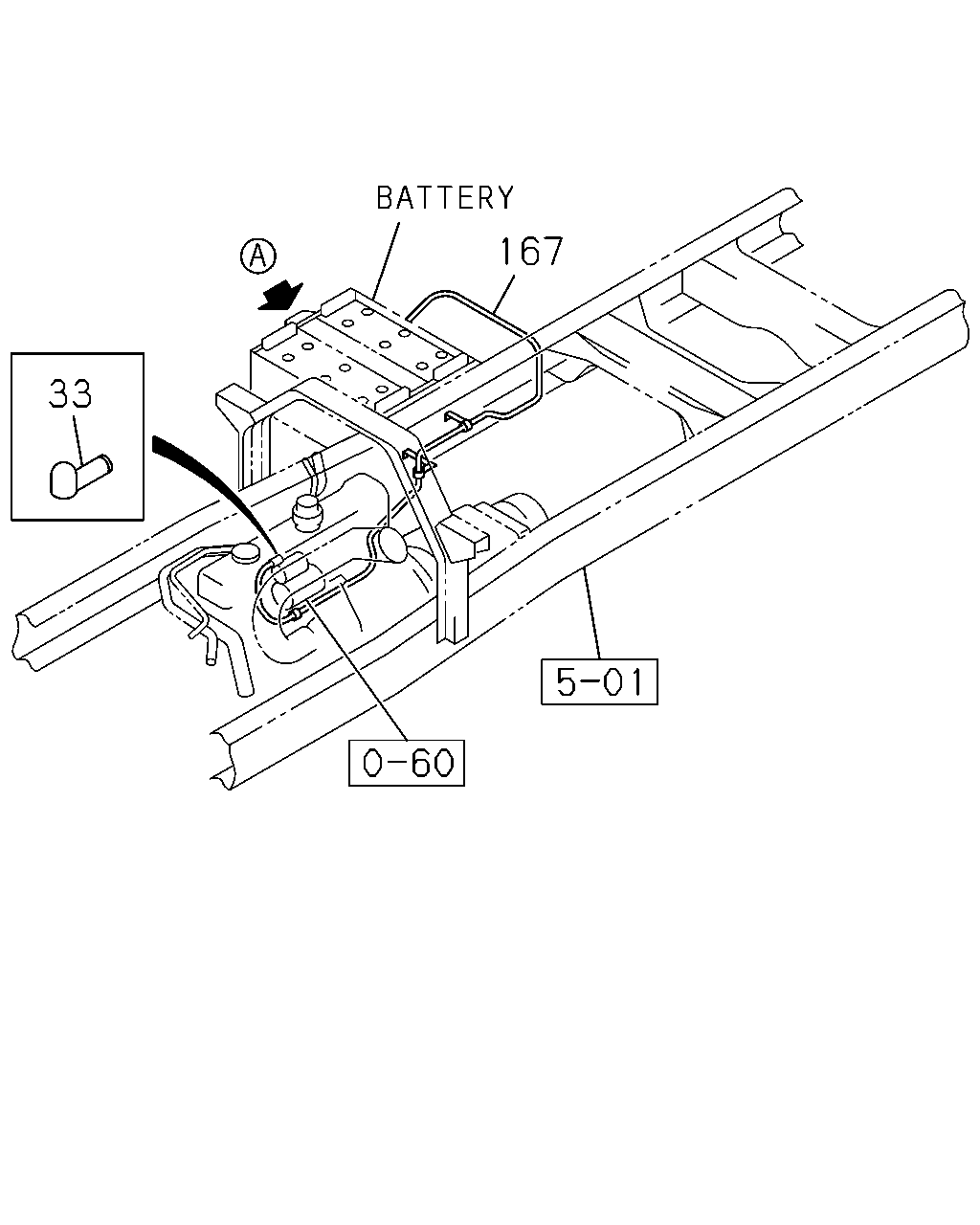

167 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CAP; INSULATOR	8-97181-965-0	01	1	0610-	●	●
167	CABLE; BATTERY RELAY TO STARTER MIXER TRUCK<RA2> L=5520	8-97616-788-1	01	1	0610-	●
167	CABLE; BATTERY RELAY TO STARTER EXC. MIXER TRUCK<RA2> L=5500	8-97616-651-1	01	1	0610-	●
167	CABLE; BATTERY RELAY TO STARTER L=4740	1-82652-903-9	01	1	0610-0610		●
167	CABLE; BATTERY RELAY TO STARTER L=4740	8-97618-796-0	01	1	0611-		●

64 208 208 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	BOX; BATTERY RELAY	1-82510-648-0	01	1	0610-	●
64	BOX; BATTERY RELAY EXC. SMOOTHER-G(C1W)	1-82510-648-0	01	1	0610-		●
64	BOX; BATTERY RELAY SMOOTHER-G(C1W)	1-82510-650-0	01	1	0610-		●
208	FUSE (C) 80A	1-82516-031-0	01	1	0610-	●	●
208	FUSE (B) 100A	1-82516-032-0	01	1	0610-	●	●
208	FUSE (A) 40A GREEN	8-94468-662-0	05	1	0610-	●
208	FUSE EXC. SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	05	1	0610-		●
208	FUSE SMOOTHER-G(C1W) (A) 40A GREEN	8-94468-662-0	06	1	0610-		●

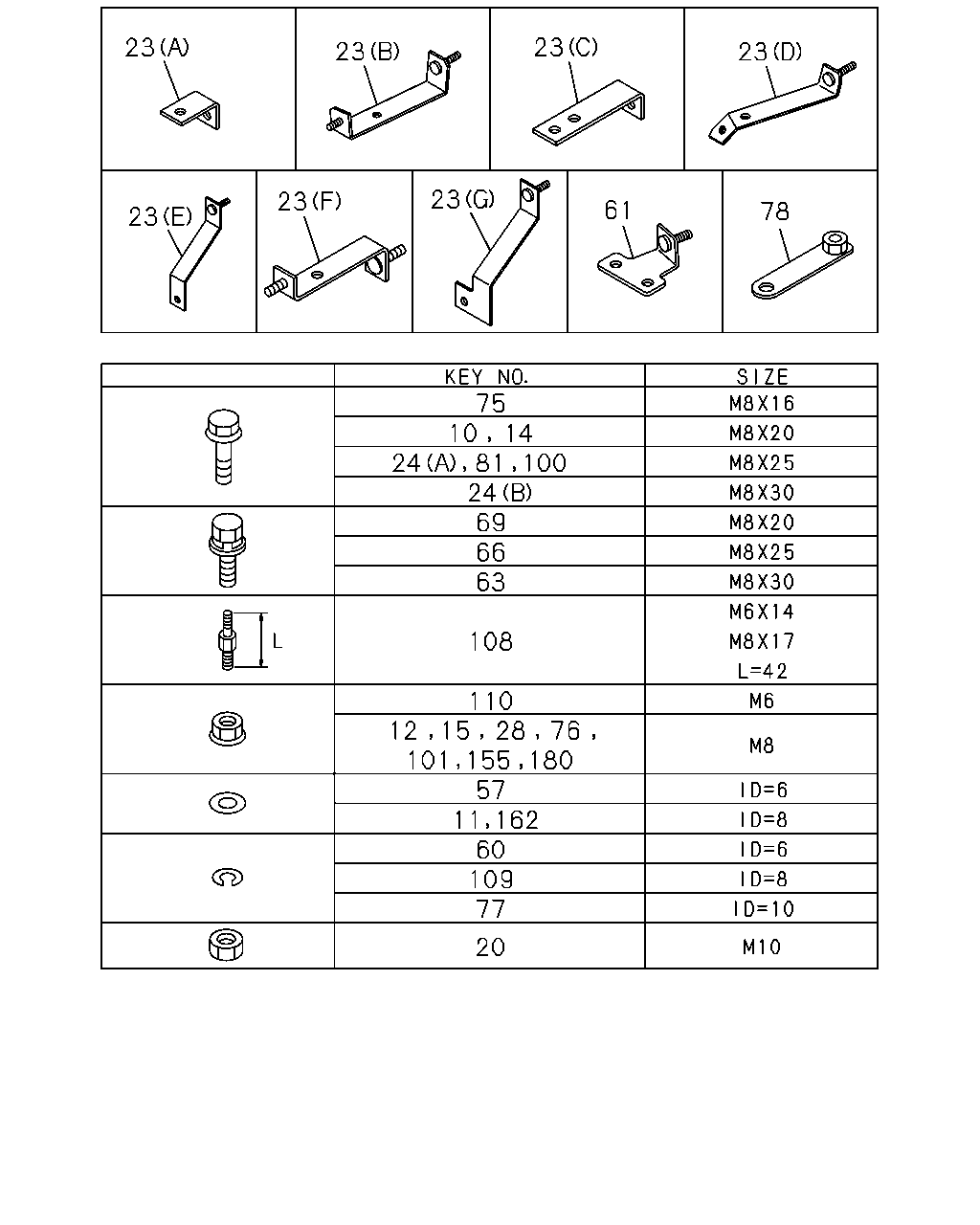

23 23 23 23 23 23 61 78 23 75 10 14 81 100 24 69 66 63 24 108 110 101 57 11 162 60 109 77 20 12 15 28 76 155 180

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	BOLT; BATTERY CABLE CLIP M8X20 FLANGE	0-28650-820-0	06	1	0610-	●	●
11	WASHER; BATTERY CABLE EARTH ID=8.4 OD=22	0-91614-708-0	01	1	0610-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	07	1	0610-	●	●
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
14	BOLT; BRKT CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
15	NUT; BRKT CLIP M8 FLANGE	0-91180-108-0	03	1	0610-	●
20	NUT; STARTER CABLE M10	8-98011-328-0	01	1	0610-	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (C) L=95	1-82698-557-0	02	1	0611-	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	02	1	0611-		●
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (G)	1-82698-628-0	01	1	0610-	●
23	BRACKET; CABLE CLIP TO FRAME (A) L=40	1-47478-410-0	01	1	0610-	●	●
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82698-557-0	02	1	0610-0610	●	●
23	BRACKET; CABLE CLIP TO FRAME MIXER TRUCK<RA2> (C) L=95	1-82698-557-0	01	1	0611-	●
23	BRACKET; CABLE CLIP TO FRAME (D)	1-82698-574-0	01	1	0610-	●	●
23	BRACKET; CABLE CLIP TO FRAME EXC. MIXER TRUCK<RA2> (E)	1-82698-575-1	01	1	0610-	●
23	BRACKET; CABLE CLIP TO FRAME (E)	1-82698-575-1	01	1	0610-		●
23	BRACKET; CABLE CLIP TO FRAME (B)	1-82698-589-0	01	1	0610-0610	●	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4900MM(49W) (B)	1-82698-589-0	01	1	0610-	●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5300MM(53W),WHEEL BASE 6100MM(61W), WHEEL BASE 6300MM(63W) (B)	1-82698-589-0	01	1	0610-		●
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4500MM(45W) (F)	1-82698-590-0	01	1	0610-	●
24	BOLT; BRKT TO FRAME (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-	●	●
24	BOLT; BRKT TO FRAME (B) M8X30 FLANGE	0-28650-830-0	02	1	0610-	●	●
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	04	1	0610-	●	●
57	WASHER; PL,BATTERY CABLE ID=6.4	9-09164-506-0	01	1	0610-	●	●
60	WASHER; LK,BATTERY CABLE ID=6.1	0-91510-606-0	01	1	0610-	●	●
61	BRACKET; BATTERY CABLE	1-82698-587-0	01	1	0610-	●	●
63	BOLT; RELAY BATTERY M8X30 W/LK&PL WASHER	0-50640-830-0	02	1	0610-	●	●
66	BOLT; COVER,BATTERY RELAY M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0610-	●	●
69	BOLT; CABLE BATTERY M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0610-	●	●
75	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0610-	●	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	05	1	0610-	●
76	NUT; BATTERY CABLE M8 FLANGE	0-91180-108-0	03	1	0610-		●
77	WASHER; LK,STARTER CABLE ID=10.2	0-91510-610-0	01	1	0610-	●	●
78	BRACKET; CLIP BATTERY	1-47476-396-1	01	1	0610-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	06	1	0610-	●
81	BOLT; BATTERY CABLE M8X25 FLANGE	0-28650-825-0	05	1	0610-		●
100	BOLT; BATTERY CABLE CLIP M8X25 FLANGE	0-28650-825-0	04	1	0610-	●	●
101	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	04	1	0610-	●	●
108	STUD; EARTH BATTERY CABLE M6X14,M8X17 L=42	5-09309-006-1	01	1	0610-	●	●
109	WASHER; LK,EARTH BATTERY CABLE ID=8.2	0-91510-808-0	01	1	0610-	●	●
110	NUT; HARNESS TO BATTERY EARTH M6 FLANGE	5-09440-004-0	01	1	0610-	●	●
155	NUT; RELAY,BATTERY M8 FLANGE	0-91180-108-0	01	1	0610-	●	●
162	WASHER; PL,CABLE,BATTERY ID=8.4 OD=18	0-91614-608-0	02	1	0610-	●	●
180	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	0610-	●	●

9 9 18 22 9 22 99 99 9 9 22 9 158 9 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	03	1	0610-	●
9	CLIP; BATTERY CABLE (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-	●	●
9	CLIP; BATTERY CABLE (C) ID=21 L=30 H=40	1-09700-991-1	01	1	0610-	●	●
9	CLIP; BATTERY CABLE (B) ID=18 L=28 H=30	1-09701-110-0	02	1	0610-	●	●
9	CLIP; BATTERY CABLE (G) ID=21 L=24	8-94176-807-1	02	1	0610-	●	●
9	CLIP; BATTERY CABLE (E) ID=19 L=28	0-95235-856-0	01	1	0610-		●
9	CLIP; BATTERY CABLE (D) ID=18 L=28	1-09701-067-0	02	1	0610-		●
9	CLIP; BATTERY CABLE (A) L=350	1-09707-183-0	03	1	0610-		●
18	CLIP; BATTERY CABLE ID=21 L=24	8-94176-807-1	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (B) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (A) ID=25 L=50	1-09701-019-0	01	1	0610-	●	●
22	CLIP; BATTERY CABLE (C) ID=11 & 13 H=26 L=48	1-09701-270-0	02	1	0610-	●	●
99	CLIP; BATTERY CABLE (A) ID=18 H=23 L=28	1-09701-070-0	02	1	0610-	●	●
99	CLIP; BATTERY CABLE (B) ID=18 L=25 H=50	1-09701-096-0	02	1	0610-	●	●
158	CLIP; RELAY OD=7 H=1.2	8-94364-750-0	02	1	0610-	●	●
