◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#2705) — 124 parça

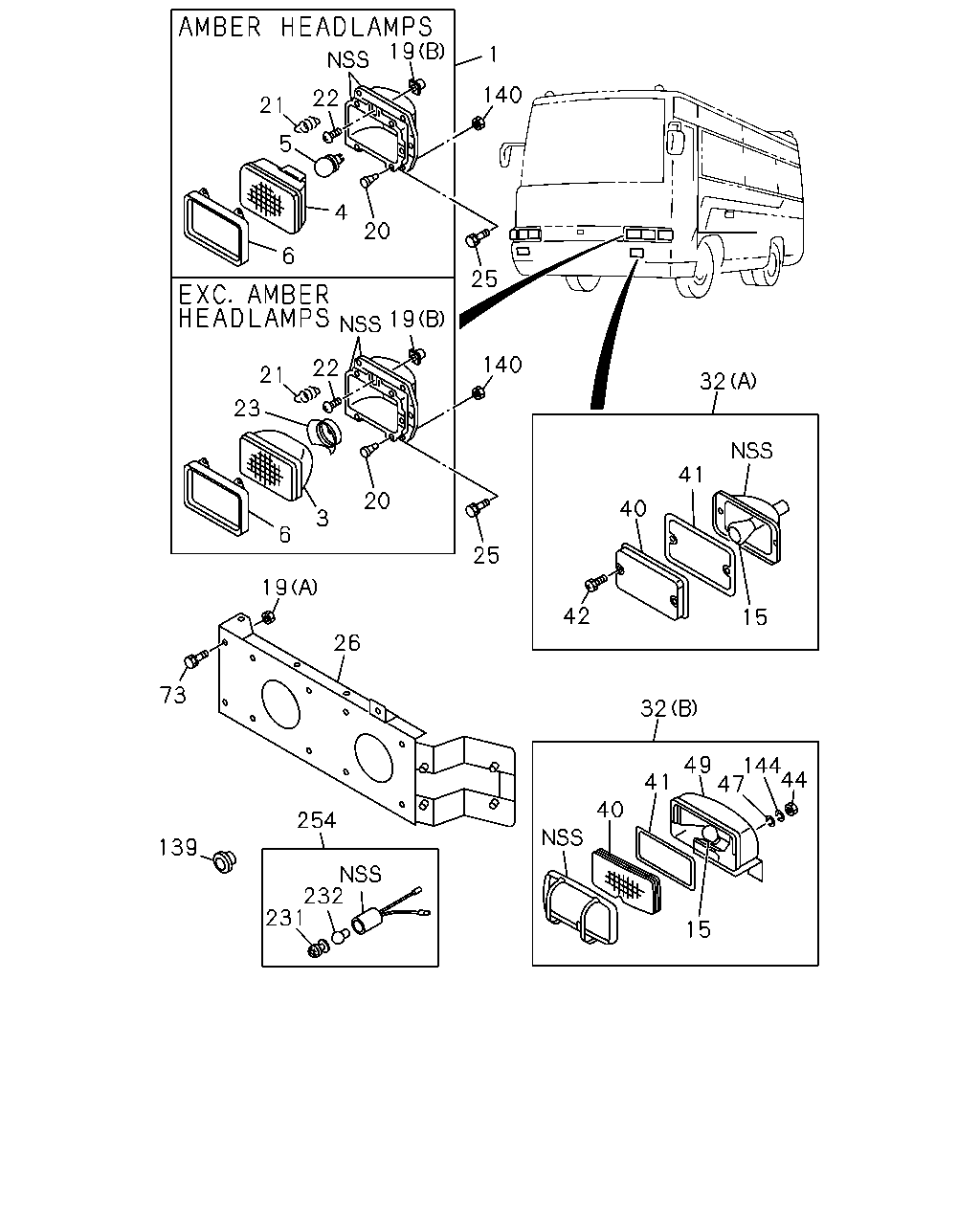

çizim 4759
19 1 140 22 21 5 4 20 6 25 19 140 22 21 32 23 41 20 40 3 6 25 19 42 15 26 73 32 49 144 44 47 41 40 254 139 232 231 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
OUTER 24V 50/65W 		1-82110-254-4 01 1 9101- ●
1 LAMP ASM; HEAD
OUTER 24V 50/65W 		1-82110-252-4 01 1 9101- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) INNER TYPE 1 24V 55W 		1-82110-251-3 01 1 9101- ● ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) INNER TYPE 1 24V 55W 		1-82110-250-3 01 1 9101- ● ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> INNER 24V 55/50W 		1-82110-263-2 01 1 9101- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> OUTER 24V 55/50W 		1-82110-265-2 01 1 9101- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> INNER 24V 55/50W 		1-82110-262-2 01 1 9101- ●
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> OUTER 24V 55/50W 		1-82110-264-2 01 1 9101- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) OUTER TYPE 2 24V 50/65W 		1-82110-255-4 01 1 9101- ●
1 LAMP ASM; HEAD
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) OUTER TYPE 2 24V 50/65W 		1-82110-253-4 01 1 9101- ●
1 LAMP ASM; HEAD
VENEZUELA ENCAVAPACKAGE(WN4) INNER 12V 50W 		1-82110-277-2 01 1 9101- ●
1 LAMP ASM; HEAD
VENEZUELA ENCAVAPACKAGE(WN4) OUTER 12V 40/60W 		1-82110-279-2 01 1 9101- ●
1 LAMP ASM; HEAD
VENEZUELA ENCAVAPACKAGE(WN4) INNER 12V 50W 		1-82110-276-2 01 1 9101- ●
1 LAMP ASM; HEAD
VENEZUELA ENCAVAPACKAGE(WN4) OUTER 12V 40/60W 		1-82110-278-2 01 1 9101- ●
3 SEALED BEAM; HEADLAMP
24V 65/50W 		1-82191-042-0 02 1 9101- ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 24V 55W 		1-82191-023-0 02 1 9101- ● ●
3 SEALED BEAM; HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 24V 50/65W 		1-82191-024-0 02 1 9101- ●
3 SEALED BEAM; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 40/60W 		8-94101-730-0 02 1 9101- ●
3 SEALED BEAM; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 50W 		8-94101-738-0 02 1 9101- ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> OUTER 		8-94101-736-0 02 1 9101- ●
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> INNER 		8-94101-742-0 02 1 9101- ●
5 BULB; HEADLAMP
AMBER HEADLAMPS<T75> 24V 55/50W 		5-82193-004-0 04 1 9101- ●
6 RIM; HEADLAMP
24V 70W 		1-82114-018-0 02 1 9101- ● ●
6 RIM; HEADLAMP
24V 75/70W 		1-82114-019-0 02 1 9101- ● ●
15 BULB; FOG LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 24V 35W 		1-82194-012-0 02 1 9101- ● ●
15 BULB; FOG LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 23W 		9-82692-131-0 02 1 9101- ●
19 NUT; HEADLAMP
(A) M8 		9-09110-408-0 05 1 9101- ● ●
19 NUT; HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) (B) 		1-82119-056-0 04 1 9101- ● ●
19 NUT; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) (B) 		1-82119-056-0 08 1 9101- ●
19 NUT; HEADLAMP
AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 08 1 9101- ●
20 SCREW; HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-090-0 08 1 9101-9205 ● ●
20 SCREW; HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-104-0 08 1 9206-9704 ● ●
20 SCREW; HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-023-0 08 1 9705- ● ●
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-104-0 16 1 9206-9704 ●
20 SCREW; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-023-0 16 1 9705- ●
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-023-0 16 1 9705- ●
20 SCREW; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-090-0 16 1 9101-9205 ●
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-090-0 16 1 9101-9205 ●
20 SCREW; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-090-0 16 1 9206-9704 ●
21 SPRING; ADJ HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-021-0 02 1 9101-9704 ● ●
21 SPRING; ADJ HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-105-0 02 1 9705- ● ●
21 SPRING; ADJ HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-021-0 04 1 9101-9704 ●
21 SPRING; ADJ HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-021-0 04 1 9101-9704 ●
21 SPRING; ADJ HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-105-0 04 1 9705- ●
21 SPRING; ADJ HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-105-0 04 1 9705- ●
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-030-0 04 1 9101-9205 ● ●
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-095-0 04 1 9206- ● ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-095-0 08 1 9206-9704 ●
22 SCREW; ADJ,HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-095-0 08 1 9705- ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-095-0 08 1 9705- ●
22 SCREW; ADJ,HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-030-0 08 1 9101-9205 ●
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-030-0 08 1 9101-9205 ●
22 SCREW; ADJ,HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-030-0 08 1 9206-9704 ●
23 COVER; BULB,HEADLAMP
EXC. AMBER HEADLAMPS<T75>,VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-013-0 02 1 9101- ● ●
23 COVER; BULB,HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-013-0 04 1 9101- ●
25 SCREW; LAMP
M6X20 W/LK WASHER 		9-01900-620-0 12 1 9101-9204 ● ●
25 SCREW; LAMP
M6X20 W/LK WASHER 		0-50040-620-0 12 1 9205- ● ●
25 SCREW; LAMP
M5X16 W/LK&PL WASHER 		9-03920-516-0 04 1 9101- ● ●
26 BRACKET ASM; HEADLAMP
STAY 		1-48495-061-0 01 1 9101- ● ●
26 BRACKET ASM; HEADLAMP
BUS BODY MAKER KITAMURA<Y08> 		1-82117-052-3 01 1 9101- ● ●
26 BRACKET ASM; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82117-052-3 01 1 9101- ●
26 BRACKET ASM; HEADLAMP
BUS BODY MAKER KITAMURA<Y08> 		1-82117-056-1 01 1 9101- ● ●
26 BRACKET ASM; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82117-056-1 01 1 9101- ●
26 BRACKET ASM; HEADLAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82117-033-1 01 1 9101- ● ●
26 BRACKET ASM; HEADLAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82117-034-1 01 1 9101- ● ●
32 LAMP ASM; FOG
EXC. VENEZUELA ENCAVAPACKAGE(WN4) (A) 		1-82110-146-5 02 1 9101- ● ●
32 LAMP ASM; FOG
VENEZUELA ENCAVAPACKAGE(WN4) (B) 		5-82110-108-1 02 1 9101- ●
40 LENS; FOG LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82115-005-0 02 1 9101- ● ●
40 LENS; FOG LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82115-001-0 02 1 9101- ●
41 GASKET; LENS,FOG LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82216-013-0 02 1 9101- ● ●
41 GASKET; LENS,FOG LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-82116-001-0 02 1 9101- ●
42 SCREW; LENS,FOG LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4) 		1-82119-009-0 04 1 9101- ● ●
44 NUT; FOG LAMP
VENEZUELA ENCAVAPACKAGE(WN4) M8 		9-09111-408-0 04 1 9101- ●
47 WASHER; PL,FOG LAMP
VENEZUELA ENCAVAPACKAGE(WN4) ID=8.4 		9-09160-508-0 04 1 9101- ●
49 BRACKET; LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		5-82117-013-1 02 1 9101- ●
73 BOLT; BRKT,HEADLAMP
M8X20 W/LK WASHER 		9-01900-820-0 05 1 9101-9204 ● ●
73 BOLT; BRKT,HEADLAMP
M8X20 W/LK WASHER 		0-50040-820-0 05 1 9205- ● ●
139 COVER; HEADLAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		1-09983-006-1 04 1 9101- ●
140 NUT
M6 		9-09110-406-0 12 1 9101- ● ●
144 WASHER; LK,FOG LAMP FIX
VENEZUELA ENCAVAPACKAGE(WN4) ID=8.2 		9-09150-508-0 04 1 9101- ●
231 LENS; PILOT LAMP
HEATER & DEFROSTER(C41) 		1-82245-006-0 01 1 9101- ● ●
232 BULB; PILOT LAMP
HEATER & DEFROSTER(C41) 24V 3W 		9-82691-367-0 01 1 9101- ● ●
254 LAMP ASM; PILOT,WATER PUMP
HEATER & DEFROSTER(C41) 		1-82240-016-0 01 1 9101- ● ●
çizim 38493
7 60 67 60 60 68 77 68 67 76 78 68 68 75 76 77 227 75
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> M3 		9-99110-403-0 08 1 9101- ● ●
7 NUT; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) M3 		9-99110-403-0 08 1 9101- ●
7 NUT; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M5 		9-99110-405-0 08 1 9101- ● ●
60 LAMP ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94257-408-3 01 1 9101-9111 ● ●
60 LAMP ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94367-544-0 01 1 9112-9502 ● ●
60 LAMP ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		1-82210-213-0 01 1 9503- ● ●
60 LAMP ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94257-407-3 01 1 9101-9111 ● ●
60 LAMP ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94367-543-0 01 1 9112-9502 ● ●
60 LAMP ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		1-82210-212-0 01 1 9503- ● ●
60 LAMP ASM; FRT COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> (B) 		1-82210-109-1 01 1 9101- ● ●
60 LAMP ASM; FRT COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> (B) 		1-82210-108-1 01 1 9101- ● ●
60 LAMP ASM; FRT COMB
VENEZUELA ENCAVAPACKAGE(WN4) (C) 		8-94257-410-3 01 1 9101- ●
60 LAMP ASM; FRT COMB
VENEZUELA ENCAVAPACKAGE(WN4) (C) 		8-94257-409-3 01 1 9101- ●
67 GASKET; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> 		8-94257-504-0 02 1 9101- ● ●
67 GASKET; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		8-94257-504-0 02 1 9101- ●
67 GASKET; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82216-004-0 01 1 9101- ● ●
67 GASKET; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82216-003-0 01 1 9101- ● ●
68 BULB; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> 24V 12W 		9-82691-302-0 02 1 9101- ● ●
68 BULB; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> 24V 25W 		9-82691-347-0 02 1 9101- ● ●
68 BULB; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 24V 25W 		9-82691-347-0 04 1 9101- ● ●
68 BULB; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 24V 10/4W 		9-82691-607-0 02 1 9101- ● ●
68 BULB; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 21W 		8-94124-074-0 02 1 9101- ●
68 BULB; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 12V 5W 		8-94124-075-0 02 1 9101- ●
75 SCREW; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> M3X35 W/LK&PL WASHER 		9-03920-335-0 08 1 9101- ● ●
75 SCREW; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) M3X35 W/LK&PL WASHER 		9-03920-335-0 08 1 9101- ●
75 SCREW; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M4X50 		1-82219-015-0 04 1 9101- ● ●
75 SCREW; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M4X16 		1-82219-016-0 04 1 9101- ● ●
75 SCREW; FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> M5X16 W/LK WASHER 		9-03910-516-0 08 1 9101- ● ●
76 LENS; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94257-501-1 01 1 9101-9111 ● ●
76 LENS; FRT COMB LAMP
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94257-500-1 01 1 9101-9111 ● ●
76 LENS; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) (B) 		8-94257-503-1 01 1 9101- ●
76 LENS; FRT COMB LAMP
VENEZUELA ENCAVAPACKAGE(WN4) (B) 		8-94257-502-1 01 1 9101- ●
77 SHADE; FRT TURN SIGNAL LAMP
BUS BODY MAKER KITAMURA<Y08> 		8-97020-218-0 02 1 9101- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
VENEZUELA ENCAVAPACKAGE(WN4) 		8-97020-218-0 02 1 9101- ●
77 SHADE; FRT TURN SIGNAL LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82219-020-0 02 1 9101- ● ●
77 SHADE; FRT TURN SIGNAL LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82219-021-0 02 1 9101- ● ●
78 LENS ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94257-501-0 01 1 9112- ● ●
78 LENS ASM; FRT COMB
BUS BODY MAKER KITAMURA<Y08> (A) 		8-94257-500-0 01 1 9112- ● ●
78 LENS ASM; FRT COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> (B) 		1-82215-009-0 01 1 9101- ● ●
78 LENS ASM; FRT COMB
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> (B) 		1-82215-008-0 01 1 9101- ● ●
227 SEAT; SET SCREW,FRT COMB LAMP
EXC. VENEZUELA ENCAVAPACKAGE(WN4),BUS BODY MAKER KITAMURA<Y08> 		1-82219-017-0 08 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
