Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11036 - CYZ RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

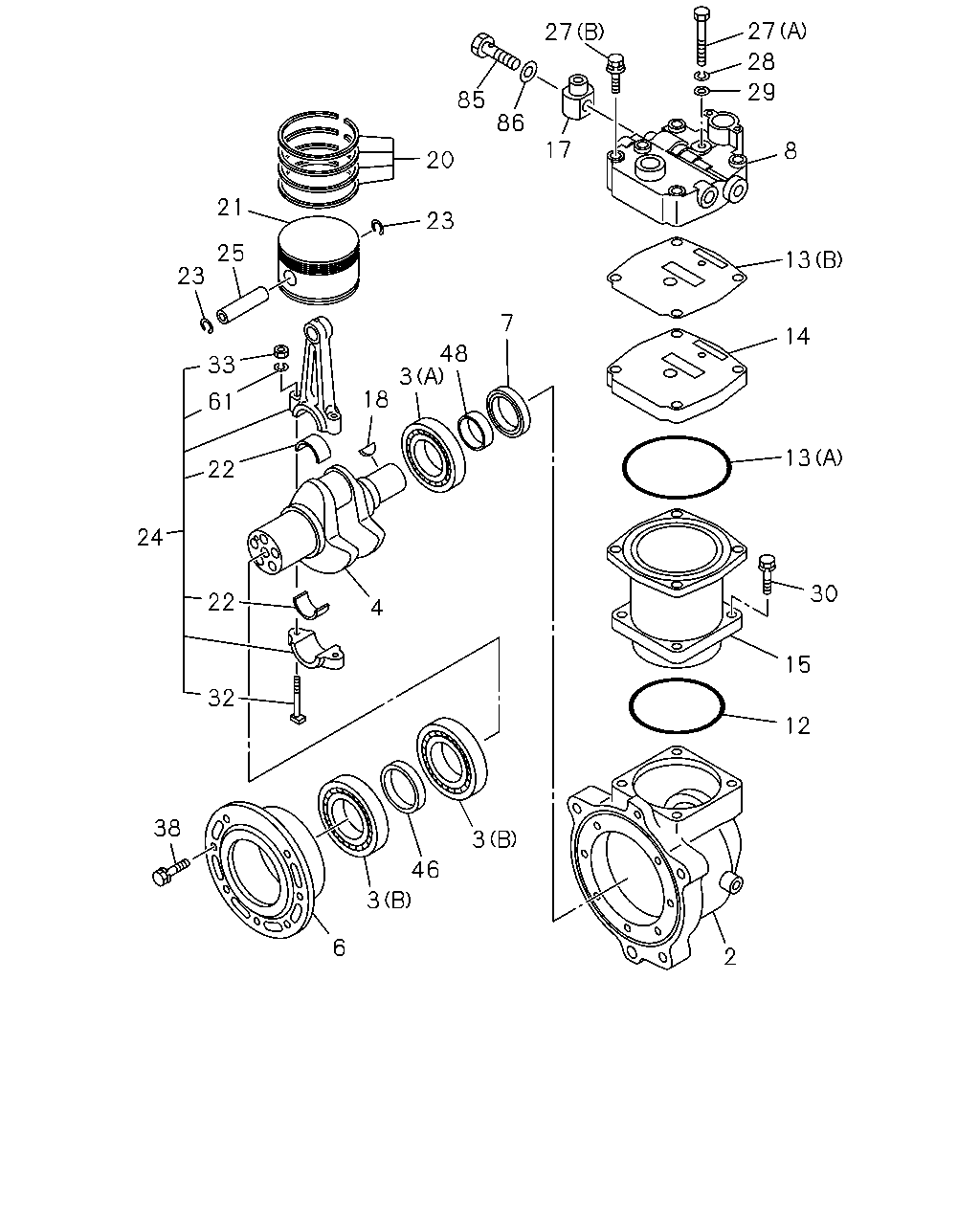

0-39 — AIR COMPRESSOR; BRAKE
(#27043) — 39 parça
27
27
28
29
85
86
17
8
20
21
23
25
13
23
7
14
48
33
3
18
61
13
22
24
30
22
4
15
32
12
38
3
46
3
6
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
CRANKCASE; AIR CMPR
1-19151-286-3
01
1
0610-
3
BEARING; AIR CMPR
(A)
8-98171-672-0
01
1
0610-
3
BEARING; AIR CMPR
(B)
1-09800-246-0
02
1
0610-
4
CRANKSHAFT; AIR CMPR
1-19171-097-0
01
1
0610-
6
COVER ASM; BRG,AIR CMPR
1-19156-079-1
01
1
0610-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-619-0
01
1
0610-
8
HEAD ASM; CYL,AIR CMPR
1-19110-072-0
01
1
0610-1012
8
HEAD ASM; CYL,AIR CMPR
8-98167-016-0
01
1
1101-
12
GASKET; AIR CMPR
1-09623-651-1
01
1
0610-
13
GASKET; AIR CMPR
(A)
1-09623-650-1
01
1
0610-
13
GASKET; AIR CMPR
(B)
1-19139-019-0
01
1
0610-1306
13
GASKET; AIR CMPR
(B)
8-98242-649-0
01
1
1307-1402
13
GASKET; AIR CMPR
(B)
8-98269-488-0
01
1
1403-
14
PLATE; AIR CMPR
1-19110-064-1
01
1
0610-
15
CYLINDER; AIR CMPR
1-19163-065-0
01
1
0610-
17
ADAPTER; AIR CMPR
1-19119-034-1
01
1
0610-
18
KEY; AIR CMPR
9-08055-622-0
01
1
0610-
20
RING KIT; PISTON,AIR CMPR
1-19163-064-0
01
1
0610-
21
PISTON; AIR CMPR
1-19161-023-0
01
1
0610-
22
METAL; CONNROD,AIR CMPR
1-19179-025-0
02
1
0610-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-001-0
02
1
0610-
24
ROD ASM; CONN,AIR CMPR
1-19171-078-0
01
1
0610-
25
PIN; PISTON,AIR CMPR
1-19167-004-0
01
1
0610-0906
25
PIN; PISTON,AIR CMPR
1-19167-007-0
01
1
0907-
27
BOLT; HD
(A)
1-09044-071-0
01
1
0610-
27
BOLT; HD
(B) M10X80
1-19119-024-0
04
1
0610-1012
27
BOLT; HD
(B) M10X75
8-98167-018-0
04
1
1101-
28
WASHER; LK,HD BOLT
ID=8.2
9-09150-508-0
01
1
0610-
29
WASHER; PL,HD BOLT
ID=8.4
9-09160-508-0
01
1
0610-
30
BOLT; CYL TO CRANKCASE
M10X30
1-19119-026-0
04
1
0610-
32
BOLT; CONNROD
1-19179-021-0
02
1
0610-
33
NUT; CONNROD BOLT
1-19179-026-0
02
1
0610-
38
BOLT; COVER FIX
M8X30
0-20800-830-0
07
1
0610-
46
SPACER; BRG
1-19179-029-0
01
1
0610-
48
SLEEVE; CR/SHF
1-19179-027-0
01
1
0610-
61
WASHER; LK,CONNROD BOLT
1-19179-022-0
02
1
0610-
85
BOLT; ADAPTER
M14X39 FLANGE
1-09675-089-0
01
1
0610-
86
GASKET; ADAPTER
ID=14.2 OD=19.2
1-09630-085-0
02
1
0610-1306
86
GASKET; ADAPTER
ID=14.2 OD=19.2
8-98251-345-0
02
1
1307-
