10663 - MR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶

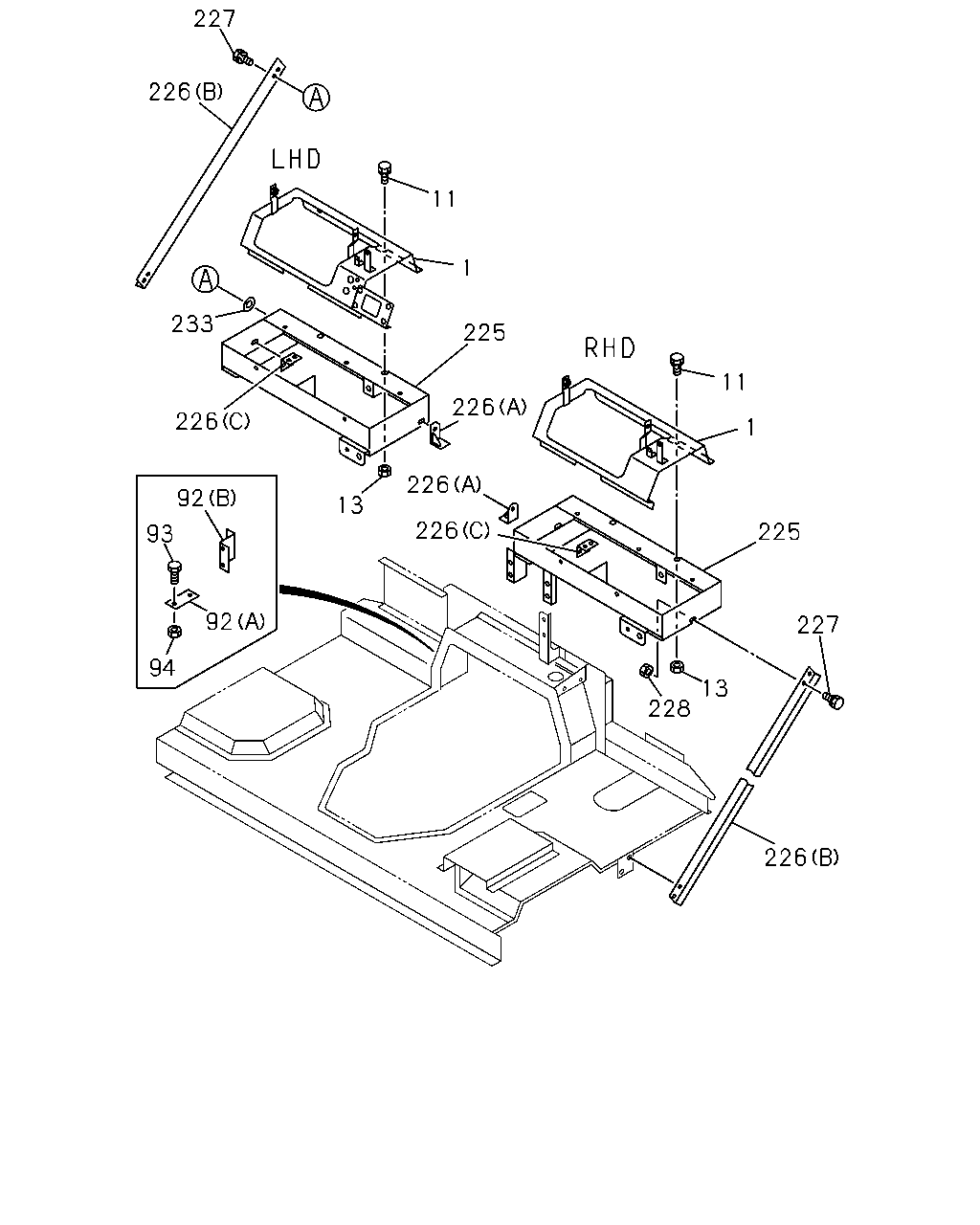

7-40 — INSTRUMENT PANEL AND BOX
(#2702) — 22 parça
Tümü
A - MRR5FB
B - MRR6FB
227
226
11
1
233
225
11
226
226
1
226
92
13
226
225
93
92
227
94
13
228
226
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PANEL; INST
1-62200-206-1
01
1
9101-
●
1
PANEL; INST
1-62200-202-0
01
1
9101-
●
11
BOLT; INST PNL
0-50040-616-0
04
1
9101-
●
●
13
NUT; INST PANEL,SIDE
9-09110-406-0
04
1
9101-
●
●
92
BRACKET; ELEC PANEL
(A)
1-82519-002-0
01
1
9101-
●
●
92
BRACKET; ELEC PANEL
(B)
1-82519-004-1
01
1
9101-
●
●
93
BOLT; PANEL BRKT
0-50040-825-0
06
1
9101-
●
●
94
NUT; PANEL BRKT
9-09110-408-0
06
1
9101-
●
●
225
FRAME; FACIA
1-62200-205-9
01
1
9101-
●
225
FRAME; FACIA
1-62200-203-2
01
1
9101-
●
226
STAY; FACIA
(A)
1-53318-241-2
01
1
9101-
●
●
226
STAY; FACIA
(B)
1-62200-095-0
01
1
9101-
●
●
226
STAY; FACIA
(C)
1-62200-208-0
01
1
9101-
●
●
227
BOLT; FACIA STAY
M6X20 W/LK WASHER
9-01900-620-0
04
1
9101-9204
●
●
227
BOLT; FACIA STAY
M6X20 W/LK WASHER
0-50040-620-0
04
1
9205-
●
●
227
BOLT; FACIA STAY
M8X20 W/LK WASHER
9-01900-820-0
02
1
9101-9204
●
●
227
BOLT; FACIA STAY
M8X20 W/LK WASHER
0-50040-820-0
02
1
9205-
●
●
227
BOLT; FACIA STAY
M8X20 W/LK&PL WASHER
9-01960-820-0
03
1
9101-9204
●
●
227
BOLT; FACIA STAY
M8X20 W/LK&PL WASHER
0-50140-820-0
03
1
9205-
●
●
228
NUT; FACIA STAY
M6
9-09110-406-0
02
1
9101-
●
●
228
NUT; FACIA STAY
M8
9-09110-408-0
05
1
9101-
●
●
233
WASHER; PL,BLIND PNL
9-09160-608-0
02
1
9101-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
