Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#27010) — 285 parça

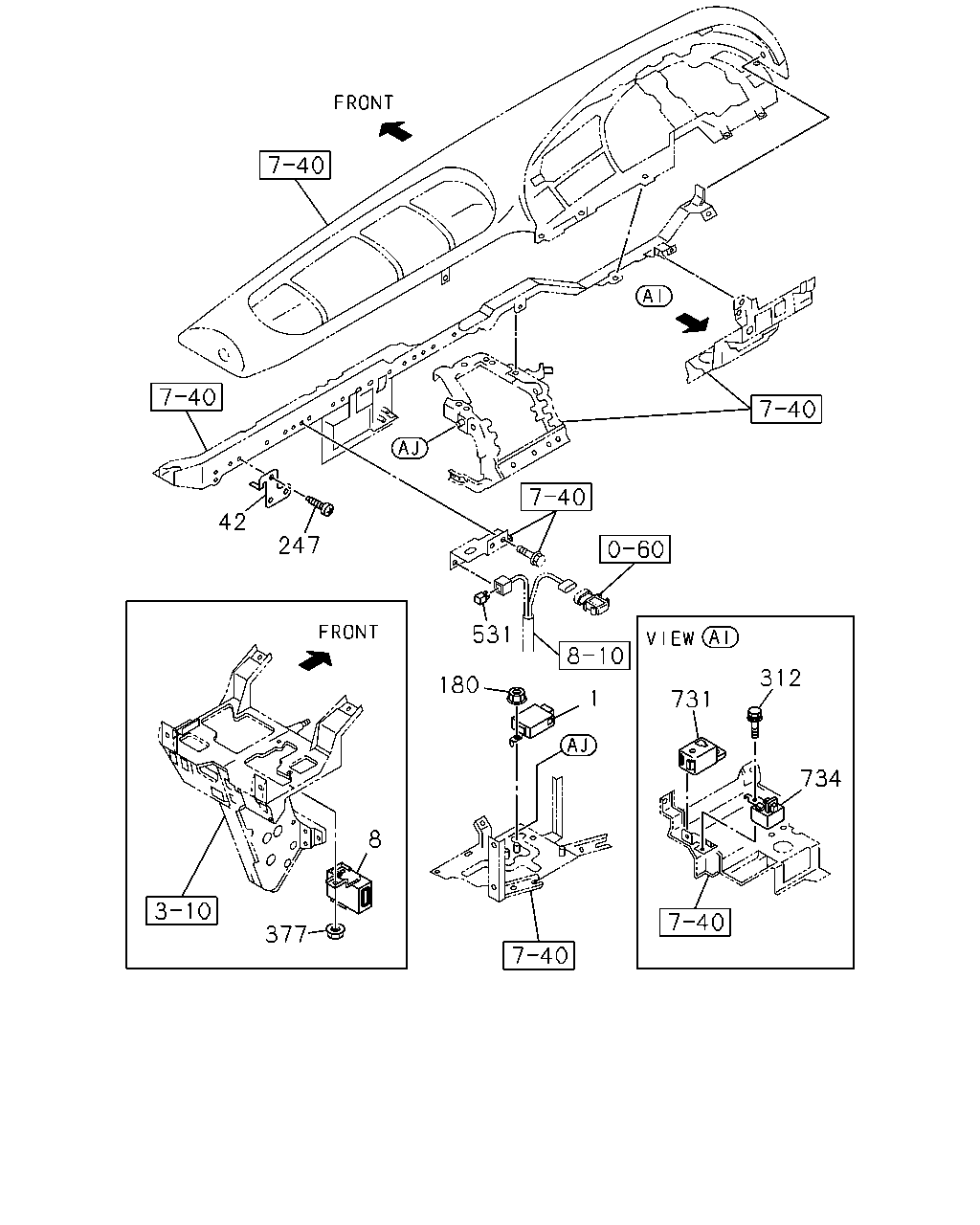

42 247 531 312 180 1 731 734 8 377

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98025-533-1	01	1	0906-
1	UNIT; FLASHER	1-83470-060-1	01	1	0610-0905
1	UNIT; FLASHER EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-83470-060-1	01	1	0906-
8	RELAY; WIPER AIR BAG(TFQ)	1-83316-002-4	01	1	0610-
42	BRACKET; RELAY	1-82698-128-2	01	1	0610-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0610-
247	SCREW; BRKT M5X14	8-94279-325-0	01	1	0610-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0610-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0610-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0610-
531	RELAY; MAIN 24V	1-82550-308-1	01	1	0610-1005
531	RELAY; MAIN 24V	8-98167-175-0	01	1	1006-
731	ALARM; INFORMATION MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-83460-051-1	01	1	0610-
734	ALARM; MULTI	1-83460-106-0	01	1	0610-

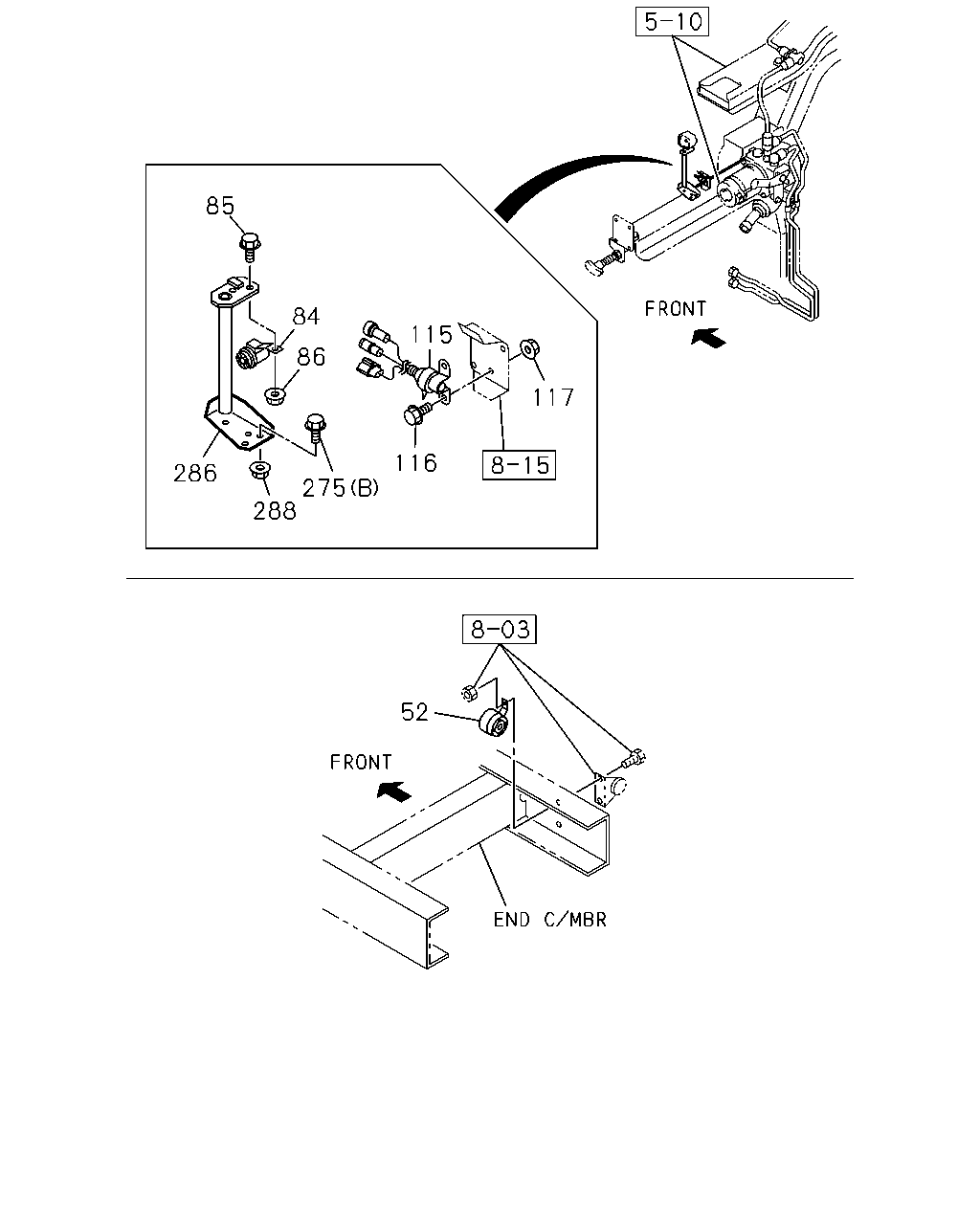

85 84 115 86 117 116 286 275 288 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-083-0	01	1	0610-0612
52	BUZZER; BACK TAIL & STOP LAMPS<TR1> REVERSING WARNING BUZZER<YM9> METRO DENSO	8-98069-861-0	01	1	0701-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0610-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0610-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0610-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0610-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0610-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0610-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-
286	BRACKET	1-82699-199-0	01	1	0610-
288	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0610-

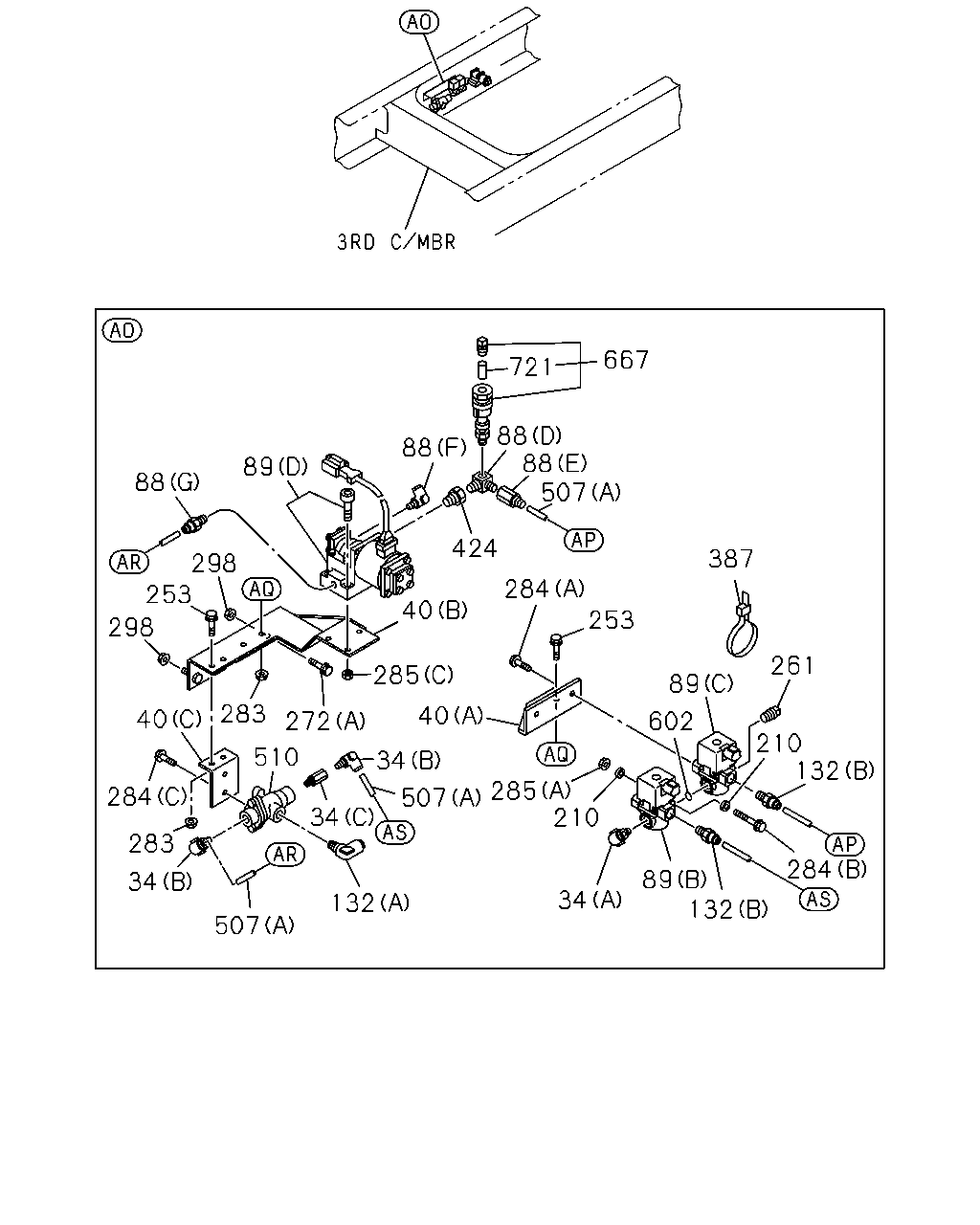

667 721 88 88 507 88 89 88 424 387 298 253 284 253 40 298 261 285 89 283 40 40 602 272 210 132 510 34 285 210 284 507 34 283 284 89 132 34 34 132 507

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (C) PT3/8	1-48319-058-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-0705
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0706-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-0705
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0706-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	0610-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	0610-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	0610-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (E)	1-53457-180-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	0610-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-212-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-279-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	1-82564-354-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0610-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-
132	CONNECTOR; OUTLET,MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0610-
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
253	BOLT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8X25 FLANGE	0-28650-825-0	04	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0705
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0706-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
283	NUT; BRKT MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	04	1	0610-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
298	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE	0-91180-108-0	02	1	0610-
387	CLIP; BAND MJX12P M/T SMOOTHER-G(Y4S) L=350	1-09707-183-0	01	1	0610-
424	ADAPTER MJX12P M/T SMOOTHER-G(Y4S) PT3/8	1-09664-210-0	01	1	0610-
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	0610-
510	VALVE; CHECK MJX12P M/T SMOOTHER-G(Y4S)	1-48410-531-1	01	1	0610-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-011-0	01	1	0610-0705
667	LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	8-98063-001-0	01	1	0706-
721	ELEMENT; LUBRICATION MJX12P M/T SMOOTHER-G(Y4S)	1-33779-028-0	01	1	0610-

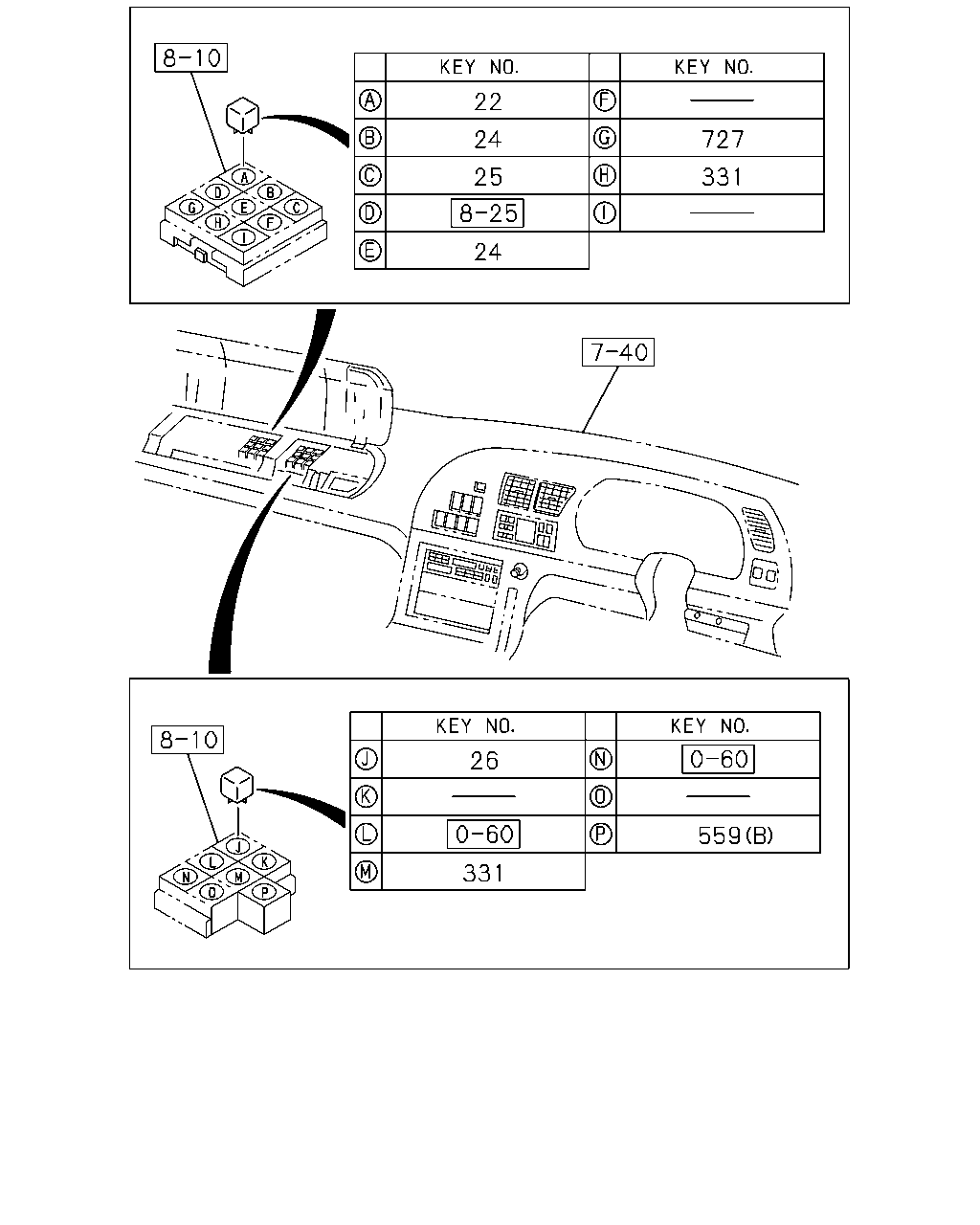

22 24 727 25 331 24 26 559 331

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0908-1312
331	RELAY; A/C ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0610-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
727	RELAY; START CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-1306
727	RELAY; START CUT 24V 10A PANASONIC	8-98167-173-0	01	1	1307-

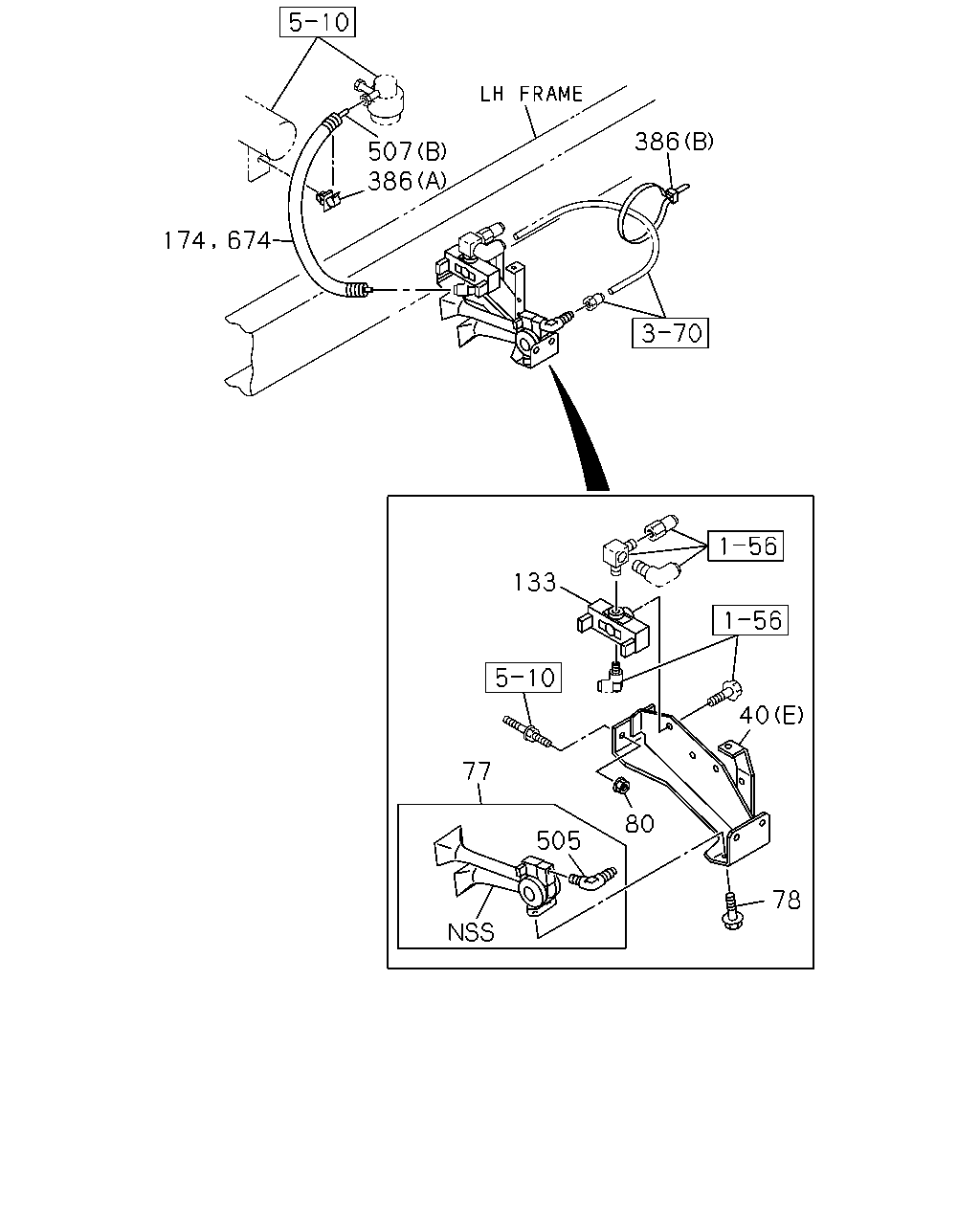

386 507 386 174 674 133 40 77 80 505 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	0610-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	0610-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	0610-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (E)	1-53457-180-0	01	1	0610-
77	HORN ASM	1-83430-041-2	01	1	0610-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0610-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0610-
133	VALVE; MAG,AIR HORN FULL FLOATING CAB(W16)	1-53458-378-2	01	1	0610-
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0610-0806
174	COVER FULL FLOATING CAB(W16) L=800	1-83129-031-1	01	1	0807-
386	CLIP; HARNESS FULL FLOATING CAB(W16) (B) L=350	1-09707-183-0	02	1	0807-
386	CLIP; HARNESS FULL FLOATING CAB(W16) (A) ID=9.5	5-09709-020-0	01	1	0610-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0610-
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	0610-
674	TUBE; CORRUGATE FULL FLOATING CAB(W16) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0807-

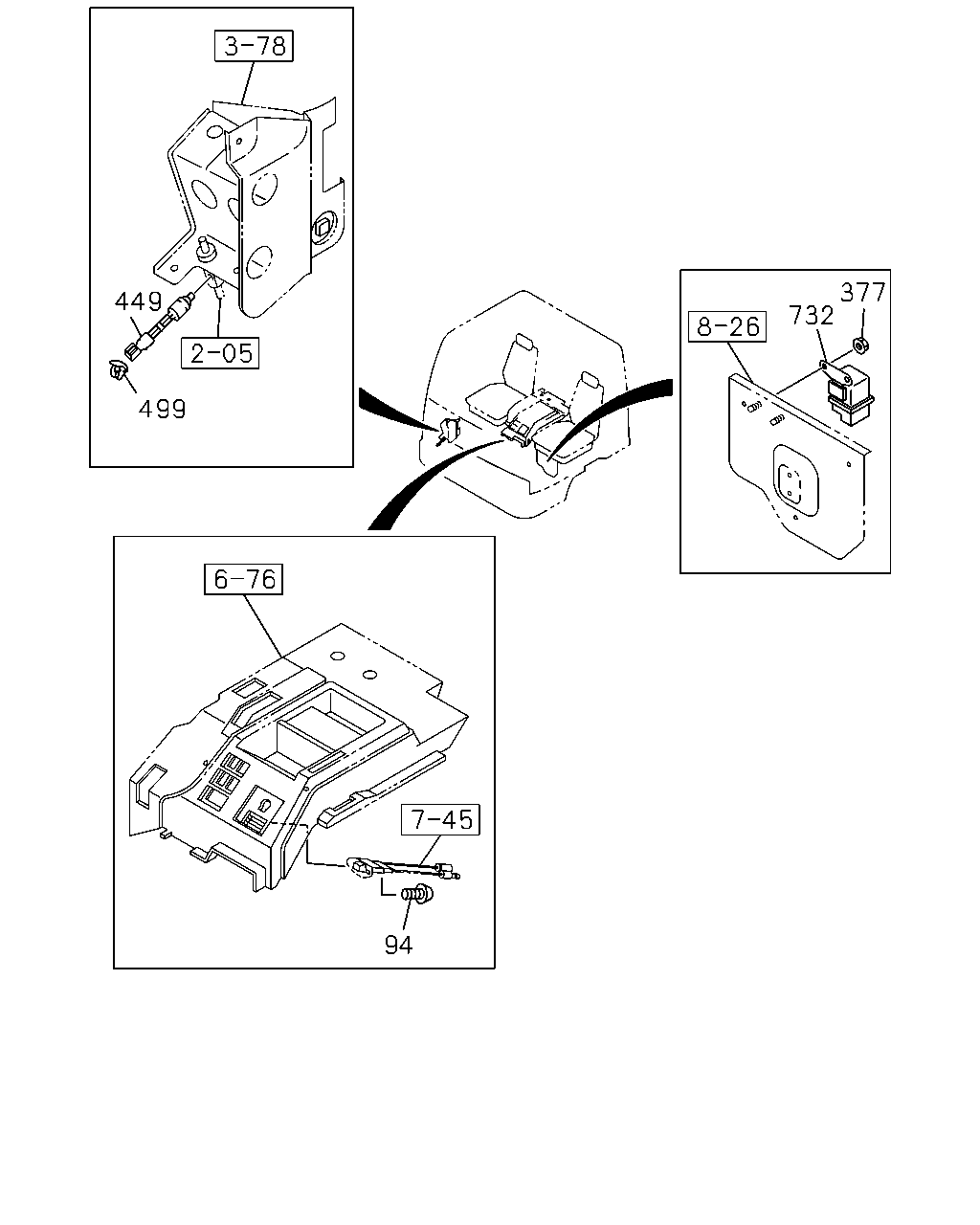

377 732 449 499 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0610-
377	NUT; RELAY AIR BAG(TFQ) M6 FLANGE	0-91180-106-0	01	1	0610-
377	NUT; RELAY SMOOTHER-G(C1W) M6 FLANGE	0-91180-106-0	02	1	0610-
449	SWITCH; OIL PRESS,CLUTCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W),MJX M/T<Y9N>	1-82410-143-1	01	1	0610-
449	SWITCH; OIL PRESS,CLUTCH MJX M/T<Y9N> BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W)	1-82410-180-0	01	1	0610-
499	CLIP; SWITCH BRAKE SYSTEM HSA<SLD> EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	0610-
732	RELAY; EDS SMOOTHER-G(C1W)	1-82550-337-1	01	1	0610-

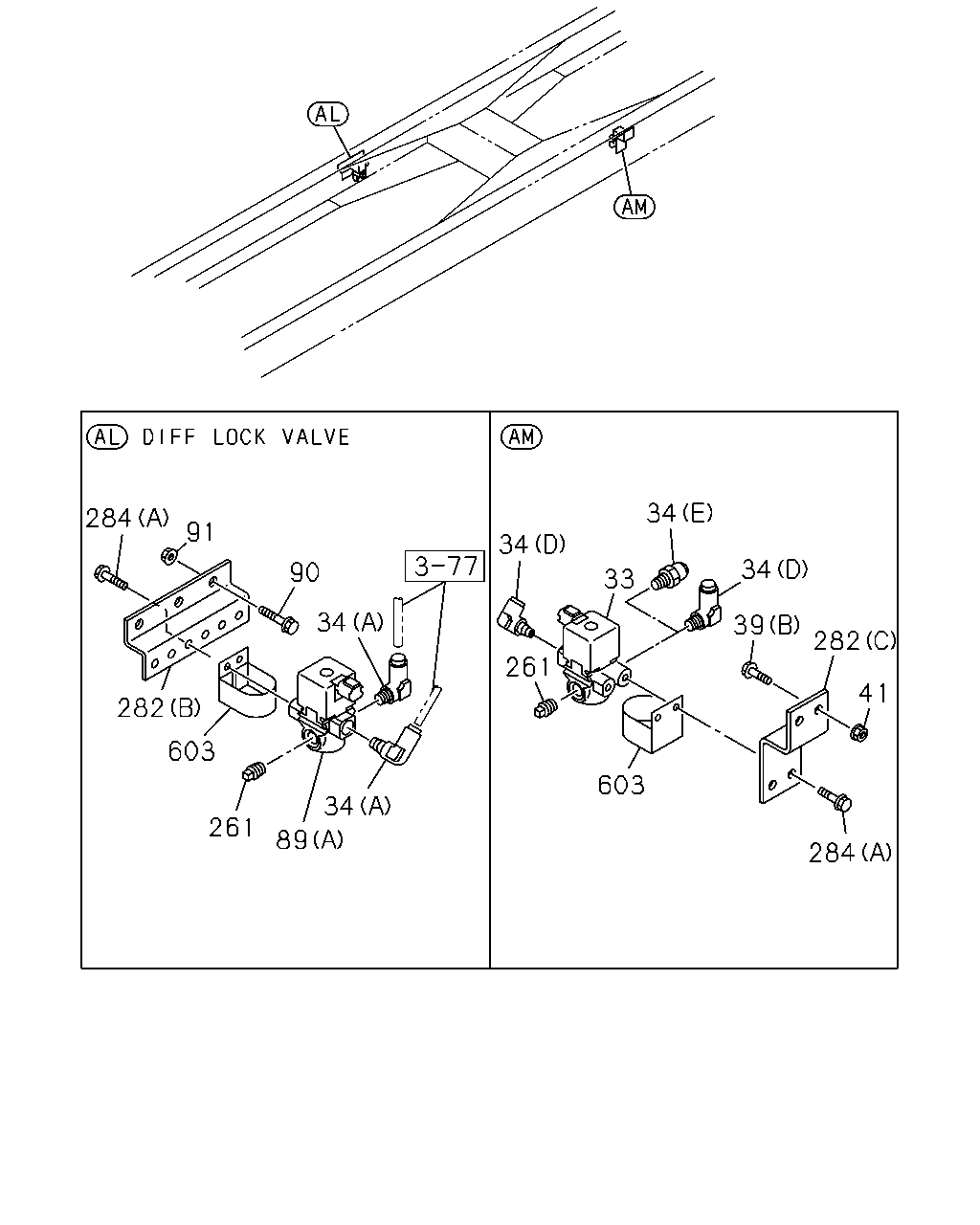

34 284 91 34 34 90 33 34 39 282 261 41 282 603 603 34 261 89 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0610-0610
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0610-0705
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0706-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT MJX12P M/T SMOOTHER-G(Y4S) (C) PT3/8	1-48319-058-0	01	1	0610-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0610-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0610-0610
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0610-0705
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0706-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-0705
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0706-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0610
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0705
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0706-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0610-0610
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0610-0705
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0706-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (C)	1-82564-212-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (D)	1-82564-279-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK MJX12P M/T SMOOTHER-G(Y4S) (B)	1-82564-354-1	01	1	0610-
89	VALVE; MAG,DIFF LOCK (A)	1-82563-871-2	01	1	0610-1205
89	VALVE; MAG,DIFF LOCK (A)	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV M8X25 FLANGE	0-28650-825-0	02	1	0610-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0705
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0706-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	0610-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0610
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0705
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0706-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0610-0610
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	0610-0610
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0610-0705
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	0610-0705
603	PROTECTOR; MAG VLV	1-47471-046-0	01	1	0706-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47471-046-0	01	1	0706-

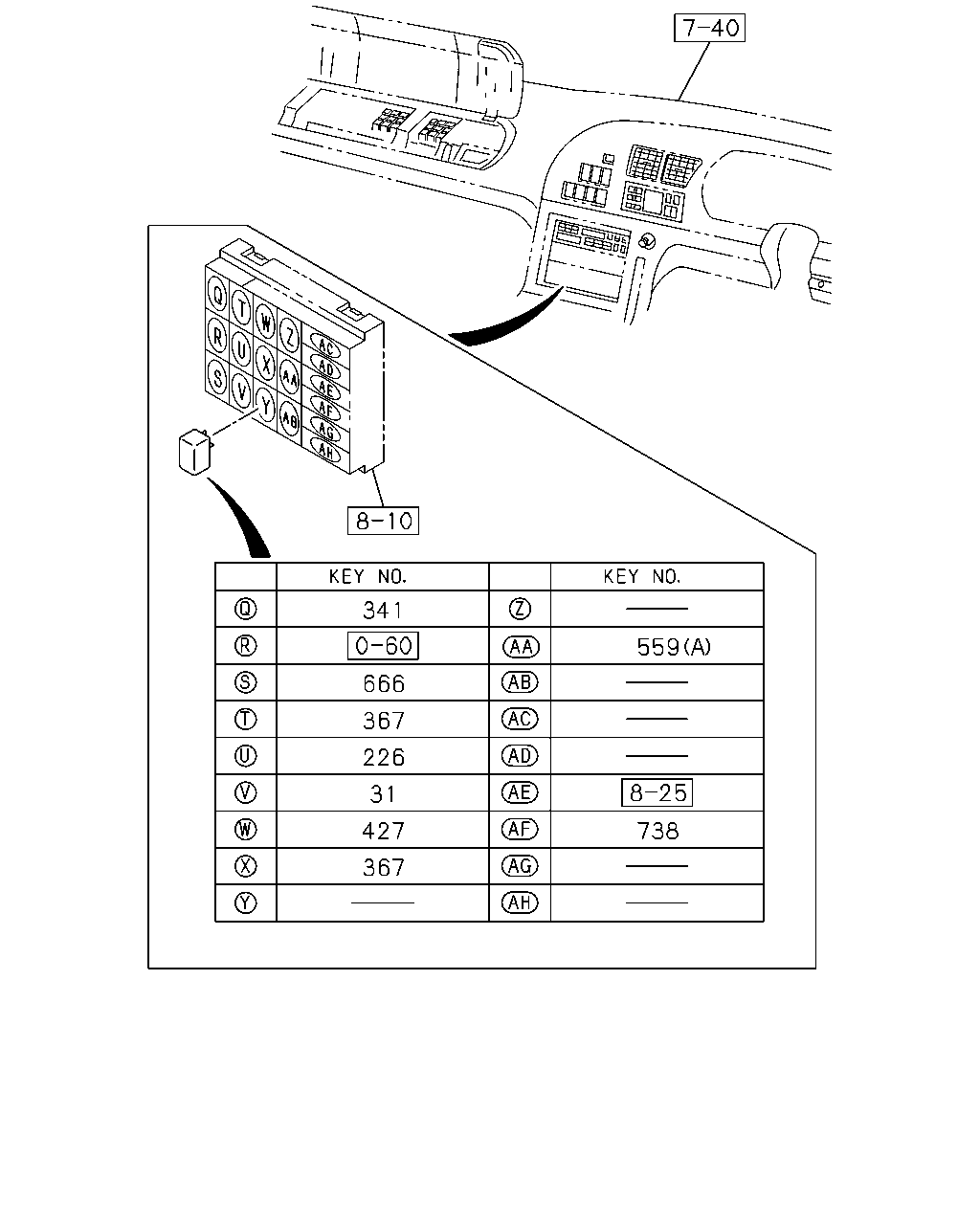

341 559 666 367 226 31 427 738 367

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-0705
31	RELAY; PTO CONT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0706-
226	RELAY; EXH BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
341	RELAY FULL FLOATING CAB(W16) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
367	RELAY; NEUTRAL MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
427	RELAY; RETARDER FOOT BRAKE W/EXHAUST BRAKE<SJB> 24V 10A PANASONIC	8-97173-035-1	01	1	0801-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
559	RELAY; MAG VLV SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0610-
666	RELAY; STARTER SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0610-
738	RELAY; EXH & RETARDER CUT 24V 10A PANASONIC	8-97173-035-1	01	1	0610-

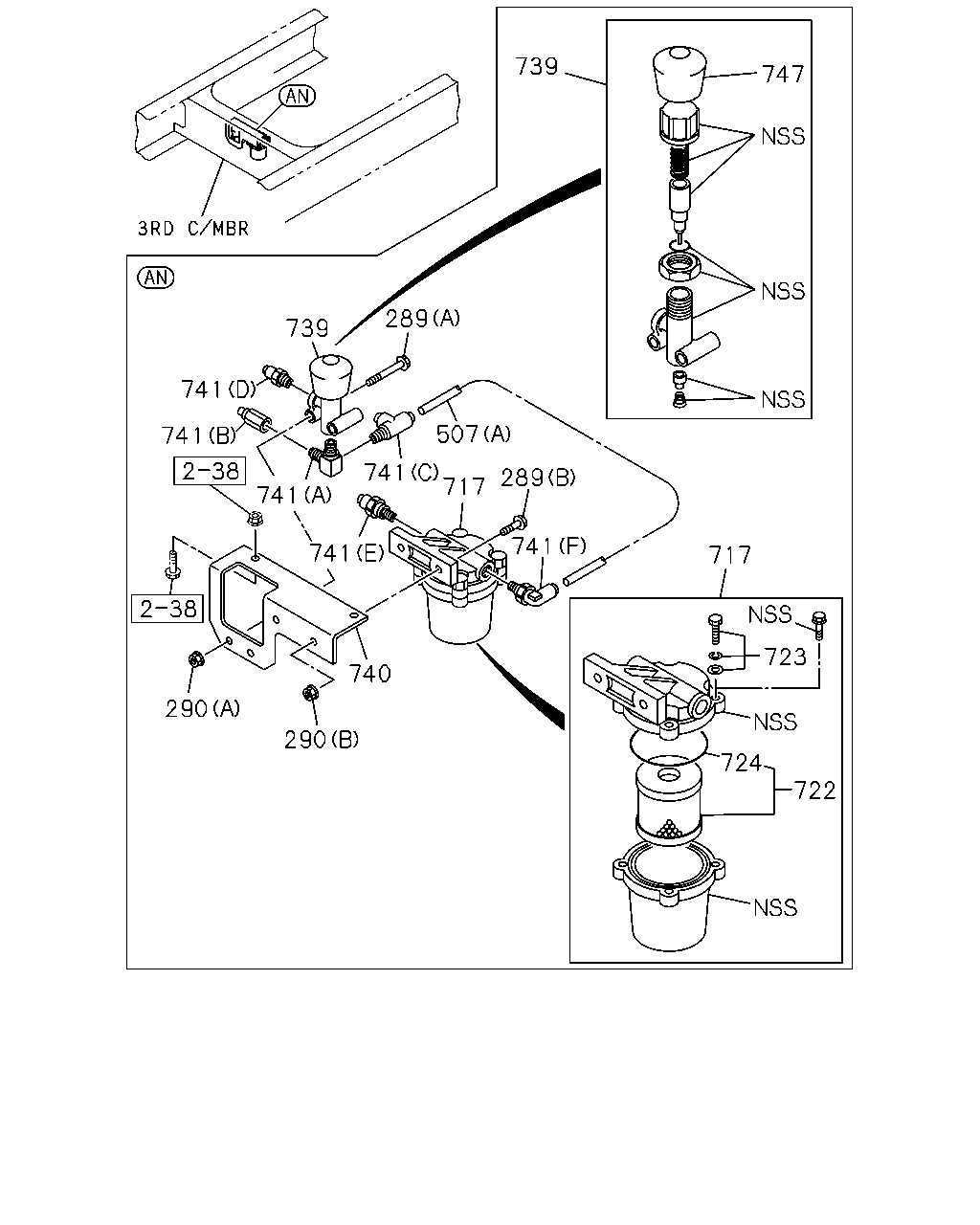

739 747 289 739 741 507 741 741 717 289 741 741 741 717 723 740 290 290 724 722

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (A) M6X50 FLANGE	0-28050-650-0	02	1	0610-
289	BOLT MJX12P M/T SMOOTHER-G(Y4S) (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	02	1	0610-
290	NUT MJX12P M/T SMOOTHER-G(Y4S) (B) M8 FLANGE	0-91180-108-0	02	1	0610-
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87410-081-0	01	1	0610-0806
507	TUBE; NYLON FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0807-
507	TUBE; NYLON MJX12P M/T SMOOTHER-G(Y4S) (A) SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	0610-
717	FILTER; MAG VLV MJX12P M/T SMOOTHER-G(Y4S)	1-33779-032-0	01	1	0610-0708
717	FILTER; MAG VLV MJX12P M/T SMOOTHER-G(Y4S)	8-98092-703-0	01	1	0709-
722	ELEMENT; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-040-0	01	1	0610-
723	BOLT; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-025-0	04	1	0610-0708
724	GASKET; AIR FILTER MJX12P M/T SMOOTHER-G(Y4S)	5-09623-075-0	01	1	0610-
739	VALVE; PRESSURE MJX12P M/T SMOOTHER-G(Y4S)	1-48410-738-0	01	1	0610-
740	BRACKET; FILTER MJX12P M/T SMOOTHER-G(Y4S)	1-33779-042-0	01	1	0610-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (A) PT1/4 & M12 ELBOW	1-09656-665-0	01	1	0610-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0610-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (C) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0610-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (D) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0610-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09661-530-0	01	1	0610-
741	CONNECTOR; NYLON TUBE MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & M16 ELBOW	1-09661-531-0	01	1	0610-
747	BOOT; PRESSURE VALVE MJX12P M/T SMOOTHER-G(Y4S)	1-48419-073-0	01	1	0610-

97 96 39 604 604 604 261 282 284 210 602 96 88 280 210 285 604 635 65 88 275 40 88 450 272 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0610
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0610-0705
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0706-
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	1-53457-199-0	01	1	0610-0611
40	BRACKET; MAG VLV FULL FLOATING CAB(W16) (E)	8-98069-778-0	01	1	0612-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A)	1-47471-076-0	01	1	0610-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C)	1-47479-362-0	01	1	0610-
40	BRACKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B)	1-47479-894-0	01	1	0610-
40	BRACKET; MAG VLV (D)	1-53458-380-0	01	1	0610-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB(W16) (E)	1-53457-180-0	01	1	0610-
65	BOLT; SOCKET FIX M6X16 FLANGE	0-28050-616-0	02	1	0612-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (D) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (E) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-
88	CONNECTOR; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (G) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0610-
88	CONNECTOR; MAG VLV (C) M12 & PT1/4 ELBOW	1-09650-430-0	05	1	0610-
88	CONNECTOR; MAG VLV (A) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
88	CONNECTOR; MAG VLV (B) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
96	BOLT; BRKT FIX M8X25 FLANGE	0-28650-825-0	03	1	0610-
97	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	03	1	0610-
210	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S)	1-82569-266-0	02	1	0610-
210	WASHER; PL,BRKT	1-82569-266-0	06	1	0610-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	02	1	0610-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0610
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0610-0705
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0610-0705
261	PLUG; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) PT1/4	9-99204-513-0	01	1	0706-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0706-
272	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X30 FLANGE	0-28650-830-0	02	1	0610-
272	BOLT; MAG VLV (B) M10X20 FLANGE	0-28651-020-0	02	1	0610-1208
272	BOLT; MAG VLV (B) M10X25 FLANGE	0-28651-025-0	02	1	1209-
275	BOLT; BRKT (A) M8X14 FLANGE	0-28080-814-0	01	1	0610-
275	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0610-
280	CONNECTOR; IN,MAG VLV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0610-
282	BRACKET; MAG VLV (A)	1-82569-298-0	01	1	0610-
282	BRACKET; MAG VLV (B)	1-82569-421-0	01	1	0610-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0610
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0610-0705
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0706-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (B) M6X50 FLANGE	0-28050-650-0	01	1	0610-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M8X14 FLANGE	0-28080-814-0	02	1	0610-
284	BOLT; MAG VLV (B) M6X50 FLANGE	0-28050-650-0	03	1	0610-
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0610
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0610-0705
284	BOLT; MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
284	BOLT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (C) M5	0-91110-505-0	03	1	0610-
285	NUT; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) (A) M6 FLANGE	0-91180-106-0	01	1	0610-
285	NUT; MAG VLV (B) M6 FLANGE	0-91180-106-0	03	1	0610-
450	VALVE; MAG	1-53458-378-2	01	1	0610-
602	GASKET; MAG VLV MJX12P M/T SMOOTHER-G(Y4S) ID=16.8	9-09565-117-0	01	1	0610-
602	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0610-
604	VALVE; MAG,ENG CONT	1-82563-871-2	04	1	0610-
635	SENSOR; PICK UP,INPUT SHAFT MJX12P M/T SMOOTHER-G(Y4S)	1-81510-736-1	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
