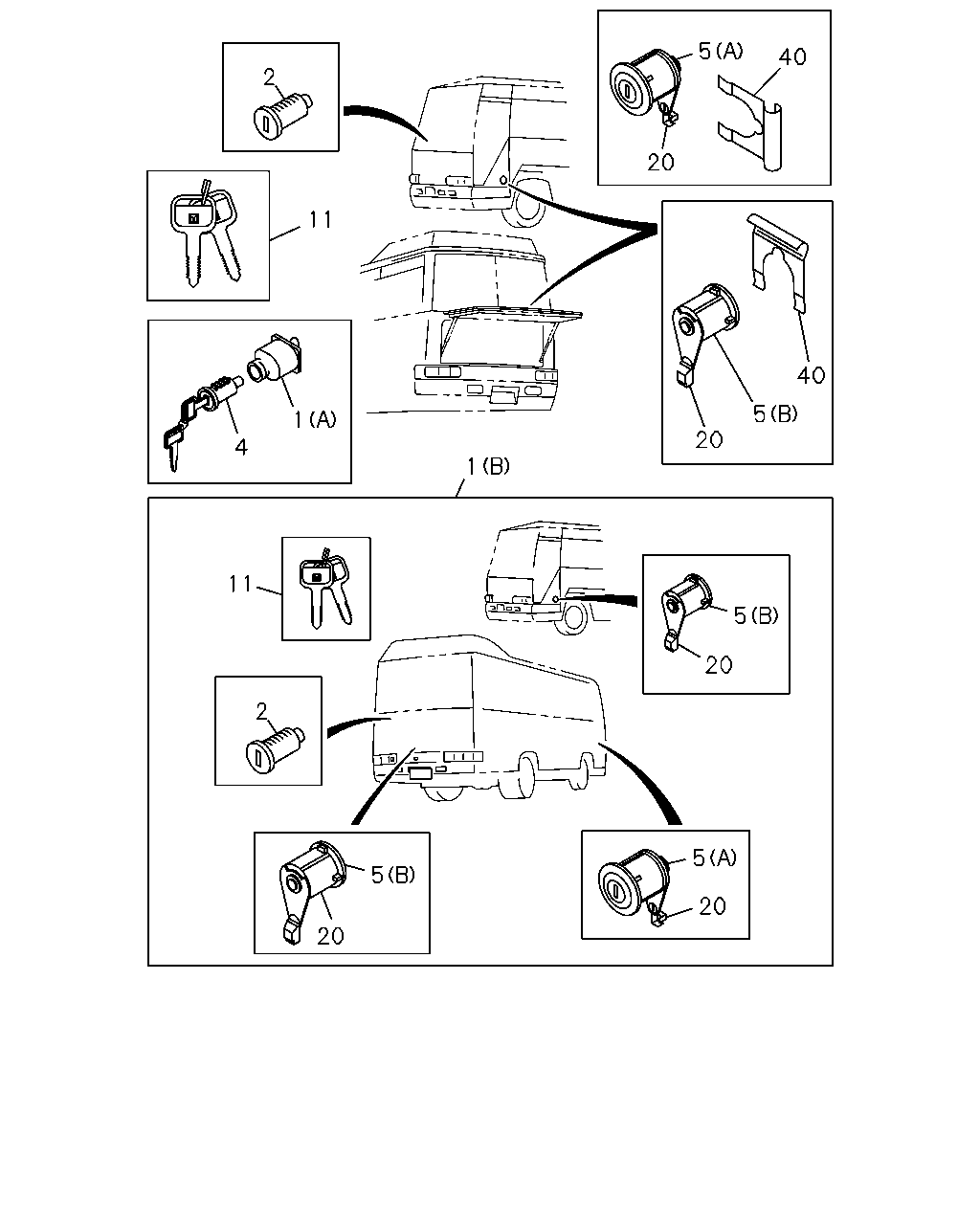

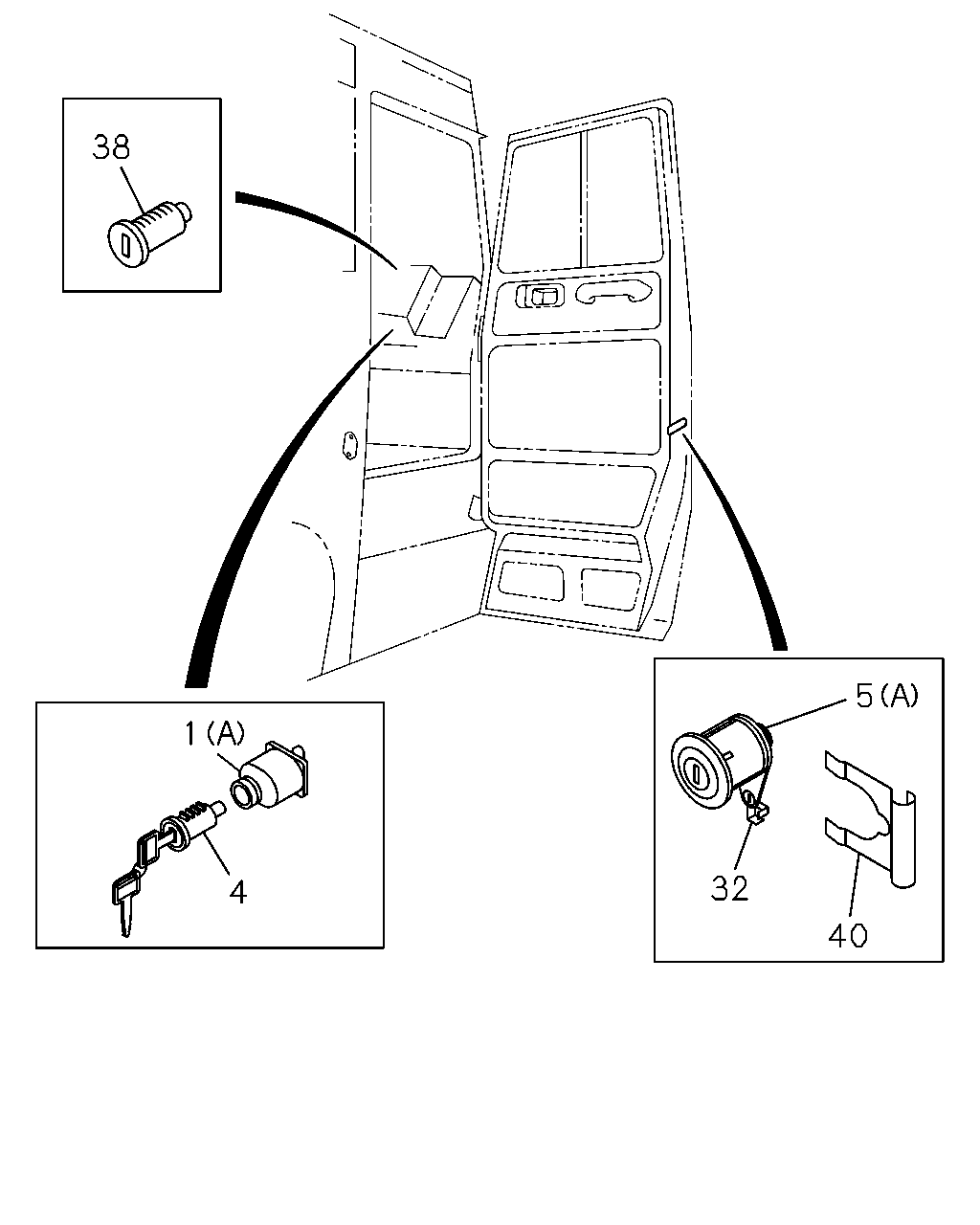

7-30 — LOCK CYLINDER SET (#2701) — 61 parça

38 5 1 32 4 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-009-2	01	1	9101-9603	●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-062-1	01	1	9604-	●
1	CYLINDER SET; CAR LOCK (A)	1-82310-014-1	01	1	9101-	●	●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-010-2	01	1	9101-9603		●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-063-2	01	1	9604-		●
4	BARREL ASM; KEY	1-79130-004-0	01	1	9101-9603	●	●
4	BARREL ASM; KEY	1-79130-050-2	01	1	9604-	●	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-031-0	02	1	9101-9603	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-073-0	02	1	9604-	●	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-030-0	01	1	9101-9603	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-075-0	01	1	9604-	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-033-0	01	1	9101-9603		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-074-0	01	1	9604-		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-034-0	02	1	9101-9603		●
32	BUSHING; DOOR LOCK CYL DOOR PARTS EQUIPMENT<PT8> FOR D=3.5	1-79190-001-0	04	1	9101-9603	●	●
32	BUSHING; DOOR LOCK CYL DOOR PARTS EQUIPMENT<PT8> FOR D=5.0	1-79190-002-0	02	1	9101-9603	●	●
38	LOCK ASM; STRG DOOR PARTS EQUIPMENT<PT8>	1-79130-032-0	01	1	9101-9603	●	●
40	CLIP; CYL LK DOOR PARTS EQUIPMENT<PT8>	1-79137-033-1	03	1	9101-	●	●

5 40 2 20 11 40 5 1 20 4 1 11 5 20 2 5 5 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-009-2	01	1	9101-9603	●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-062-1	01	1	9604-	●
1	CYLINDER SET; CAR LOCK (A)	1-82310-014-1	01	1	9101-	●	●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-010-2	01	1	9101-9603		●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-063-2	01	1	9604-		●
2	BARREL ASM; W/KEY,STRG LOCK DOOR PARTS EQUIPMENT<PT8>	1-79130-049-1	01	1	9604-	●
2	BARREL ASM; W/KEY,STRG LOCK DOOR PARTS EQUIPMENT<PT8>	1-79130-072-0	01	1	9604-		●
4	BARREL ASM; KEY	1-79130-004-0	01	1	9101-9603	●	●
4	BARREL ASM; KEY	1-79130-050-2	01	1	9604-	●	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-031-0	02	1	9101-9603	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-073-0	02	1	9604-	●	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-030-0	01	1	9101-9603	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-075-0	01	1	9604-	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-033-0	01	1	9101-9603		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-074-0	01	1	9604-		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-034-0	02	1	9101-9603		●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8>	1-79137-039-0	AR	1	9101-9603	●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8> W/MOULD	1-79130-066-1	AR	1	9604-	●	●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8>	1-79110-001-0	AR	1	9101-9603		●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8> WO/MOULD	1-79130-068-1	AR	1	9604-	●	●
20	SNAP; DOOR LOCK CYL DOOR PARTS EQUIPMENT<PT8> NATURAL FOR D=3.5	1-79138-167-0	05	1	9604-	●	●
20	SNAP; DOOR LOCK CYL DOOR PARTS EQUIPMENT<PT8> FOR D=5.0	1-79190-002-0	02	1	9604-	●	●
40	CLIP; CYL LK DOOR PARTS EQUIPMENT<PT8>	1-79137-033-1	03	1	9101-	●	●

11 40 5 32 1 11 5 32 38 5 5 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-009-2	01	1	9101-9603	●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-062-1	01	1	9604-	●
1	CYLINDER SET; CAR LOCK (A)	1-82310-014-1	01	1	9101-	●	●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-010-2	01	1	9101-9603		●
1	CYLINDER SET; CAR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-063-2	01	1	9604-		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-031-0	02	1	9101-9603	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-073-0	02	1	9604-	●	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-030-0	01	1	9101-9603	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-075-0	01	1	9604-	●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-033-0	01	1	9101-9603		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (A)	1-79130-074-0	01	1	9604-		●
5	CYLINDER ASM; DOOR LOCK DOOR PARTS EQUIPMENT<PT8> (B)	1-79130-034-0	02	1	9101-9603		●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8>	1-79137-039-0	AR	1	9101-9603	●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8> W/MOULD	1-79130-066-1	AR	1	9604-	●	●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8>	1-79110-001-0	AR	1	9101-9603		●
11	KEY; BLANK DOOR PARTS EQUIPMENT<PT8> WO/MOULD	1-79130-068-1	AR	1	9604-	●	●
32	BUSHING; DOOR LOCK CYL DOOR PARTS EQUIPMENT<PT8> FOR D=3.5	1-79190-001-0	04	1	9101-9603	●	●
32	BUSHING; DOOR LOCK CYL DOOR PARTS EQUIPMENT<PT8> FOR D=5.0	1-79190-002-0	02	1	9101-9603	●	●
38	LOCK ASM; STRG DOOR PARTS EQUIPMENT<PT8>	1-79130-032-0	01	1	9101-9603	●	●
40	CLIP; CYL LK DOOR PARTS EQUIPMENT<PT8>	1-79137-033-1	03	1	9101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
