Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#27004) — 566 parça

16 162 166 470 168 60 16 421 168 421 116 16 218 16 218 212 16 104 16 16 425 16 470 223 104 16 148 16 16 16 104 16 462 284

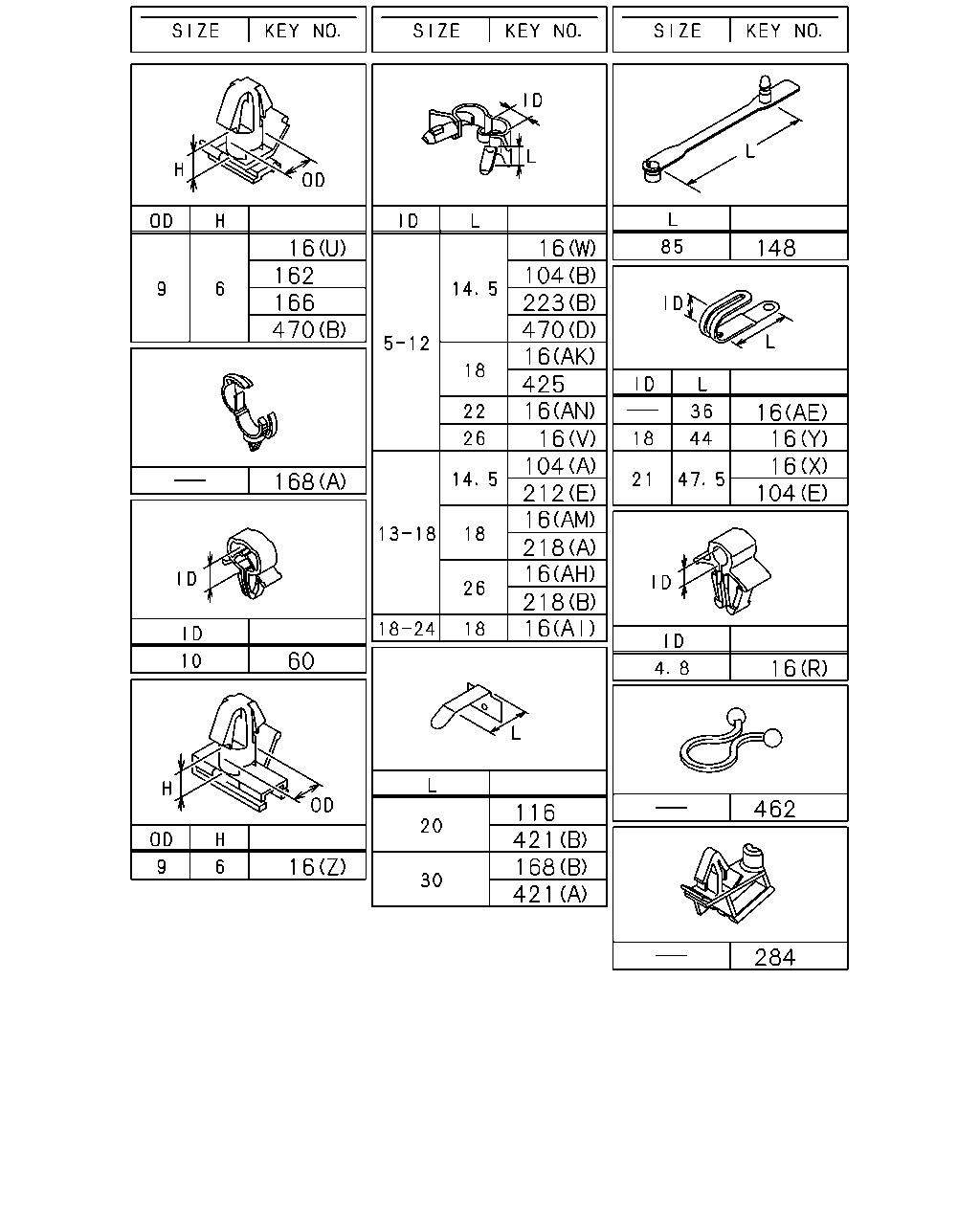

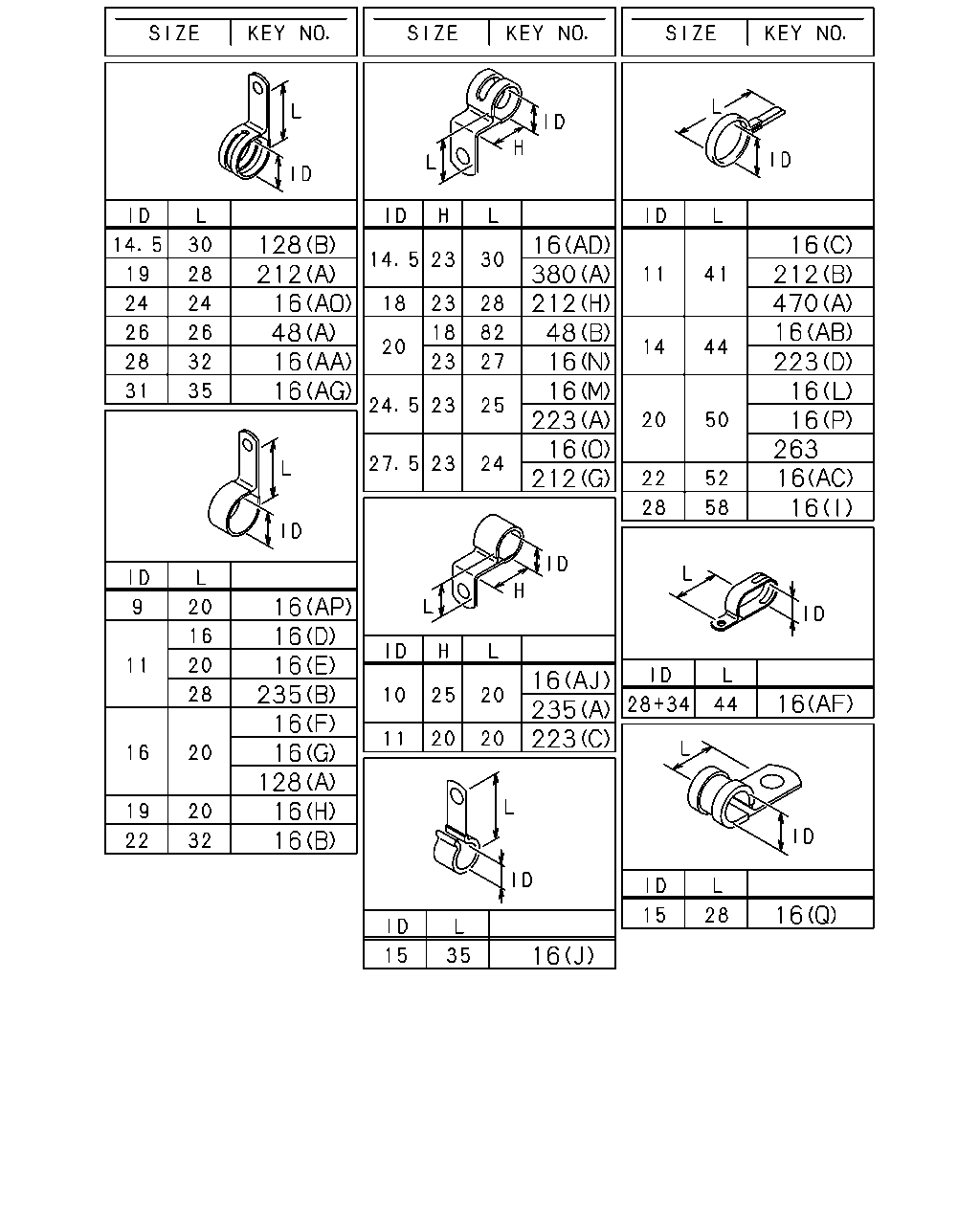

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AP) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS FACE LIFT<6NL> (AO) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AK) ID=5-12 L=18	1-09709-287-0	02	1	0707-
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS SMOOTHER-G(C1W) (S) L=180	1-09707-162-1	04	1	0611-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	02	1	0612-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	0612-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AH) ID=13-18 L=26	1-09709-293-0	05	1	0612-
16	CLIP; HARNESS SMOOTHER-G(C1W) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=28+34 L=44	1-09701-311-0	01	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=22 L=52	9-09917-431-0	01	1	0610-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (G) ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (K) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (Y) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0706-0801
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0802-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AE) L=36	8-94224-891-1	01	1	0610-0701
16	CLIP; HARNESS SMOOTHER-G(C1W) (AE) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS MJT7 M/T<Y9E> (AD) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0610-
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	0610-1409
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (B) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	0610-0610
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	14	1	0611-0806
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	16	1	0807-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	14	1	1410-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-
16	CLIP; HARNESS (AA) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (AA) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (S) L=180	1-09707-162-1	08	1	0610-0610
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0610-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	05	1	0610-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1410-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	07	1	0610-0805
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0806-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0610-1409
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1410-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	04	1	0610-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	0610-0806
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	0807-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	16	1	0610-1409
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0610-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS EXC. MIXER TRUCK<RA2> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	0610-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	04	1	0610-0610
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AJ) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
16	CLIP; HARNESS (F) ID=16 L=20	0-95235-535-0	01	1	0610-0610
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0610-0611
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	0612-0706
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0707-0907
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AK) ID=5-12 L=18	1-09709-287-0	01	1	0707-0907
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0908-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AK) ID=5-12 L=18	1-09709-287-0	01	1	0908-
16	CLIP; HARNESS (J) ID=15 L=35	1-09700-507-0	01	1	0610-0610
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	02	1	0610-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	04	1	0610-0610
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	03	1	0610-0611
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	02	1	0612-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) ID=16 L=20	0-95235-535-0	01	1	0610-
60	CLIP; CONSOLE HARNESS,SW PTO DUMP CONTROL LEVER<RC4> ID=10	8-94450-392-0	01	1	0610-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0610-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	0610-
104	CLIP; HEADLAMP HARNESS (E) ID=21 L=47.5	8-94178-108-0	02	1	0610-0710
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0610-1409
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	0610-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0610-
166	CLIP; HARNESS CLU SW EXC. SMOOTHER-G(C1W) OD=9 H=6	1-09709-178-0	01	1	0610-
168	CLIP; DASH HARNESS (A) ID=6 & 10-13	8-97069-515-0	06	1	0610-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE	1-09987-265-0	01	1	0610-
212	CLIP; HORN HARNESS SMOOTHER-G(C1W) (G) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0610-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	03	1	0610-
212	CLIP; HORN HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	04	1	0610-0904
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	03	1	0905-
212	CLIP; HORN HARNESS EXC. SMOOTHER-G(C1W) (H) ID=18 H=23 L=28	1-09700-860-0	03	1	0610-
218	CLIP; BAND,RR COMB WHEEL BASE 6300MM(63W) (A) ID=13-18 L=18	1-09709-291-0	04	1	0612-
218	CLIP; BAND,RR COMB WHEEL BASE 6600MM(66W) (A) ID=13-18 L=18	1-09709-291-0	06	1	0612-
218	CLIP; BAND,RR COMB WHEEL BASE 6300MM(63W) (B) ID=13-18 L=26	1-09709-293-0	05	1	0610-0611
218	CLIP; BAND,RR COMB WHEEL BASE 6300MM(63W) (B) ID=13-18 L=26	1-09709-293-0	01	1	0612-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0610-0610
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0610-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0610-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
284	CLIP; HARNESS,GLOW PLUG SINGAPORE EQUIPMENT(WQ3)	1-82699-327-0	01	1	1210-
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE	1-09987-265-0	05	1	0610-
421	CLIP; FLOOR HARNESS EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	0610-
425	CLIP; MODULATOR ID=5-12 L=18	1-09709-287-0	02	1	0610-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20	1-09709-068-0	02	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	02	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

255 524 24 219 294 340 515 552 219 294 515 423 119 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	01	1	0610-
119	SCREW; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER	8-94447-551-0	02	1	0610-
219	NUT SMOOTHER-G(C1W) (B) M10 FLANGE	0-91180-210-0	01	1	0610-0610
219	NUT (A) M8 FLANGE	0-91180-108-0	27	1	0610-1409
219	NUT (A) M8 FLANGE	0-91180-108-0	26	1	1410-
219	NUT EXC. MIXER TRUCK<RA2> (A) M8 FLANGE	0-91180-108-0	01	1	0610-1409
219	NUT EXC. MIXER TRUCK<RA2> (A) M8 FLANGE	0-91180-108-0	02	1	1410-
219	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1410-
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74365-620-0	02	1	0610-0610
294	NUT ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE	0-91180-108-0	04	1	0610-
294	NUT SMOOTHER-G(C1W) (A) M8 FLANGE	0-91180-108-0	02	1	0610-
294	NUT MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (B) M10 FLANGE	0-91180-210-0	01	1	0610-
294	NUT (A) M8 FLANGE	0-91180-108-0	10	1	0610-
340	NUT; HARNESS CAB TO FRAME EXC. FACE LIFT<6NL> (A) M8 FLANGE	0-91180-108-0	01	1	0806-
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	02	1	0610-0610
340	NUT; HARNESS CAB TO FRAME (A) M8 FLANGE	0-91180-108-0	01	1	0611-0805
340	NUT; HARNESS CAB TO FRAME FACE LIFT<6NL> (A) M8 FLANGE	0-91180-108-0	05	1	0806-0811
340	NUT; HARNESS CAB TO FRAME FACE LIFT<6NL> (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0812-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	05	1	0610-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0610-
515	NUT; BRKT (B) M10 FLANGE	0-91180-110-0	02	1	0610-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0610-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0610-

516 139 38 242 528 139 150 38 242 38 242 313 38 38 242 386 480 38 242 313 86 139 242 313 38 64 242 242 139 239 38 358 88 133 358 239 38 358 88

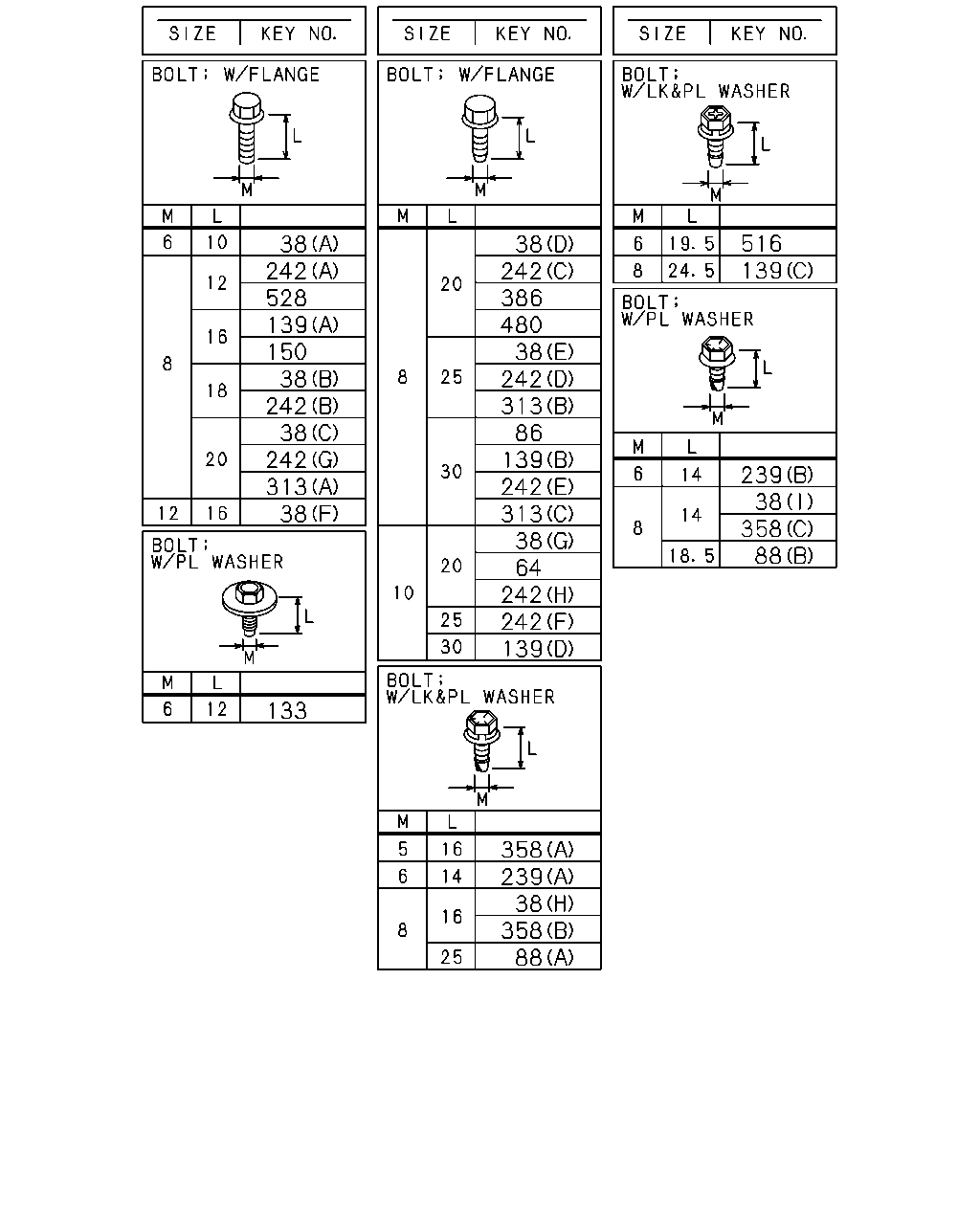

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X20 FLANGE	0-28650-820-0	02	1	0610-
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (E) M8X25 FLANGE	0-28650-825-0	01	1	0610-
38	BOLT; CLIP,HARNESS MJT7 M/T<Y9E> (D) M8X20 FLANGE	0-28650-820-0	04	1	0610-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0610-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	02	1	0610-
38	BOLT; CLIP,HARNESS (B) M8X18 FLANGE	0-28080-818-0	04	1	0610-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0610-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	07	1	0610-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	02	1	0610-
38	BOLT; CLIP,HARNESS (G) M10X20 FLANGE	0-28751-020-0	01	1	0610-
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0610-1105
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0610-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
64	SCREW; CLIP SMOOTHER-G(C1W) M10X20 FLANGE	0-28751-020-0	02	1	0610-
86	BOLT; CLIP BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0610-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0610-1007
88	BOLT; DOOR HARNESS EARTH AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0610-1007
88	BOLT; DOOR HARNESS EARTH EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0610-
139	BOLT; BRKT (D) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X30 FLANGE	0-28650-830-0	04	1	0610-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0610-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0610-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0610-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0610-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0610-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS FACE LIFT<6NL> (G) M8X20 FLANGE	0-28050-820-0	04	1	0806-
242	BOLT; BRKT,HARNESS FACE LIFT<6NL> (H) M10X20 FLANGE	0-28651-020-0	02	1	0806-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0610-
242	BOLT; BRKT,HARNESS (B) M8X18 FLANGE	0-28080-818-0	01	1	0610-0805
242	BOLT; BRKT,HARNESS EXC. FACE LIFT<6NL> (B) M8X18 FLANGE	0-28080-818-0	01	1	0806-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	0610-0805
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	04	1	0806-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	05	1	0610-0805
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	0806-
242	BOLT; BRKT,HARNESS EXC. FACE LIFT<6NL> (C) M8X20 FLANGE	0-28650-820-0	01	1	0806-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	0610-
242	BOLT; BRKT,HARNESS (E) M8X30 FLANGE	0-28650-830-0	01	1	0610-
242	BOLT; BRKT,HARNESS (F) M10X25 FLANGE	0-28651-025-0	02	1	0610-
242	BOLT; BRKT,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0610-0903
242	BOLT; BRKT,HARNESS (E) M8X30 FLANGE	0-28680-830-0	01	1	0610-0811
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0610-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	05	1	0610-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0610-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0610-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
386	BOLT; GRAND HARNESS M8X20 FLANGE	0-28650-820-0	01	1	0610-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0610-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0610-
528	BOLT; CONNECTOR SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	01	1	0610-

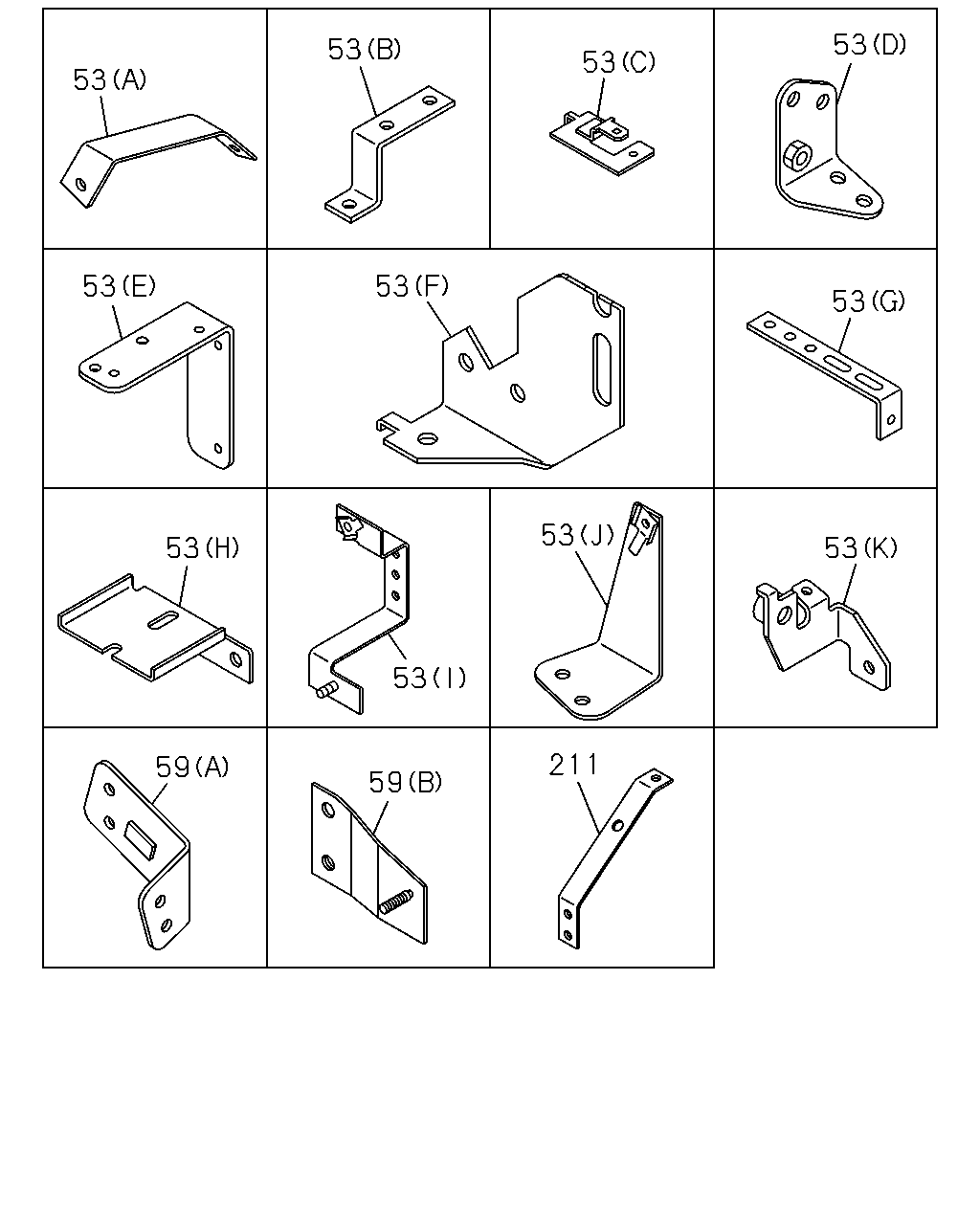

53 53 53 53 53 53 53 53 53 53 53 211 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (K)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-98124-778-0	01	1	0908-
53	BRACKET; HARNESS FACE LIFT<6NL> (H)	8-98032-696-0	01	1	0806-
53	BRACKET; HARNESS FACE LIFT<6NL> (I)	8-98050-989-0	01	1	0806-
53	BRACKET; HARNESS FACE LIFT<6NL> (J)	8-98052-592-0	01	1	0806-
53	BRACKET; HARNESS (D)	8-97610-339-1	01	1	0610-
53	BRACKET; HARNESS (E)	8-97610-340-1	01	1	0610-
53	BRACKET; HARNESS (A)	1-47479-537-0	09	1	0610-
53	BRACKET; HARNESS (G) L=160 H=30	1-47479-759-0	01	1	0610-
53	BRACKET; HARNESS (B)	1-82698-382-0	01	1	0610-0907
53	BRACKET; HARNESS EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-82698-382-0	01	1	0908-
53	BRACKET; HARNESS (C)	1-82698-495-2	01	1	0610-
53	BRACKET; HARNESS (F)	8-97610-991-0	01	1	0610-0805
53	BRACKET; HARNESS EXC. FACE LIFT<6NL> (F)	8-97610-991-0	01	1	0806-
59	BRACKET; FRAME HARNESS SMOOTHER-G(C1W) FACE LIFT<6NL> (B)	8-98061-135-1	01	1	0806-0807
59	BRACKET; FRAME HARNESS SMOOTHER-G(C1W) FACE LIFT<6NL> (B)	8-98061-135-1	01	1	0810-
59	BRACKET; FRAME HARNESS (A)	1-82698-531-0	01	1	0610-
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	1-47479-430-0	02	1	0610-

128 212 16 48 16 16 16 212 470 16 223 16 16 263 16 16 16 380 212 48 16 16 223 16 212 16 16 16 235 16 16 128 16 16 16 235 223 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AP) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS FACE LIFT<6NL> (AO) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AK) ID=5-12 L=18	1-09709-287-0	02	1	0707-
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS SMOOTHER-G(C1W) (S) L=180	1-09707-162-1	04	1	0611-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	02	1	0612-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	0612-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AH) ID=13-18 L=26	1-09709-293-0	05	1	0612-
16	CLIP; HARNESS SMOOTHER-G(C1W) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=28+34 L=44	1-09701-311-0	01	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=22 L=52	9-09917-431-0	01	1	0610-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (G) ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (K) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (Y) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0706-0801
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0802-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AE) L=36	8-94224-891-1	01	1	0610-0701
16	CLIP; HARNESS SMOOTHER-G(C1W) (AE) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS MJT7 M/T<Y9E> (AD) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0610-
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	0610-1409
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (B) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	0610-0610
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	14	1	0611-0806
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	16	1	0807-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	14	1	1410-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-
16	CLIP; HARNESS (AA) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (AA) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (S) L=180	1-09707-162-1	08	1	0610-0610
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0610-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	05	1	0610-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1410-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	07	1	0610-0805
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0806-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0610-1409
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1410-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	04	1	0610-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	0610-0806
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	0807-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	16	1	0610-1409
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0610-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS EXC. MIXER TRUCK<RA2> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	0610-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	04	1	0610-0610
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AJ) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
16	CLIP; HARNESS (F) ID=16 L=20	0-95235-535-0	01	1	0610-0610
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0610-0611
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	0612-0706
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0707-0907
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AK) ID=5-12 L=18	1-09709-287-0	01	1	0707-0907
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0908-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AK) ID=5-12 L=18	1-09709-287-0	01	1	0908-
16	CLIP; HARNESS (J) ID=15 L=35	1-09700-507-0	01	1	0610-0610
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	02	1	0610-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	04	1	0610-0610
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	03	1	0610-0611
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	02	1	0612-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) ID=16 L=20	0-95235-535-0	01	1	0610-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0610-0611
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0612-
48	CLIP; FRAME HARNESS (D) L=250	5-09707-030-1	06	1	0610-0611
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0610-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0610-
212	CLIP; HORN HARNESS SMOOTHER-G(C1W) (G) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0610-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	03	1	0610-
212	CLIP; HORN HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	04	1	0610-0904
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	03	1	0905-
212	CLIP; HORN HARNESS EXC. SMOOTHER-G(C1W) (H) ID=18 H=23 L=28	1-09700-860-0	03	1	0610-
223	CLIP; AIR TANK HARNESS (D) ID=14 L=44	9-09917-427-0	02	1	0610-0610
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0610-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0610-
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	5-09700-351-0	04	1	0610-0707
223	CLIP; AIR TANK HARNESS (C) ID=11 H=20 L=20	8-98033-780-0	04	1	0708-
235	CLIP; HARNESS,SPD SENSOR,SSPS SMOOTHER-G(C1W) (B) ID=11 L=28	9-09917-544-0	01	1	0610-0610
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX12P M/T SMOOTHER-G(Y4S) (A) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-0610
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0610-
380	CLIP; EARTH HARNESS (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0610-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	02	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

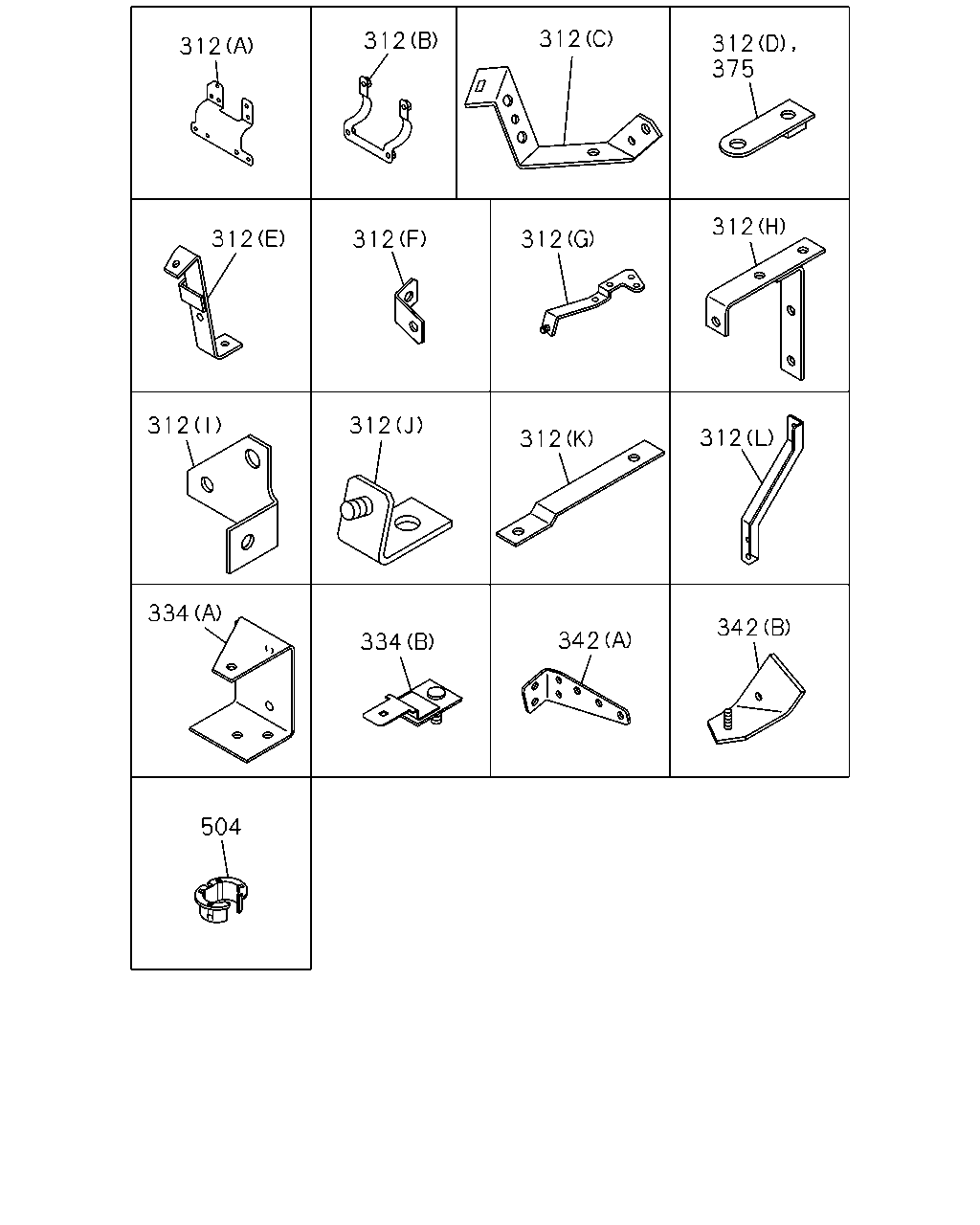

312 312 312 375 312 312 312 312 312 312 312 312 312 334 342 342 334 504

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS FACE LIFT<6NL> (K)	8-98035-927-1	01	1	0806-
312	BRACKET; CLIP HARNESS FACE LIFT<6NL> (L)	8-98052-591-0	01	1	0806-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (I)	1-82698-570-0	01	1	0610-
312	BRACKET; CLIP HARNESS MJX12P M/T SMOOTHER-G(Y4S) SMOOTHER-G(C1W) (J)	1-82698-586-0	01	1	0610-
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (D)	1-82699-182-0	01	1	0610-
312	BRACKET; CLIP HARNESS MJT7 M/T<Y9E> (H)	1-82698-479-0	01	1	0610-
312	BRACKET; CLIP HARNESS (A)	1-82698-474-1	01	1	0610-0805
312	BRACKET; CLIP HARNESS EXC. FACE LIFT<6NL> (A)	1-82698-474-1	01	1	0806-
312	BRACKET; CLIP HARNESS (B)	1-82698-476-0	01	1	0610-0805
312	BRACKET; CLIP HARNESS EXC. FACE LIFT<6NL> (B)	1-82698-476-0	01	1	0806-
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0610-
312	BRACKET; CLIP HARNESS (C)	1-82698-556-0	01	1	0610-
312	BRACKET; CLIP HARNESS (F)	1-82699-199-0	01	1	0610-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER MANUAL CONTROL(C60) (G)	1-82698-443-0	01	1	0610-
334	BRACKET SMOOTHER-G(C1W) (B)	1-82698-543-0	01	1	0610-
334	BRACKET (A)	1-53457-153-2	01	1	0610-
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0610-
342	BRACKET; HARNESS CAB MTG EXC. MIXER TRUCK<RA2> (B)	1-47479-974-0	01	1	0610-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0610-
504	PROTECTOR; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-82698-391-0	02	1	0806-

16 51 67 104 111 171 206 212 305 369 16 48 102 104 142 171 194 227 305 369 380 470 16 305 14 194 212 14 16 48 102 171 194 212 16 51 142 194 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	01	1	0610-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0610-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0610-
16	CLIP; HARNESS (AP) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS FACE LIFT<6NL> (AO) ID=24 L=24	1-09701-001-1	01	1	0806-1002
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (K) L=250	5-09707-030-1	02	1	0806-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AK) ID=5-12 L=18	1-09709-287-0	02	1	0707-
16	CLIP; HARNESS MIXER TRUCK<RA2> (H) ID=19 L=20	0-95235-836-0	01	1	0702-
16	CLIP; HARNESS (AL) L=251	8-97619-917-0	03	1	0611-
16	CLIP; HARNESS SMOOTHER-G(C1W) (S) L=180	1-09707-162-1	04	1	0611-
16	CLIP; HARNESS FULL FLOATING CAB(W16) (S) L=180	1-09707-162-1	01	1	0611-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (S) L=180	1-09707-162-1	03	1	0611-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	02	1	0612-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AM) ID=13-18 L=18	1-09709-291-0	01	1	0612-
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AH) ID=13-18 L=26	1-09709-293-0	05	1	0612-
16	CLIP; HARNESS SMOOTHER-G(C1W) (O) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AF) ID=28+34 L=44	1-09701-311-0	01	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AC) ID=22 L=52	9-09917-431-0	01	1	0610-
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	05	1	0610-1105
16	CLIP; HARNESS (E) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (G) ID=16 L=20	0-95235-536-0	02	1	0610-
16	CLIP; HARNESS (H) ID=19 L=20	0-95235-836-0	03	1	0610-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	12	1	0610-0610
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0611-0701
16	CLIP; HARNESS (K) L=250	5-09707-030-1	10	1	0702-0704
16	CLIP; HARNESS (K) L=250	5-09707-030-1	09	1	0705-1205
16	CLIP; HARNESS (K) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (X) ID=21 L=47.5	8-94178-108-0	03	1	0610-
16	CLIP; HARNESS (Y) ID=18 L=44	8-94225-185-0	05	1	0610-0801
16	CLIP; HARNESS (Y) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS (O) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0610-
16	CLIP; HARNESS TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0610-0705
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0706-0801
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (K) L=250	5-09707-030-1	01	1	0802-
16	CLIP; HARNESS SMOOTHER-G(C1W) (U) OD=9 H=6	1-09709-178-0	07	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AI) ID=18-24 L=18	1-09709-294-0	01	1	0610-
16	CLIP; HARNESS SMOOTHER-G(C1W) (AE) L=36	8-94224-891-1	01	1	0610-0701
16	CLIP; HARNESS SMOOTHER-G(C1W) (AE) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS (AE) L=36	8-94224-891-1	01	1	0702-
16	CLIP; HARNESS MJT7 M/T<Y9E> (AD) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0610-
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	0610-1409
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS MJT7 M/T<Y9E> (U) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (D) ID=11 L=16	0-95235-025-0	02	1	0610-
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (B) ID=22 L=32	1-09700-126-1	01	1	0806-1002
16	CLIP; HARNESS (B) ID=22 L=32	1-09700-126-1	01	1	1003-
16	CLIP; HARNESS (I) ID=28 L=58	1-09700-400-0	04	1	0610-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	13	1	0610-0610
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	14	1	0611-0806
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	16	1	0807-1409
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	14	1	1410-
16	CLIP; HARNESS (L) ID=20 L=50	1-09700-679-1	01	1	0610-
16	CLIP; HARNESS (M) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0610-
16	CLIP; HARNESS (AA) ID=28 L=32	1-09701-107-1	02	1	0610-0805
16	CLIP; HARNESS EXC. FACE LIFT<6NL> (AA) ID=28 L=32	1-09701-107-1	02	1	0806-1002
16	CLIP; HARNESS (R) ID=4.8	1-09701-218-0	01	1	0610-1409
16	CLIP; HARNESS (S) L=180	1-09707-162-1	08	1	0610-0610
16	CLIP; HARNESS (S) L=180	1-09707-162-1	02	1	0611-
16	CLIP; HARNESS (T) L=350	1-09707-183-0	05	1	0610-
16	CLIP; HARNESS (U) OD=9 H=6	1-09709-178-0	05	1	0610-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	03	1	0610-1409
16	CLIP; HARNESS (W) ID=5-12 L=14.5	1-09987-221-0	04	1	1410-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	07	1	0610-0805
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0806-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0610-1409
16	CLIP; HARNESS (A) L=140	5-09707-031-1	01	1	1410-
16	CLIP; HARNESS (Z) OD=9 H=6	8-97368-793-0	04	1	0610-
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	03	1	0610-0806
16	CLIP; HARNESS (AB) ID=14 L=44	9-09917-427-0	02	1	0807-
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	16	1	0610-1409
16	CLIP; HARNESS (P) ID=20 L=50	9-09917-430-0	08	1	1410-
16	CLIP; HARNESS (AC) ID=22 L=52	9-09917-431-0	03	1	0610-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0610-0701
16	CLIP; HARNESS EXC. MIXER TRUCK<RA2> (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (N) ID=20 H=23 L=27	1-09700-861-0	01	1	0702-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS (Q) ID=15 L=28	1-09701-216-0	01	1	0610-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (AG) ID=31 L=35	1-09700-329-1	01	1	0610-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AH) ID=13-18 L=26	1-09709-293-0	04	1	0610-0610
16	CLIP; HARNESS MJX12P M/T SMOOTHER-G(Y4S) (AJ) ID=10 H=25 L=20	1-09700-519-0	01	1	0610-
16	CLIP; HARNESS (F) ID=16 L=20	0-95235-535-0	01	1	0610-0610
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0610-0611
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	02	1	0612-0706
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0707-0907
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) (AK) ID=5-12 L=18	1-09709-287-0	01	1	0707-0907
16	CLIP; HARNESS (AK) ID=5-12 L=18	1-09709-287-0	01	1	0908-
16	CLIP; HARNESS WHEEL BASE 6300MM(63W) EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (AK) ID=5-12 L=18	1-09709-287-0	01	1	0908-
16	CLIP; HARNESS (J) ID=15 L=35	1-09700-507-0	01	1	0610-0610
16	CLIP; HARNESS (AI) ID=18-24 L=18	1-09709-294-0	02	1	0610-
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	04	1	0610-0610
16	CLIP; HARNESS (V) ID=5-12 L=26	1-09709-289-0	03	1	0610-0611
16	CLIP; HARNESS (AN) ID=5-12 L=22	1-09709-288-0	02	1	0612-
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (F) ID=16 L=20	0-95235-535-0	01	1	0610-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0610-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0610-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	09	1	0610-0611
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0612-
48	CLIP; FRAME HARNESS (D) L=250	5-09707-030-1	06	1	0610-0611
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180	1-09707-162-1	01	1	0610-1209
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (A) L=180	1-09707-162-1	01	1	1210-
51	CLIP; COOLER CMPR SINGAPORE EQUIPMENT(WQ3) (A) L=180	1-09707-162-1	01	1	1210-
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	01	1	0610-1209
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (B) L=140	5-09707-031-1	01	1	1210-
51	CLIP; COOLER CMPR SINGAPORE EQUIPMENT(WQ3) (B) L=140	5-09707-031-1	01	1	1210-
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140	5-09707-031-1	01	1	0610-
102	CLIP; BAND SMOOTHER-G(C1W) (B) L=250	5-09707-030-1	01	1	0610-
102	CLIP; BAND (A) L=350	1-09707-183-0	01	1	0610-
104	CLIP; HEADLAMP HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	04	1	0707-
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0610-
104	CLIP; HEADLAMP HARNESS (C) L=250	5-09707-030-1	02	1	0610-
104	CLIP; HEADLAMP HARNESS (D) L=140	5-09707-031-1	06	1	0610-
104	CLIP; HEADLAMP HARNESS (E) ID=21 L=47.5	8-94178-108-0	02	1	0610-0710
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0610-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0610-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0610-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
171	CLIP; STARTER HARNESS FACE LIFT<6NL> (C) L=350	1-09707-183-0	02	1	0806-
171	CLIP; STARTER HARNESS EXC. FACE LIFT<6NL> (A) L=250	5-09707-030-1	05	1	0806-
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	05	1	0610-0805
171	CLIP; STARTER HARNESS FACE LIFT<6NL> (A) L=250	5-09707-030-1	04	1	0806-
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	06	1	0610-0805
171	CLIP; STARTER HARNESS EXC. FACE LIFT<6NL> (B) L=140	5-09707-031-1	06	1	0806-
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0610-
194	CLIP; BAND (B) L=180	1-09707-162-1	01	1	0610-
194	CLIP; BAND (C) L=350	1-09707-183-0	09	1	0610-1202
194	CLIP; BAND (C) L=350	1-09707-183-0	10	1	1203-1409
194	CLIP; BAND (C) L=350	1-09707-183-0	08	1	1410-
194	CLIP; BAND (D) L=250	5-09707-030-1	01	1	0610-1409
194	CLIP; BAND SMOOTHER-G(C1W) (D) L=250	5-09707-030-1	06	1	0610-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0610-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0610-
212	CLIP; HORN HARNESS SMOOTHER-G(C1W) (G) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0610-
212	CLIP; HORN HARNESS (A) ID=19 L=28	0-95235-856-0	01	1	0610-
212	CLIP; HORN HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0610-
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0610-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	03	1	0610-
212	CLIP; HORN HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0610-
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	04	1	0610-0904
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	03	1	0905-
212	CLIP; HORN HARNESS EXC. SMOOTHER-G(C1W) (H) ID=18 H=23 L=28	1-09700-860-0	03	1	0610-
227	CLIP; FOG LAMP HARNESS L=250	5-09707-030-1	01	1	0610-
305	CLIP; ENG HARNESS SINGAPORE EQUIPMENT(WQ3) (B) L=382	1-09707-196-0	01	1	1210-
305	CLIP; ENG HARNESS SINGAPORE EQUIPMENT(WQ3) (C) L=250	5-09707-030-1	01	1	1210-
305	CLIP; ENG HARNESS SINGAPORE EQUIPMENT(WQ3) (A) L=140	5-09707-031-1	01	1	1210-
305	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	03	1	0610-
369	CLIP; BAND EDS HARNESS (B) L=250	5-09707-030-1	02	1	0610-1409
369	CLIP; BAND EDS HARNESS (B) L=250	5-09707-030-1	01	1	1410-
369	CLIP; BAND EDS HARNESS (A) L=140	5-09707-031-1	02	1	0610-
380	CLIP; EARTH HARNESS (A) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0610-
380	CLIP; EARTH HARNESS (B) L=250	5-09707-030-1	03	1	0610-
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	02	1	0907-1111
470	CLIP; HARNESS,LICENSE LAMP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) L=250	5-09707-030-1	04	1	1112-
470	CLIP; HARNESS,LICENSE LAMP WHEEL BASE 6600MM(66W) ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) ID=11 L=41	1-09700-403-0	01	1	0907-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0610-0906
470	CLIP; HARNESS,LICENSE LAMP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) OD=9 H=6	1-09709-178-0	01	1	0907-

224 224 178 178 178 178 292 530 178 178 292 503 1 1 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0610-
1	SLEEVE; RUBBER (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0610-
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	0610-1209
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60) EXC. SINGAPORE EQUIPMENT(WQ3) (B) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1210-
1	SLEEVE; RUBBER SINGAPORE EQUIPMENT(WQ3) (B) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1210-
1	SLEEVE; RUBBER (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0610-0610
1	SLEEVE; RUBBER SINGAPORE EQUIPMENT(WQ3) (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	1210-
178	GROMMET; HARNESS HONG KONG EQUIPMENT(PQ1) (A) ID=24 OD=30 T=22	1-09332-104-0	01	1	0610-
178	GROMMET; HARNESS SINGAPORE EQUIPMENT(WQ3) (A) ID=24 OD=30 T=22	1-09332-104-0	02	1	0610-
178	GROMMET; HARNESS (A) ID=24 OD=30 T=22	1-09332-104-0	03	1	0610-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0610-
178	GROMMET; HARNESS (C) ID=15 OD=20 T=26	1-09332-132-0	01	1	0610-
178	GROMMET; HARNESS EXC. SMOOTHER-G(C1W) (E)	1-82698-551-0	01	1	0610-
178	GROMMET; HARNESS (D)	1-82699-891-0	01	1	0610-0610
178	GROMMET; HARNESS (F) ID=28 OD=35 T=25	1-09332-011-1	02	1	0610-
224	SLEEVE; RUBBER,HARNESS SINGAPORE EQUIPMENT(WQ3) (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	1210-
224	SLEEVE; RUBBER,HARNESS (A) ID=6 L=30	5-09360-352-0	01	1	0610-0904
292	CAP; RUBBER (B)	1-82690-667-0	01	1	0610-
292	CAP; RUBBER (A)	1-82691-239-0	02	1	0610-
503	CONNECTOR	1-82690-666-0	01	1	0610-0610
503	CONNECTOR EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>	1-82690-666-0	01	1	0610-0610
503	CONNECTOR EXC. SMOOTHER-G(C1W),BRAKE SYSTEM HSA<SLD>	1-82690-666-0	01	1	0610-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	0610-
530	SEAL; HARNESS 100X40	1-72498-022-1	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
