Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#27) — 361 parça

28 37 43 172 28 67 172 43 45 45 42 64 64 12 39 5 3 39 5 9 9 5 5 10 3 3 11 9 10 1 10 20 174 175 5 1 7 3 12 6 3 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-686-1	01	1	9211-	●	●

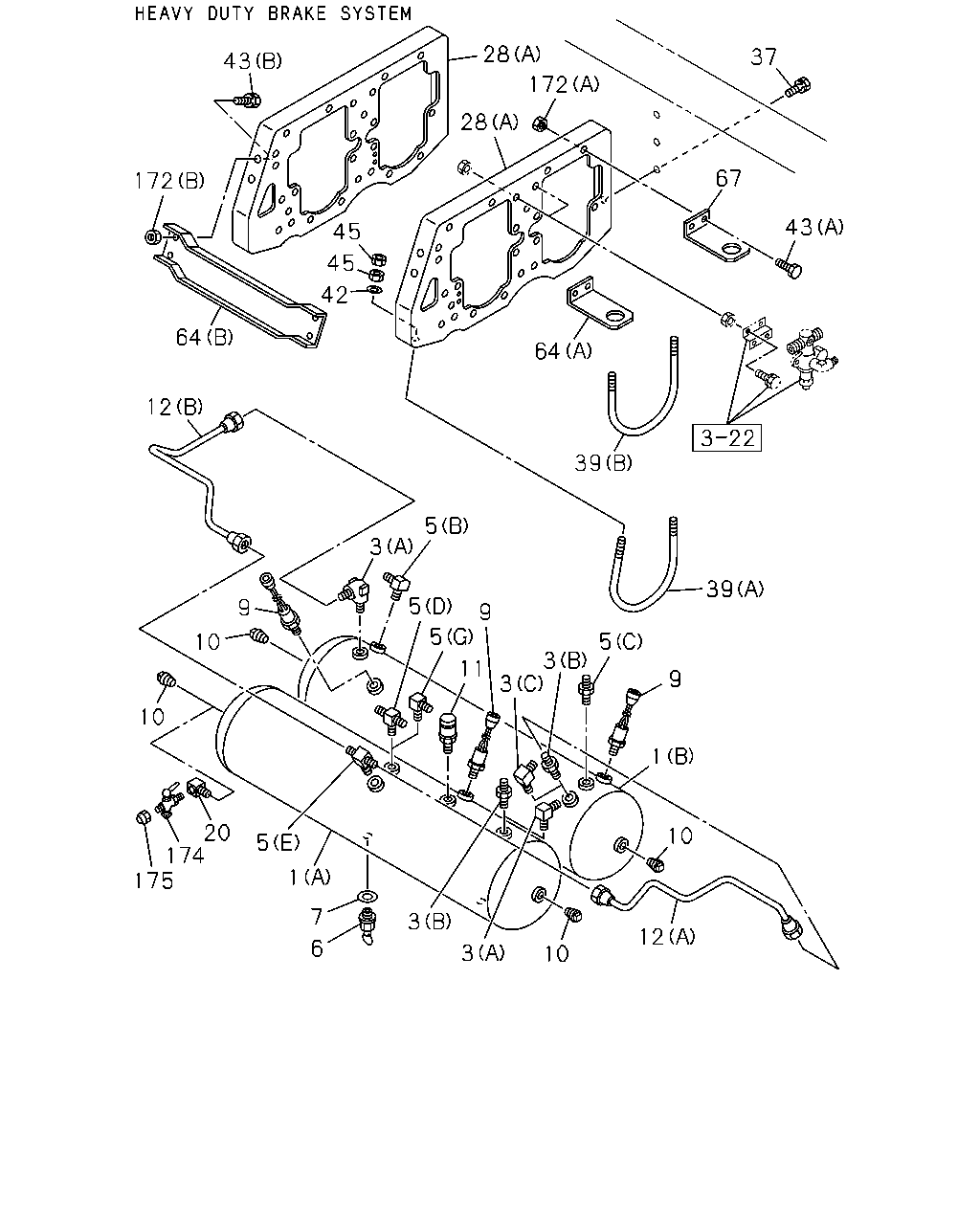

1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) SUB	1-48330-206-1	01	1	9202-	●	●
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) MAIN	1-48330-598-0	01	1	9202-	●	●

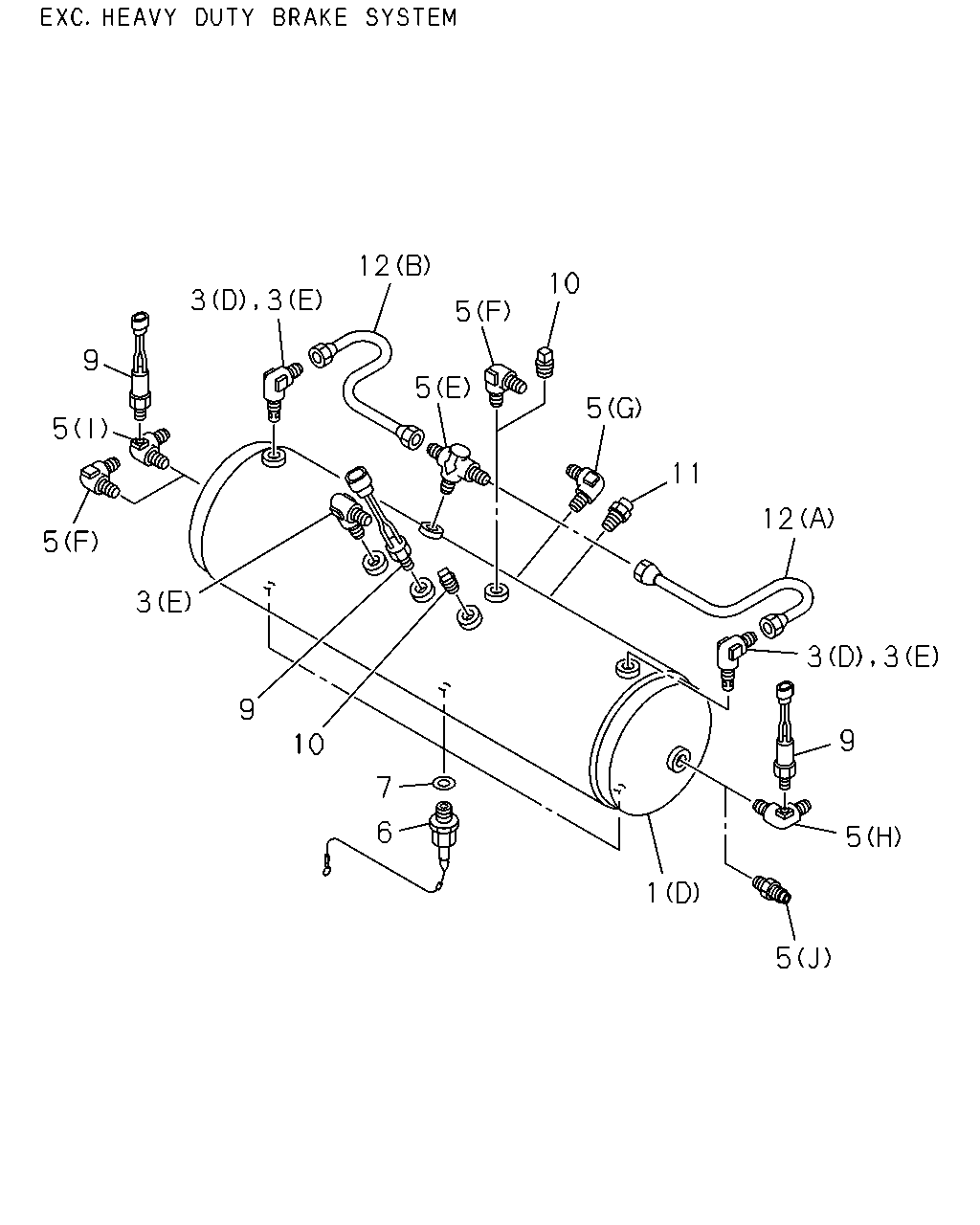

1	TANK ASM; AIR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-925-0	01	1	9202-9210	●	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-925-0	01	1	9211-	●	●

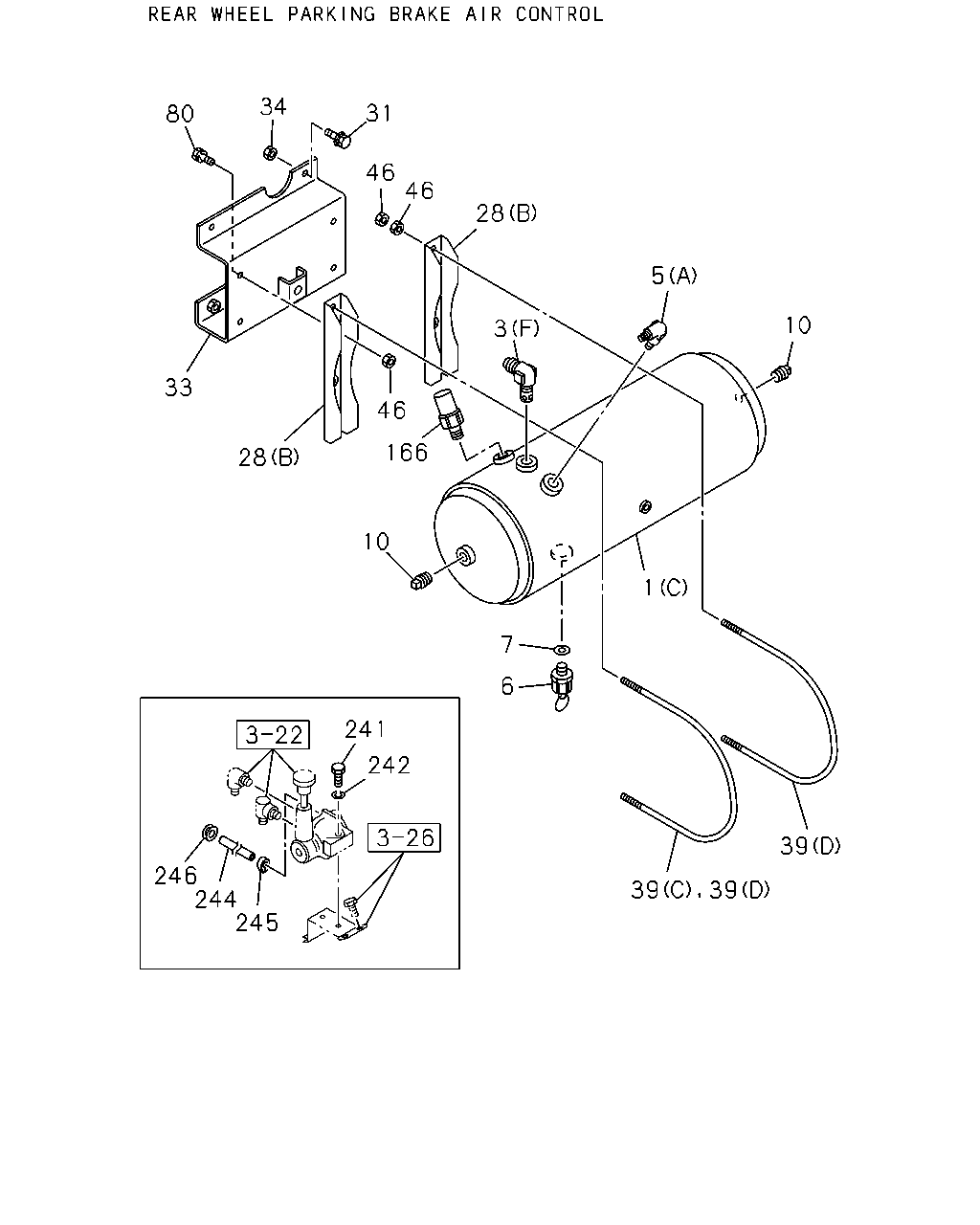

1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48330-150-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> (B)	1-48410-182-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	03	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48410-133-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48410-133-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	1-48410-132-2	01	1	9202-	●	●
5	UNION; AIR TANK (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302	●	●
5	UNION; AIR TANK (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H)	1-09656-370-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H)	1-09656-672-0	01	1	9303-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (I) M16	1-09656-437-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (I)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (J) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9208-	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9208-9302	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9202-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09650-221-1	01	1	9202-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16	1-09650-245-1	01	1	9202-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9202-9302	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	04	1	9202-	●	●
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48312-006-1	03	1	9202-9205	●	●
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	03	1	9206-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/COVER	1-48312-004-1	01	1	9202-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=23.0	9-09572-014-0	04	1	9202-	●	●
7	GASKET; DRAIN COCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=23.0	9-09572-014-0	03	1	9202-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-040-0	03	1	9202-9210	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	01	1	9211-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	01	1	9412-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	03	1	9211-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	03	1	9211-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	03	1	9412-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	03	1	9412-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	04	1	9208-	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9202-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	04	1	9202-9207	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> PT1/4	9-99204-513-0	03	1	9208-	●	●
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT3/8	9-09204-517-0	01	1	9202-	●	●
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	01	1	9202-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9202-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47481-349-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-011-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47482-864-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-012-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47484-731-1	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47486-454-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-008-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-009-0	01	1	9301-	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<SG4> PT1/4	9-09903-738-0	01	1	9202-9207	●	●
20	NIPPLE; AIR TANK TIRE INFLATOR DEVICE<SG4> PT1/4	1-09660-501-0	01	1	9208-	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-53318-232-9	02	1	9202-	●	●
28	BRACKET; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48317-375-5	02	1	9202-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	9202-	●	●
37	BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X45	1-09030-052-1	06	1	9202-	●	●
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	04	1	9202-9503	●	●
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28681-035-0	04	1	9504-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=97.5	1-48317-323-1	02	1	9202-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=195	1-48317-367-2	02	1	9202-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=245	1-48317-004-0	02	1	9202-9501	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=250	1-48317-308-0	02	1	9202-	●	●
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9202-	●	●
42	WASHER; PL BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.4 OD=18	9-09160-608-0	04	1	9202-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-	●	●
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18 FLANGE	0-28080-818-0	02	1	9202-9207	●	●
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X14 FLANGE	0-28080-814-0	02	1	9208-9301	●	●
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9302-	●	●
45	NUT; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	16	1	9202-	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53318-224-2	01	1	9202-9207	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53318-293-1	01	1	9208-	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94301-490-0	01	1	9202-	●	●
64	STAY; AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-307-2	01	1	9202-	●	●
67	STAY; SUB TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-349-0	01	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M8	9-09110-408-0	04	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10	9-09110-510-0	04	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-	●	●
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-036-0	01	1	9202-	●	●
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	9202-	●	●

237 238 239 138 240 86 178 177 28 43 37 39 39 84 145 83 145 138 28 125 145 125 140 145 139 64 172 141 153 151 151 83 84 81 134 154 152 172 134 132 132 134 46 134 148 46 133 135 135 135 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BRACKET; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-53318-232-9	02	1	9202-	●	●
28	BRACKET; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48317-375-5	02	1	9202-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	9202-	●	●
37	BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X45	1-09030-052-1	06	1	9202-	●	●
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	04	1	9202-9503	●	●
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28681-035-0	04	1	9504-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=97.5	1-48317-323-1	02	1	9202-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=195	1-48317-367-2	02	1	9202-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=245	1-48317-004-0	02	1	9202-9501	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=250	1-48317-308-0	02	1	9202-	●	●
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9202-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X18 W/LK WASHER	0-50040-818-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8X20 FLANGE	0-28080-820-0	04	1	9206-	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X22 W/LK&PL WASHER	0-50141-022-0	04	1	9202-9205	●	●
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9206-	●	●
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X18 FLANGE	0-28080-818-0	02	1	9202-9207	●	●
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X14 FLANGE	0-28080-814-0	02	1	9208-9301	●	●
43	BOLT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9302-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	04	1	9202-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-	●	●
46	NUT; U-BOLT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53318-224-2	01	1	9202-9207	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-53318-293-1	01	1	9208-	●	●
64	STAY; AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	8-94301-490-0	01	1	9202-	●	●
64	STAY; AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-307-2	01	1	9202-	●	●

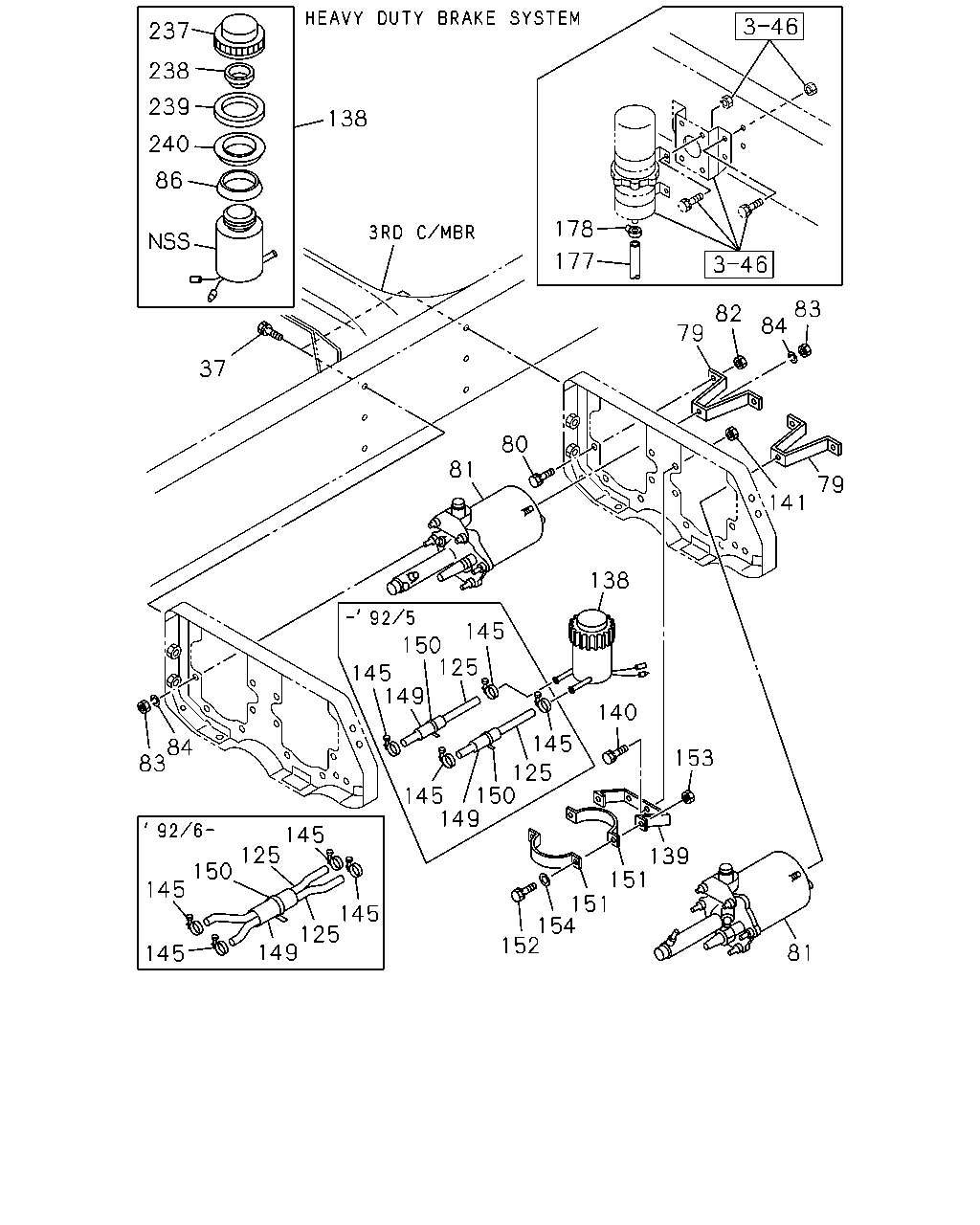

81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-382-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-397-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) SECONDARY	1-47800-508-1	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PRIMARY	1-47800-509-1	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-395-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-396-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-398-1	02	1	9202-	●	●

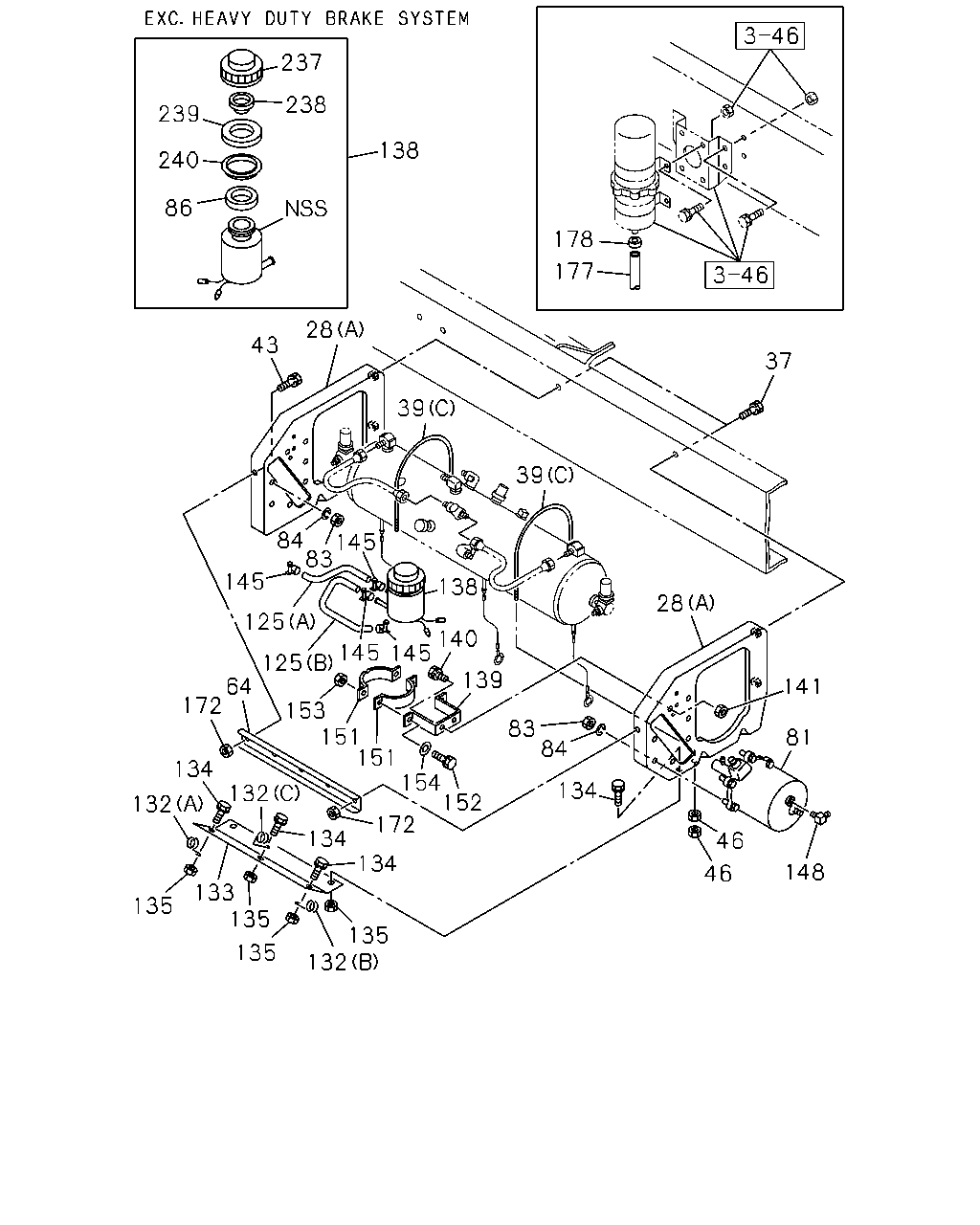

81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-413-0	02	1	9202-	●	●
83	NUT; AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-410-0	10	1	9202-9205	●	●
83	NUT; AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	10	1	9206-	●	●
83	NUT; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-9205	●	●
83	NUT; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 FLANGE	0-91150-108-0	08	1	9206-	●	●
84	WASHER; LK,AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	10	1	9202-9205	●	●
84	WASHER; LK,AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.2	9-09150-508-0	08	1	9202-9205	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=335	1-47469-045-0	01	1	9202-	●	●
132	BRACKET; STRING GUIDE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C)	1-48319-091-0	01	1	9202-9205	●	●
132	BRACKET; STRING GUIDE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48319-090-0	01	1	9202-9205	●	●
132	BRACKET; STRING GUIDE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-48319-089-0	01	1	9202-9205	●	●
133	COVER; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48317-306-3	01	1	9202-	●	●
134	BOLT; COVER FIX EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28010-820-0	07	1	9202-9204	●	●
134	BOLT; COVER FIX EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	13	1	9205-	●	●
135	NUT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	07	1	9202-9205	●	●
135	NUT; COVER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	06	1	9206-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9202-	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-112-1	01	1	9202-9205	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-081-1	01	1	9206-	●	●
139	BRACKET; OIL TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-069-1	01	1	9202-9205	●	●
139	BRACKET; OIL TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-123-0	01	1	9206-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9202-9403	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9404-	●	●
141	NUT; OIL TANK TO BRKT M10	1-09400-053-0	02	1	9202-9205	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9206-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=15	1-09704-018-1	04	1	9202-9205	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9206-	●	●
148	CONNECTOR; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	9202-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9202-	●	●
152	BOLT; OIL TANK TO BAND M8X20	0-50000-820-0	02	1	9202-9204	●	●
152	BOLT; OIL TANK TO BAND M8X20	0-50080-820-0	02	1	9205-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	1-09400-052-0	02	1	9202-9205	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9206-	●	●
154	WASHER; PL,OIL TANK TO BAND ID=8.4	1-09985-106-0	02	1	9202-9205	●	●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M8	9-09110-408-0	04	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10	9-09110-510-0	04	1	9202-	●	●
172	NUT; STAY,AIR TANK,MAIN EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9202-9310	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-	●	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9202-9406	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9202-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9202-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9202-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9202-	●	●

12 10 5 9 5 5 5 11 12 5 3 9 9 10 7 6 5 1 5 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-686-1	01	1	9211-	●	●
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) SUB	1-48330-206-1	01	1	9202-	●	●
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) MAIN	1-48330-598-0	01	1	9202-	●	●
1	TANK ASM; AIR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-925-0	01	1	9202-9210	●	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-925-0	01	1	9211-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48330-150-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> (B)	1-48410-182-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	03	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48410-133-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48410-133-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	1-48410-132-2	01	1	9202-	●	●
5	UNION; AIR TANK (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302	●	●
5	UNION; AIR TANK (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H)	1-09656-370-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H)	1-09656-672-0	01	1	9303-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (I) M16	1-09656-437-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (I)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (J) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9208-	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9208-9302	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9202-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09650-221-1	01	1	9202-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16	1-09650-245-1	01	1	9202-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9202-9302	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	04	1	9202-	●	●
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48312-006-1	03	1	9202-9205	●	●
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	03	1	9206-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/COVER	1-48312-004-1	01	1	9202-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=23.0	9-09572-014-0	04	1	9202-	●	●
7	GASKET; DRAIN COCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=23.0	9-09572-014-0	03	1	9202-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK	1-48340-040-0	03	1	9202-9210	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	01	1	9211-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	01	1	9412-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	03	1	9211-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48340-040-0	03	1	9211-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	03	1	9412-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 530KPA	1-48340-054-0	03	1	9412-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	04	1	9208-	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9202-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	04	1	9202-9207	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> PT1/4	9-99204-513-0	03	1	9208-	●	●
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT3/8	9-09204-517-0	01	1	9202-	●	●
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	01	1	9202-	●	●
11	VALVE; SAFETY,AIR TANK	1-48320-003-0	01	1	9202-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47481-349-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-011-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47482-864-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-012-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47484-731-1	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47486-454-0	01	1	9202-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47497-008-0	01	1	9301-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-47497-009-0	01	1	9301-	●	●

237 238 239 138 240 86 178 177 83 84 82 79 37 80 81 79 141 138 145 150 125 145 149 140 84 83 145 153 125 145 150 149 145 125 139 151 151 154 152 150 145 145 125 149 81 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X45	1-09030-052-1	06	1	9202-	●	●
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 W/LK WASHER	0-50041-035-0	04	1	9202-9503	●	●
37	BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X35 FLANGE	0-28681-035-0	04	1	9504-	●	●
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) H=203	1-53318-217-0	02	1	9202-	●	●
80	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-	●	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50041-020-0	04	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-382-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-397-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) SECONDARY	1-47800-508-1	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PRIMARY	1-47800-509-1	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) SECONDARY	1-47800-395-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) PRIMARY	1-47800-396-2	01	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-398-1	02	1	9202-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47800-413-0	02	1	9202-	●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-410-0	04	1	9202-9205	●	●
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	04	1	9206-	●	●
83	NUT; AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-410-0	10	1	9202-9205	●	●
83	NUT; AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10 FLANGE	0-91150-110-0	10	1	9206-	●	●
83	NUT; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-9205	●	●
83	NUT; AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8 FLANGE	0-91150-108-0	08	1	9206-	●	●
84	WASHER; LK,AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	10	1	9202-9205	●	●
84	WASHER; LK,AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=8.2	9-09150-508-0	08	1	9202-9205	●	●
86	SEAL; DUST	1-47529-019-0	01	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=295 SERVICED BY L=1800	1-09360-320-0	02	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=240 SERVICED BY L=1800	1-09360-320-0	01	1	9202-	●	●
125	HOSE; OIL TANK TO AIR MASTER EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=335	1-47469-045-0	01	1	9202-	●	●
138	TANK ASM; OIL,AIR MASTER	1-47530-154-1	01	1	9202-	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-112-1	01	1	9202-9205	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-081-1	01	1	9206-	●	●
139	BRACKET; OIL TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-069-1	01	1	9202-9205	●	●
139	BRACKET; OIL TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47537-123-0	01	1	9206-	●	●
140	BOLT; OIL TANK TO BRKT M10X20 W/LK WASHER	0-50041-020-0	02	1	9202-9403	●	●
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE	0-28081-020-0	02	1	9404-	●	●
141	NUT; OIL TANK TO BRKT M10	1-09400-053-0	02	1	9202-9205	●	●
141	NUT; OIL TANK TO BRKT M10	9-09110-510-0	02	1	9206-	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=15	1-09704-018-1	04	1	9202-9205	●	●
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	9206-	●	●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=15 OD=19 L=50	1-09337-014-0	02	1	9202-9205	●	●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=15 OD=19 L=50	1-09337-014-0	01	1	9206-9209	●	●
149	SLEEVE; RUBBER,HOSE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=23 OD=27 L=40	1-09337-015-0	01	1	9210-	●	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=100	5-09707-036-0	02	1	9202-9205	●	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=100	5-09707-036-0	01	1	9206-9209	●	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=140	5-09707-031-0	01	1	9210-	●	●
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	9202-	●	●
152	BOLT; OIL TANK TO BAND M8X20	0-50000-820-0	02	1	9202-9204	●	●
152	BOLT; OIL TANK TO BAND M8X20	0-50080-820-0	02	1	9205-	●	●
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	1-09400-052-0	02	1	9202-9205	●	●
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	9206-	●	●
154	WASHER; PL,OIL TANK TO BAND ID=8.4	1-09985-106-0	02	1	9202-9205	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=250 SERVICED BY L=3000	0-02165-300-0	01	1	9202-9310	●	●
177	HOSE; RUBBER,DRAIN AIR DRYER<PS7> L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9311-	●	●
178	CLIP; HOSE AIR DRYER<PS7> ID=21	8-94242-034-0	01	1	9202-9406	●	●
237	CAP; OIL TANK	1-47525-026-1	01	1	9202-	●	●
238	PLATE; BAFFLE	1-47529-022-0	01	1	9202-	●	●
239	FILTER; DUST	1-47529-017-0	01	1	9202-	●	●
240	HOLDER; FILTER	1-47529-018-0	01	1	9202-	●	●

34 31 80 46 46 28 5 3 10 33 46 166 28 10 1 7 6 241 242 39 246 244 245 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-686-1	01	1	9211-	●	●
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) SUB	1-48330-206-1	01	1	9202-	●	●
1	TANK ASM; AIR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) MAIN	1-48330-598-0	01	1	9202-	●	●
1	TANK ASM; AIR EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-925-0	01	1	9202-9210	●	●
1	TANK ASM; AIR AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48330-925-0	01	1	9211-	●	●
1	TANK ASM; AIR REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-48330-150-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> (B)	1-48410-182-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK AIR DRYER<PS7> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E)	1-48410-133-2	03	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D)	1-48410-133-2	02	1	9202-	●	●
3	VALVE; CHECK,AIR TANK EXC. AIR DRYER<PS7>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (E) M22 & PT3/4 ELBOW	1-48410-134-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48410-133-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (B) M22 & PT3/4	1-48410-136-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> (C)	1-48410-182-2	01	1	9202-	●	●
3	VALVE; CHECK,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F)	1-48410-132-2	01	1	9202-	●	●
5	UNION; AIR TANK (G) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-9302	●	●
5	UNION; AIR TANK (G) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK (E) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	9202-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H)	1-09656-370-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (H)	1-09656-672-0	01	1	9303-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (I) M16	1-09656-437-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (I)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	9-09234-310-1	01	1	9202-9302	●	●
5	UNION; AIR TANK AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	1-09650-434-0	01	1	9303-	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (J) M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9208-	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	9-09234-310-1	02	1	9208-9302	●	●
5	UNION; AIR TANK EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (F) M16 & PT1/4 ELBOW	1-09650-434-0	02	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) M12 & M16 & PT1/4 3WAY	1-09650-170-1	01	1	9202-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-09650-221-1	01	1	9202-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M16 & PT1/2 ELBOW	1-09650-442-0	01	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M16	1-09650-245-1	01	1	9202-	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9202-9302	●	●
5	UNION; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	04	1	9202-	●	●
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-48312-006-1	03	1	9202-9205	●	●
6	COCK; DRAIN,AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) W/COVER	1-48312-004-1	03	1	9206-	●	●
6	COCK; DRAIN,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/COVER	1-48312-004-1	01	1	9202-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=23.0	9-09572-014-0	04	1	9202-	●	●
7	GASKET; DRAIN COCK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=14.2 OD=23.0	9-09572-014-0	03	1	9202-	●	●
7	GASKET; DRAIN COCK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2 OD=23.0	9-09572-014-0	01	1	9202-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. TIRE INFLATOR DEVICE<SG4> PT1/4	9-99204-513-0	04	1	9208-	●	●
10	PLUG; AIR TANK PT1/4	9-99204-513-0	02	1	9202-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	04	1	9202-9207	●	●
10	PLUG; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) TIRE INFLATOR DEVICE<SG4> EXC. AIR DRYER<PS7> PT1/4	9-99204-513-0	03	1	9208-	●	●
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT3/8	9-09204-517-0	01	1	9202-	●	●
10	PLUG; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) PT1/4	9-99204-513-0	01	1	9202-	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-53318-232-9	02	1	9202-	●	●
28	BRACKET; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-48317-375-5	02	1	9202-	●	●
28	BRACKET; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	1-48317-430-0	02	1	9202-	●	●
31	BOLT; BRKT TO FRAME REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 W/LK&PL WASHER	0-50141-030-0	04	1	9202-	●	●
33	BRACKET; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48317-431-2	01	1	9202-	●	●
34	NUT; BRKT,AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	02	1	9202-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=97.5	1-48317-323-1	02	1	9202-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=195	1-48317-367-2	02	1	9202-	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) L=245	1-48317-004-0	02	1	9202-9501	●	●
39	U-BOLT; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) L=250	1-48317-308-0	02	1	9202-	●	●
39	U-BOLT; AIR TANK EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=250	1-48317-308-0	02	1	9202-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10	9-09110-510-0	04	1	9202-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-	●	●
46	NUT; U-BOLT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-	●	●
46	NUT; U-BOLT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	08	1	9202-	●	●
80	BOLT; BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X25 W/LK WASHER	0-50041-025-0	04	1	9202-	●	●
80	BOLT; BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X20 W/LK WASHER	0-50041-020-0	04	1	9202-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48340-040-0	01	1	9202-9411	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 530KPA	1-48340-054-0	01	1	9412-	●	●
241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X65	0-10805-865-0	02	1	9202-	●	●
242	WASHER; LK,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8.2	9-09150-508-0	02	1	9202-	●	●
244	PIPE; VINYL,EXH REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9202-	●	●
245	CLIP; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=15	9-09715-098-0	01	1	9202-	●	●
246	GROMMET; VINYL PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
