◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#26998) — 23 parça

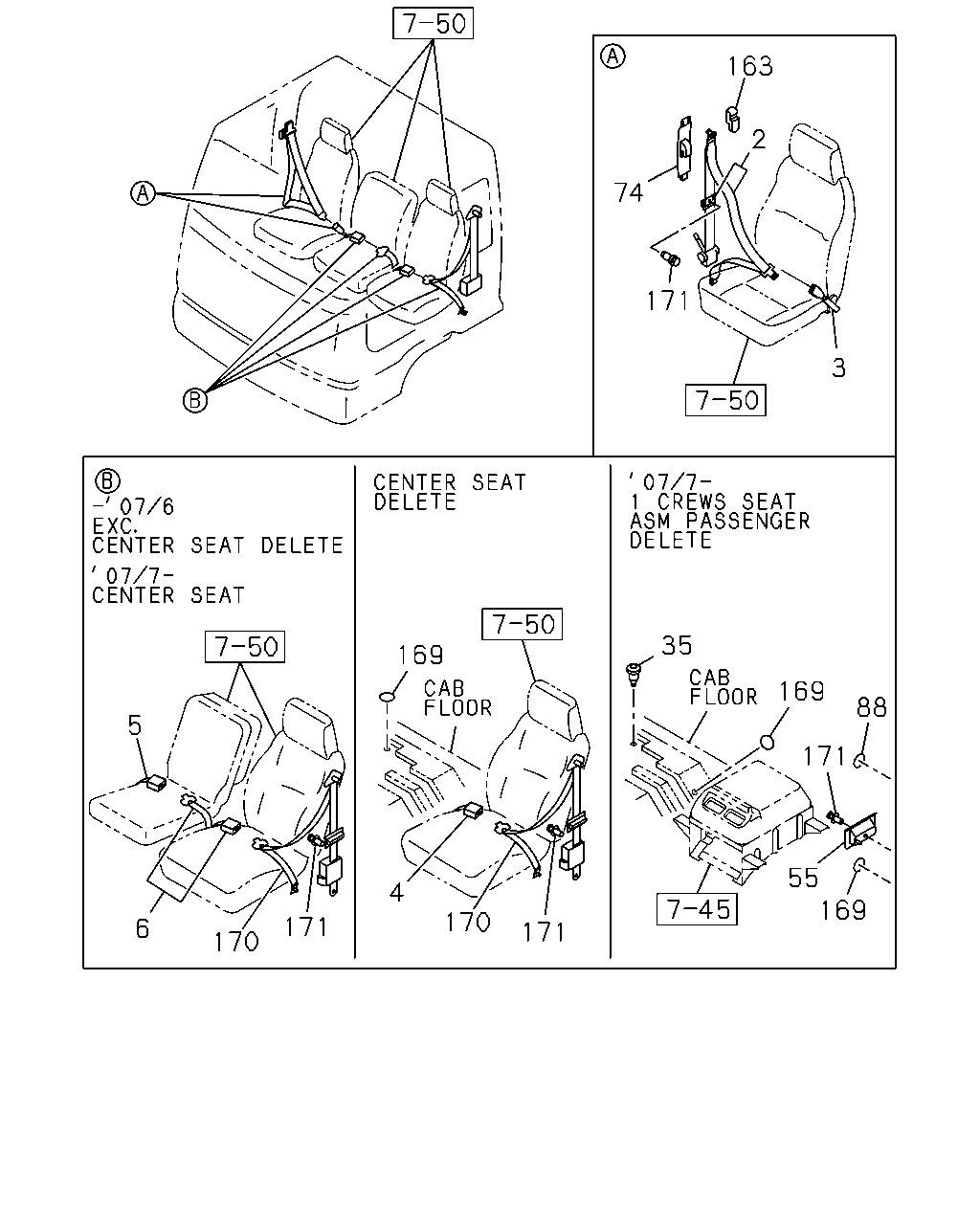

çizim 139277
163 2 74 171 3 35 169 169 88 5 171 55 169 4 170 171 6 171 170
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-847-3 01 1 0610-
2 BELT; SEAT,TONGUE SIDE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-75616-096-2 01 1 0610-0805
2 BELT; SEAT,TONGUE SIDE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98120-814-1 01 1 0806-
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-846-0 01 1 0610-1401
3 BELT; SEAT,BUCKLE SIDE
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-98270-818-0 01 1 1402-
3 BELT; SEAT,BUCKLE SIDE
EXC. SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		1-75618-914-0 01 1 0610-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0610-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0610-0706
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 0707-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-1 01 1 0610-0706
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		1-75618-926-3 01 1 0707-
35 GROMMET; SEAT BELT ANCHOR
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=22 		9-61168-535-0 01 1 1006-
55 GUIDE; SEAT BELT
1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75617-556-0 01 1 0707-
74 RAIL ASM; SHOULDER ANCHOR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-855-2 01 1 0610-
88 PLUG; HOLE
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=31.6 		8-94198-177-0 01 1 0707-
163 COVER; ADJUSTER
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) 		8-97386-863-0 01 1 0610-
169 SEAL
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=25 BLACK 		1-76798-019-0 03 1 0707-1005
169 SEAL
1 CREWS SEAT ASM PASSENGER DELETE(AP5) OD=25 BLACK 		1-76798-019-0 02 1 1006-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0610-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0610-0706
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) 		1-75617-588-3 01 1 0707-0805
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) 		8-98120-820-1 01 1 0806-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0610-
