◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#26997) — 392 parça

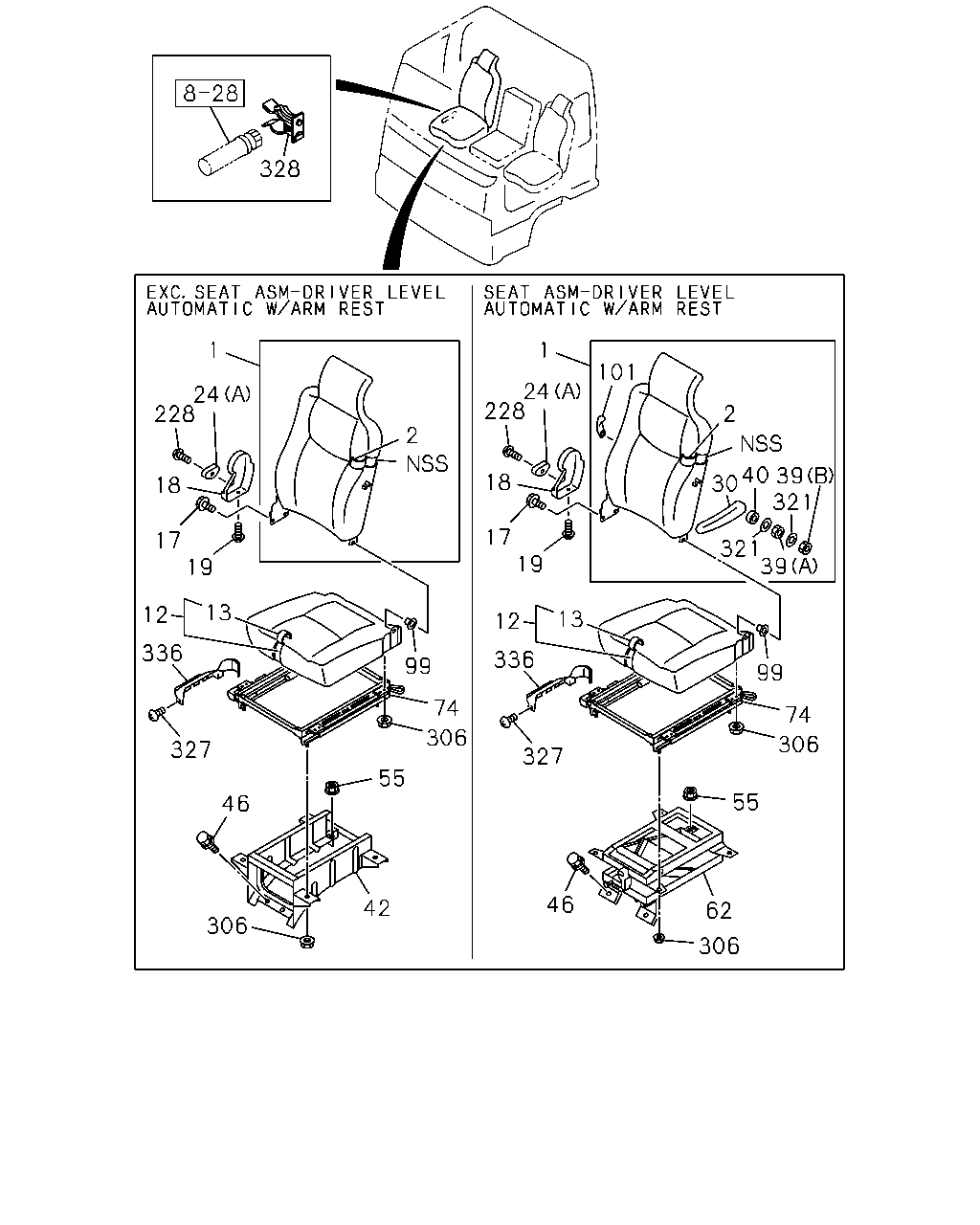

çizim 139227
328 1 1 101 24 228 24 228 2 2 30 321 321 39 18 18 17 19 17 19 13 12 13 12 336 336 99 99 74 74 306 306 327 327 55 55 46 46 42 62 306 306 40 39
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75207-756-0 01 1 0806-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98135-639-0 01 1 0902-1009
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-072-0 01 1 1010-
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-587-3 01 1 0610-0901
1 BACK ASM; SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-630-0 01 1 0902-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-586-3 01 1 0610-0805
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75207-586-3 01 1 0806-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98135-629-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98168-067-0 01 1 1012-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-647-3 01 1 0610-0805
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75207-647-3 01 1 0806-0901
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98135-636-0 01 1 0902-1011
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98168-064-0 01 1 1012-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-646-2 01 1 0610-0901
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-635-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-187-0 01 1 0806-1009
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-089-0 01 1 1010-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-146-2 01 1 0610-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-145-2 01 1 0610-0805
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-145-2 01 1 0806-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		8-98168-082-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-166-2 01 1 0610-0805
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75127-166-2 01 1 0806-1011
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		8-98168-083-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-165-1 01 1 0610-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75207-770-0 01 1 0806-1009
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-048-0 01 1 1010-
12 CUSHION; SEAT,FRT
VINYL SEAT(A83) 		1-75207-603-2 01 1 0610-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-584-4 01 1 0610-0805
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-584-4 01 1 0806-1011
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-042-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-186-0 01 1 0806-1009
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-081-0 01 1 1010-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-102-1 01 1 0610-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-143-3 01 1 0610-0805
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-143-3 01 1 0806-1011
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-074-0 01 1 1012-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0610-
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0610-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) 		1-75418-067-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0705
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0705
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) (B) DARK GRAY 		8-97859-019-0 01 1 0706-0805
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) DARK GRAY 		8-97859-019-0 01 1 0706-0805
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) DARK GRAY 		8-97859-019-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-185-0 01 1 0806-1009
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-091-0 01 1 1010-
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 0610-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0610-0805
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-148-1 01 1 0806-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0610-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0610-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0610-
42 STAND; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-1 01 1 0610-0805
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-2 01 1 0806-
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),FACE LIFT<6NL> 		1-75558-604-2 01 1 0806-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0610-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0610-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-

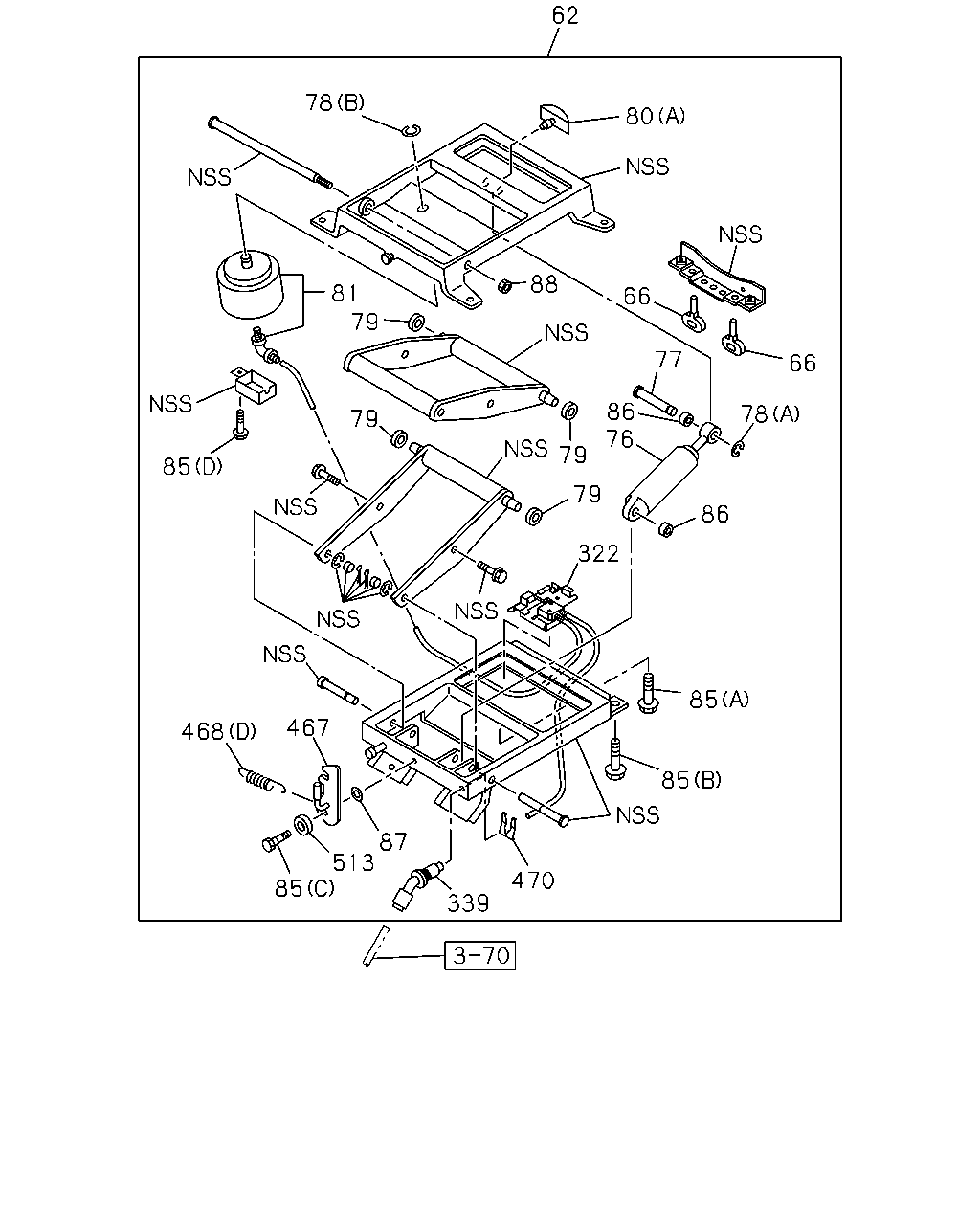

62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0610-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0610-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0610-
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0610-0901
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0902-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0610-0705
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0705
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0705
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0706-0710
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 0706-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0706-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 1012-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0610-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0610-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0610-
327 CLIP; COVER 1-09987-273-0 02 1 0610-0705
327 CLIP; COVER 1-09987-273-0 02 1 0610-0705
327 CLIP; COVER 1-09987-273-0 02 1 0706-0805
327 CLIP; COVER
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-09987-273-0 02 1 0706-0805
327 CLIP; COVER 1-09987-273-0 02 1 0806-
327 CLIP; COVER
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
328 CLIP; HANDY WARNING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-72537-239-0 01 1 0610-
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 0610-

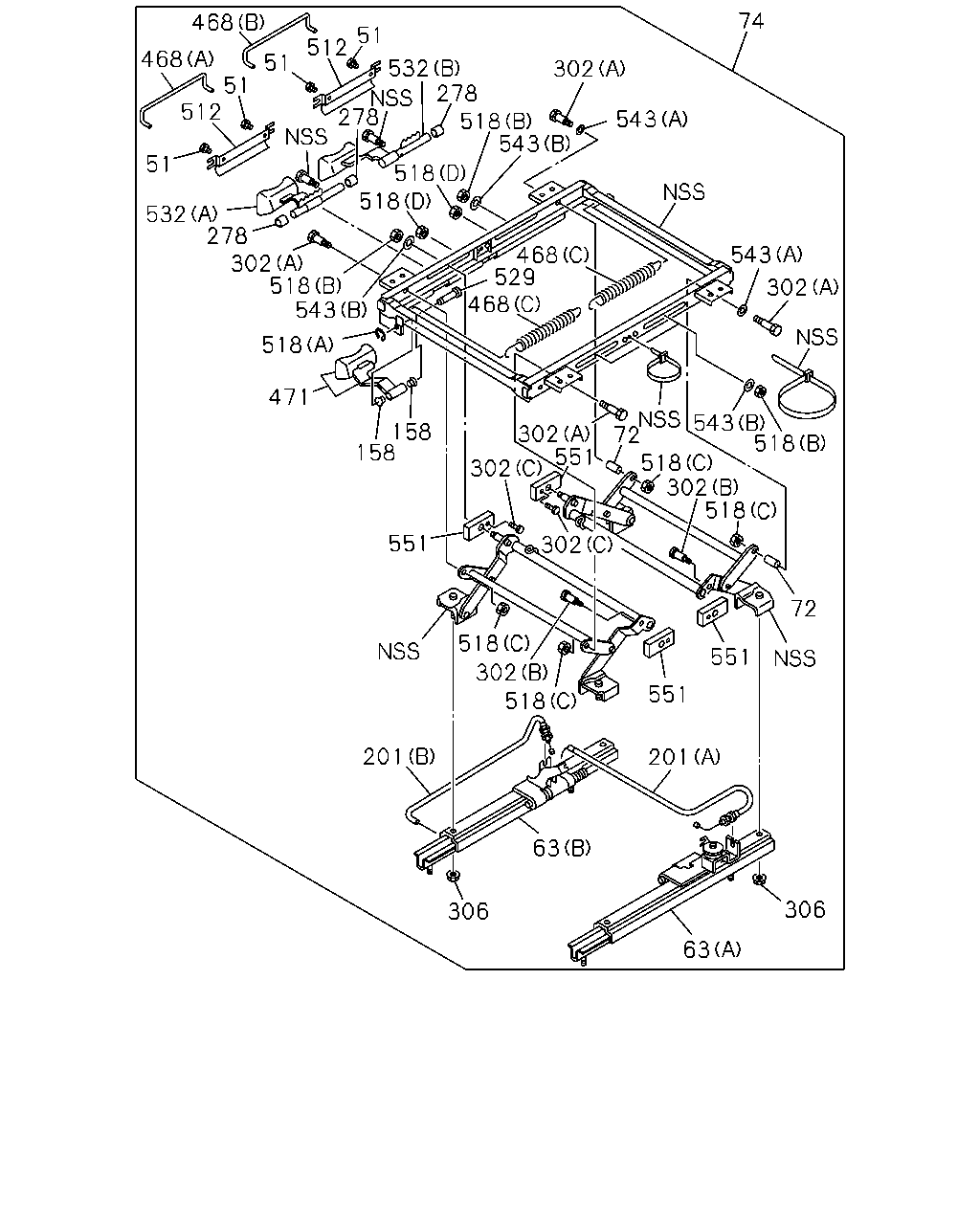

çizim 139233
74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 471 551 518 302 543 518 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 0610-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0610-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0610-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0610-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0610-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0610-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0610-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0610-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0610-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0610-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0610-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0610-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0610-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0610-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0610-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0610-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0610-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0610-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
512 COVER; LEVER 1-75518-243-1 02 1 0610-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0610-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0610-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0610-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0610-
529 PIN; LINK 1-75518-262-0 01 1 0610-
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0610-
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0610-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 0610-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0610-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0610-
çizim 139599
506 360 175 176 16 188 189 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
CENTER SEAT(SA1) 		1-75418-062-1 01 1 0610-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-762-0 01 1 0806-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-329-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-602-3 01 1 0610-0805
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-602-3 01 1 0806-1011
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-328-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75026-856-3 01 1 0610-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-191-0 01 1 0806-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-332-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-156-2 01 1 0610-0805
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-156-2 01 1 0806-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-331-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-710-1 01 1 0610-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75127-190-0 01 1 0806-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-326-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-155-2 01 1 0610-0805
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75127-155-2 01 1 0806-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-324-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-696-1 01 1 0610-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		1-75207-761-0 01 1 0806-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> 		8-98168-318-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-601-2 01 1 0610-0805
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		1-75207-601-2 01 1 0806-1011
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> 		8-98168-316-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75026-845-4 01 1 0610-
188 BOLT; BACK TO CUSHION
CENTER SEAT(SA1) M10X16 FLANGE 		1-75198-053-0 04 1 0610-
189 BUSHING; HINGE,CENTER SEAT BACK
CENTER SEAT(SA1) 		8-97854-900-0 01 1 0610-
359 BOX; PARCEL
CENTER SEAT(SA1) 		1-72538-275-4 01 1 0610-1006
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (B) M4X16 		0-70080-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0610-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0805
360 SCREW; PARCEL
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0610-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-0805
360 SCREW; PARCEL
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1007-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0610-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		1-75538-207-0 04 1 0610-0703
403 NUT; CENTER SEAT
CENTER SEAT(SA1) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 04 1 0610-1006
506 CAP; PARCEL BOX
CENTER SEAT(SA1) 		1-09983-180-3 02 1 1007-
çizim 139602
359 533 535 365 537 98 30 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		1-75127-185-0 01 1 0806-1009
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> 		8-98168-091-0 01 1 1010-
30 REST ASM; ARM,FRT SEAT
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-015-1 01 1 0610-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-148-1 01 1 0610-0805
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. FACE LIFT<6NL> 		1-75127-148-1 01 1 0806-
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0610-
98 WASHER; HINGE
CENTER SEAT(SA1) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0610-
359 BOX; PARCEL
CENTER SEAT(SA1) 		1-72538-275-4 01 1 0610-1006
359 BOX; PARCEL
CENTER SEAT(SA1) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> (B) M4X16 		0-70080-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0610-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-0805
360 SCREW; PARCEL
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 0610-0612
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 0701-0805
360 SCREW; PARCEL
CENTER SEAT(SA1) EXC. FABRIC SEAT W/RECLINING(SFQ) (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> (B) M4X16 		0-70040-416-0 06 1 0806-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70040-416-0 06 1 1007-1104
360 SCREW; PARCEL
CENTER SEAT(SA1) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0610-1006
360 SCREW; PARCEL
CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
CENTER SEAT(SA1) 		1-72538-180-0 01 1 0610-
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		1-72538-277-1 01 1 0610-1006
533 LID; PARCEL BOX
CENTER SEAT(SA1) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (A) 		1-72538-181-0 01 1 0610-1006
534 STRIKER; PARCEL BOX
CENTER SEAT(SA1) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
CENTER SEAT(SA1) 		1-72447-391-1 01 1 0610-
536 RUBBER; CUSHION
CENTER SEAT(SA1) 		5-09983-002-1 02 1 0610-1006
537 BRACKET; RUBBER
CENTER SEAT(SA1) 		1-72548-057-1 02 1 0610-1006
538 GROMMET; SCREW
CENTER SEAT(SA1) 		1-09983-165-0 02 1 0610-1006
çizim 139604
85 85 470 339 513 85 468 467 85 78 62 80 66 77 86 76 79 79 322 86 78 66 87 79 79 81 88
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-262-8 01 1 0610-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-449-0 01 1 1404-
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0610-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0610-
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0610-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0610-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0610-
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0610-1403
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
CENTER SEAT(SA1) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0610-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0610-1312
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0610-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0610-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0610-1312
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0610-
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0610-0710
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0610-
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-186-3 01 1 0610-
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0610-
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0610-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0610-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0610-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0610-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0610-
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0610-
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0610-

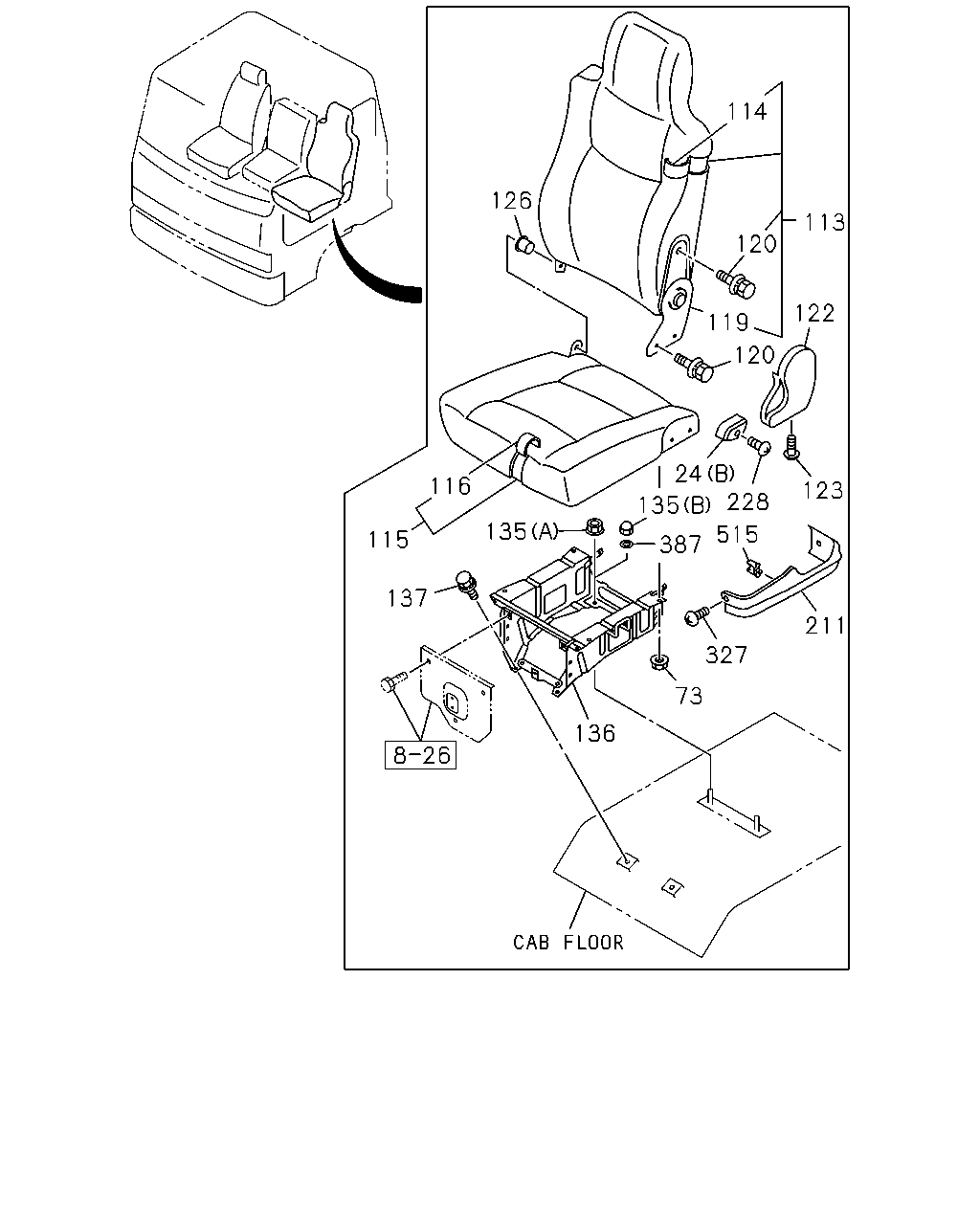

çizim 139615
114 126 113 120 122 119 120 24 228 116 123 135 135 515 115 387 137 211 327 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) 		1-75418-067-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0705
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) (B) DARK GRAY 		8-97859-019-0 01 1 0610-0705
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) (B) DARK GRAY 		8-97859-019-0 01 1 0706-0805
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) DARK GRAY 		8-97859-019-0 01 1 0706-0805
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> (B) DARK GRAY 		8-97859-019-0 01 1 0806-1011
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (B) DARK GRAY 		8-97859-019-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0610-0710
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0610-0705
73 NUT; ADJ,HEIGHT CONT
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M8 FLANGE 		1-75538-207-0 04 1 0706-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75207-759-0 01 1 0806-1009
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-98168-280-0 01 1 1010-
113 BACK ASM; SEAT
VINYL SEAT(A83) 		1-75207-652-2 01 1 0610-0705
113 BACK ASM; SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75207-652-2 01 1 0706-
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-597-2 01 1 0610-0705
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75207-597-2 01 1 0706-0805
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75207-597-2 01 1 0806-1011
113 BACK ASM; SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		8-98168-273-0 01 1 1012-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75207-651-3 01 1 0610-0705
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) 		1-75207-651-3 01 1 0706-0805
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75207-651-3 01 1 0806-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-274-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75127-189-0 01 1 0806-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-98168-295-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) 		1-75127-171-1 01 1 0610-0705
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75127-171-1 01 1 0706-
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-152-2 01 1 0610-0705
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75127-152-2 01 1 0706-0805
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75127-152-2 01 1 0806-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		8-98168-286-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75127-170-2 01 1 0610-0705
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) 		1-75127-170-2 01 1 0706-0805
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75127-170-2 01 1 0806-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-290-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75207-771-0 01 1 0806-1009
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-98168-131-0 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) 		1-75207-300-0 01 1 0610-0705
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75207-300-0 01 1 0706-
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75207-596-2 01 1 0610-0705
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75207-596-2 01 1 0706-0805
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75207-596-2 01 1 0806-1011
115 CUSHION ASM; PASSENGER SEAT
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		8-98168-124-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75207-641-2 01 1 0610-0705
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) 		1-75207-641-2 01 1 0706-0805
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75207-641-2 01 1 0806-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-126-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75127-188-0 01 1 0806-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-98168-270-0 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) 		1-75127-124-0 01 1 0610-0705
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75127-124-0 01 1 0706-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75127-151-2 01 1 0610-0705
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75127-151-2 01 1 0706-0805
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75127-151-2 01 1 0806-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		8-98168-134-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) 		1-75157-161-2 01 1 0610-0705
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) 		1-75157-161-2 01 1 0706-0805
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		1-75157-161-2 01 1 0806-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> 		8-98168-139-0 01 1 1012-
119 ADJ; SEAT RECLINING,ASSIST SIDE
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75417-597-0 01 1 0610-0705
119 ADJ; SEAT RECLINING,ASSIST SIDE
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75417-597-0 01 1 0706-0805
119 ADJ; SEAT RECLINING,ASSIST SIDE
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75417-597-0 01 1 0806-
119 ADJ; SEAT RECLINING,ASSIST SIDE
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75417-597-0 01 1 0806-
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) M8X20 		8-97255-906-0 02 1 0610-0705
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0610-0705
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0706-0805
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M8X20 		8-97255-906-0 02 1 0706-0805
120 BOLT; RECLINING ADJ
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M8X20 		8-97255-906-0 02 1 0806-
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> M8X20 		8-97255-906-0 02 1 0806-
120 BOLT; RECLINING ADJ
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) M8X20 		8-97255-906-0 04 1 0610-0705
120 BOLT; RECLINING ADJ
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M8X20 		8-97255-906-0 04 1 0706-0805
120 BOLT; RECLINING ADJ
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> M8X20 		8-97255-906-0 04 1 0806-
120 BOLT; RECLINING ADJ
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M8X20 		8-97255-906-0 04 1 0806-
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) DARK GRAY 		8-97859-018-0 01 1 0610-0705
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-018-0 01 1 0610-0705
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97859-018-0 01 1 0706-0805
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) DARK GRAY 		8-97859-018-0 01 1 0706-0805
122 COVER; ADJ,RECLINING
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) DARK GRAY 		8-97859-018-0 01 1 0806-
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> DARK GRAY 		8-97859-018-0 01 1 0806-
122 COVER; ADJ,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) 		1-75417-598-0 01 1 0610-0705
122 COVER; ADJ,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75417-598-0 01 1 0706-0805
122 COVER; ADJ,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75417-598-0 01 1 0806-
122 COVER; ADJ,RECLINING
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75417-598-0 01 1 0806-
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0705
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0610-0705
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0706-0805
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0706-0805
123 SCREW; COVER,RECLINING
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806-
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0806-
123 SCREW; COVER,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) M6X12 		9-03490-612-0 01 1 0610-0705
123 SCREW; COVER,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M6X12 		9-03490-612-0 01 1 0706-0805
123 SCREW; COVER,RECLINING
HONG KONG EQUIPMENT(PQ1) FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> M6X12 		9-03490-612-0 01 1 0806-
123 SCREW; COVER,RECLINING
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M6X12 		9-03490-612-0 01 1 0806-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0610-0705
126 BUSHING; HINGE,RECLINING
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-97854-087-0 01 1 0706-
135 NUT; SEAT STAND
PROVISIONAL PACKAGE SPEC<BCC> (B) M10 		9-09844-022-0 02 1 0706-
135 NUT; SEAT STAND
(A) M10 FLANGE 		1-09984-153-0 02 1 0610-0703
135 NUT; SEAT STAND
(A) M10 FLANGE 		0-91180-110-0 02 1 0704-0705
135 NUT; SEAT STAND
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) (A) M10 FLANGE 		0-91180-110-0 02 1 0706-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75558-522-8 01 1 0806-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) FACE LIFT<6NL> EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-98242-290-0 01 1 1306-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0610-0705
136 STAND; PASSENGER SEAT
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75558-602-3 01 1 0706-0805
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-75558-602-3 01 1 0806-1305
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-75558-602-3 01 1 0806-1305
136 STAND; PASSENGER SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		8-98242-299-0 01 1 1306-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0610-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-0705
137 BOLT; STAND
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) M10X20 FLANGE 		0-28451-020-0 02 1 0706-
211 COVER; FRT SEAT 1-72538-274-0 01 1 0610-0705
211 COVER; FRT SEAT
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-274-0 01 1 0706-0805
211 COVER; FRT SEAT
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-72538-274-0 01 1 0806-
211 COVER; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-72538-274-0 01 1 0806-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
VINYL SEAT(A83) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. FACE LIFT<6NL> DRIVER M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0610-0705
228 SCREW; KNOB
VINYL SEAT(A83) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0705
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0610-0705
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0706-0710
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 0706-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0706-0710
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 0711-0805
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),HONG KONG EQUIPMENT(PQ1),FACE LIFT<6NL> PASSENGER M4X6 		8-97042-273-0 01 1 0806-1011
228 SCREW; KNOB
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) PASSENGER M4X6 		8-97042-273-0 01 1 1012-
327 CLIP; COVER 1-09987-273-0 02 1 0610-0705
327 CLIP; COVER 1-09987-273-0 02 1 0610-0705
327 CLIP; COVER 1-09987-273-0 02 1 0706-0805
327 CLIP; COVER
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-09987-273-0 02 1 0706-0805
327 CLIP; COVER 1-09987-273-0 02 1 0806-
327 CLIP; COVER
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) 		1-09987-273-0 02 1 0806-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> 		1-09987-273-0 02 1 0806-
387 WASHER; PL,SIDE SEAT
PROVISIONAL PACKAGE SPEC<BCC> ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0709-
515 CLIP; PIPE
BLACK 		8-94227-248-1 01 1 0610-0705
515 CLIP; PIPE
EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) BLACK 		8-94227-248-1 01 1 0706-0805
515 CLIP; PIPE
VINYL SEAT(A83) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5) BLACK 		8-94227-248-1 01 1 0806-
515 CLIP; PIPE
FABRIC SEAT W/RECLINING(SFQ) EXC. 1 CREWS SEAT ASM PASSENGER DELETE(AP5),FACE LIFT<6NL> BLACK 		8-94227-248-1 01 1 0806-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
