◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#26996) — 112 parça

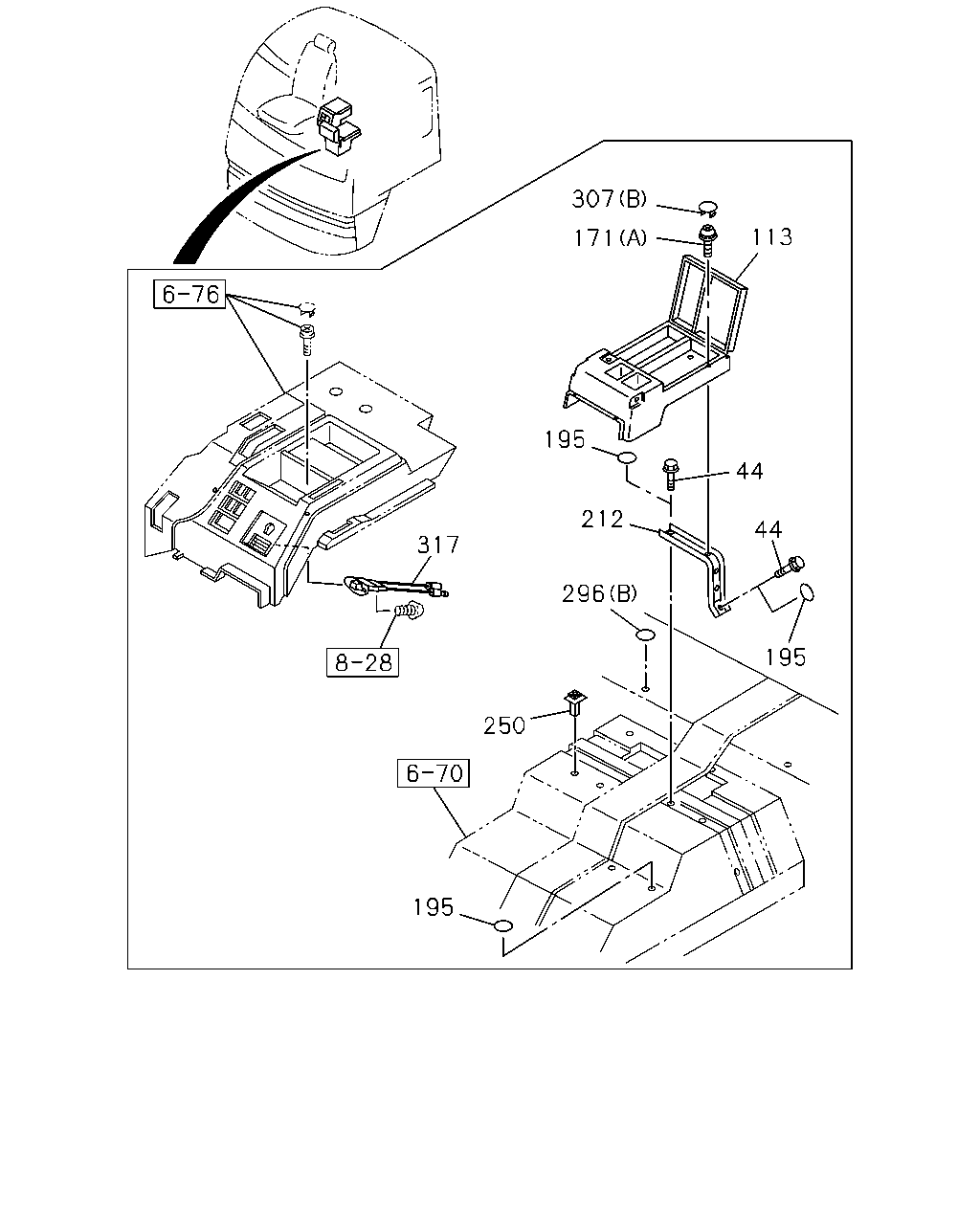

çizim 139228
307 113 171 195 44 212 44 317 296 195 250 195
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0610-0705
44 BOLT; SUPPORT,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0706-0904
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0706-0904
44 BOLT; SUPPORT,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 0610-0705
113 BOX; CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-325-1 01 1 0706-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0610-0705
171 SCREW; CONSOLE BOX
PROVISIONAL PACKAGE SPEC<BCC> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0610-0705
171 SCREW; CONSOLE BOX
PROVISIONAL PACKAGE SPEC<BCC> (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0706-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0610-0705
195 SEAL; CENTER CONSOLE
EXC. PROVISIONAL PACKAGE SPEC<BCC>,CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0706-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0610-0705
212 SUPPORT; CONSOLE TO COMPT
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-095-1 01 1 0706-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0706-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0610-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0610-0705
296 SEAL
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-72537-094-1 01 1 0706-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0706-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0610-0705
307 COVER; HOLE,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-72537-188-0 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 0610-0705
307 COVER; HOLE,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (C) 		1-72537-270-1 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0610-0705
307 COVER; HOLE,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (B) 		1-76337-461-0 04 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0706-
317 CONSENT 1-82523-020-2 01 1 0610-

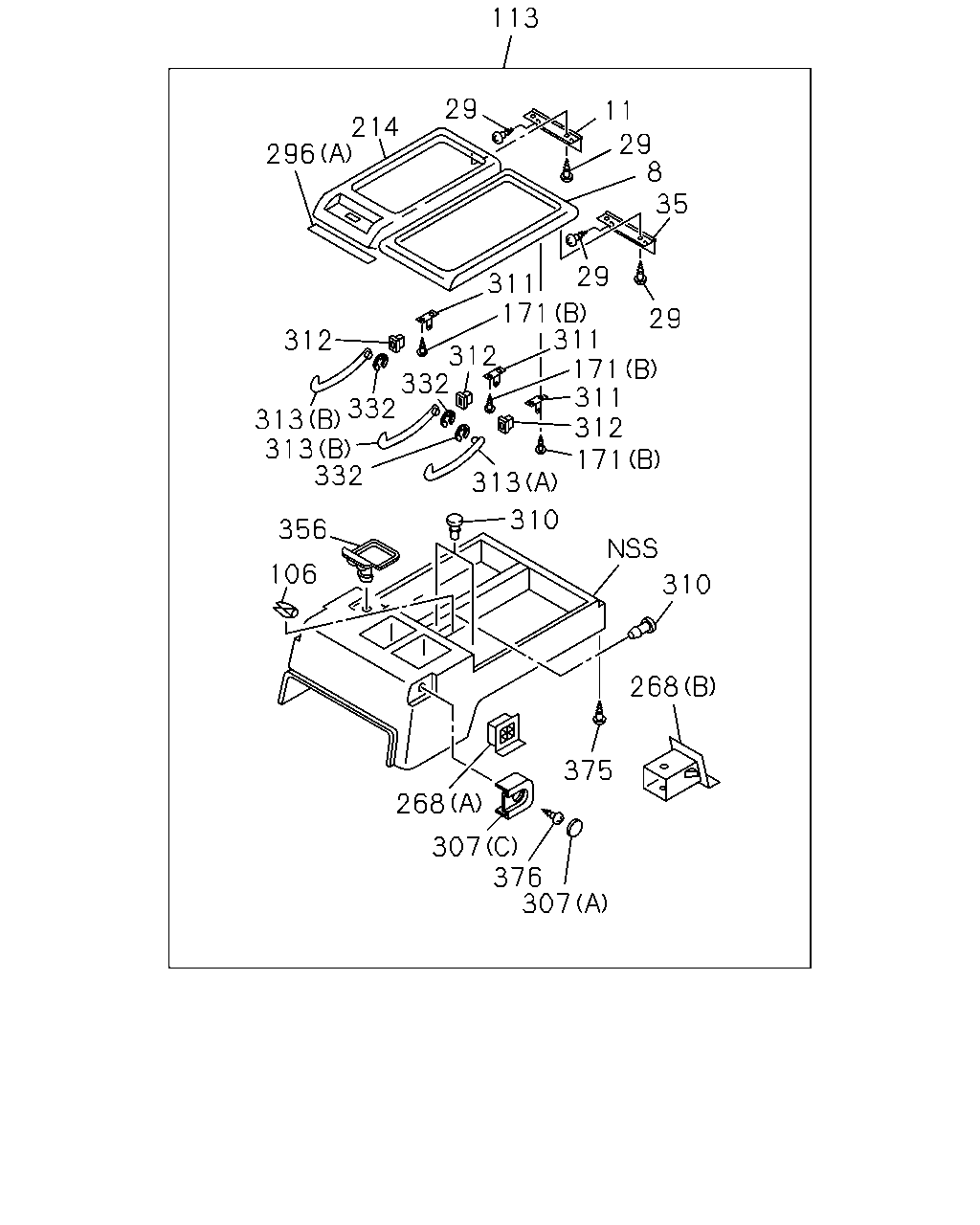

çizim 139603
113 29 11 214 29 8 35 296 29 311 171 311 171 311 312 171 29 312 312 332 332 313 313 332 313 310 356 106 310 268 375 268 307 376 307
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-185-0 01 1 0610-0705
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 0706-0706
8 LID; CENTER CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-332-0 01 1 0706-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0610-0705
11 HINGE; CONSOLE LID
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-070-2 01 1 0706-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0706-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0610-0705
29 SCREW; HINGE
PROVISIONAL PACKAGE SPEC<BCC> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0706-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0706-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0610-0705
35 HINGE; CENTER CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72538-182-1 01 1 0706-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0706-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0610-0705
106 LOCK; CONSOLE LID
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-079-0 02 1 0706-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0706-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 0610-0705
113 BOX; CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-325-1 01 1 0706-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-325-1 01 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0610-0705
171 SCREW; CONSOLE BOX
PROVISIONAL PACKAGE SPEC<BCC> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0610-0705
171 SCREW; CONSOLE BOX
PROVISIONAL PACKAGE SPEC<BCC> (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0706-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0706-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-186-0 01 1 0610-0705
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 0706-0706
214 LID; CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-339-0 01 1 0706-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 0706-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 0610-0705
268 COVER; DUCT
PROVISIONAL PACKAGE SPEC<BCC> (B) 		1-72537-268-0 01 1 0706-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-268-0 01 1 0706-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 0610-0705
268 COVER; DUCT
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-72537-269-0 01 1 0706-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-269-0 01 1 0706-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0610-0705
296 SEAL
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-72537-094-1 01 1 0706-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0706-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 0610-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0610-0705
307 COVER; HOLE,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-72537-188-0 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 0610-0705
307 COVER; HOLE,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (C) 		1-72537-270-1 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (C) 		1-72537-270-1 02 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0610-0705
307 COVER; HOLE,CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (B) 		1-76337-461-0 04 1 0706-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0706-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0610-0705
310 CUSHION; CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72538-187-0 02 1 0706-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0706-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0610-0705
311 HOLDER; CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72538-188-2 03 1 0706-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0706-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0610-0705
312 STOPPER; CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> 		1-72538-186-1 03 1 0706-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0706-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0610-0705
313 ARM; CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (A) 		1-72538-184-3 01 1 0706-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0706-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0610-0705
313 ARM; CTR CONSOLE
PROVISIONAL PACKAGE SPEC<BCC> (B) 		1-72538-185-3 02 1 0706-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0706-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 0610-0705
332 RING; SNAP,CONSOLE BOX
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-170-0 03 1 0706-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 0706-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 0610-0705
356 COVER; KNOB
PROVISIONAL PACKAGE SPEC<BCC> 		1-72537-271-1 01 1 0706-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-271-1 01 1 0706-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 0610-0705
375 SCREW; TAP BUSHING
PROVISIONAL PACKAGE SPEC<BCC> M6X20 		1-72537-319-0 02 1 0706-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 0706-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 0610-0705
376 SCREW; TAP DUCT
PROVISIONAL PACKAGE SPEC<BCC> M4X14 		1-72537-320-0 03 1 0706-
376 SCREW; TAP DUCT
CENTER SEAT DELETE(SP9) M4X14 		1-72537-320-0 03 1 0706-

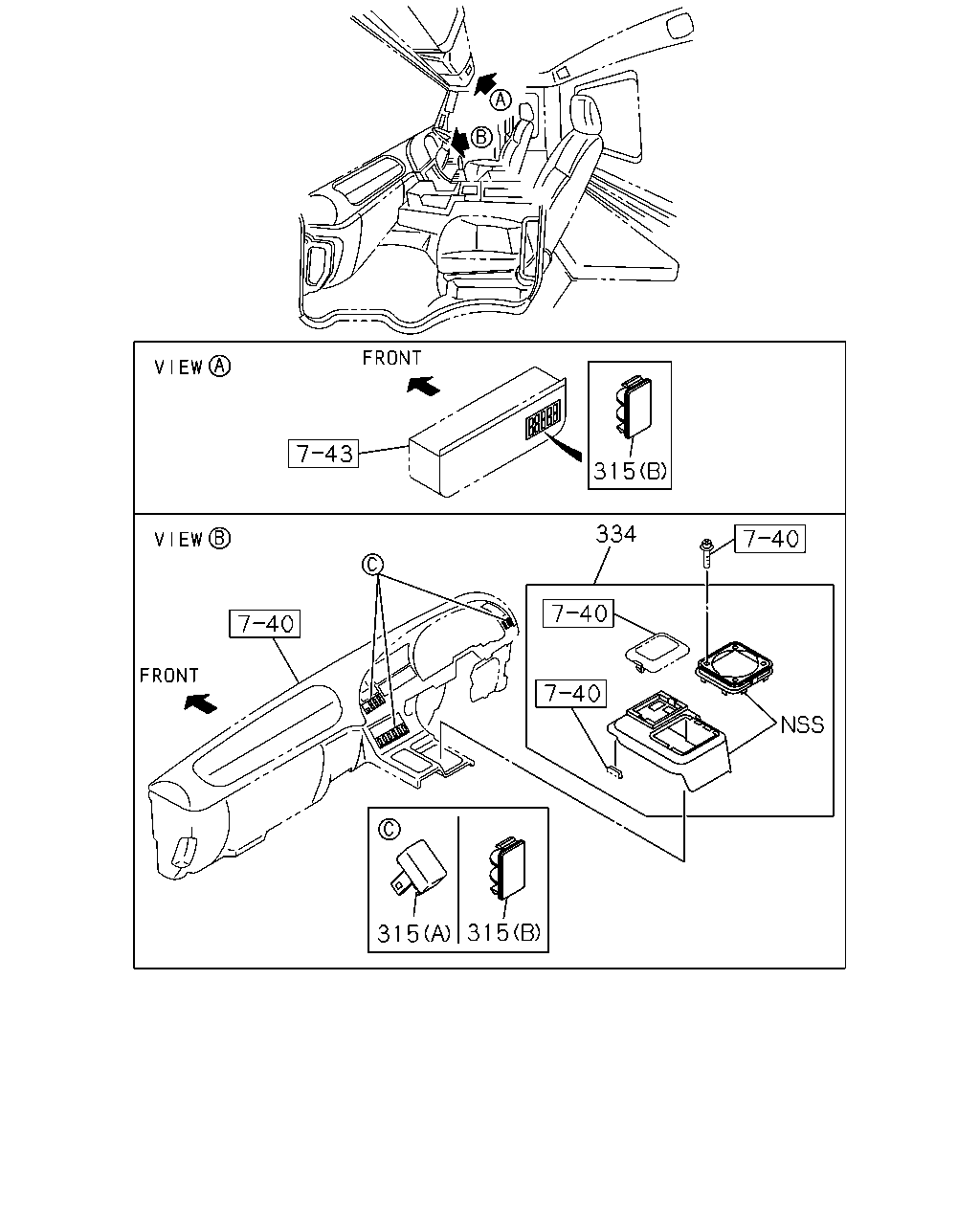

çizim 139609
315 334 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0610-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0610-
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0610-
