Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#26992) — 616 parça

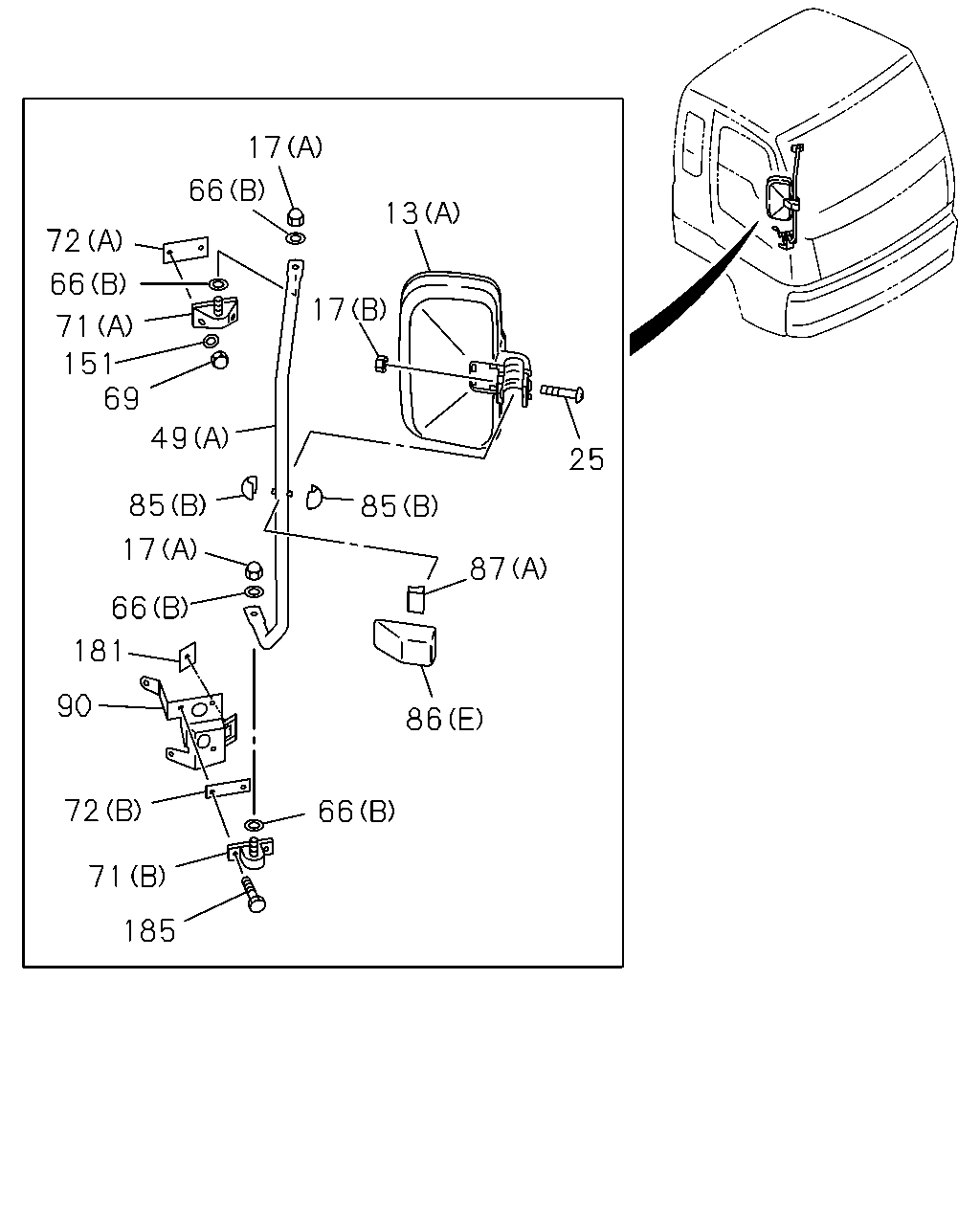

17 66 13 72 66 17 71 151 69 49 25 85 85 17 87 66 181 90 86 72 66 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0610-0805
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	04	1	0806-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0610-0805
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	06	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	02	1	0806-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (A) M10 CAP NUT	1-09984-134-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0610-0805
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71797-856-2	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (C)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (B) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
69	NUT; CAP M8	1-09984-187-0	02	1	0610-0805
69	NUT; CAP EXC. FACE LIFT<6NL> M8	1-09984-187-0	02	1	0806-0809
69	NUT; CAP EXC. FACE LIFT<6NL> M8 CAP NUT	8-98059-914-0	02	1	0810-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
72	SHEET (A) UPPER	1-71798-487-3	01	1	0610-0805
72	SHEET EXC. FACE LIFT<6NL> (A) UPPER	1-71798-487-3	01	1	0806-
72	SHEET (B) LOWER	1-71798-488-1	01	1	0610-0805
72	SHEET EXC. FACE LIFT<6NL> (B) LOWER	1-71798-488-1	01	1	0806-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) ID=22.2	1-71736-489-2	02	1	0806-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (B) ID=19.1	1-71737-633-2	02	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	01	1	0806-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0610-0805
87	SPACER FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0806-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0610-0805
151	WASHER; PL,MIRROR EXC. FACE LIFT<6NL> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	02	1	0610-0805
185	BOLT; BRKT EXC. FACE LIFT<6NL> M8X35 FLANGE	8-98046-876-0	02	1	0806-

145 13 66 177 63 66 66 49 164 174 145 66 66 174 90 26 71 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0610-0805
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71797-856-2	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (C)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (B) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
145	NUT; CAP,SUB STAY FACE LIFT<6NL> M10	1-09984-183-0	02	1	0806-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-82662-365-1	02	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-652-0	01	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-653-0	01	1	0806-
177	CLIP; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> L=140	5-09707-031-1	02	1	0806-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-

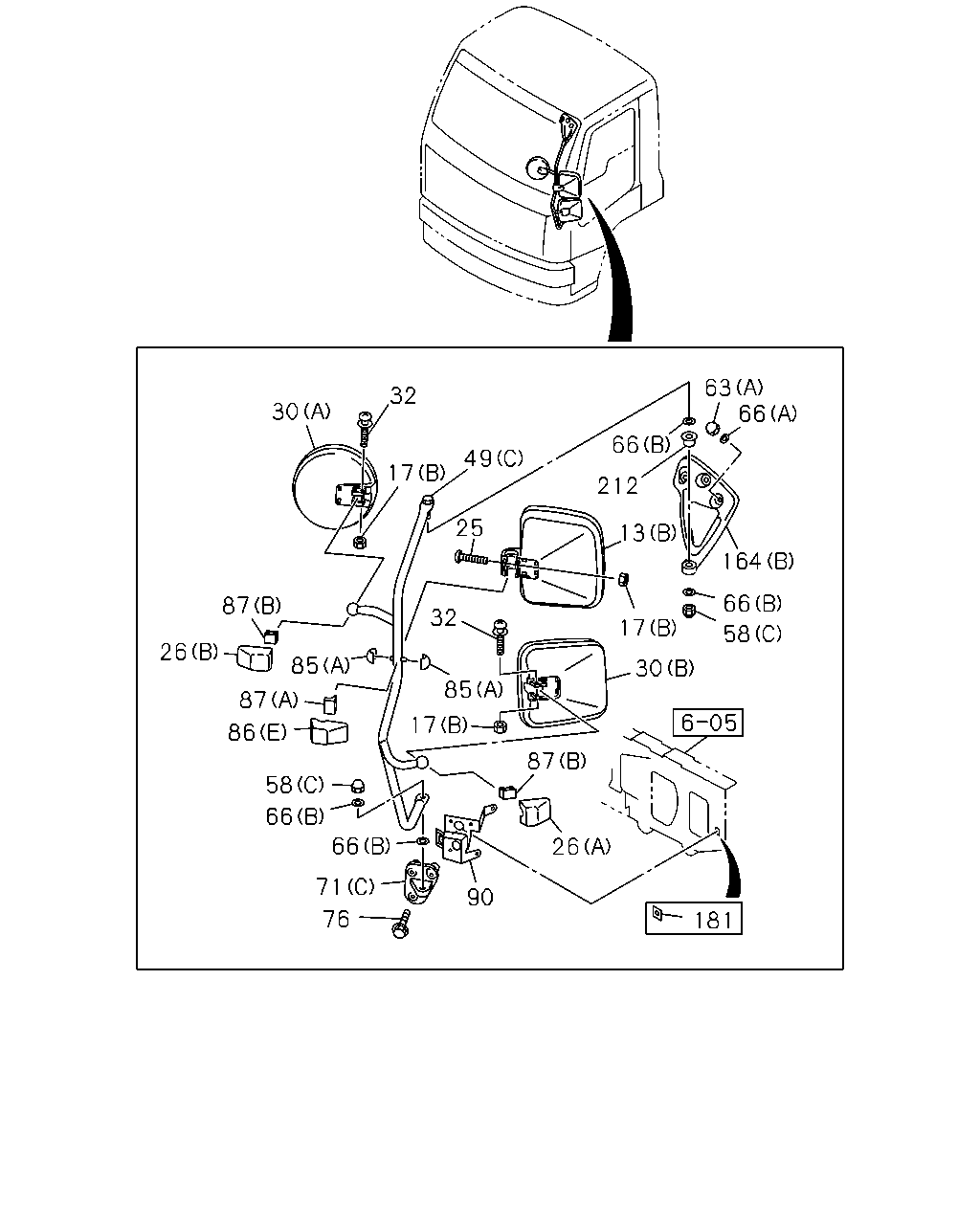

63 66 32 66 30 49 212 25 17 164 17 66 58 13 87 85 85 26 58 87 66 86 66 71 90 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0610-0805
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	04	1	0806-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0610-0805
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	06	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	02	1	0806-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (A) M10 CAP NUT	1-09984-134-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0610-0805
30	MIRROR; UNDER FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0610-0805
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	02	1	0806-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0610-0805
32	SCREW; UNDER MIRROR FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	04	1	0806-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	04	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0610-0805
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71797-856-2	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (C)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (A) M12	1-09984-178-1	02	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (B) M12	1-09984-184-1	01	1	0806-
58	NUT; MIRROR STAY (C) M10	1-09985-342-0	02	1	0610-0805
58	NUT; MIRROR STAY EXC. FACE LIFT<6NL> (C) M10	1-09985-342-0	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (B) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) ID=22.2	1-71736-489-2	02	1	0806-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (B) ID=19.1	1-71737-633-2	02	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	01	1	0806-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0610-0805
87	SPACER FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
212	BUSHING; MIRROR	1-09983-175-1	01	1	0610-0805
212	BUSHING; MIRROR EXC. FACE LIFT<6NL>	1-09983-175-1	01	1	0806-

13 133 132 134 13 133 134 132 30 135 134 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0610-0805
30	MIRROR; UNDER FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
132	RING; MIRROR (C)	1-71737-934-0	01	1	0610-0805
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-934-0	01	1	0610-0805
132	RING; MIRROR EXC. FACE LIFT<6NL> (C)	1-71737-934-0	01	1	0806-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (C)	1-71737-934-0	01	1	0806-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0610-0805
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-933-0	01	1	0806-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-935-0	01	1	0610-0805
132	RING; MIRROR FACE LIFT<6NL> (A)	1-71737-935-0	01	1	0806-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-935-0	01	1	0806-
133	LENS; MIRROR,OUTSIDE (A)	1-71737-927-0	01	1	0610-0805
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-927-0	01	1	0610-0805
133	LENS; MIRROR,OUTSIDE EXC. FACE LIFT<6NL> (A)	1-71737-927-0	01	1	0806-
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-927-0	01	1	0806-
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-926-0	01	1	0610-0805
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-926-0	01	1	0806-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0610-0805
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0610-0805
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL>	1-71737-936-0	01	1	0806-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0806-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0610-0805
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL>	1-71737-936-0	02	1	0806-
135	LENS; MIRROR,SIDE UNDER FACE LIFT<6NL> (B)	1-71707-130-0	01	1	0806-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-929-0	01	1	0610-0805
135	LENS; MIRROR,SIDE UNDER FACE LIFT<6NL> (A)	1-71737-929-0	01	1	0806-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-929-0	01	1	0806-

63 66 32 30 66 49 17 212 25 13 164 17 66 87 32 58 26 85 30 85 87 17 86 87 58 66 66 26 71 90 76 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> (B) M5	1-09984-124-0	04	1	0610-0805
17	NUT; CAP,MIRROR STAY MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	04	1	0806-
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5	1-09984-124-0	06	1	0610-0805
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	06	1	0806-
17	NUT; CAP,MIRROR STAY (B) M5	1-09984-124-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (B) M5	1-09984-124-0	02	1	0806-
17	NUT; CAP,MIRROR STAY (A) M10 CAP NUT	1-09984-134-0	02	1	0610-0805
17	NUT; CAP,MIRROR STAY EXC. FACE LIFT<6NL> (A) M10 CAP NUT	1-09984-134-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0610-0805
30	MIRROR; UNDER FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0610-0805
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	02	1	0806-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0610-0805
32	SCREW; UNDER MIRROR FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	04	1	0806-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	04	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0610-0805
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71797-856-2	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (C)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (A) M12	1-09984-178-1	02	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (B) M12	1-09984-184-1	01	1	0806-
58	NUT; MIRROR STAY (C) M10	1-09985-342-0	02	1	0610-0805
58	NUT; MIRROR STAY EXC. FACE LIFT<6NL> (C) M10	1-09985-342-0	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (B) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) ID=22.2	1-71736-489-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) ID=22.2	1-71736-489-2	02	1	0806-
85	PIVOT; MAIN MIRROR (B) ID=19.1	1-71737-633-2	02	1	0610-0805
85	PIVOT; MAIN MIRROR EXC. FACE LIFT<6NL> (B) ID=19.1	1-71737-633-2	02	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	01	1	0806-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0610-0805
87	SPACER FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
212	BUSHING; MIRROR	1-09983-175-1	01	1	0610-0805
212	BUSHING; MIRROR EXC. FACE LIFT<6NL>	1-09983-175-1	01	1	0806-

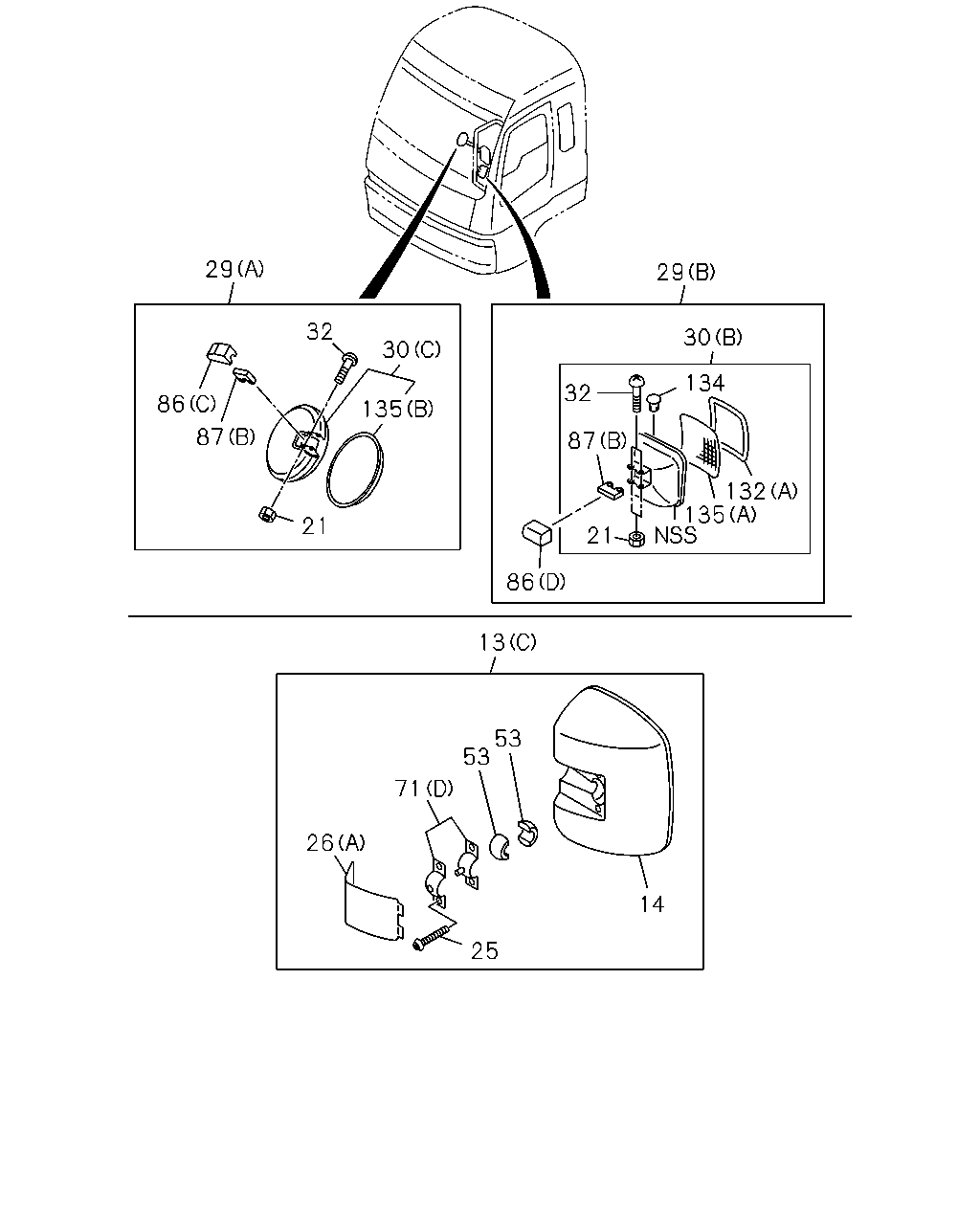

29 29 32 30 30 134 32 86 135 87 87 132 135 21 21 86 13 53 53 71 26 14 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-71707-230-0	01	1	0806-1504
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	8-98288-714-0	01	1	1505-1510
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	8-98324-757-0	01	1	1511-
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	1-71707-231-0	01	1	0806-1510
14	MIRROR ASM; OUTSIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL>	8-98324-759-0	01	1	1511-
21	NUT; MIRROR FACE LIFT<6NL> M5	1-09984-124-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> M6X40	1-71707-223-0	04	1	0806-
25	SCREW; OUTSIDE MIRROR	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-09981-541-0	02	1	0610-0805
25	SCREW; OUTSIDE MIRROR EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
25	SCREW; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL>	1-09981-541-0	02	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (A)	1-71797-137-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (B)	1-71798-421-1	01	1	0806-
30	MIRROR; UNDER FACE LIFT<6NL> (C)	1-71797-853-1	01	1	0806-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71798-591-1	01	1	0610-0805
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71798-591-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71798-592-1	01	1	0610-0805
30	MIRROR; UNDER FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71798-592-1	01	1	0806-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M5X40 W/PL WASHER	1-71737-797-0	02	1	0610-0805
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	02	1	0806-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5X40 W/PL WASHER	1-71737-797-0	04	1	0610-0805
32	SCREW; UNDER MIRROR FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	04	1	0806-
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> M5X40 W/PL WASHER	1-71737-797-0	04	1	0806-
53	PIVOT; SIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> ID=22.2	1-71736-489-2	04	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-646-2	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	01	1	0806-
87	SPACER (A)	1-71737-704-0	01	1	0610-0805
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-704-0	01	1	0610-0805
87	SPACER EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-704-0	01	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-646-2	02	1	0610-0805
87	SPACER FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-646-2	02	1	0806-
132	RING; MIRROR (C)	1-71737-934-0	01	1	0610-0805
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-934-0	01	1	0610-0805
132	RING; MIRROR EXC. FACE LIFT<6NL> (C)	1-71737-934-0	01	1	0806-
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (C)	1-71737-934-0	01	1	0806-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-933-0	01	1	0610-0805
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-933-0	01	1	0806-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-935-0	01	1	0610-0805
132	RING; MIRROR FACE LIFT<6NL> (A)	1-71737-935-0	01	1	0806-
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-935-0	01	1	0806-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0610-0805
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	0610-0805
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL>	1-71737-936-0	01	1	0806-
134	CLIP; MIRROR LENS	1-71737-936-0	01	1	0806-
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	02	1	0610-0805
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL>	1-71737-936-0	02	1	0806-
135	LENS; MIRROR,SIDE UNDER FACE LIFT<6NL> (B)	1-71707-130-0	01	1	0806-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-929-0	01	1	0610-0805
135	LENS; MIRROR,SIDE UNDER FACE LIFT<6NL> (A)	1-71737-929-0	01	1	0806-
135	LENS; MIRROR,SIDE UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A)	1-71737-929-0	01	1	0806-

2 1 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73117-033-1	01	1	0711-
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	0711-
150	PLUG; MIRROR HOLE OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0610-0710

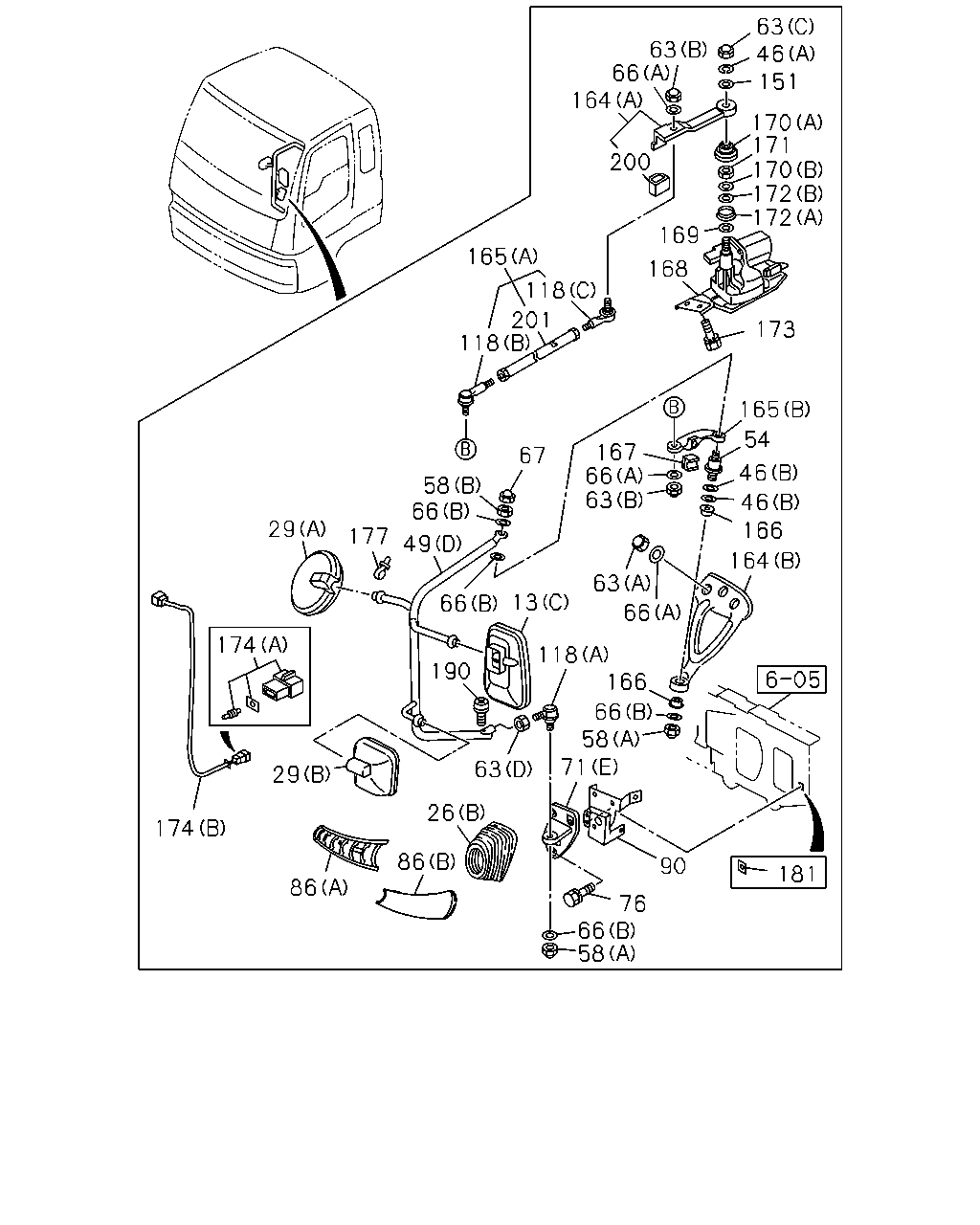

63 46 151 63 66 164 170 171 170 172 172 200 169 165 168 118 201 118 173 165 54 167 66 63 67 46 58 66 46 166 29 177 49 164 63 13 66 66 174 118 166 190 66 58 71 63 29 26 174 86 90 181 86 76 66 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-181-0	01	1	0806-1504
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98288-715-1	01	1	1505-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-746-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	1-71707-182-0	01	1	0806-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (C)	8-98324-747-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-918-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (A)	1-71737-918-3	01	1	0806-
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-917-3	01	1	0610-0805
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B)	1-71737-917-3	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-221-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-71707-222-0	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-316-2	01	1	0806-
26	COVER; OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-695-0	01	1	0806-
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) BLACK	1-71737-649-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (B) BLACK	1-71737-649-1	01	1	0806-
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) BLACK	1-71737-652-1	01	1	0610-0805
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (A) BLACK	1-71737-652-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (A)	1-71797-137-1	01	1	0806-
29	MIRROR ASM; UNDER FACE LIFT<6NL> (B)	1-71798-421-1	01	1	0806-
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=10	1-09985-345-0	01	1	0806-
46	WASHER; LK,STAY FACE LIFT<6NL> (B) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-175-1	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-177-1	01	1	0806-
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71797-856-2	01	1	0610-0805
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. FACE LIFT<6NL> (B)	1-71797-856-2	01	1	0806-
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-2	01	1	0610-0707
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C)	1-71797-896-3	01	1	0708-0805
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (C)	1-71797-896-3	01	1	0806-
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0610-0805
49	STAY; MIRROR SIDE EXC. FACE LIFT<6NL> (A)	1-71798-490-3	01	1	0806-
54	BOLT; STAY FACE LIFT<6NL>	1-09980-618-0	01	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (A) M12	1-09984-178-1	02	1	0806-
58	NUT; MIRROR STAY FACE LIFT<6NL> (B) M12	1-09984-184-1	01	1	0806-
58	NUT; MIRROR STAY (C) M10	1-09985-342-0	02	1	0610-0805
58	NUT; MIRROR STAY EXC. FACE LIFT<6NL> (C) M10	1-09985-342-0	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) M8	1-71798-603-1	02	1	0806-
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) M10 CAP NUT	1-71798-859-0	01	1	0806-
63	NUT; STAY FACE LIFT<6NL> (D) M14	0-91110-514-0	01	1	0806-
63	NUT; STAY EXC. FACE LIFT<6NL> (A) M8	1-09984-187-0	03	1	0806-
63	NUT; STAY (A) M8	1-09984-187-0	03	1	0610-0805
63	NUT; STAY FACE LIFT<6NL> (A) M8	1-09984-187-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	06	1	0806-
66	WASHER; PL FACE LIFT<6NL> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0806-
66	WASHER; PL FACE LIFT<6NL> (B) ID=12.5	1-09985-334-0	04	1	0806-
66	WASHER; PL EXC. FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0806-
66	WASHER; PL (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0610-0805
66	WASHER; PL EXC. FACE LIFT<6NL> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0806-
66	WASHER; PL (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	03	1	0610-0805
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
67	NUT; STAY FACE LIFT<6NL> M12	1-09984-178-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (D)	1-71707-224-0	02	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (E)	1-71797-809-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR FACE LIFT<6NL> (F)	1-71798-309-4	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (A) UPPER	1-71798-484-1	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (A) UPPER	1-71798-484-1	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (B) LOWER	1-71798-486-2	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (B) LOWER	1-71798-486-2	01	1	0806-
71	BRACKET; OUTSIDE MIRROR (C)	1-71798-581-3	01	1	0610-0805
71	BRACKET; OUTSIDE MIRROR EXC. FACE LIFT<6NL> (C)	1-71798-581-3	01	1	0806-
76	BOLT; STAY BRKT FACE LIFT<6NL> M8X40 W/LK&PL WASHER	0-50640-840-0	06	1	0806-
76	BOLT; STAY BRKT M8X30 W/LK WASHER	8-94279-183-1	03	1	0610-0805
76	BOLT; STAY BRKT EXC. FACE LIFT<6NL> M8X30 W/LK WASHER	8-94279-183-1	03	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (C) BLACK	1-71737-649-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (D) BLACK	1-71737-652-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (A)	1-71798-732-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR FACE LIFT<6NL> (B)	1-71798-733-0	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-760-1	01	1	0610-0805
86	COVER; STAY,OUTSIDE MIRROR EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
86	COVER; STAY,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>,MIR O/S UNDER & SIDE UNDER VIEW<TAF> EXC. FACE LIFT<6NL> (E) BLACK	1-71737-760-1	01	1	0806-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	0610-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	0610-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (C) RH THREAD	1-71798-819-2	01	1	0806-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B) LH THREAD	1-71798-820-2	01	1	0806-
118	JOINT ASM; BALL FACE LIFT<6NL> (A)	1-71797-805-1	01	1	0806-
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	0806-
151	WASHER; PL,MIRROR ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0610-0805
151	WASHER; PL,MIRROR EXC. FACE LIFT<6NL> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0806-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-602-1	01	1	0806-
164	STAY; ROOF FACE LIFT<6NL> (C)	1-71707-090-0	01	1	0806-
164	STAY; ROOF (B)	1-71798-299-4	01	1	0610-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B)	1-71798-600-1	01	1	0806-
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-71798-782-2	01	1	0806-
166	BUSHING; STAY FACE LIFT<6NL>	1-09983-179-0	02	1	0806-
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-71798-308-0	01	1	0806-
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-86855-031-0	01	1	0806-1311
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	8-98251-163-0	01	1	1312-
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	0806-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-86855-012-0	01	1	0806-
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B)	1-86855-014-1	01	1	0806-
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> M26	1-86855-013-1	01	1	0806-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (A)	1-79928-003-1	01	1	0806-
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> (B)	1-86855-015-0	01	1	0806-
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (A)	1-82662-365-1	02	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-652-0	01	1	0806-
174	HARNESS; MIRROR MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> (B)	8-97610-653-0	01	1	0806-
177	CLIP; HARNESS MIR O/S RR VIEW HEATED<DNN> FACE LIFT<6NL> L=140	5-09707-031-1	02	1	0806-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	0610-
190	SCREW; COVER FACE LIFT<6NL> M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	0806-
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-71798-597-0	01	1	0806-
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA> FACE LIFT<6NL>	1-71798-821-0	01	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
