Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-31 - STEERING COLUMN AND SHAFT
▶

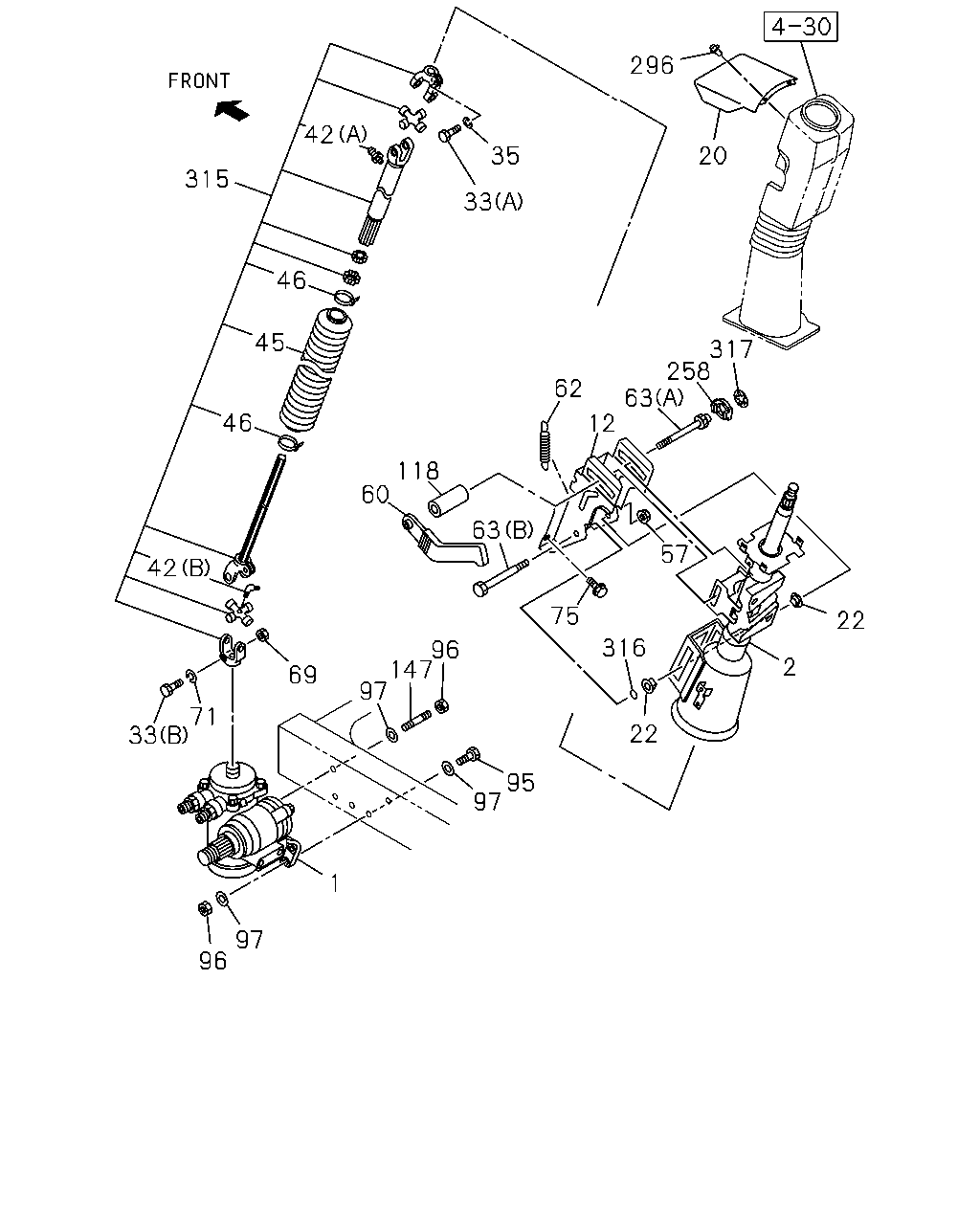

4-31 — STEERING COLUMN AND SHAFT
(#26979) — 34 parça
296
42
35
20
315
33
46
317
258
63
12
45
62
46
118
60
63
57
42
75
22
316
96
147
97
2
69
71
33
22
95
97
1
97
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT.
1-44000-887-2
01
1
0612-
2
SHAFT ASM; STRG
1-44130-689-1
01
1
0612-
12
BRACKET; LWR,STRG COLUMN
1-44227-143-0
01
1
0612-0811
12
BRACKET; LWR,STRG COLUMN
1-44227-167-0
01
1
0812-
20
COVER; STRG SHAFT
1-72438-121-3
01
1
0612-
22
BUSHING; STRG COLUMN
1-44227-150-0
02
1
0612-
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-489-0
01
1
0612-0707
33
BOLT; STRG SHAFT TO UNIT
(B) M10X50
1-09000-786-0
01
1
0708-
33
BOLT; STRG SHAFT TO UNIT
(A)
1-44139-153-0
01
1
0612-
35
WASHER; LK,STRG SHAFT
1-44139-154-0
01
1
0612-
42
NIPPLE; GREASE,SLEEVE YOKE
(A)
1-44135-375-0
01
1
0612-
42
NIPPLE; GREASE,SLEEVE YOKE
(B)
1-44135-376-0
01
1
0612-
45
BOOT; STRG SHAFT
1-44139-155-0
01
1
0612-
46
CLIP; BOOT
1-44139-156-0
02
1
0612-
57
NUT; ADJ BOLT
1-44227-151-0
01
1
0612-
60
LEVER; ADJ,STRG COLUMN
1-44227-144-0
01
1
0612-
62
SPRING; LK,LEVER
1-44227-153-0
01
1
0612-
63
BOLT; ADJ LEVER,TILT STRG
(A)
1-44227-145-0
01
1
0612-
63
BOLT; ADJ LEVER,TILT STRG
(B)
1-44227-149-0
01
1
0612-
69
NUT; TILT CENTER
M10
0-91110-510-0
01
1
0612-
71
WASHER; LK,SHAFT TO UNIT
ID=10.2
0-91510-810-0
01
1
0612-
75
BOLT; STRG COLUMN
M8X20 FLANGE
0-28650-820-0
04
1
0612-
95
BOLT; STRG UNIT
M14X55
8-97301-262-0
04
1
0612-
96
NUT; STRG UNIT
M14
1-09440-080-0
05
1
0612-0805
96
NUT; STRG UNIT
M14
1-09440-097-0
05
1
0806-
97
WASHER; PL,STRG UNIT
ID=15
9-09651-069-0
09
1
0612-1201
97
WASHER; PL,STRG UNIT
ID=15
8-98010-627-1
09
1
1202-
118
NUT; LEVER,TILT BOLT
1-44227-163-0
01
1
0612-
147
STUD; STRG UNIT
M14X37 L=66
1-09300-095-1
01
1
0612-
258
STOPPER; STRG COLUMN,TILT & TELESCOPIC
1-44227-147-0
01
1
0612-
296
CLIP; COVER
D6X12.5
8-94146-425-0
02
1
0612-
315
JOINT; SPLINE
1-44135-377-0
01
1
0612-
316
RING
1-44227-152-0
01
1
0612-
317
NUT; PUSH
1-44227-148-0
01
1
0612-
