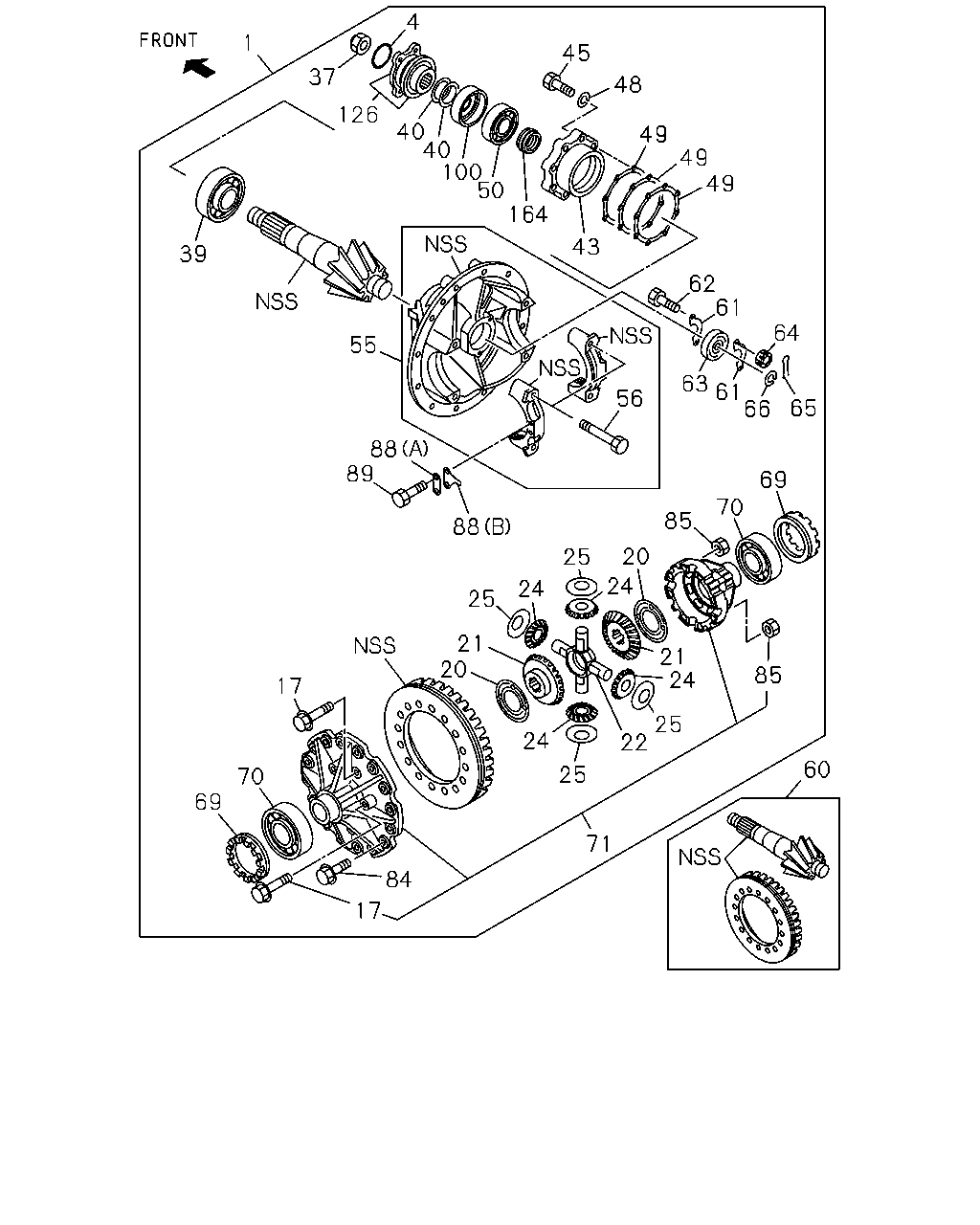

1 |
DRIVE ASM; FINAL,RR
39/8
|
1-41003-188-0 |
01 |
1 |
0612- |
| |
4 |
GASKET; FLANGE,FINAL PINION
ID=37.5 T=4
|
1-09623-582-0 |
01 |
1 |
0612- |
| |
17 |
BOLT; DIFF CAGE SETTING
M14X121 FLANGE
|
1-09044-006-0 |
04 |
1 |
0612- |
| |
17 |
BOLT; DIFF CAGE SETTING
M14X95 FLANGE
|
1-09044-007-0 |
04 |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.80
|
1-41562-061-0 |
AR |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.00
|
1-41562-062-0 |
AR |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.20
|
1-41562-063-0 |
AR |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.40
|
1-41562-064-0 |
AR |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=2.90
|
1-41562-080-0 |
AR |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.10
|
1-41562-081-0 |
AR |
1 |
0612- |
| |
20 |
WASHER; THRUST,SIDE GEAR
T=3.30
|
1-41562-082-0 |
AR |
1 |
0612- |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-125-0 |
02 |
1 |
0612-0905 |
| |
21 |
GEAR; SIDE,DIFF
Z=16
|
1-41561-149-0 |
02 |
1 |
0906- |
| |
22 |
SPIDER; DIFF PINION
|
1-41521-050-2 |
01 |
1 |
0612- |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-042-0 |
04 |
1 |
0612-0905 |
| |
24 |
GEAR; PINION,DIFF
Z=10
|
1-41551-049-0 |
04 |
1 |
0906- |
| |
25 |
WASHER; THRUST,PINION
ID=29 OD=60
|
1-41562-119-0 |
04 |
1 |
0612- |
| |
37 |
NUT; DRIVING PINION
M36 FLANGE
|
1-09449-058-2 |
01 |
1 |
0612-0804 |
| |
37 |
NUT; DRIVING PINION
M36 FLANGE
|
1-09449-083-0 |
01 |
1 |
0805- |
| |
39 |
BEARING; FINAL PINION
JTEKT
|
5-09812-062-1 |
01 |
1 |
1001- |
| |
39 |
BEARING; FINAL PINION
NSK
|
1-09812-026-0 |
01 |
1 |
0612-1001 |
| |
39 |
BEARING; FINAL PINION
NSK
|
5-09812-063-0 |
01 |
1 |
1002- |
| |
40 |
SHIM; FINAL PINION
T=1.60
|
1-41229-179-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.61
|
1-41229-180-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.62
|
1-41229-181-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.63
|
1-41229-182-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.64
|
1-41229-183-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.65
|
1-41229-184-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.66
|
1-41229-185-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.67
|
1-41229-186-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.68
|
1-41229-187-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.69
|
1-41229-188-0 |
AR |
1 |
0612- |
| |
40 |
SHIM; FINAL PINION
T=1.70
|
1-41229-189-0 |
AR |
1 |
0612- |
| |
43 |
CAGE; FINAL PINION
|
1-41151-027-0 |
01 |
1 |
0612- |
| |
45 |
BOLT; FINAL PINION CAGE
M12X40
|
9-02361-240-0 |
06 |
1 |
0612- |
| |
48 |
WASHER; LK,FINAL PINION
ID=12.2
|
0-91510-512-0 |
06 |
1 |
0612- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.50
|
1-41154-021-1 |
AR |
1 |
0612- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.30
|
1-41154-051-1 |
AR |
1 |
0612- |
| |
49 |
SHIM; FINAL PINION CAGE
T=0.40
|
1-41154-052-1 |
AR |
1 |
0612- |
| |
49 |
SHIM; FINAL PINION CAGE
T=1.00
|
1-41154-053-1 |
AR |
1 |
0612- |
| |
50 |
BEARING; FINAL PINION
JTEKT
|
1-09812-042-1 |
01 |
1 |
0612- |
| |
50 |
BEARING; FINAL PINION
NSK
|
1-09812-041-2 |
01 |
1 |
0612- |
| |
55 |
CARRIER; DIFF
|
1-41110-048-1 |
01 |
1 |
0612-1006 |
| |
55 |
CARRIER; DIFF
|
1-41110-129-0 |
01 |
1 |
1007- |
| |
56 |
BOLT; BRG CAP
M16X100 FLANGE
|
1-09070-047-0 |
04 |
1 |
0612- |
| |
60 |
GEAR SET; FINAL DRIVE,RR
39/8
|
1-41210-454-0 |
01 |
1 |
0612- |
| |
61 |
RETAINER; PILOT BRG,PINION
T=2.3
|
1-41227-006-0 |
02 |
1 |
0612- |
| |
62 |
BOLT; RET
M8X35 W/PIN HOLE
|
1-09042-034-0 |
02 |
1 |
0612-0804 |
| |
62 |
BOLT; RET
M8X35 W/PIN HOLE
|
1-09042-046-0 |
02 |
1 |
0805- |
| |
63 |
BEARING; PINION PILOT
NSK
|
1-09810-073-2 |
01 |
1 |
0612- |
| |
63 |
BEARING; PINION PILOT
JTEKT
|
1-09810-074-1 |
01 |
1 |
0612- |
| |
64 |
NUT; RET
M8 SLOTTED
|
0-91117-508-0 |
02 |
1 |
0612- |
| |
65 |
PIN; SPLIT,RET
|
9-08112-012-0 |
02 |
1 |
0612-0805 |
| |
65 |
PIN; SPLIT,RET
|
0-81122-012-0 |
02 |
1 |
0806- |
| |
66 |
RING; SNAP,PILOT BRG
OD=34.2
|
1-09588-066-1 |
01 |
1 |
0612-1109 |
| |
66 |
RING; SNAP,PILOT BRG
OD=34.2
|
1-09588-214-0 |
01 |
1 |
1110- |
| |
69 |
NUT; ADJ,DIFF CAGE
M128 H=22
|
1-41121-013-0 |
01 |
1 |
0612- |
| |
69 |
NUT; ADJ,DIFF CAGE
M128 H=30
|
1-41121-015-0 |
01 |
1 |
0612- |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3
|
1-09812-063-1 |
01 |
1 |
0612-0704 |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3
|
1-09812-249-0 |
01 |
1 |
0705- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=70 OD=125 T=33.3
|
1-09812-056-1 |
01 |
1 |
0612- |
| |
70 |
BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3
|
1-09812-058-1 |
01 |
1 |
0612- |
| |
70 |
BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=33.3
|
1-09812-062-2 |
01 |
1 |
0612- |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-112-0 |
01 |
1 |
0612-1006 |
| |
71 |
CAGE ASM; DIFF,FINAL DRIVE
|
1-41510-343-0 |
01 |
1 |
1007- |
| |
84 |
BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE
|
9-09802-575-1 |
16 |
1 |
0612- |
| |
85 |
NUT; DIFF CAGE SETTING
M14
|
1-09400-077-1 |
08 |
1 |
0612- |
| |
88 |
PLATE; LK,ADJ NUT
(A)
T=1.0
|
9-41124-005-0 |
02 |
1 |
0612- |
| |
88 |
PLATE; LK,ADJ NUT
(B)
T=2.3
|
9-41124-015-0 |
02 |
1 |
0612- |
| |
89 |
BOLT; LK PLATE
M8X16
|
0-20850-816-0 |
04 |
1 |
0612- |
| |
100 |
SEAL; OIL,FINAL PINION
NOK
|
1-09625-484-1 |
01 |
1 |
0612- |
| |
100 |
SEAL; OIL,FINAL PINION
TKK
|
1-09625-637-0 |
01 |
1 |
0612- |
| |
126 |
COUPLING; DRIVING PINION
|
1-37245-069-6 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=10.7
|
1-36355-031-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=10.90
|
1-36355-033-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=11.10
|
1-36355-035-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=11.30
|
1-36355-037-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=11.50
|
1-36355-039-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=11.70
|
1-36355-041-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=11.9
|
1-36355-043-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=12.10
|
1-36355-045-0 |
01 |
1 |
0612- |
| |
164 |
COLLAR; DIST,PINION
T=12.30
|
1-36355-047-0 |
01 |
1 |
0612- |
