4-01 — PROPELLER SHAFT (#26973) — 61 parça

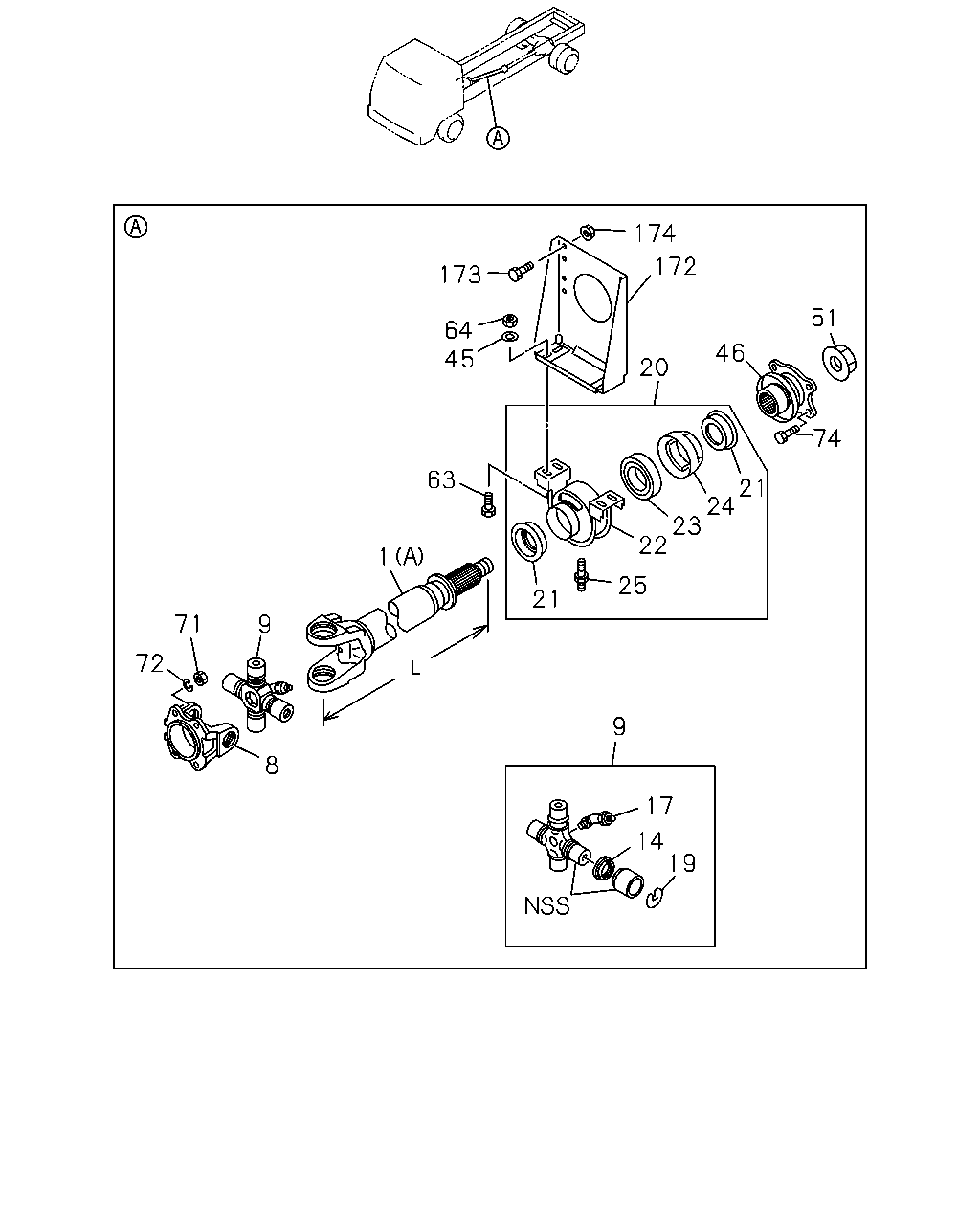

174 172 173 51 64 45 46 20 74 63 21 24 23 22 1 25 21 71 9 72 9 8 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (B) L=951	1-37123-764-1	01	1	0612-
1	SHAFT; PROP ENGINE REAR PTO(SV1) (A) L=946	1-37153-603-0	01	1	0612-
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (A) L=1006	1-37152-770-0	01	1	0612-
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0612-
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0612-
9	JOURNAL ASM; PROP SHAFT	1-37300-102-1	AR	1	0612-
14	COVER; DUST,SPIDER	1-37319-012-0	04	1	0612-1505
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER	1-37319-012-0	08	1	0612-1505
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0612-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0612-
20	BEARING ASM; CTR,PROP SHAFT	1-37510-105-0	01	1	0612-
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0612-
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0612-
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0612-
24	RETAINER; CENTER BRG,1ST	1-37529-068-0	01	1	0612-
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0612-
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0612-
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-071-0	01	1	0612-
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0612-
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0612-
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0612-
71	NUT; YOKE M14	0-91110-514-0	04	1	0612-
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	0612-
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	04	1	0612-
172	BRACKET; CENTER BRG	1-37515-118-0	01	1	0612-
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0612-
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0612-

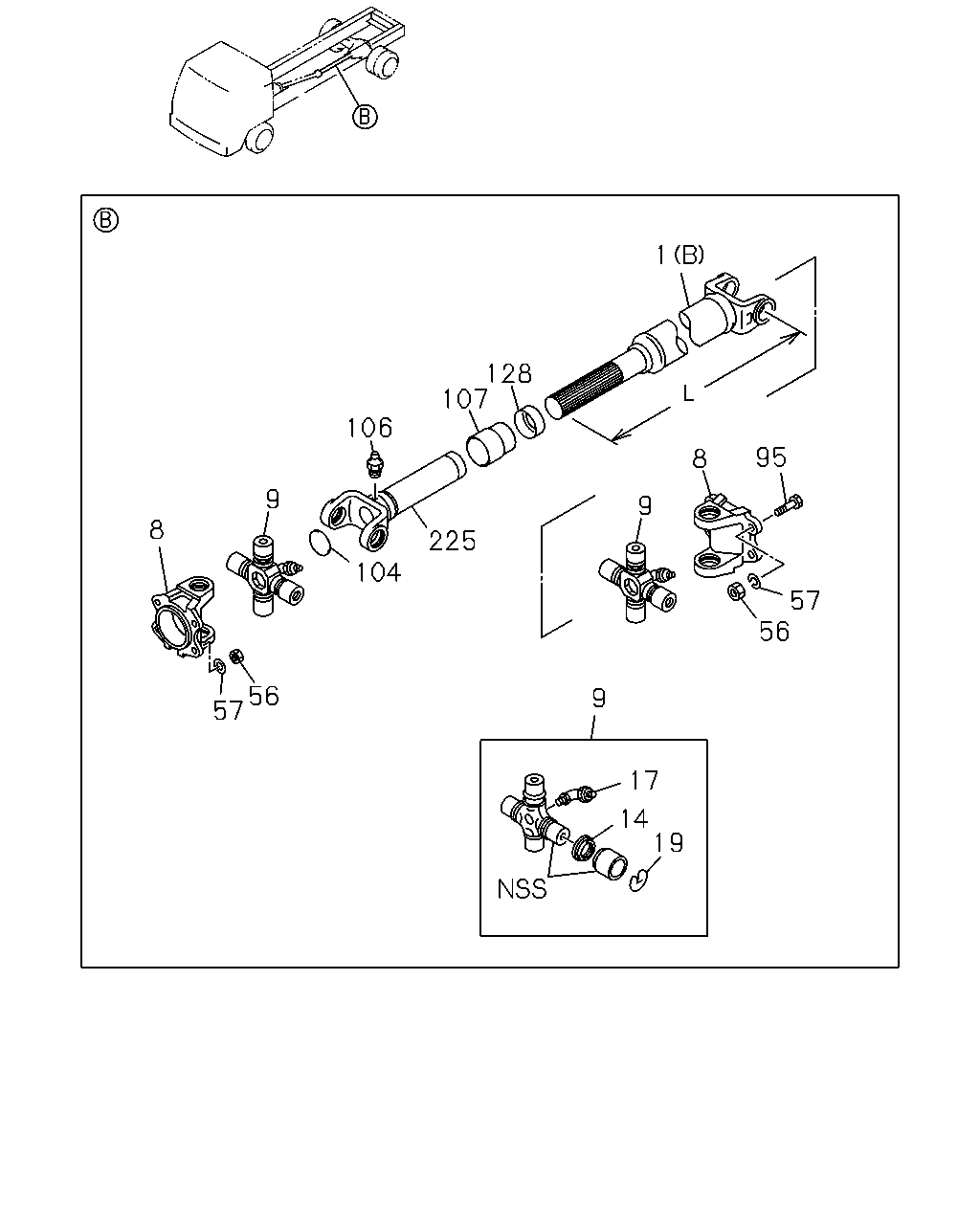

1 128 107 106 95 8 9 9 8 225 104 57 56 56 57 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP (B) L=951	1-37123-764-1	01	1	0612-
1	SHAFT; PROP ENGINE REAR PTO(SV1) (A) L=946	1-37153-603-0	01	1	0612-
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (A) L=1006	1-37152-770-0	01	1	0612-
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	0612-
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	0612-
9	JOURNAL ASM; PROP SHAFT	1-37300-102-1	AR	1	0612-
14	COVER; DUST,SPIDER	1-37319-012-0	04	1	0612-1505
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1506-
14	COVER; DUST,SPIDER	1-37319-012-0	08	1	0612-1505
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1506-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0612-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0612-
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0612-
56	NUT; YOKE M14	0-91110-514-0	08	1	0612-
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0612-
95	BOLT; YOKE,FINAL M14X37	1-09000-121-0	04	1	0612-
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0612-
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT	0-90301-410-0	01	1	0612-
107	COVER; RET,SLEEVE	1-37249-060-1	01	1	0612-
128	SEAL; SLEEVE	1-37247-024-0	01	1	0612-
225	YOKE; SLEEVE,PROP SHAFT L=271	1-37241-099-2	01	1	0612-
