Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#26962) — 60 parça
◀

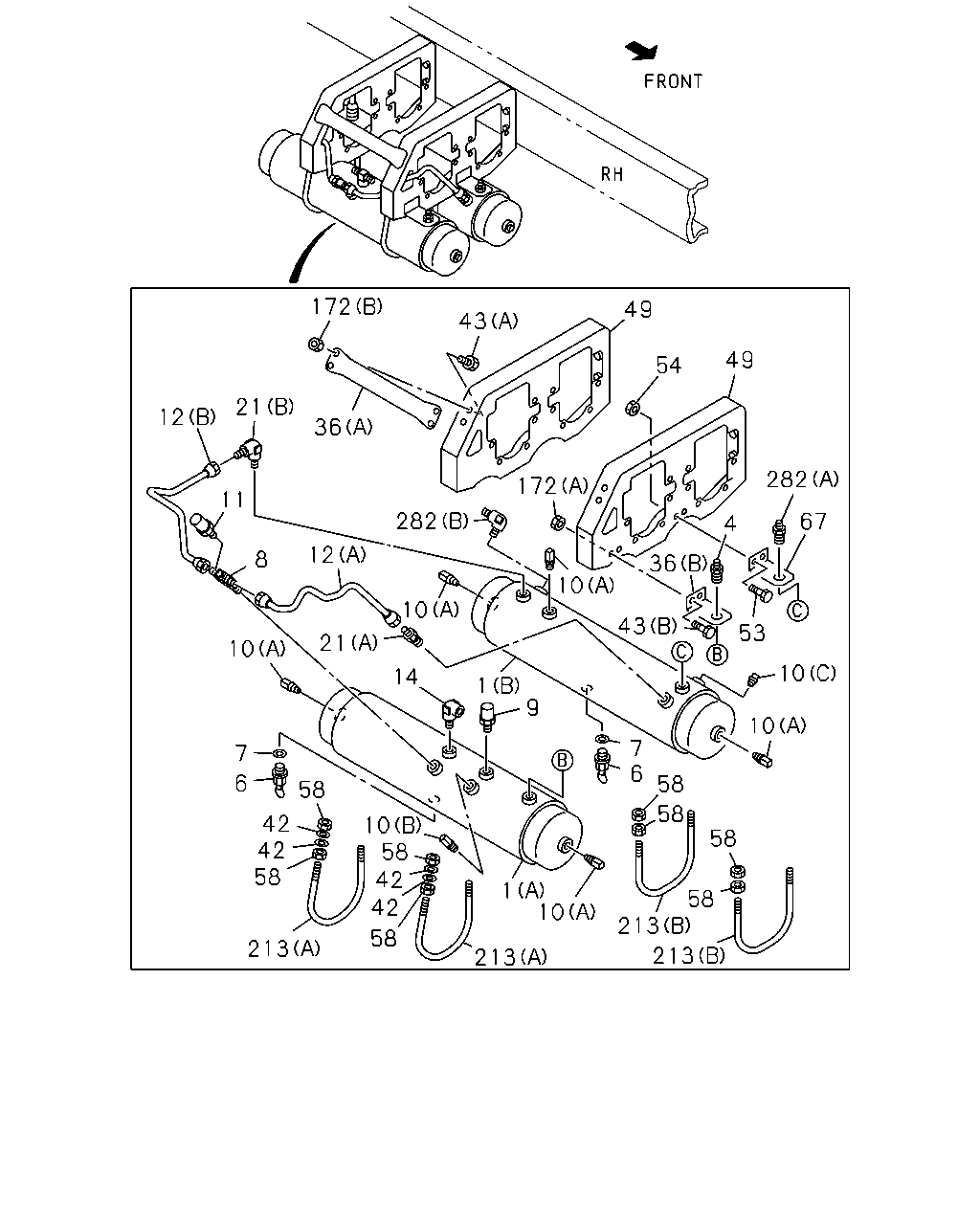

[320A] AIR TANK (32 parça)
[320A] GROMMET;CAB INSIDE (1 parça)

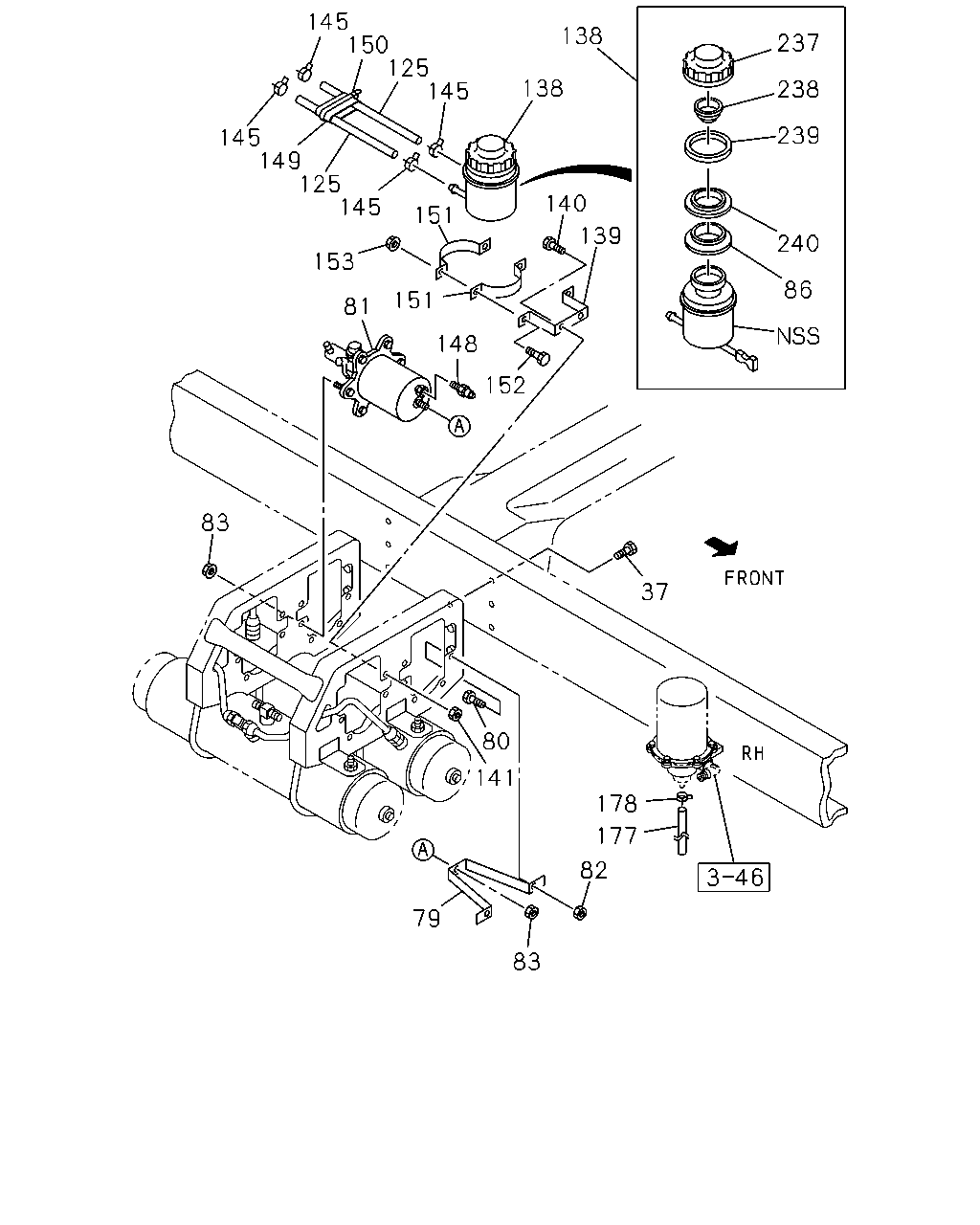

[320A] AIR MASTER AND OIL TANK (27 parça)
▶
172
49
43
49
54
21
12
36
282
172
11
282
67
4
12
8
36
10
10
43
53
21
10
10
14
1
9
10
7
6
7
6
58
58
58
42
42
58
10
58
42
42
58
1
10
58
213
58
213
213
213
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
1-48330-598-0
01
1
0612-
1
TANK ASM; AIR
(B)
1-48370-512-2
01
1
0612-
4
CONNECTOR; FLARE
1-09650-536-0
01
1
0612-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
04
1
0612-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
04
1
0612-
8
CONNECTOR; AIR TANK
1-09656-699-0
01
1
0612-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
530KPA
1-48340-054-1
01
1
0612-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
01
1
0612-
10
PLUG; AIR TANK
(C) PT3/4
9-09204-526-0
01
1
0612-
10
PLUG; AIR TANK
(A) PT1/4
9-99204-513-0
05
1
0612-
11
VALVE; SAFETY,AIR TANK
1-48320-012-2
01
1
0612-
12
PIPE ASM; AIR,AIR TANK TO AIR TANK
(B)
1-47497-011-0
01
1
0612-
12
PIPE ASM; AIR,AIR TANK TO AIR TANK
(A)
1-47497-012-0
01
1
0612-
14
UNION; 3 WAY,AIR TANK
DIN8X2 & R1/4 3WAY
1-09661-006-0
01
1
0612-
21
VALVE; CHECK,AIR TANK
(A)
1-48410-182-3
01
1
0612-
21
VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW
1-48410-412-0
01
1
0612-
36
STAY; MAIN TANK
(A)
1-53318-293-1
01
1
0612-
36
STAY; MAIN TANK
(B)
8-94301-490-0
01
1
0612-
42
WASHER; PL
ID=8.4 OD=18
0-91610-608-0
04
1
0612-
43
BOLT; STAY,AIR TANK,MAIN
(B) M8X20 FLANGE
0-28650-820-0
02
1
0612-
43
BOLT; STAY,AIR TANK,MAIN
(A) M10X25 FLANGE
0-28651-025-0
04
1
0612-
49
BRACKET; AIR TANK
1-53318-338-6
02
1
0612-
53
BOLT; STAY,AIR TANK
M8X20 FLANGE
0-28650-820-0
02
1
0612-
54
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
0612-
58
NUT; BAND,AIR TANK
M8
0-91110-508-0
16
1
0612-
67
STAY; SUB TANK
1-48317-349-0
01
1
0612-
172
NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE
0-91180-108-0
02
1
0612-
172
NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE
0-91180-210-0
04
1
0612-
213
BOLT; U AIR TANK
(A) L=97.5
1-48317-323-1
02
1
0612-
213
BOLT; U AIR TANK
(B) L=195
1-48317-367-2
02
1
0612-
282
UNION; 2 WAY
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0612-
282
UNION; 2 WAY
(A) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0612-
246
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
246
GROMMET; VINYL PIPE
OD=35
8-94122-971-0
01
1
0612-
145
150
125
145
138
237
138
238
239
145
149
125
145
140
151
139
240
153
86
151
81
148
152
83
37
80
141
178
177
82
79
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
06
1
0612-
79
STAY; AIR MASTER TO BRKT
1-53318-347-0
02
1
0612-0805
79
STAY; AIR MASTER TO BRKT
8-98120-254-0
02
1
0806-
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
04
1
0612-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY
1-47800-663-1
01
1
0612-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY
1-47800-664-2
01
1
0612-
82
NUT; STAY,AIR MASTER BRKT
M10 FLANGE
0-91180-210-0
04
1
0612-
83
NUT; AIR MASTER
M10 FLANGE
0-91180-210-0
10
1
0612-
86
SEAL; DUST
1-47529-019-0
01
1
0612-
125
HOSE; OIL TANK TO AIR MASTER
L=270 SERVICED BY L=1800
1-09360-320-0
02
1
0612-
138
TANK ASM; OIL,AIR MASTER
1-47530-185-1
01
1
0612-
139
BRACKET; OIL TANK
1-47537-081-2
01
1
0612-
140
BOLT; OIL TANK TO BRKT
M10X20 FLANGE
0-28651-020-0
02
1
0612-
141
NUT; OIL TANK TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0612-
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=14
1-09704-102-0
04
1
0612-
148
CONNECTOR; AIR MASTER
DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
0612-
149
SLEEVE; RUBBER,HOSE
ID=23 OD=27 L=40
1-09337-015-0
01
1
0612-
150
CLIP; BAND,RUBBER SLEEVE
L=140
5-09707-031-1
01
1
0612-
151
BAND; OIL TANK,AIR MASTER
1-47537-056-2
02
1
0612-
152
BOLT; OIL TANK TO BAND
M8X20 FLANGE
0-28650-820-0
02
1
0612-
153
NUT; OIL TANK TO BAND
M8 FLANGE
0-91180-108-0
02
1
0612-
177
HOSE; RUBBER,DRAIN
L=90
9-09712-638-0
01
1
0612-
178
CLIP; HOSE
ID=33.6
8-94362-518-0
01
1
0612-
237
CAP; OIL TANK
1-47525-030-0
01
1
0612-
238
PLATE; BAFFLE
1-47529-022-0
01
1
0612-
239
FILTER; DUST
1-47529-017-0
01
1
0612-
240
HOLDER; FILTER
1-47529-018-0
01
1
0612-
