2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#26951) — 23 parça

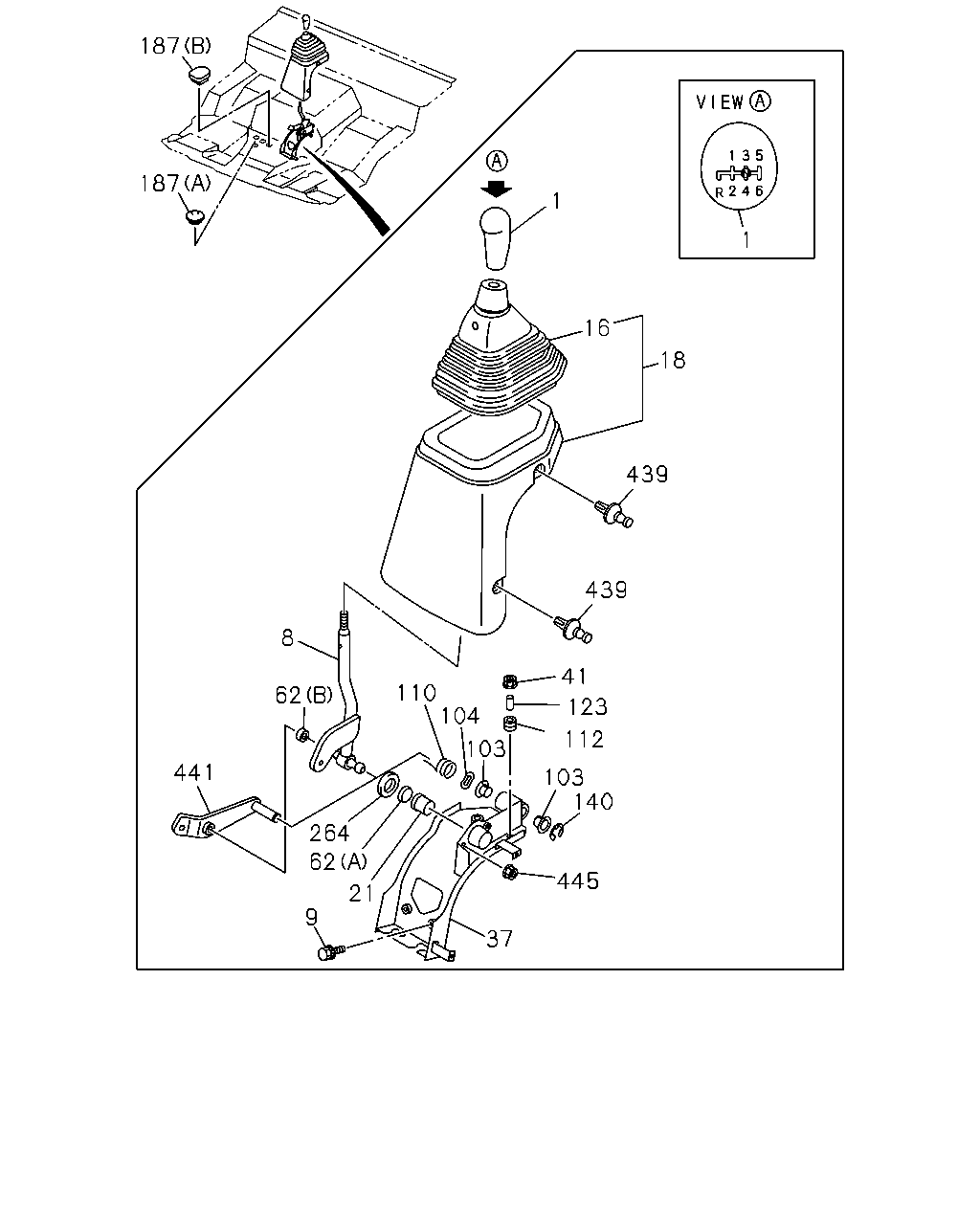

çizim 87292
187 187 1 16 18 439 439 8 41 110 104 62 123 112 103 441 103 140 264 62 445 21 9 37 1
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0612-
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-604-0 01 1 0612-
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0612-
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 0612-
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0612-
21 SEAT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-429-0 01 1 0612-
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-603-0 01 1 0612-
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0612-0805
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806-
62 SEAT; BALL,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33619-427-0 01 1 0612-
62 SEAT; BALL,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97011-900-0 01 1 0612-
103 BUSHING; RELAY LEVER
ASSISTOR SHIFT CONTROL<WX8> ID=14 OD=16 		8-94252-671-0 02 1 0612-
104 WASHER; WAVED
ASSISTOR SHIFT CONTROL<WX8> 		1-09550-009-0 01 1 0612-
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 0612-
112 RUBBER; CUSHION
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-442-0 04 1 0612-
123 COLLAR; DIST,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-443-0 04 1 0612-
140 RING; SNAP
ASSISTOR SHIFT CONTROL<WX8> ID=10 		0-91805-510-0 01 1 0612-
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 0612-
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 0612-
264 PLATE; COVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-430-0 01 1 0612-
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0612-
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-551-1 01 1 0612-
445 NUT; PLATE
ASSISTOR SHIFT CONTROL<WX8> M6 FLANGE 		0-91180-106-0 02 1 0612-
