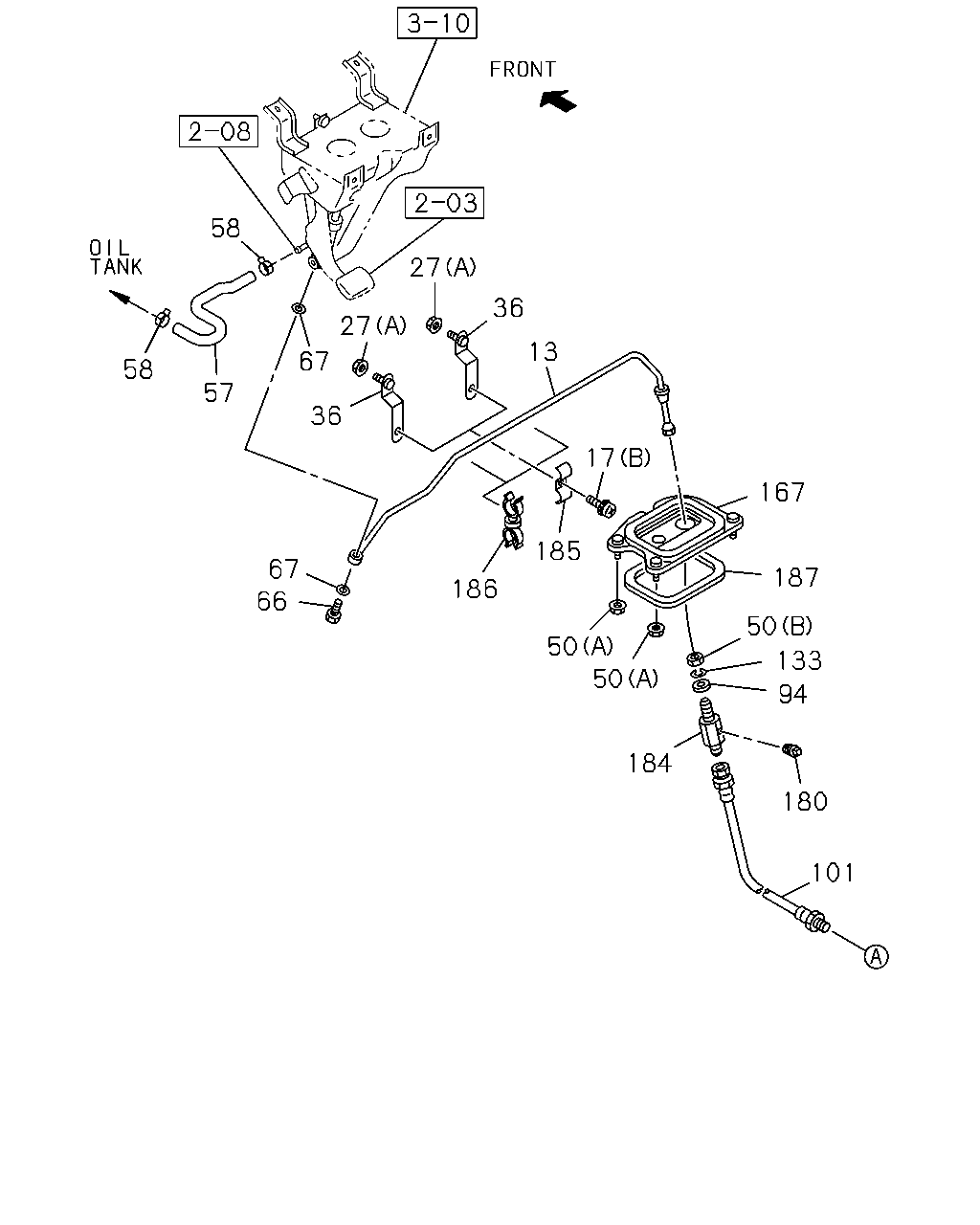

2-05 — CLUTCH PIPING (#26943) — 64 parça

58 27 36 27 13 67 58 57 36 17 167 185 67 66 187 186 50 50 50 133 94 184 180 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47429-143-0	01	1	0612-
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0612-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0612-
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0612-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0612-
36	BRACKET; CLIP	1-79738-186-1	02	1	0612-
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0612-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0612-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0612-
57	HOSE; CLU M/CYL TO OIL TANK	1-47427-312-0	01	1	0612-
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0612-
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0612-0805
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0612-1312
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0612-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0612-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0612-
167	BRACKET; UNION	1-79738-845-1	01	1	0612-
180	PLUG; PIPE	9-09204-510-0	01	1	0612-0804
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0612-0804
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0612-
186	HOLDER; CLIP AIR SUSP DRIVER SEAT<A56> ID=6 & 4.8	8-94313-325-0	01	1	0612-
187	SEAL; BRKT	1-79738-190-0	01	1	0612-

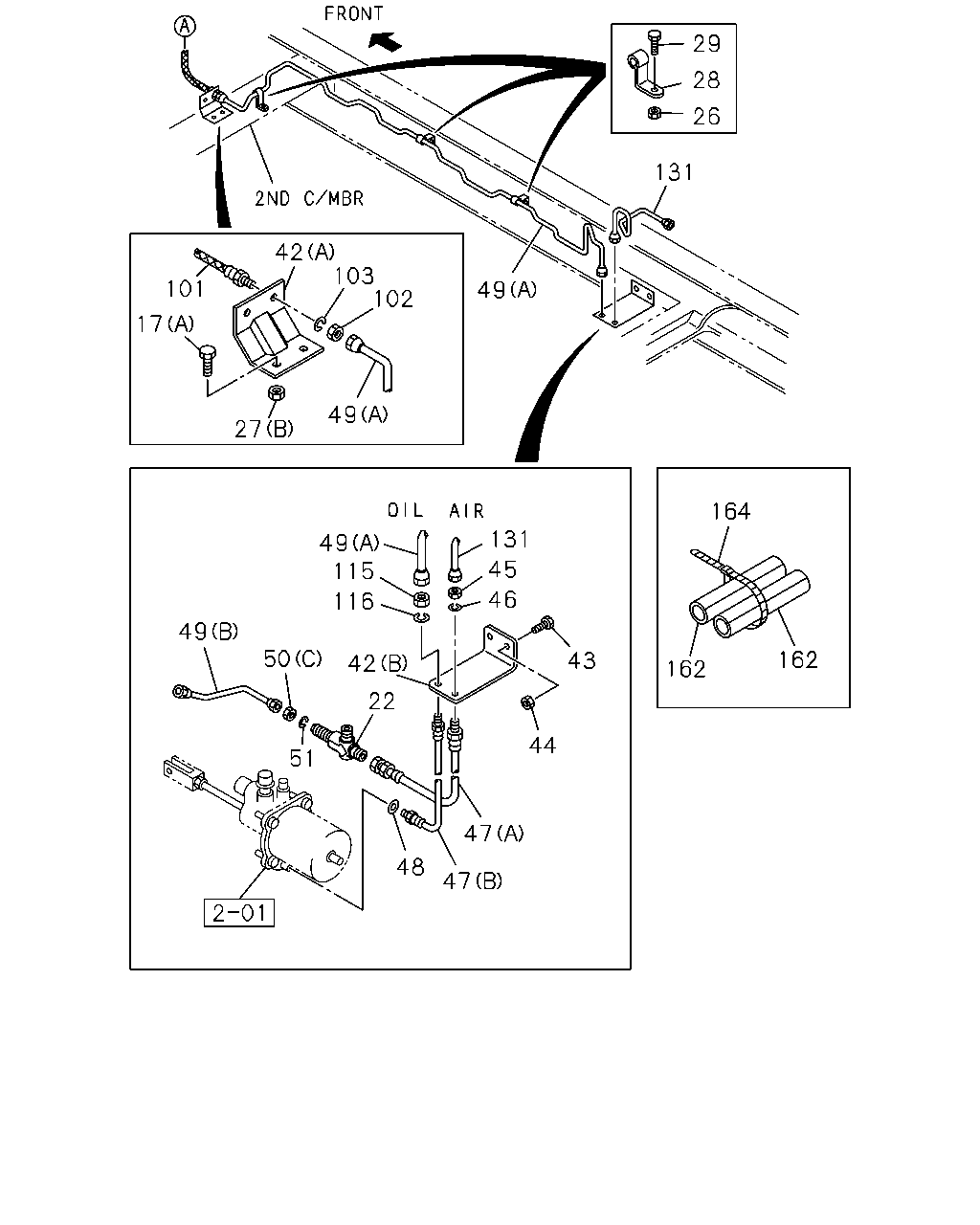

29 28 26 131 42 103 102 101 49 17 49 27 164 131 49 115 45 46 116 49 50 162 43 42 162 22 44 51 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0612-
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0612-
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	0612-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0612-
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0612-
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0612-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0612-
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	03	1	0612-
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0612-
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47477-944-0	01	1	0612-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0612-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0612-
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	0612-
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	02	1	0612-
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0612-
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	02	1	0612-
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> EXC. FIRE TRUCK(RA9) (A) L=430	1-09363-623-0	01	1	0612-
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=520	1-09363-657-0	01	1	0612-
47	HOSE; FLEX,CLU CONT FIRE TRUCK(RA9) (B) L=415	1-09364-490-0	01	1	0612-
47	HOSE; FLEX,CLU CONT FIRE TRUCK(RA9) ASSISTOR SHIFT CONTROL<WX8> (A) L=370	1-09363-621-0	01	1	0612-
47	HOSE; FLEX,CLU CONT EXC. FIRE TRUCK(RA9) (B) L=500	1-09364-329-0	01	1	0612-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0612-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) L=2908 SERVICED BY L=3000	1-47426-397-0	01	1	0612-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0612-
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0612-
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0612-
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (C) M12	9-09840-280-0	01	1	0612-
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=12.2	0-91510-512-0	01	1	0612-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	1-09365-070-1	01	1	0612-0703
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=460	8-98072-345-0	01	1	0704-
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0612-
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0612-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0612-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0612-
131	PIPE; AIR,UNION TO FLEX HOSE	1-49118-853-0	01	1	0612-
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0612-
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0612-
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0612-
