Isuzu WW
▶
TRUCKS
▶
FSR
▶
11041 - FSR(LHD) EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶
2-01 — CLUTCH
(#26941) — 56 parça
◀

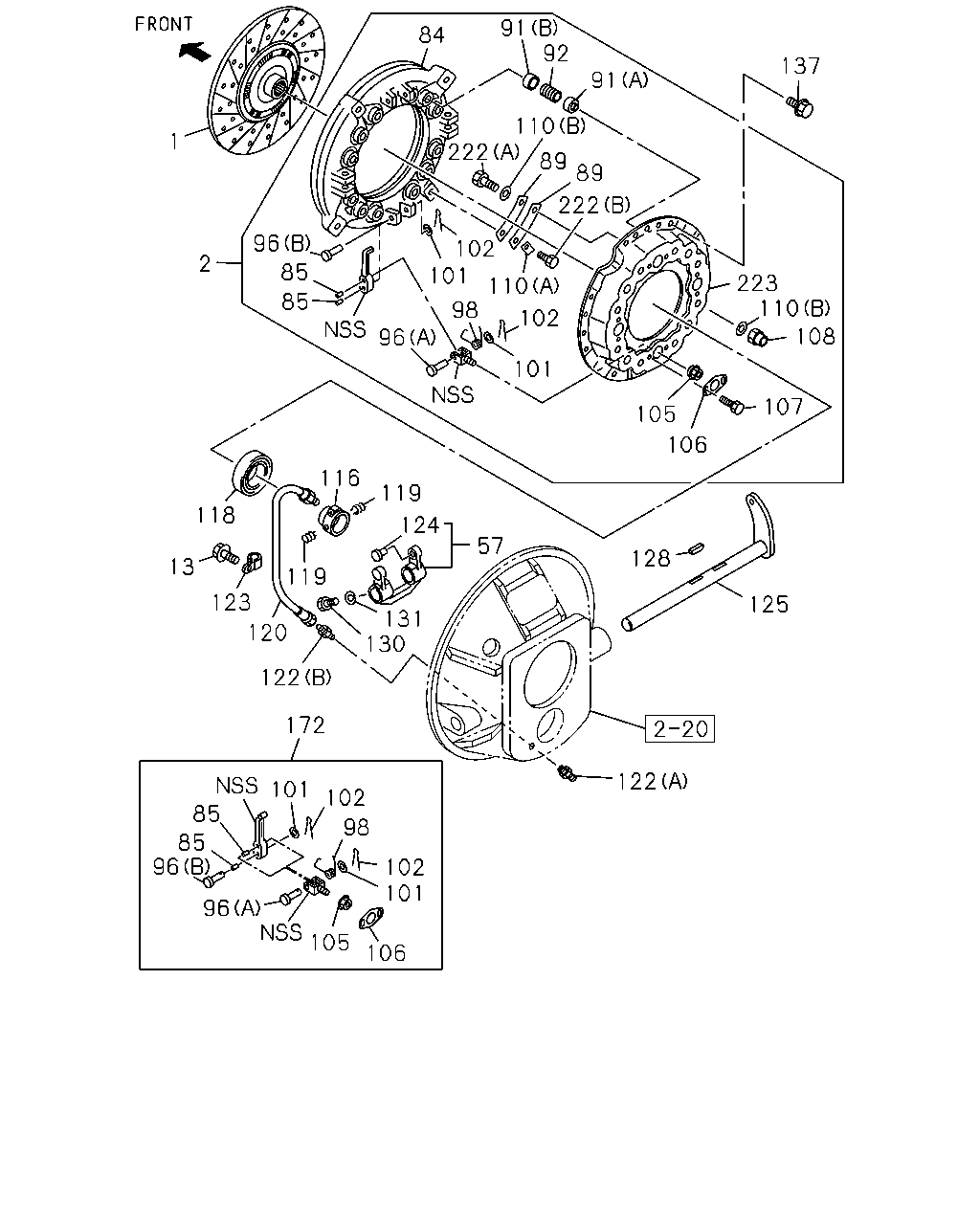

[201A] DISC AND PLATE (45 parça)

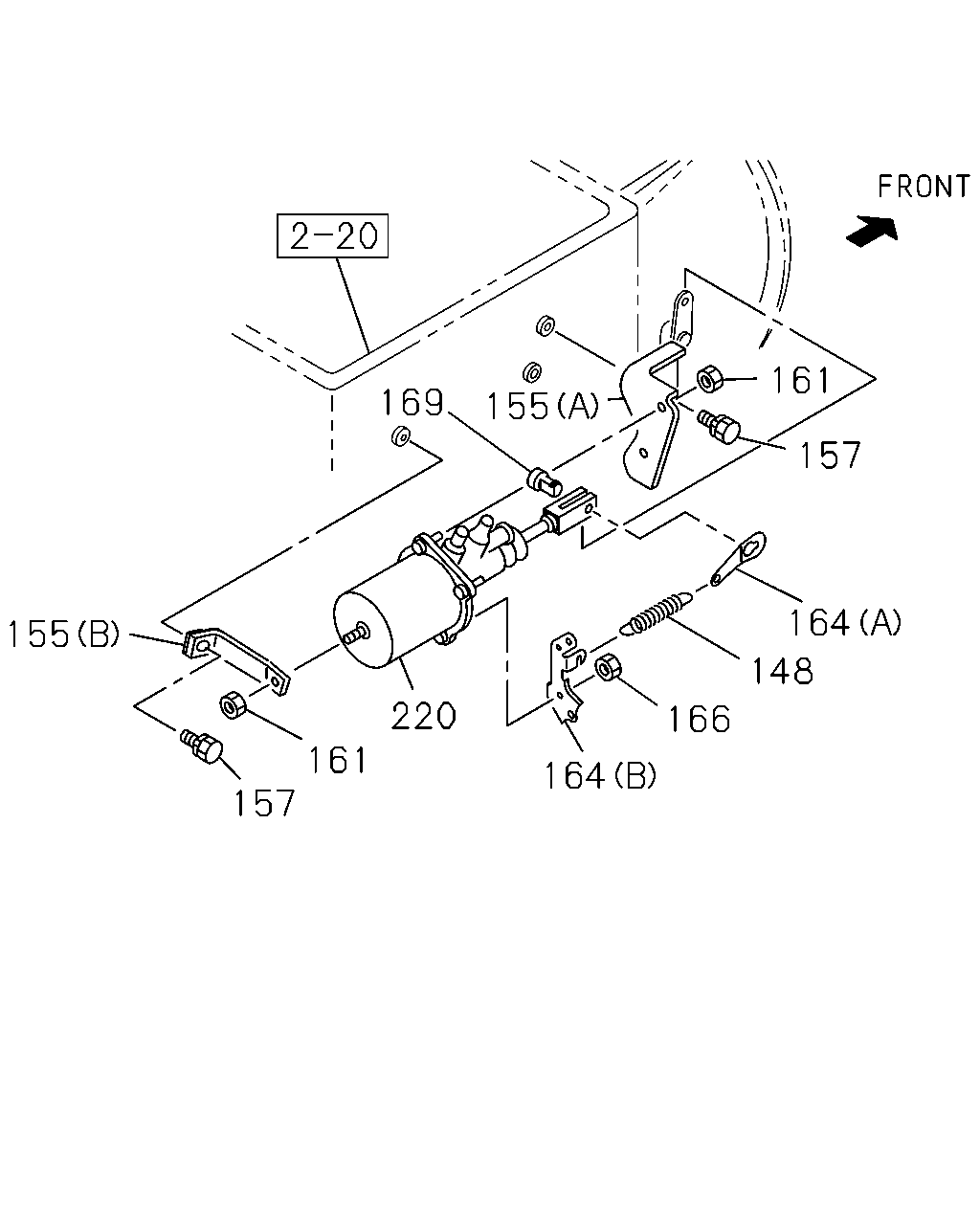

[201A] BOOSTER AND BRACKET (11 parça)
▶
91
92
84
137
91
110
1
222
89
89
102
101
222
96
2
85
223
110
110
85
98
102
108
96
101
107
105
106
116
119
118
124
57
128
13
119
131
130
123
125
120
122
172
122
101
102
85
98
85
96
102
101
96
105
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
BEST VALUE PARTS
1-87610-119-0
01
1
0805-
1
DISC; CLUTCH
15"
1-31240-851-2
01
1
0612-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
1-87610-120-0
01
1
0612-
2
PLATE ASM; PRESSURE,CLU
1-31220-374-2
01
1
0612-
13
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0612-
57
FORK; SHIFT,CLU
1-31340-060-0
01
1
0612-1306
57
FORK; SHIFT,CLU
1-31340-077-0
01
1
1307-
84
PLATE; PRESSURE
15"
1-31221-100-0
01
1
0612-
85
BUSHING; RELEASE LEVER
9-31239-116-0
08
1
0612-
89
PLATE; STRAP
1-31229-050-0
16
1
0612-
91
SEAT; SPR
(A) ID=37 H=25
1-31219-012-0
12
1
0612-
91
SEAT; SPR
(B) ID=37 H=15
1-31219-013-0
12
1
0612-
92
SPRING; CLU
1-31214-086-0
12
1
0612-
96
PIN; RELEASE LEVER
(A) L=49.0
1-31232-005-0
04
1
0612-
96
PIN; RELEASE LEVER
(B) L=57.0
1-31232-014-0
04
1
0612-
98
SPRING; RETURN
1-31233-003-0
04
1
0612-
101
WASHER; RELEASE LEVER
1-31239-058-0
08
1
0612-
102
PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22
9-08103-022-0
08
1
0612-
105
NUT; SUPPORT
1-31235-014-0
04
1
0612-
106
PLATE; LK,LEVER SUPPORT
1-31239-019-0
04
1
0612-
107
BOLT; LK PLATE
1-31239-061-0
08
1
0612-
108
NUT; STRAP
1-09449-036-0
04
1
0612-
110
WASHER; SPECIAL,STRAP
(A) T=1.2
1-31229-009-0
04
1
0612-
110
WASHER; SPECIAL,STRAP
(B) T=3.2
8-97374-512-0
08
1
0612-
116
BLOCK; SHIFT,CLU
1-31321-075-1
01
1
0612-1204
116
BLOCK; SHIFT,CLU
1-31321-113-0
01
1
1205-1306
116
BLOCK; SHIFT,CLU
1-31321-114-0
01
1
1307-
118
BEARING; CLU RELEASE
BEST VALUE PARTS
1-87610-108-0
01
1
0612-
118
BEARING; CLU RELEASE
1-09820-117-0
01
1
0612-
119
SPRING; SHIFT FORK
1-09585-053-1
01
1
0612-
119
SPRING; SHIFT FORK
1-09585-054-1
01
1
0612-
120
HOSE; FLEX,SHIFT BLOCK,CLU
L=390
1-09365-143-0
01
1
0612-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT
0-90301-410-0
01
1
0612-
122
NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10
1-09660-710-0
01
1
0612-
123
CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20
0-95234-835-0
01
1
0612-
124
BEARING; CAM,SHIFT FORK
1-31349-004-1
02
1
0612-
125
SHAFT; CLU
1-31342-169-1
01
1
0612-
128
KEY; FEATHER,CLU SHAFT
9-09867-008-0
02
1
0612-
130
SCREW; SHIFT FORK
M8X14
0-61200-814-0
01
1
0612-
131
WASHER; LK,SHIFT FORK
ID=8.2
0-91510-508-0
01
1
0612-
137
BOLT; CLU COVER
M10X20 FLANGE
0-28151-020-0
12
1
0612-
172
LEVER KIT; RELEASE,CLU
1-87831-170-1
01
1
0612-
222
BOLT; STRAP
(B) M10X23.2
1-09040-042-0
04
1
0612-
222
BOLT; STRAP
(A) M10X26 HEX SOCKET
1-09040-043-0
04
1
0612-
223
COVER; CLU
1-31211-019-1
01
1
0612-
161
155
169
157
164
155
148
220
166
161
157
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
148
SPRING; CLU RETURN
L=135
1-09583-305-0
01
1
0612-
155
BRACKET; MINIPACK
(A)
1-31429-175-2
01
1
0612-
155
BRACKET; MINIPACK
(B)
1-31429-176-0
01
1
0612-
157
BOLT; BRKT
M10X18 FLANGE
0-28181-018-0
03
1
0612-
161
NUT; BRKT
M8 FLANGE
0-91180-208-0
03
1
0612-
164
EYE; SPRING
(A)
1-31426-041-0
01
1
0612-
164
EYE; SPRING
(B)
1-47477-789-0
01
1
0612-
166
NUT; SPRING EYE
M8 FLANGE
0-91180-208-0
02
1
0612-
169
PIN; JOINT,MINIPACK
1-31424-009-0
01
1
0612-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS
1-87610-083-0
01
1
0612-
220
BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT.
1-31800-388-3
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
